YHKJ Ultra-thin Solid-state Relay Module GR05DD0606A

• Contact Form : 1NO
• Contact Load : Low Power
• Max. switching current : 2A
• Rated Current : 2A
• Model Number : GR05DD
• Brand Name : YHKJ
• Place of Origin : Zhejiang, China
• Contact Material : Copper
• Max. switching voltage : 32V
• Pins : 4P
• Power Source : DC
• Protect Feature : Sealed
• Size : Miniature
• Terminal Shape : Pin Type
• Theory : Solid State Relay
• application : General Purpose

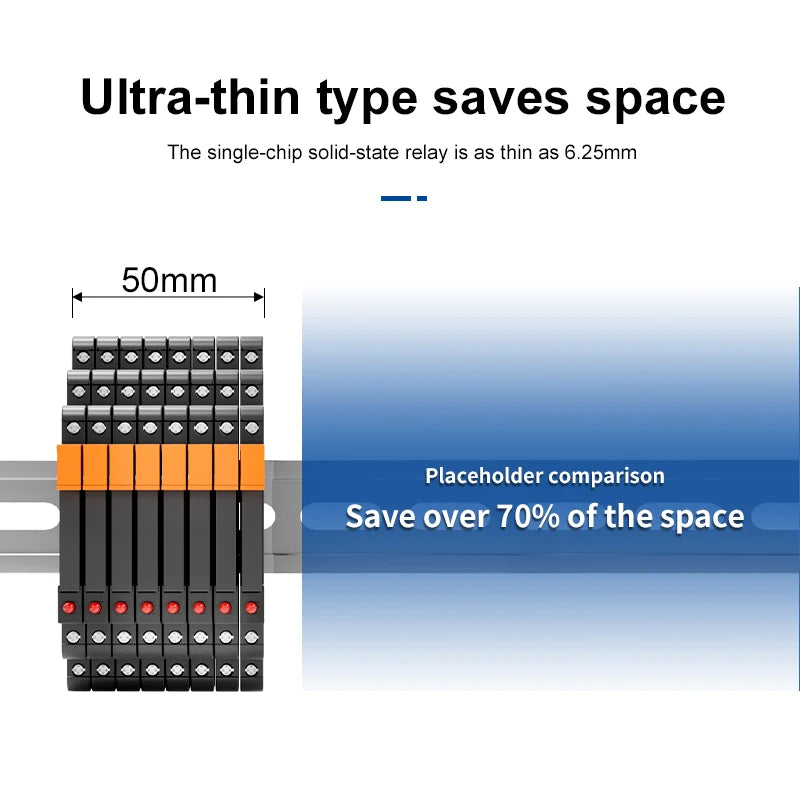

6.25mm ultra-thin thickness: only 6.25mm thick, 18g lightweight design; Compared with traditional electromagnetic relays, it can save more than 70% of installation space and is an ideal choice for dense wiring in PLC control panels, miniaturized equipment, and electrical cabinets.

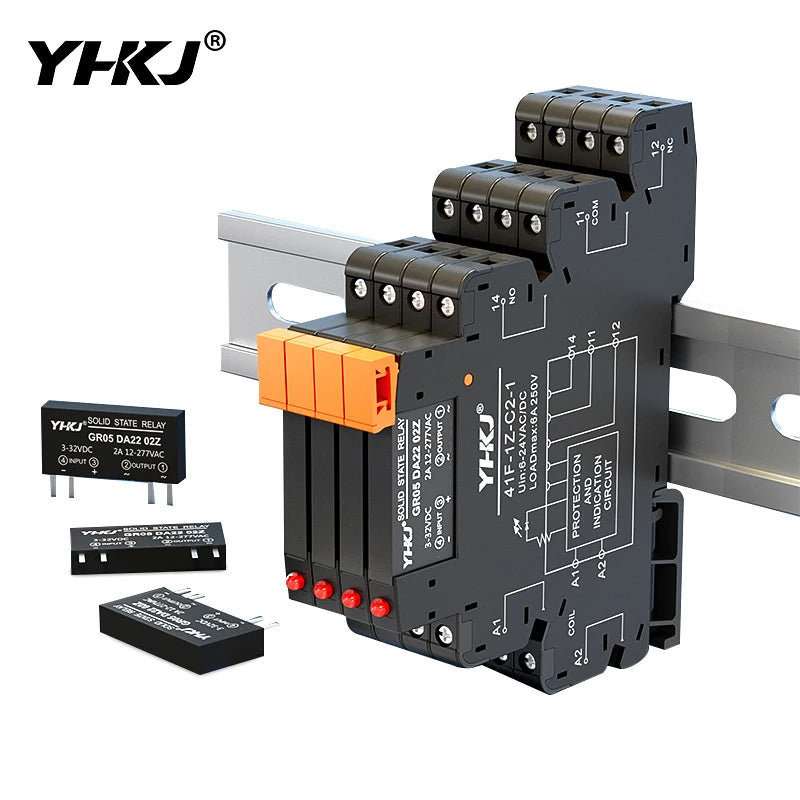

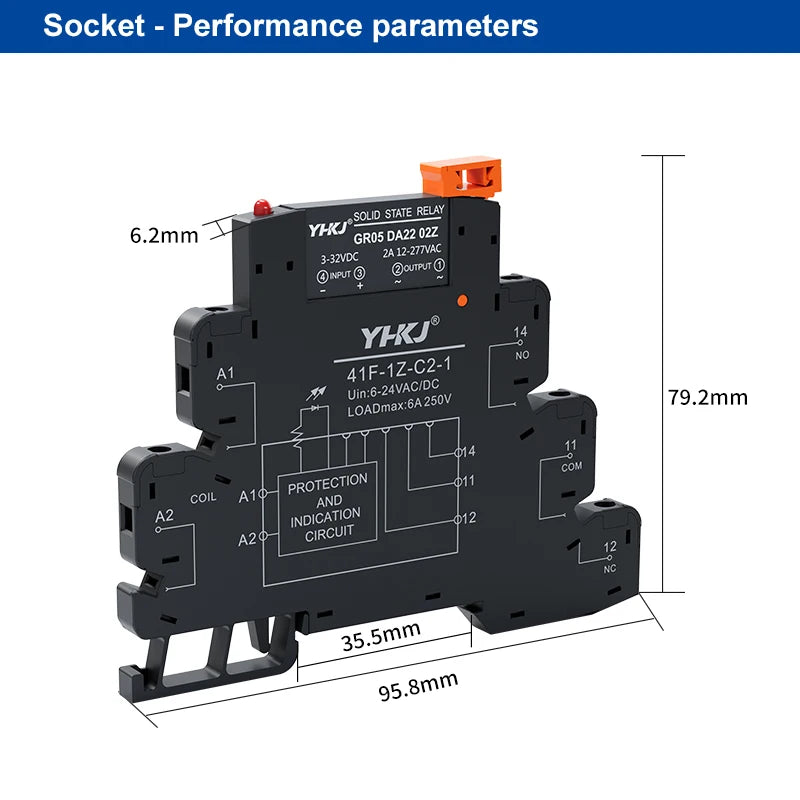

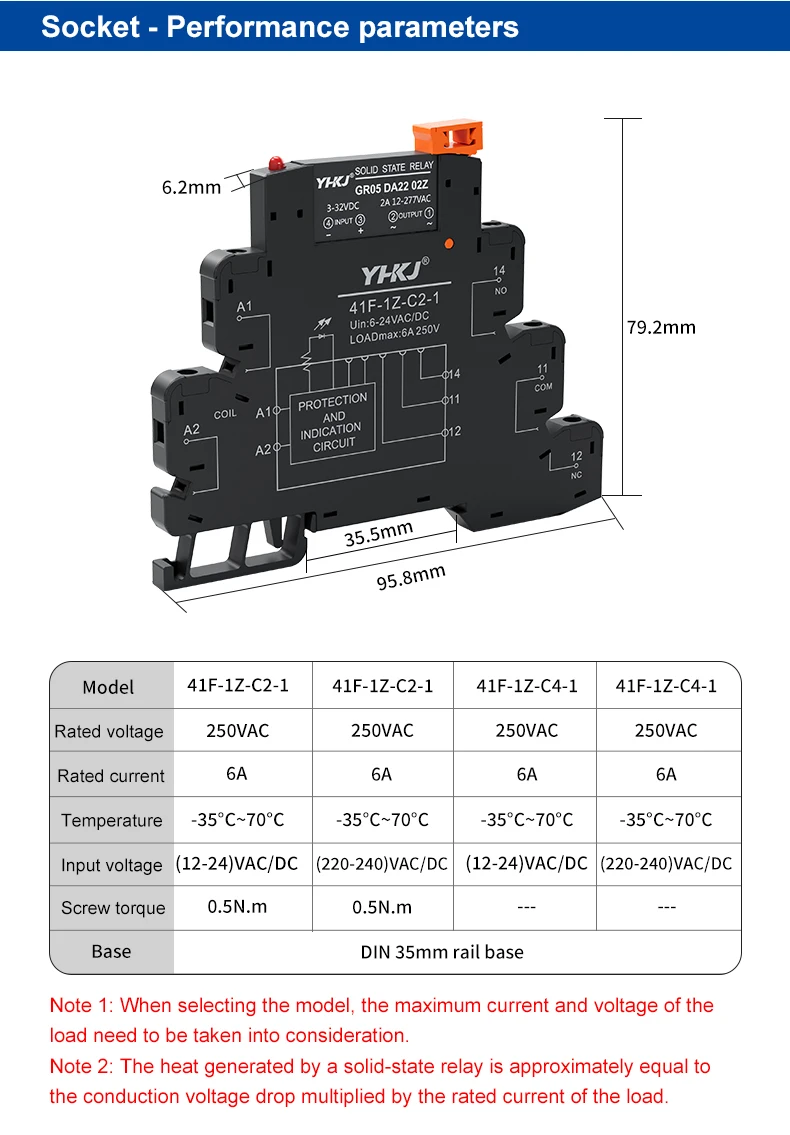

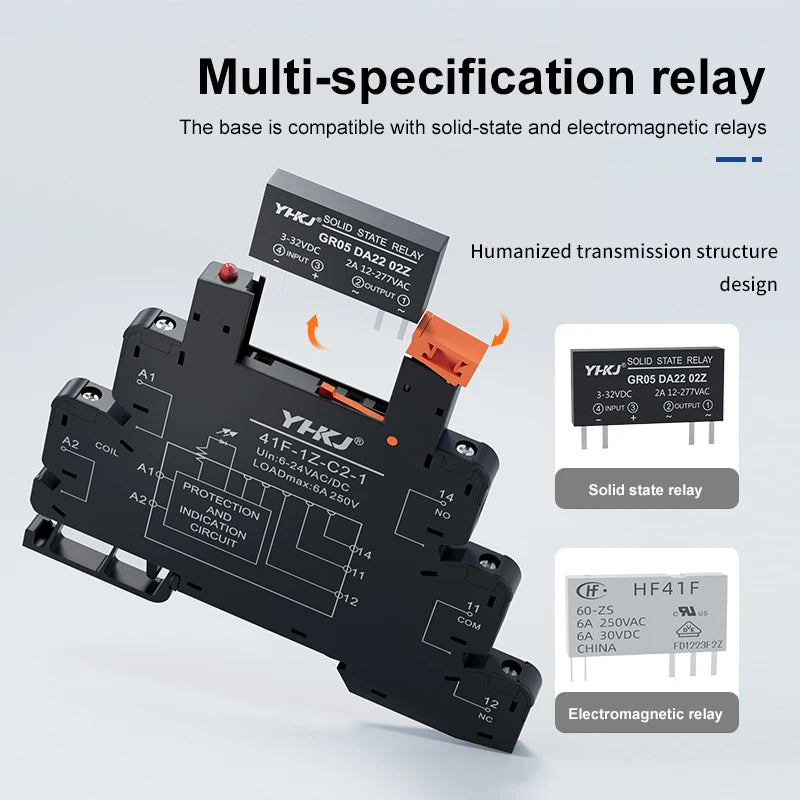

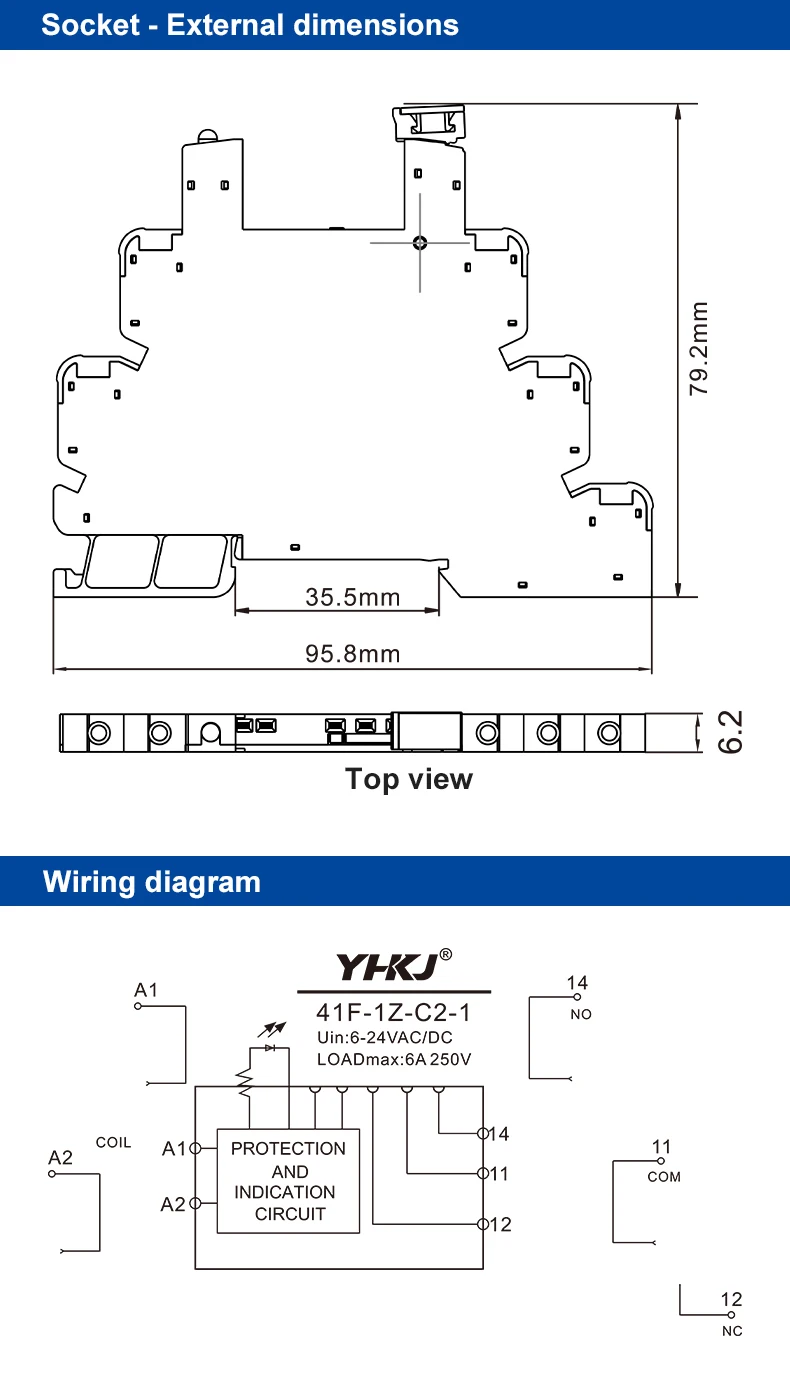

Compatible with standard 35mm DIN rail installation; Spring terminal wiring is fast, easy to disassemble, and improves maintenance efficiency.

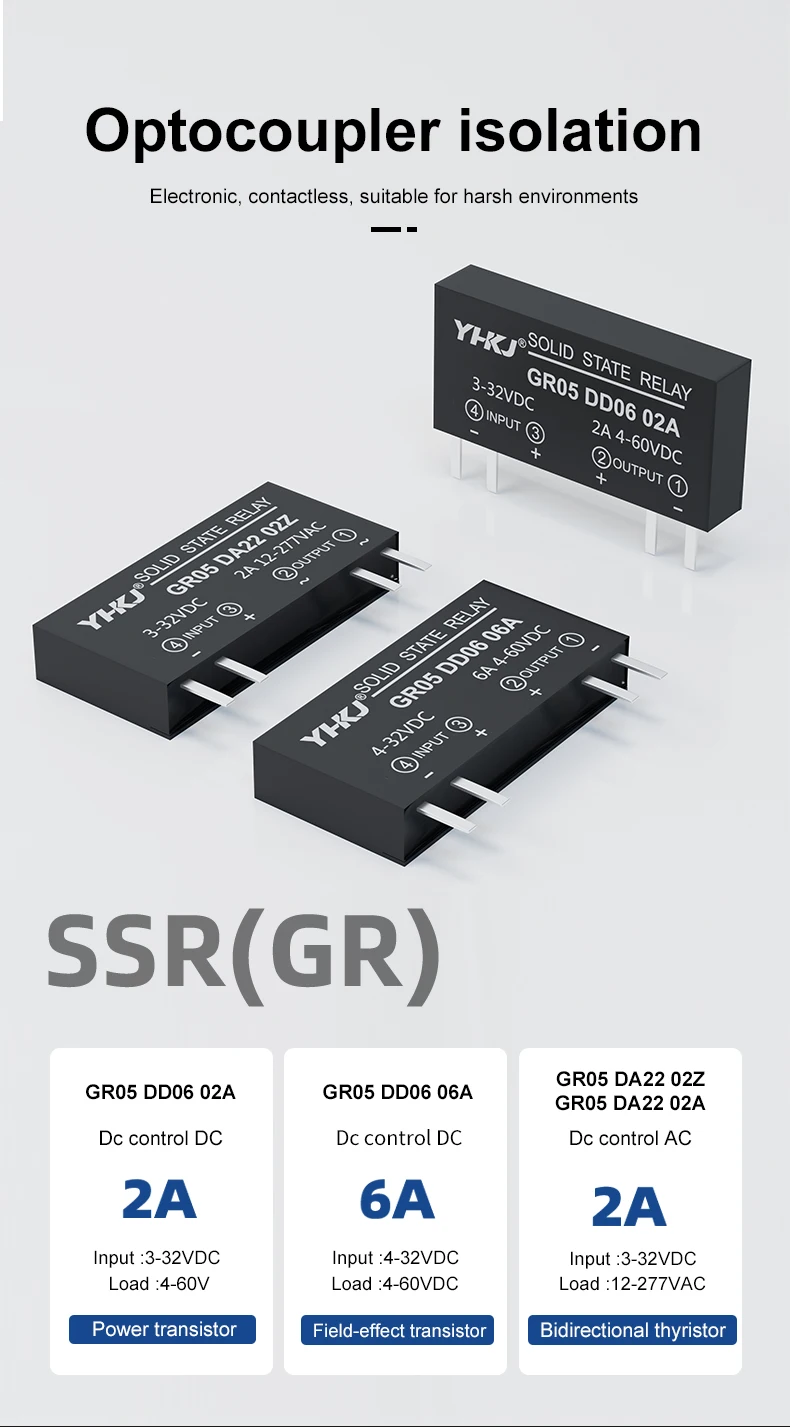

Optocoupler isolation and mute operation: Non contact electronic switch design, no mechanical wear or arc generation; Silent operation, high switching frequency, long service life, no maintenance required.

Excellent electrical performance: ≥ 2000VAC insulation strength, 500M Ω insulation resistance; Reduced conduction voltage, low cut-off leakage current, energy-saving, and stable long-term continuous operation.

Adopting flame-retardant materials for sealing and protection design, dustproof and moisture-proof; Suitable for a wide temperature range of -30 ℃~80 ℃, with stable performance in harsh industrial environments.

Built in LED status indicator light, real-time display of working status, easy to quickly diagnose faults; Capable of withstanding transient voltages up to 600VPK and strong anti-interference ability.

Widely used in machine tools, textile machinery, automated production lines, PLC control systems, household appliances, and electronic equipment; It is an ideal choice for signal switching, load driving, and circuit control in manufacturing, automation, and commercial fields.
