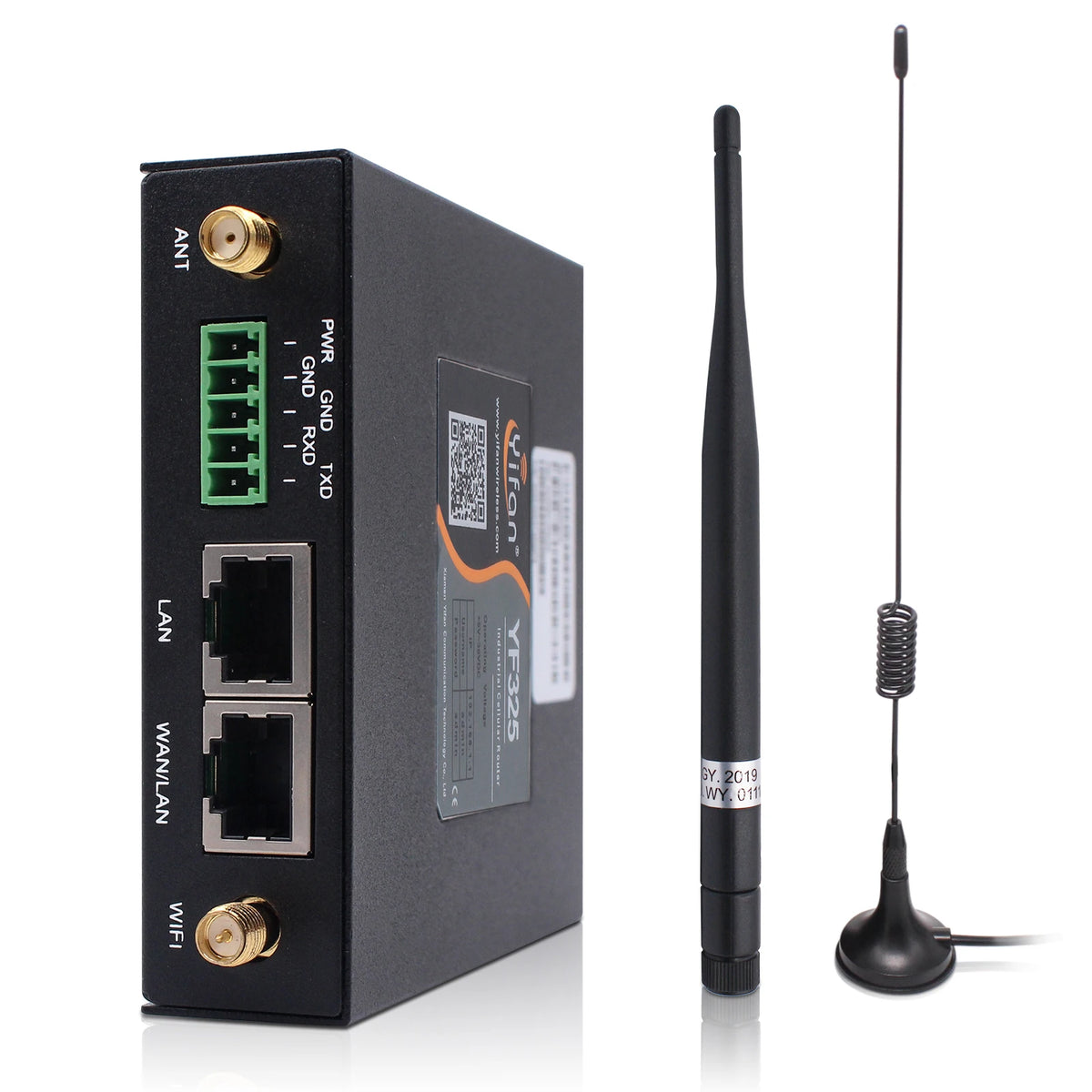

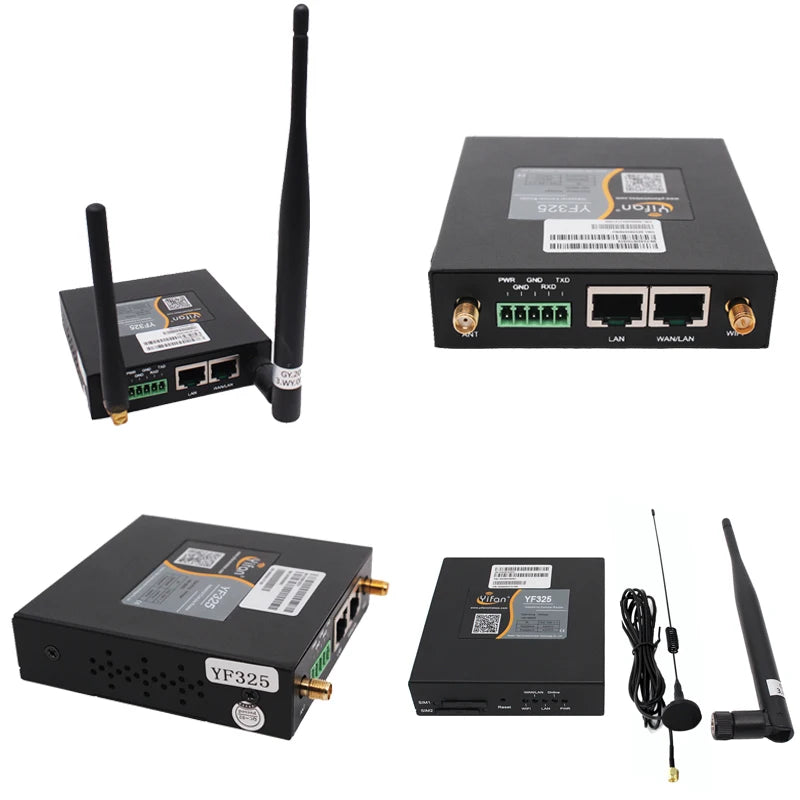

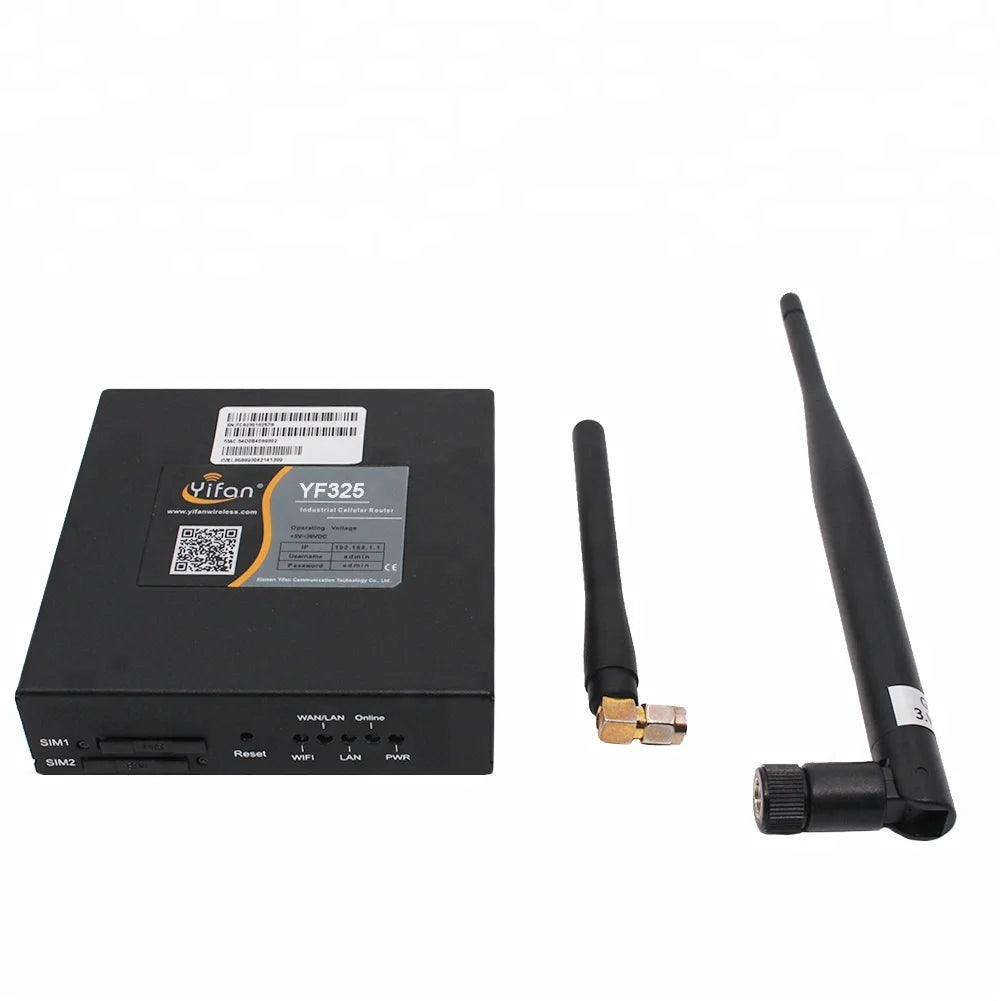

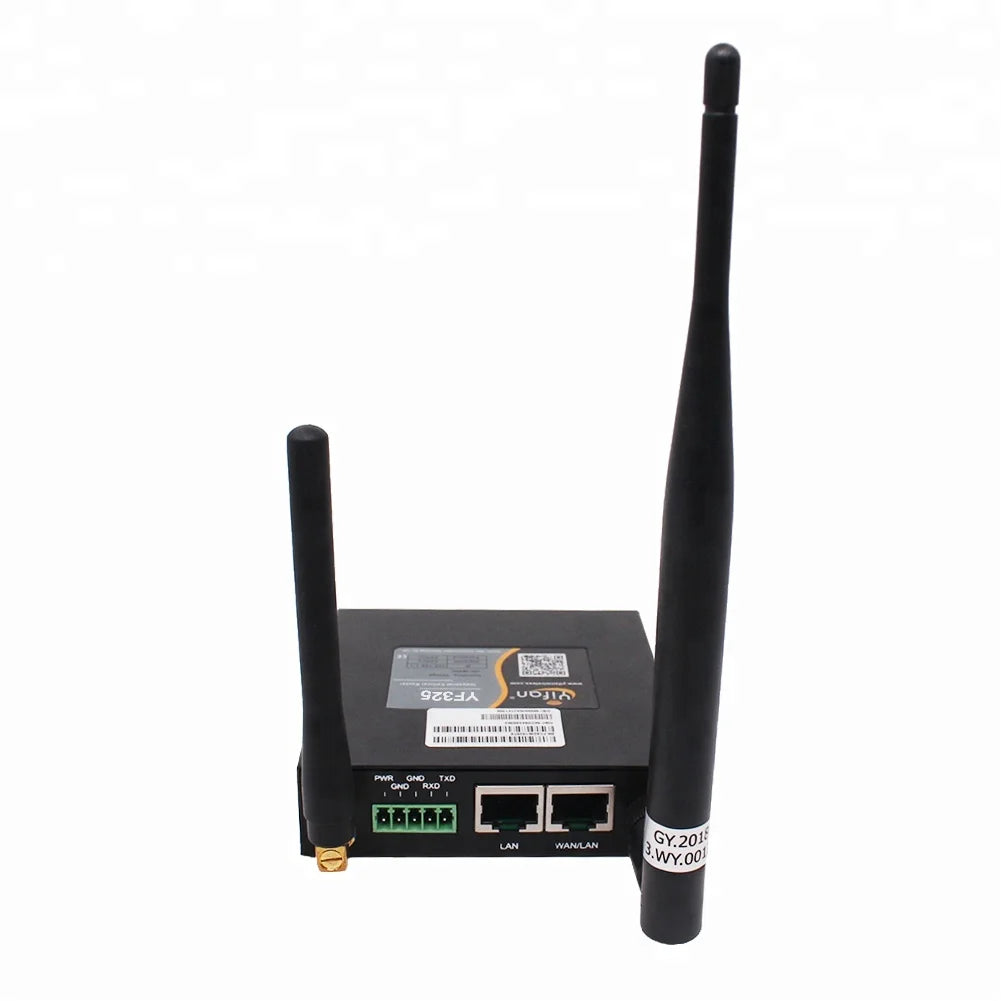

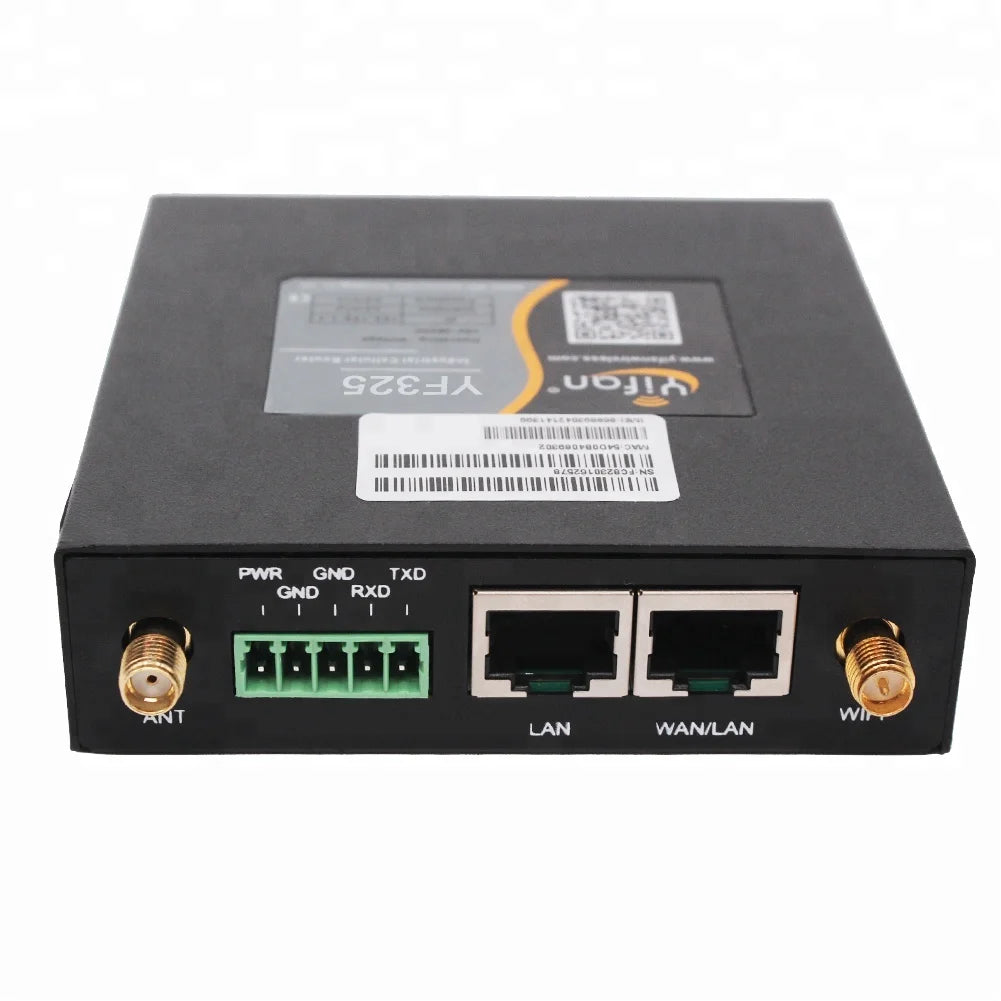

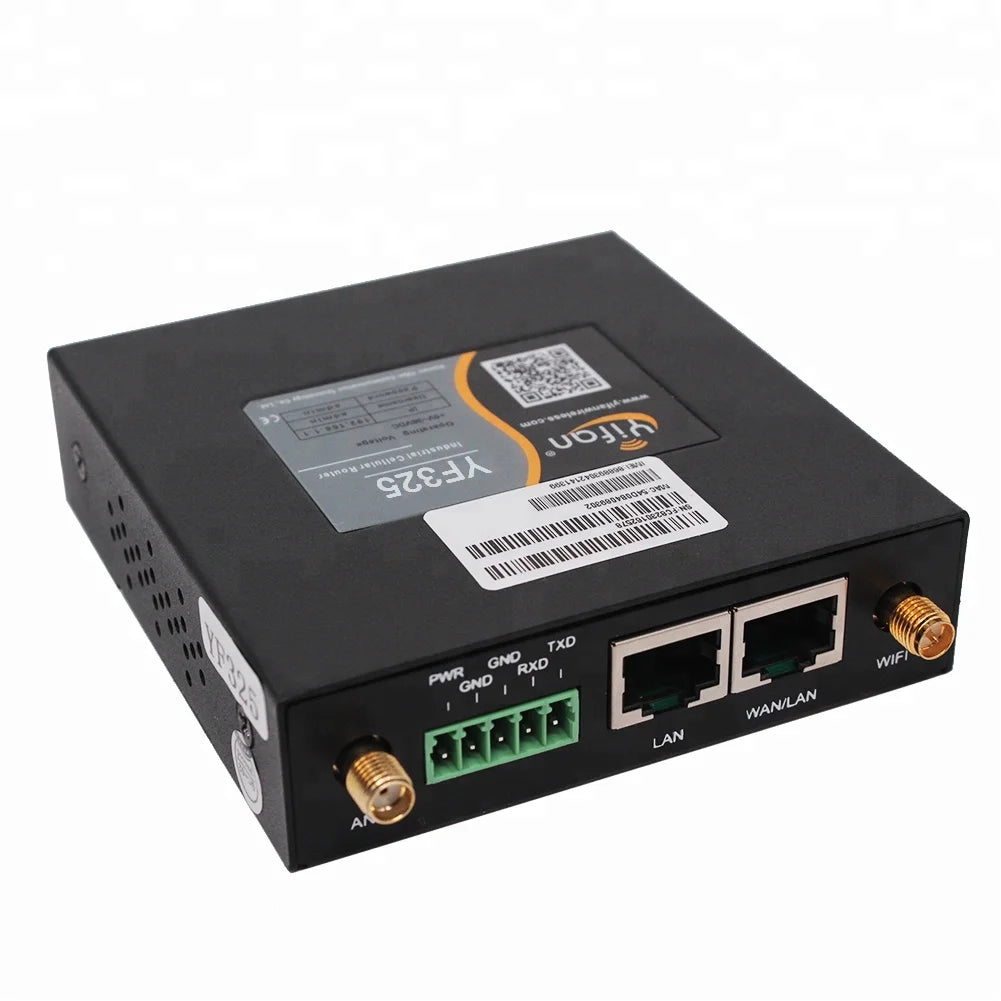

YF325 Industrial 4G LTE Modem WiFi Router with Dual Sim Card Support

$399.05 NZD

~~$599.15 NZD~~ $399.05 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

color White

model number YF325-L

2.4g wi-fi transmission rate : 150 Mbps
max. lan data rate : 150Mbps
type : Wireless
wifi supported frequency : 2.4G
with modem function : Yes
Brand : Yifan
place of origin : Fujian, China
application : ENTERPRISE
Encryption Type : WPA2-PSK, WPA, WPA2-Personal
function : FireWall, QoS, VPN
lan ports : 1
products status : New
standards and protocols : Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
WAN Ports : 1
WiFi Transmission Standard : 802.11n
wired transfer rate : 10/100Mbps
Products Status : Stock
Color : Black
Product name : 4G LTE Wifi Router
Network : LTE UMTS GPRS
Interface : 2LAN or 1 Lan/1 WAN
Antenna : External 5DBI
Weight : 255g
size : 93x89x22mm
Certification : CE ROHS

Main Functions

*High-powered industrial cellular module
*High-powered industrial 32bits CPU

*Support hardware and software WDT

*Support auto recovery mechanism, including online detect, auto redial when offline to make router always online

*Support multiple WAN access methods, including static IP, DHCP,PPPOE,3G/UMTS/4G/LTE,DHCP-4G.
*Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL) (optional)
*Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
*Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
*Support local and remote firmware upgrade, import and export configure file.

Frequency band:

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20 (2100/1900/1800/1700/850/2600/

900/800MHz)
FDD: B2/B4/B5/B12/13/B17/B25/B26 (Optional), B1/B2/B3/B5/B7/B8/B20/B28 (Optional)
LTE TDD: B38/B39/B40/B41
HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz
EDGE/GPRS/GSM 1900/1800/900/850MHz

Bandwith

LTE FDD: Download speed 150Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps
