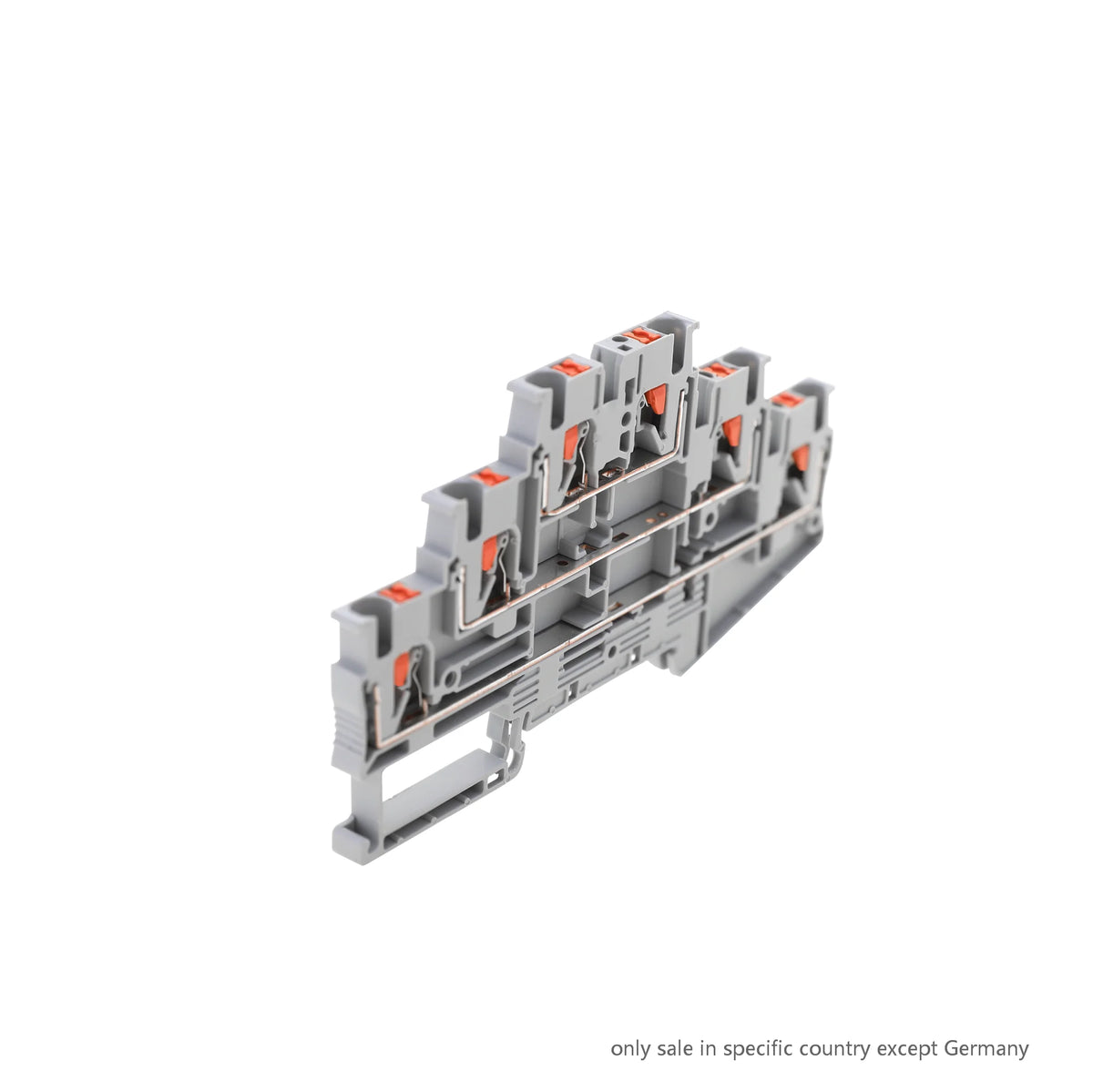

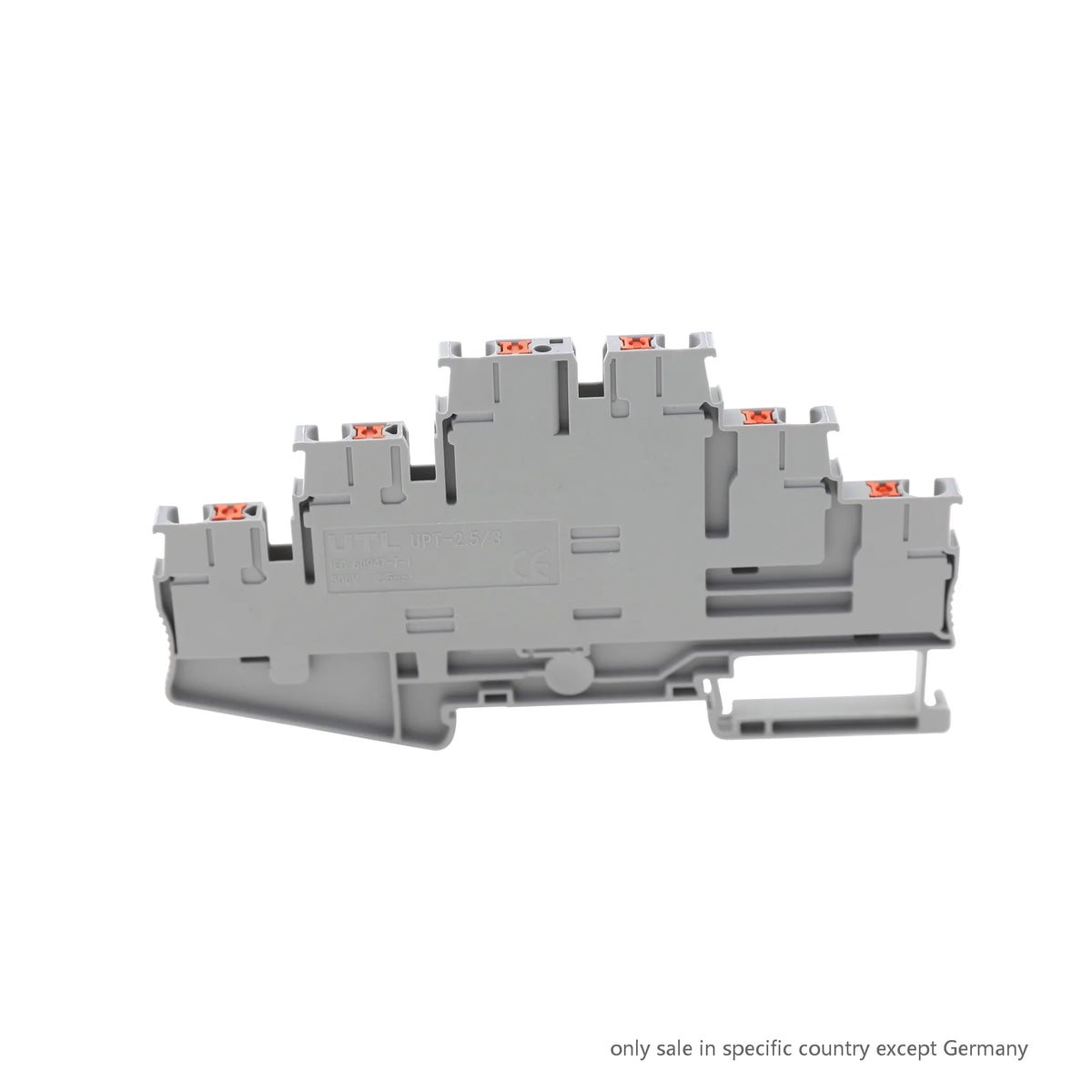

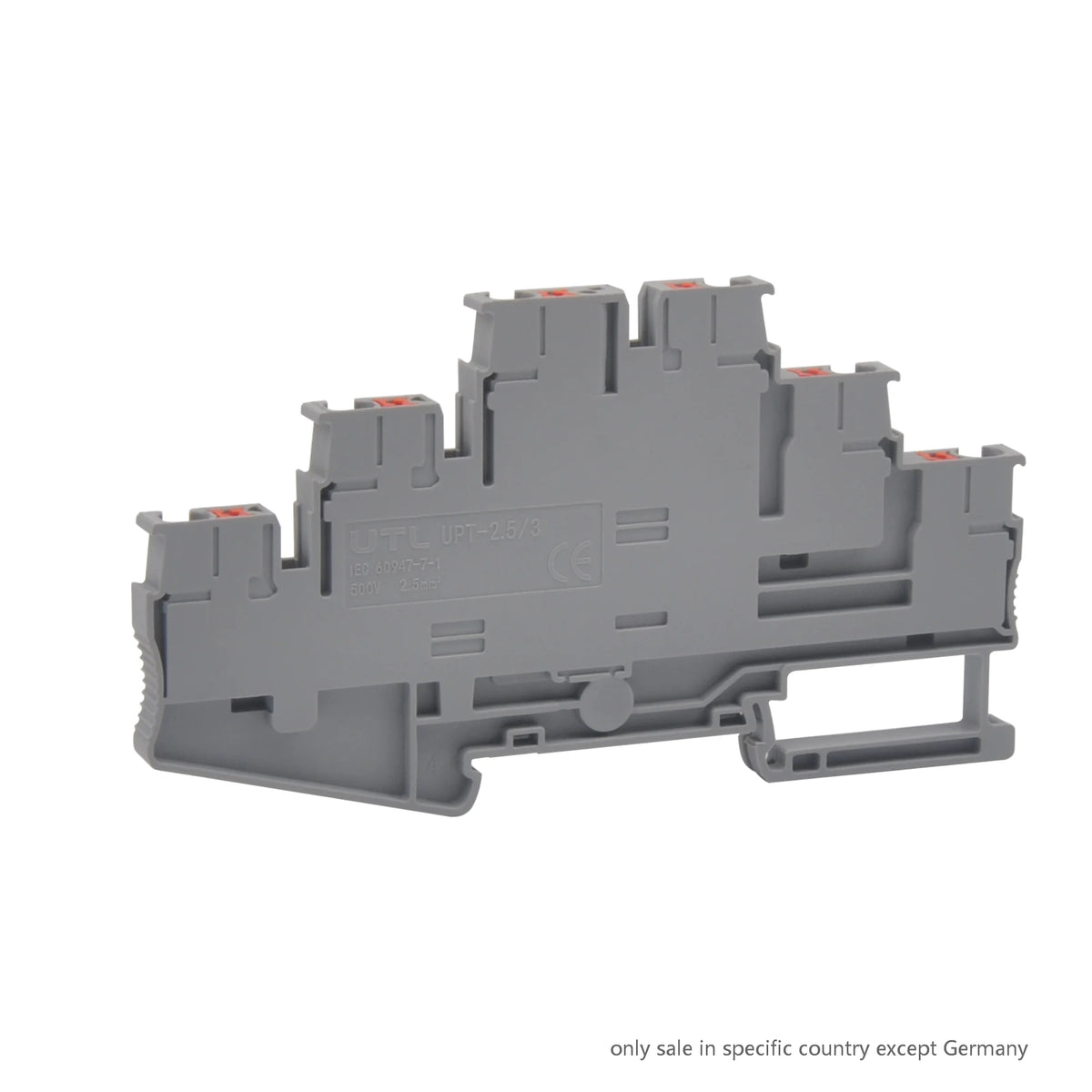

UTL Triple Level Push-in Type Terminal Blocks PT- 2,5/3L

$6.33 NZD

~~$0.00 NZD~~ $6.33 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

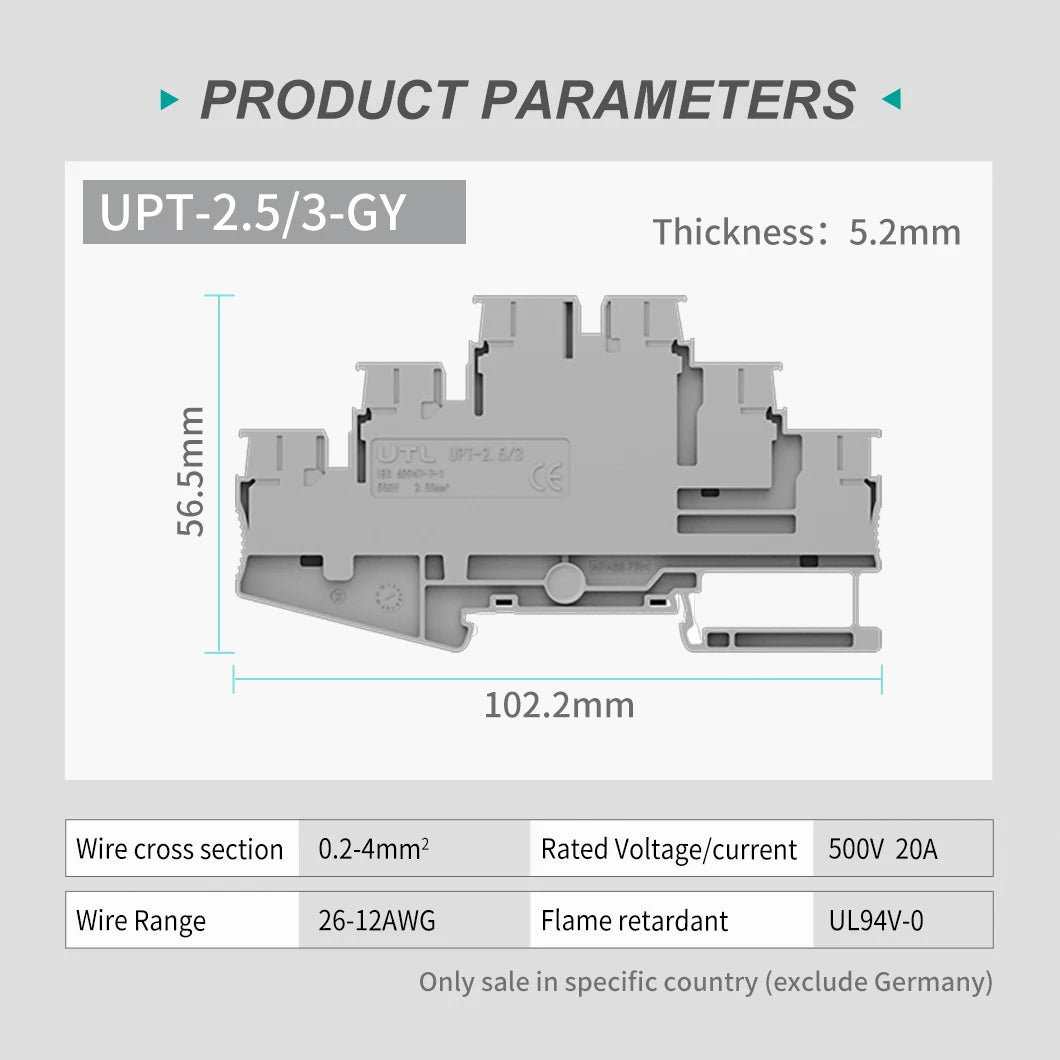

Rated Current 20A

Rated Voltage 500 V

Application : Automotive, Industrial, Spring Clamp Terminal Block, Wire Termination
Contact Material : Copper
Connection Method : Push-In Connection
Conductor Size : 21 - 30 AWG
Type : Feed Through
Max Continuous Amp : 20A
Number of Pole : 6
Model Number : UPT-2.5/3
Brand Name : UTL
Place of Origin : ZHEJIANG
Number Of Contacts : 1 - 10
Model No. : UPT-2.5/3
Number of connection points : 6
Color : Grey,blue,yellow green
Pollution degree : 3
Rated surge voltage : 8kv
Rated voltage : 500v
Nominal current : 20A
Min.connection capacity : 0.2 mm²/AWG
Max.connection capacity : 4 mm²/AWG
Line direciton : front inlet
