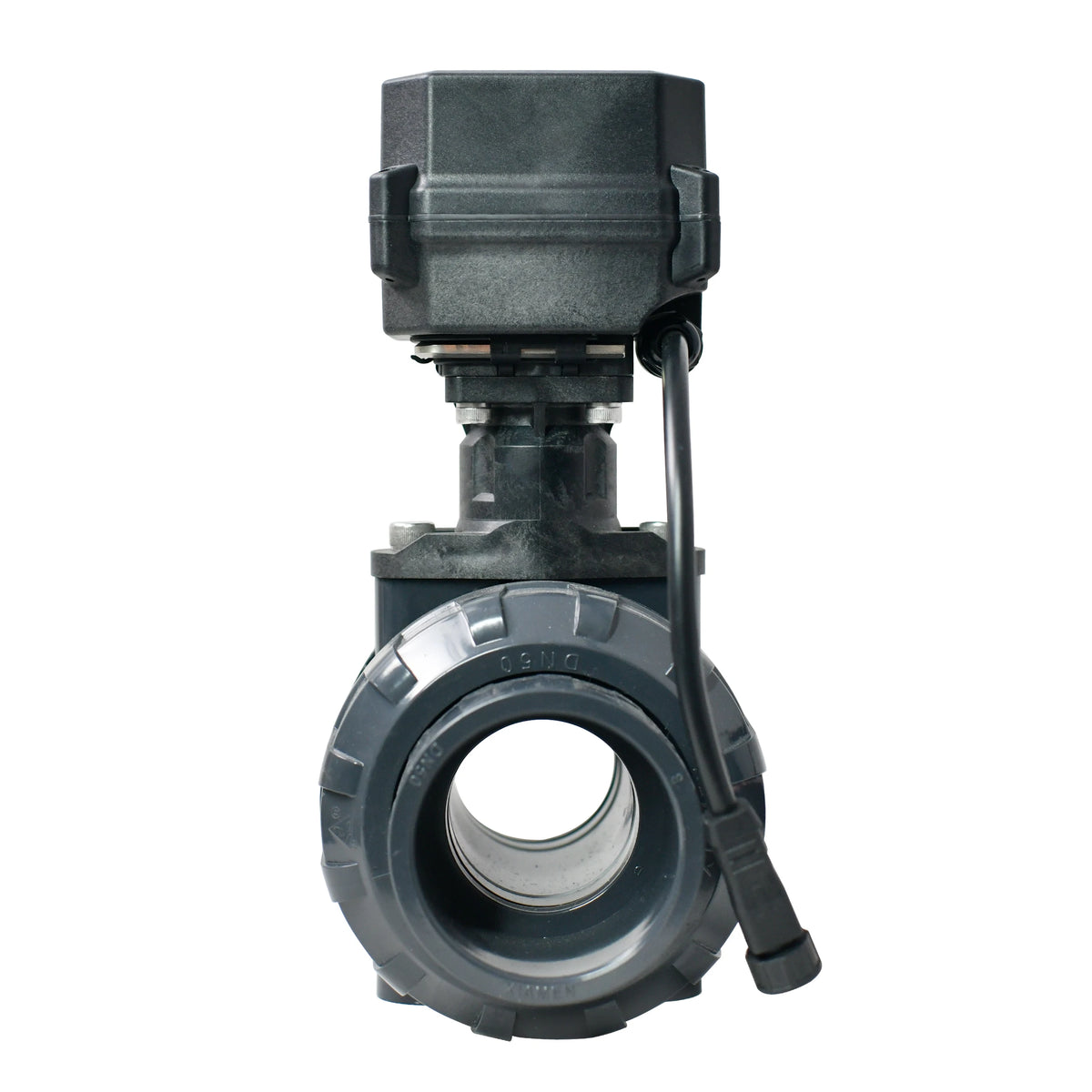

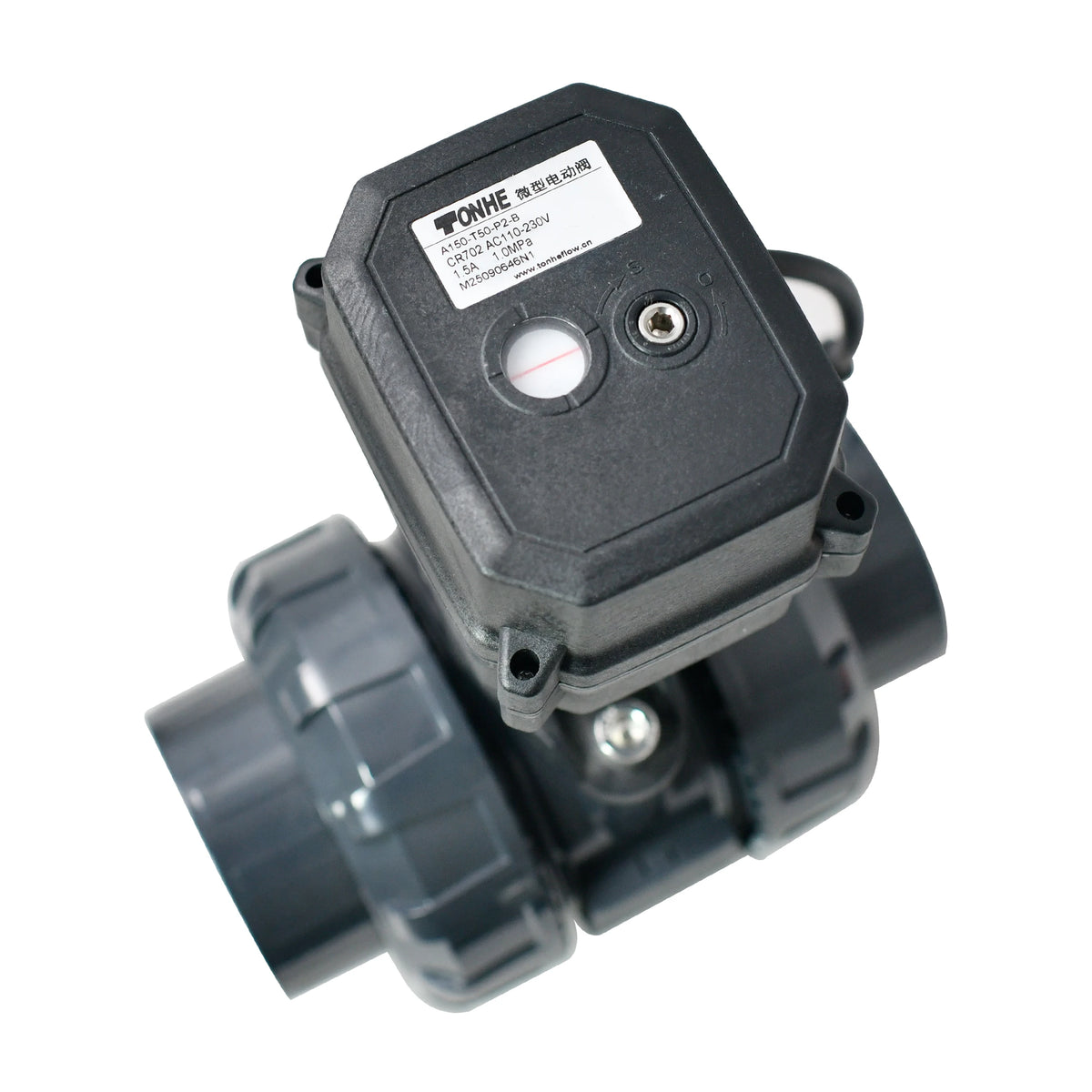

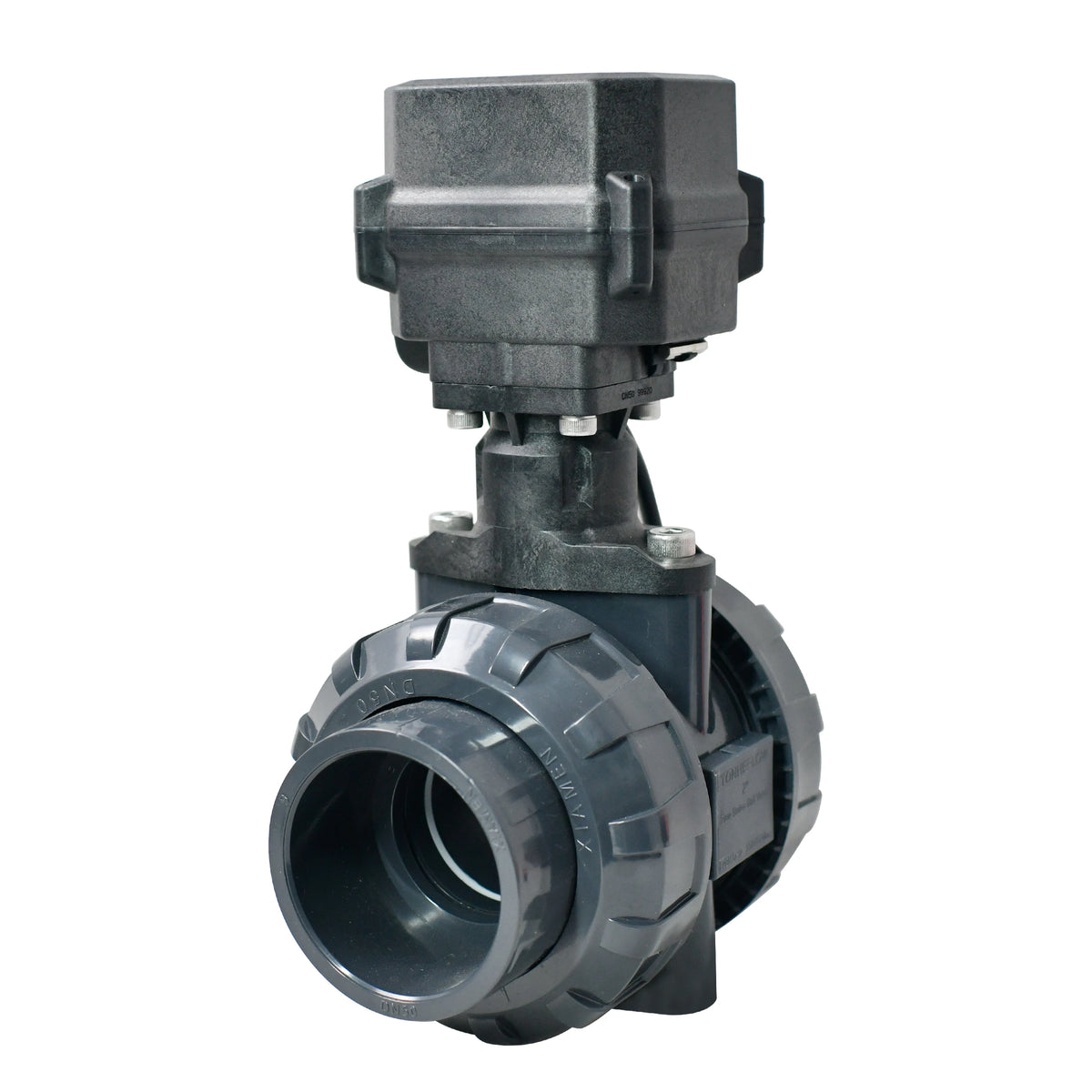

TONHE 2 Way Type CR202 NC Motorized UPVC Ball Valve

• application : General
• Operating Temp. Range : 2-55℃
• Operational Pressure Range : 0-1 MPa
• port size : 1/2 in, 3/4 in, 1 in, 1 1/2 inch, 2 inch, 1-1/4 inch
• power : Electric
• structure : Ball
• model number : B150-T50-P2-B
• brand name : TONHEFLOW
• place of origin : Zhejiang, China
• customized support : OBM, ODM, OEM
• media : Water
• temperature of media : Normal Temperature
• Voltage : DC12-24V AC24V, AC110-230V
• warranty : 1 year

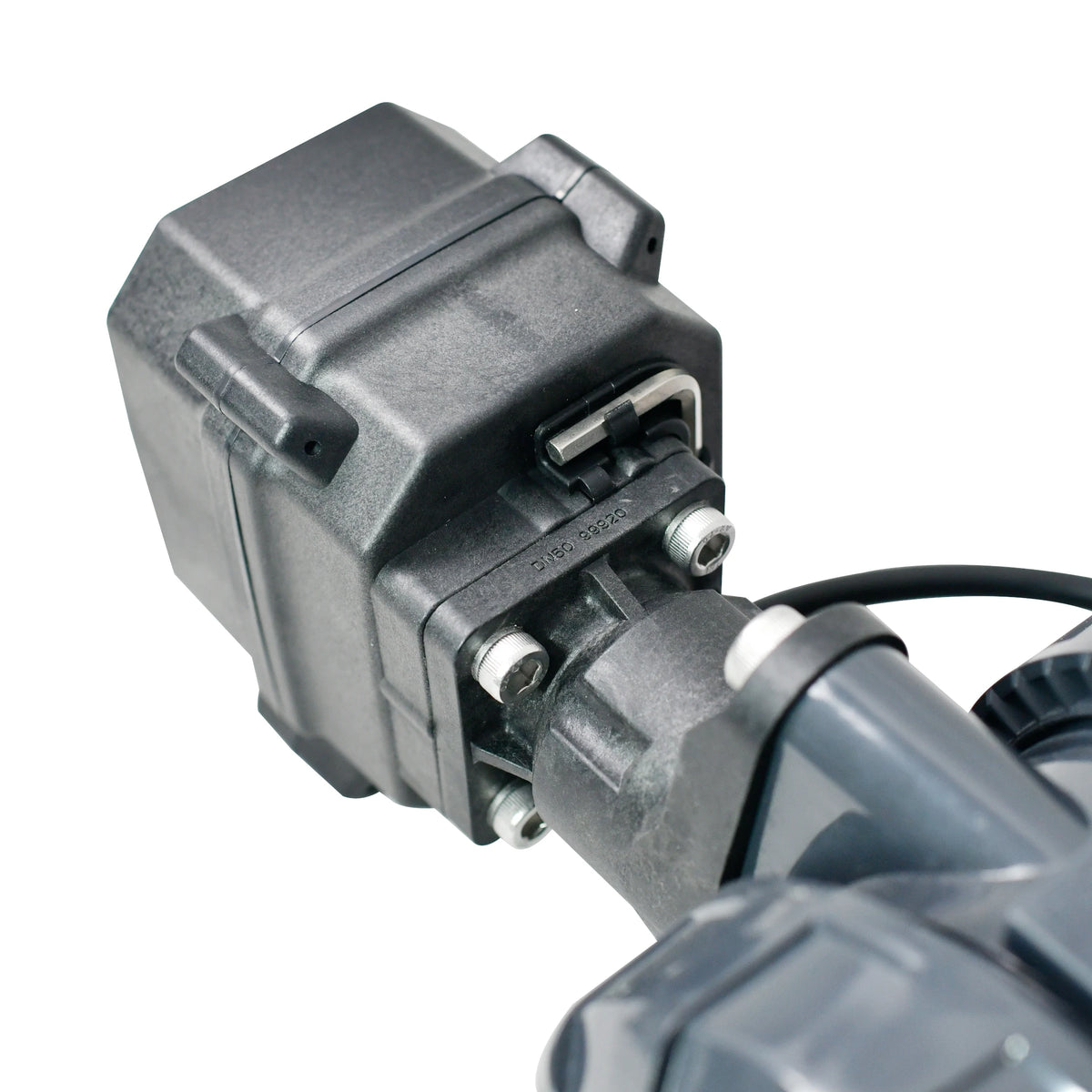

• Actuator : A150 Black, 15N.m
• Wirign diagram : CR202 normally closed
• Connection standard : ISO5211 F03,F05
• Output axis specification : Male square 9*9 and 11*11
• Rated Voltage : AC24V DC12-24V, AC110-230V
• Valve connection : Socket/glued Type
• Life Time : 70000 Times
• Maximum working pressure : 1.0MP
• Certification : CE, IP67, ROHS

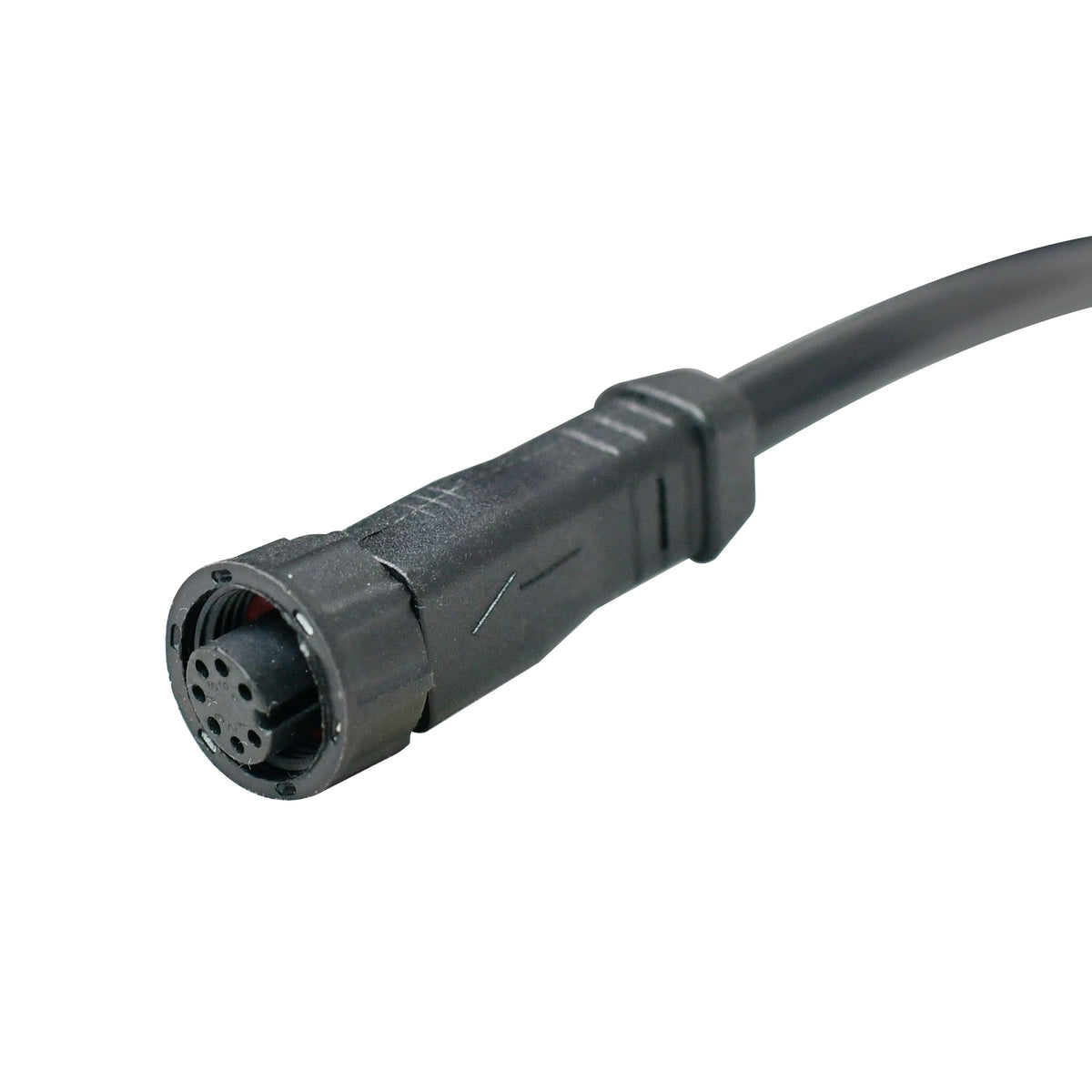

• cable length : 0.5 meter

RFQ: For Detail Specification
