SSR10-10AA/25AA/40AA Miniature DC Power Solid State Relay

• Contact Load : High Power
• Model Number : SSR10-10AA/25AA/40AA
• Brand Name : CKCTINNER
• Place of Origin : Zhejiang, China
• Protect Feature : Sealed
• Size : Miniature
• Theory : Solid State Relay
• application : General Purpose
• Product name : Solid State Relay
• Material : ABS
• Load Current : 40A
• Load Voltage : 24-480VAC
• Control Voltage : 70-280VAC
• Control current : AC ≤12mA
• On Voltage : ≤1.5V
• Off Leakage Current : ≤2mA
• On-off Time : ≤10mS
• Dlelectric Stength : 2500VAC

10/25/40A optional output current (up to 120A available); 24-480VAC wide load voltage, 70-280VAC control voltage, DC3-32VDC control optional; ≤10ms ultra-fast on-off response, ≤1.5V on-state voltage drop, low power loss; off-state leakage current ≤2mA, contactless no-spark switching, stable and anti-interference.

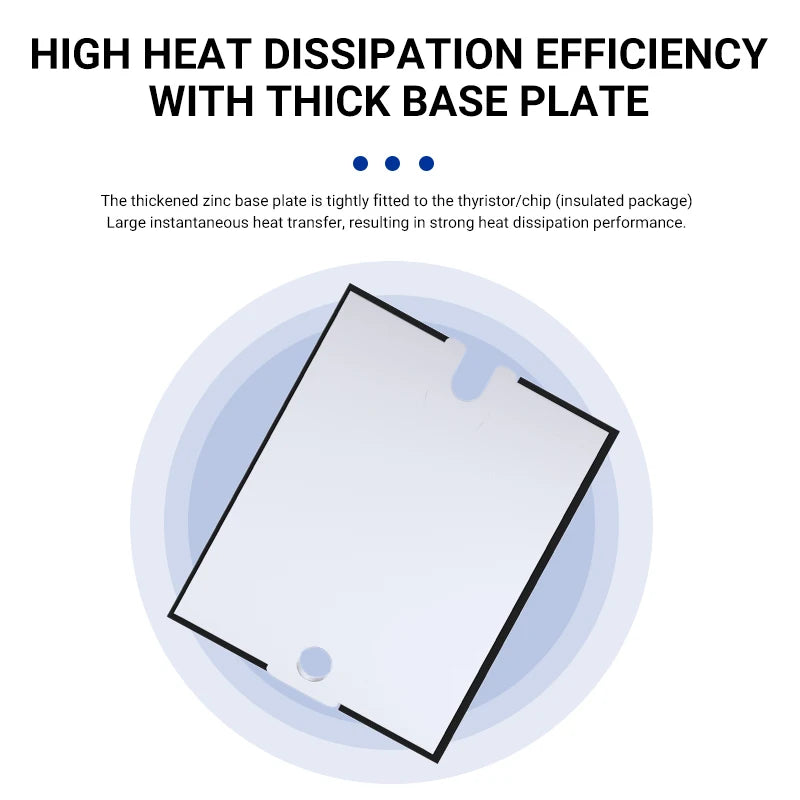

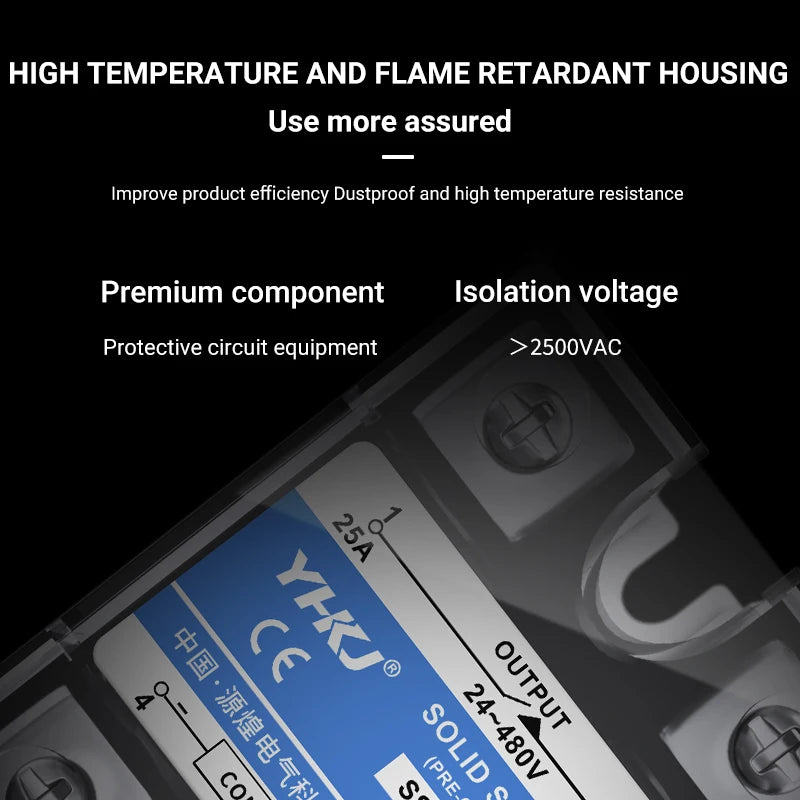

Flame-retardant high-temp ABS housing: dustproof, heat-resistant, fireproof, suitable for harsh industrial environments; thickened zinc base plate: tight fit with thyristor/chip, high heat dissipation efficiency for continuous work; premium optical coupler: 2500VAC high dielectric strength, 1000MΩ insulation resistance, no noise and strong isolation; sealed integrated design, protect internal electronics from dust and oil mist.

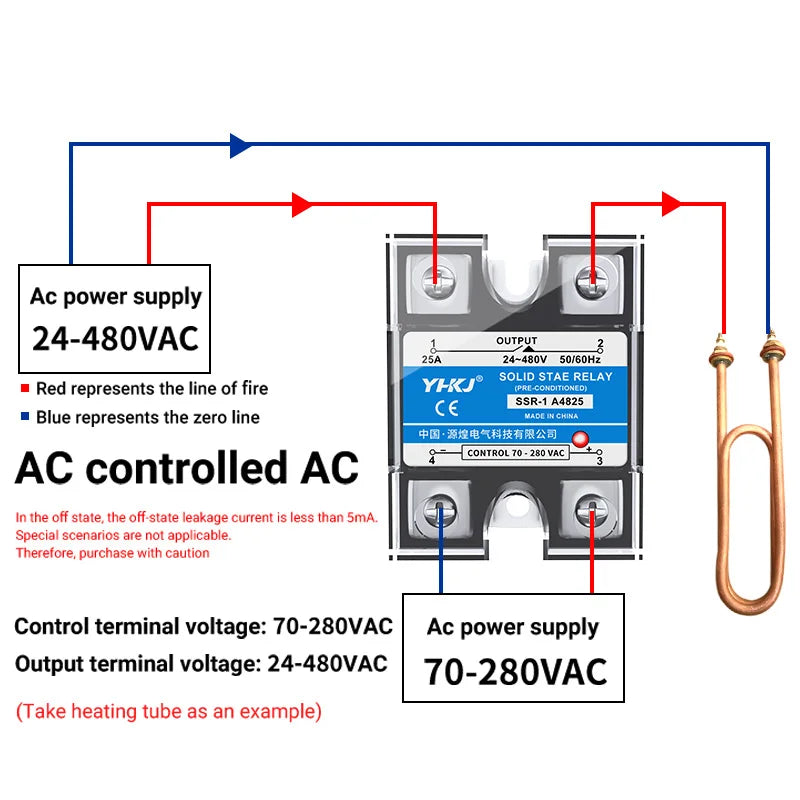

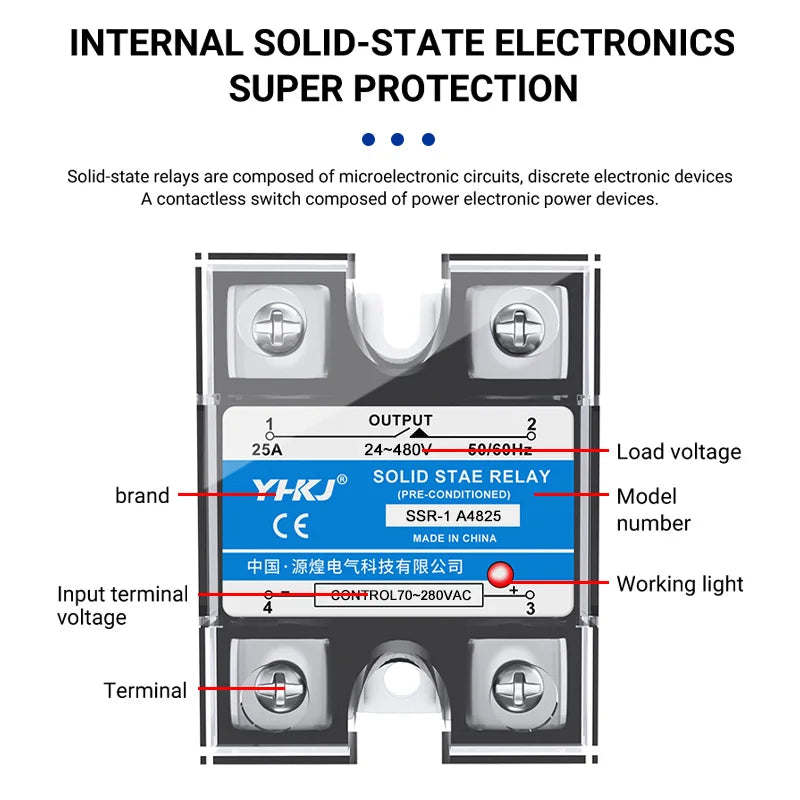

Ultra-miniature size (3mm thick): space-saving for electrical cabinet and panel installation; complete specifications (AA/DA/DD series), AC-AC/DC-AC/DC-DC control modes optional; clear terminal marking (red=live/blue=neutral), simple wiring without professional debugging; standard mounting hole design, easy to install heat sink for models over 10A.

-30℃~+75℃ ultra-wide working temperature, adapt to extreme high/low temperature industrial scenes; CE certified, comply with international industrial electrical safety standards; no mechanical contact, anti-oxidation, long service life without wear; stable starting current, strong power cycle capability, low failure rate for 24h continuous operation.
