Shenzhen Siron Electrical Co., Ltd.

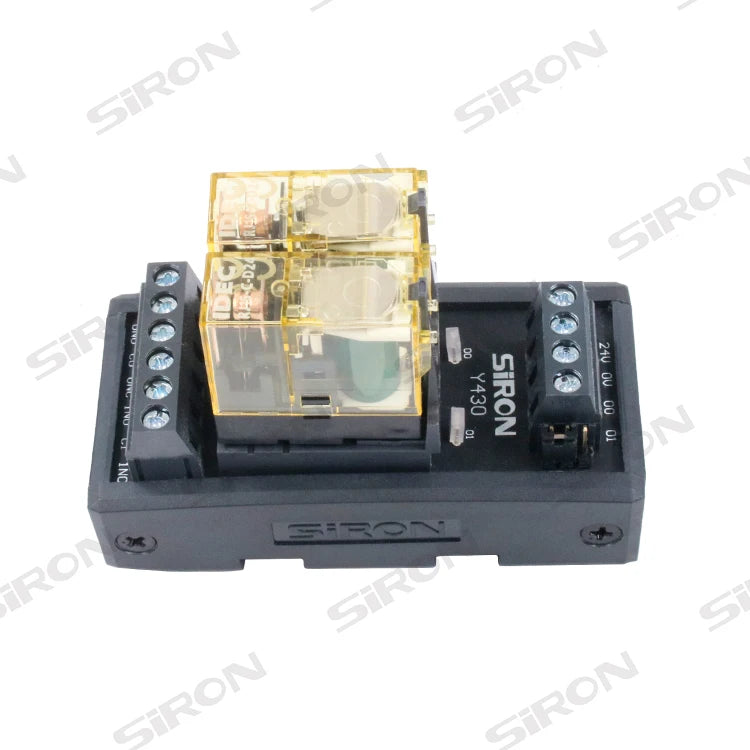

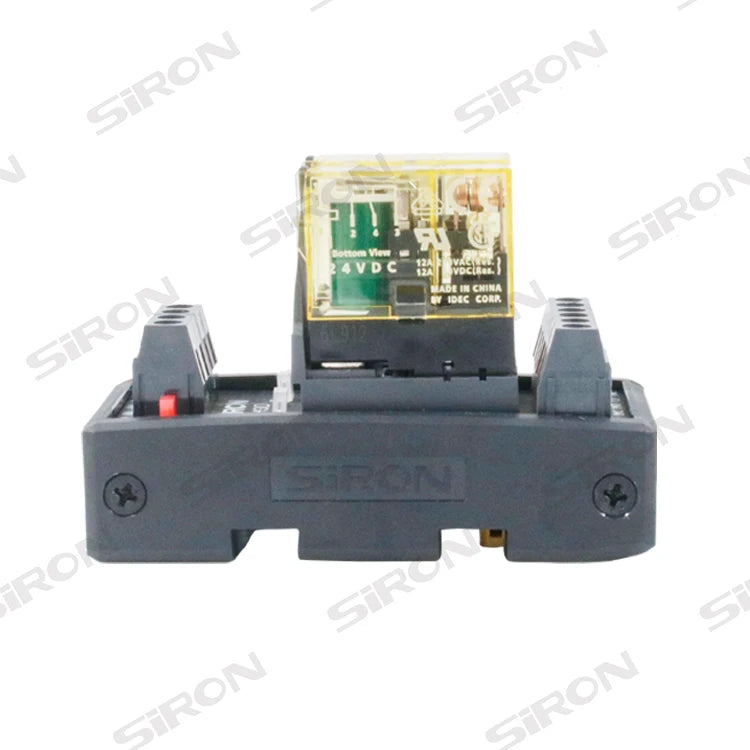

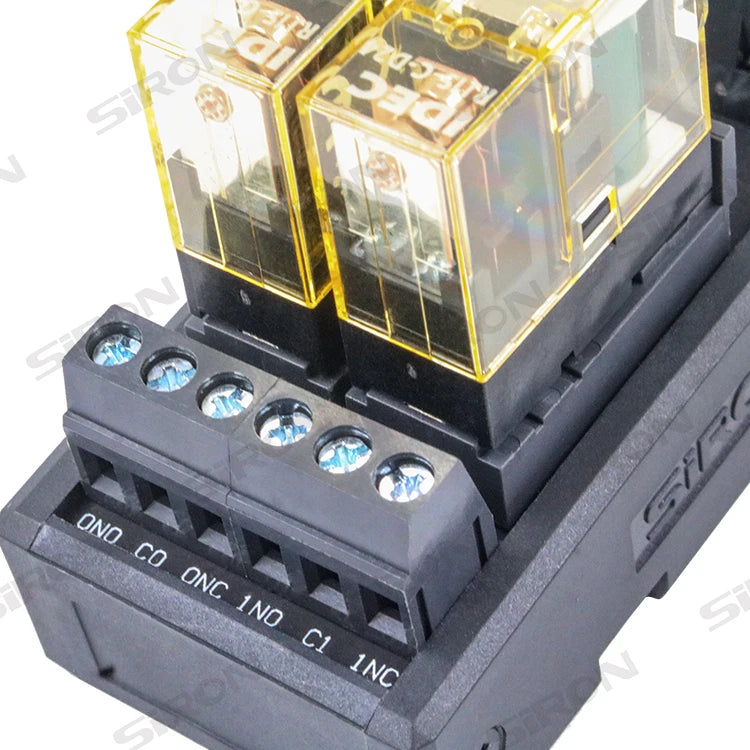

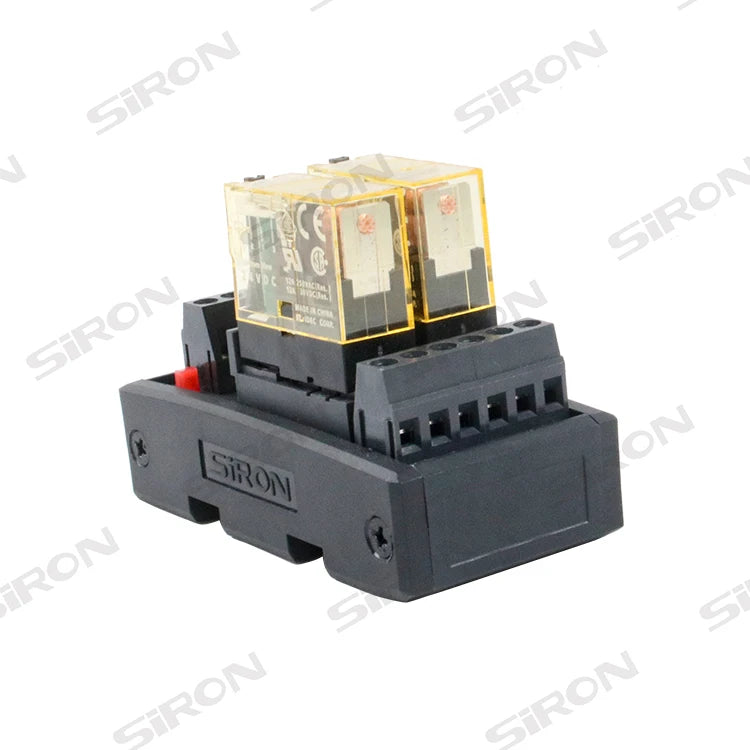

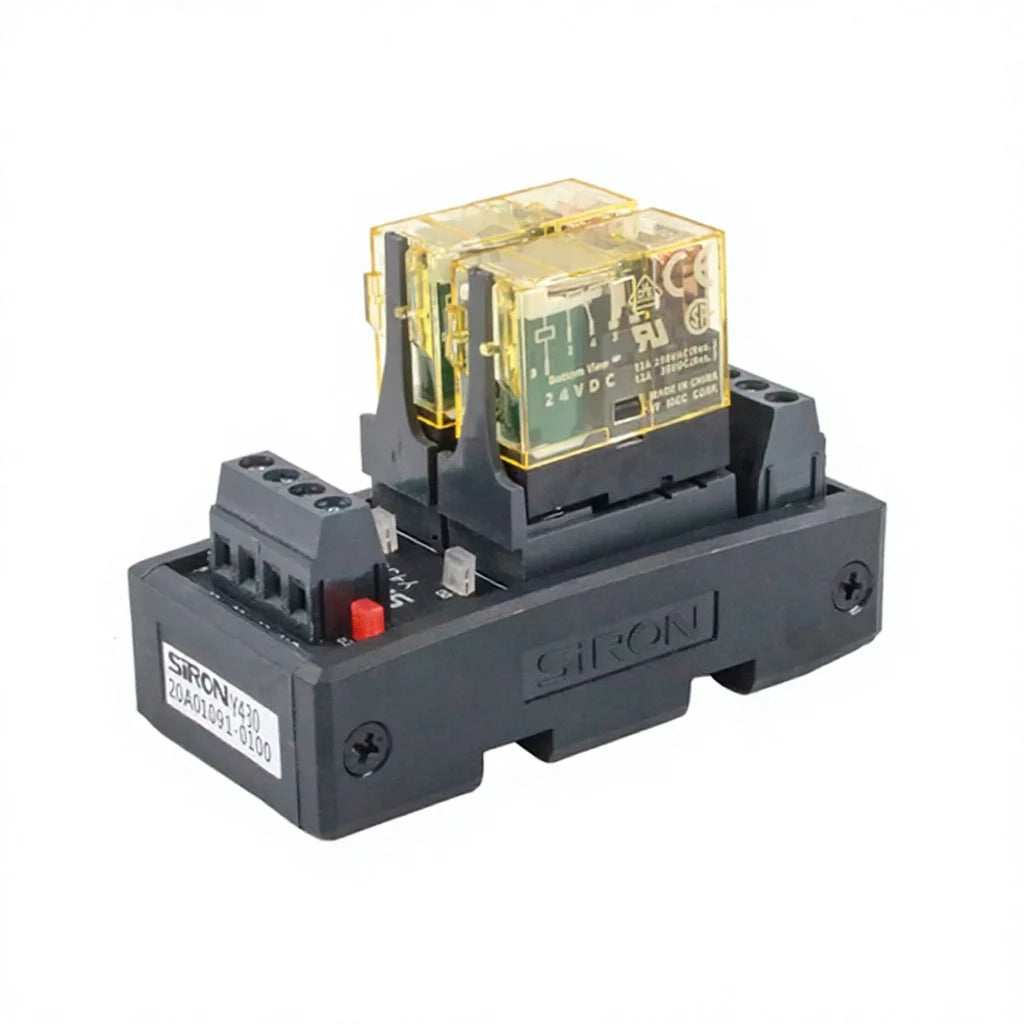

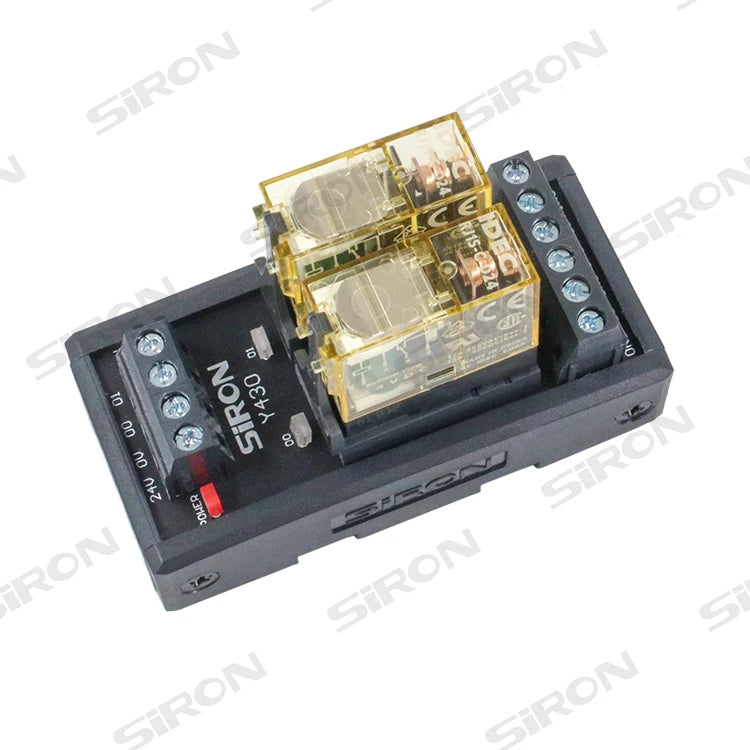

SiRON Y430 Series Miniature Sealed Power Relay Module

SiRON Y430 Series Miniature Sealed Power Relay Module

$2.30 NZD

~~$2.30 NZD~~ $2.30 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color Black

Rated Voltage 24 V

Contact Form : 1NC
Contact Load : Low Power
Max. switching current : 25.7mA
Rated Current : Other
Model Number : Y430
Brand Name : Siron
Place of Origin : Guangdong, China
Contact Material : Silver Alloy
Max. switching voltage : 24 V
Pins : 2P
Power Source : AC/DC
Protect Feature : Sealed
Size : Miniature
Terminal Shape : Screw Terminal
Theory : Voltage Relay
application : General Purpose
Name : Power relay module
Model : Y430
Control signal : NPN/PNP
Suitable wire : 1.5mm² following/AWG16, strip length 6mm
Bit : 2
Nominal coil voltage : DC 24V
Nominal operating current of input : 22.1mA
Power : 1C
Coil resistance of input : 1080Ω
Indicator light : Green-NPN;Red-PNP
