Shenzhen Siron Electrical Co., Ltd.

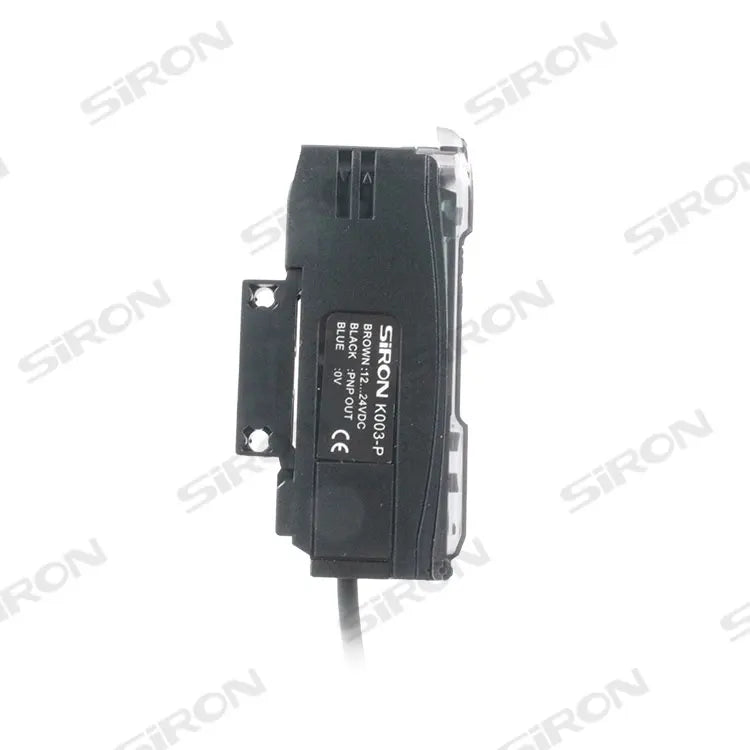

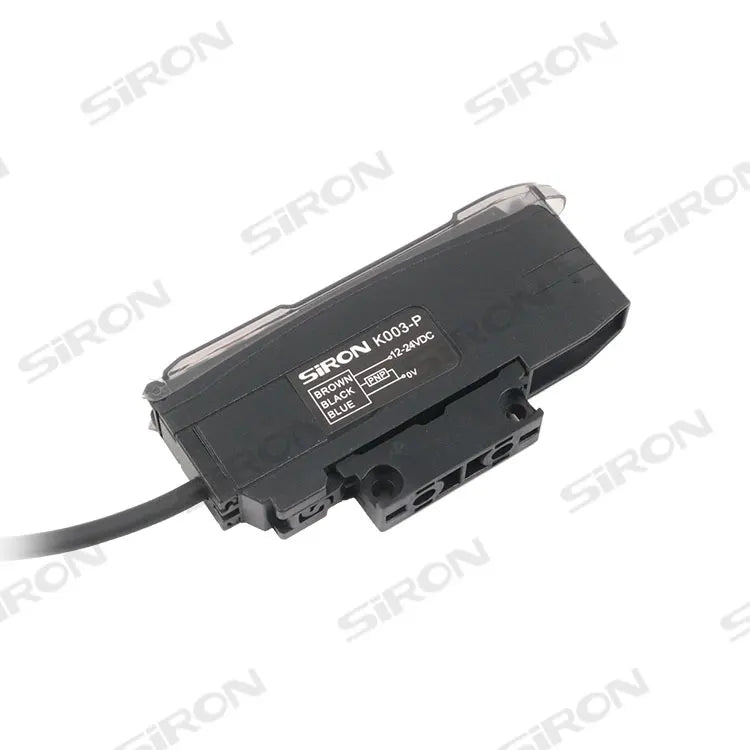

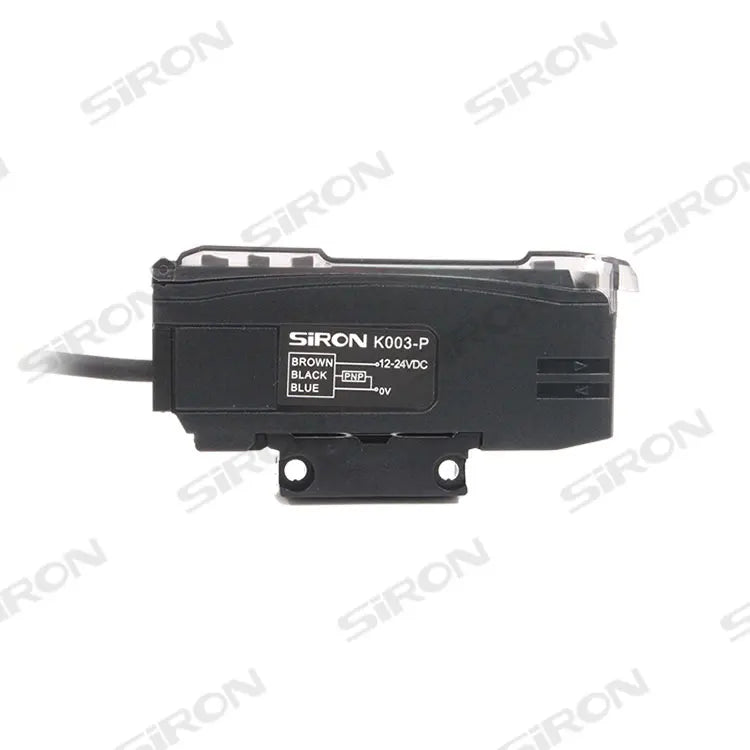

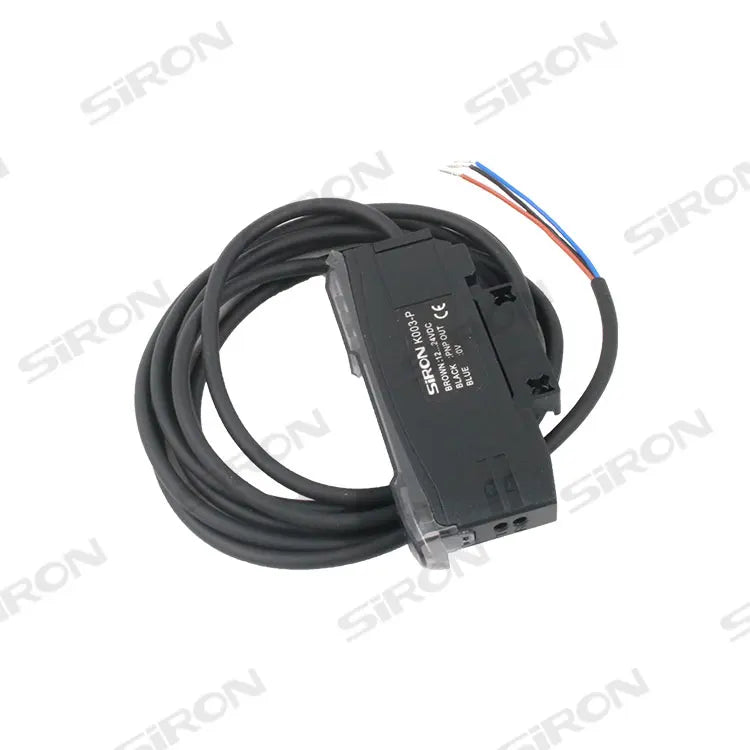

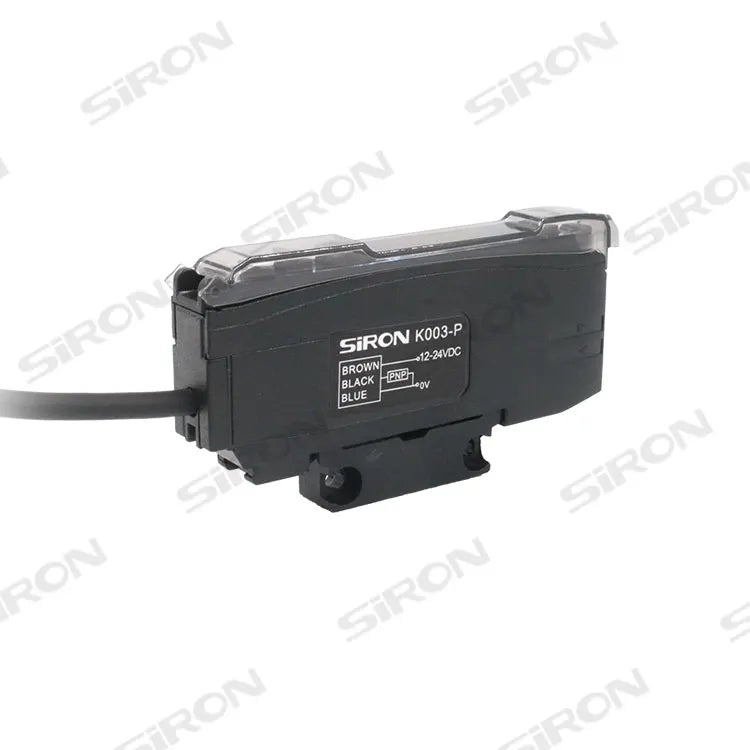

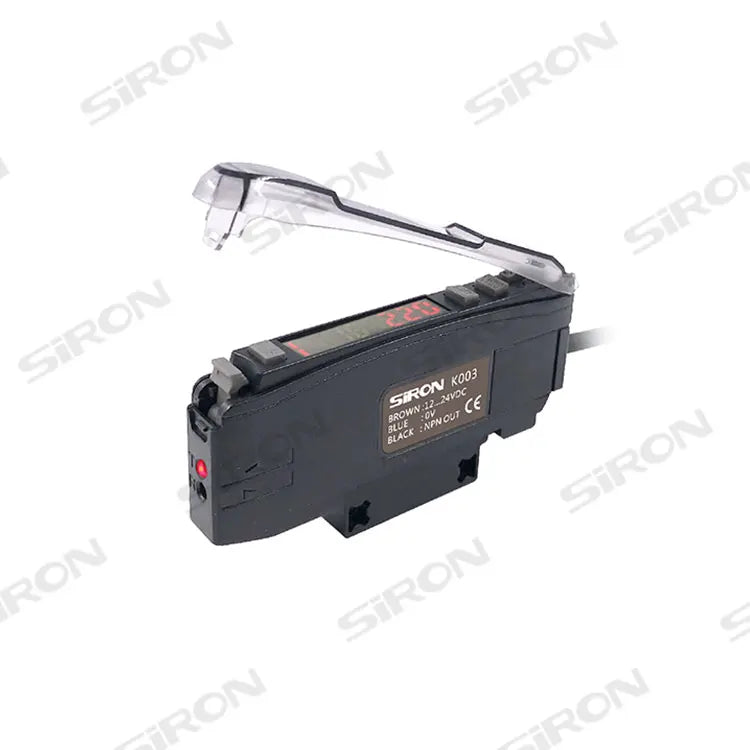

SIRON K003 Dual Display Fiber Optic Sensor

SIRON K003 Dual Display Fiber Optic Sensor

$85.10 NZD
$48.30 NZD $85.10 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Series : Fiber optic sensor
  • Mounting Type : Screw mounting
  • Description : Fiber Optic Sensor, FIBER OPTIC SENSOR
  • Manufacturer Part Number : K003
  • Type : FIBER OPTIC SENSOR
  • Place of Origin : Guangdong, China
  • Brand Name : Siron
  • Usage : Objects detection
  • Theory : Light intensity detection
  • Output : NPN/PNP
  • Name : New dual digital display fiber optic sensor
  • Control output : 1 Unit, NPN/PNP open collector (maximum: 100mA) Residual voltage: 1V
  • Light source : Red, 4 element luminescent secondary tube
  • Reaction time : 13-200μs
  • Output selection : Light on/Dark on(Choose up down after short press mode)
  • Detection method : Light intensity
  • Delay function : 1ms-9999ms
  • Work environment brightness : Incandescent Light bulbs 20000lux, daylight < 30000Lux
  • Power consumption : Standard mode :Max 300mW
  • Cable length : 2M
