SES1.25 Copper Insulated Crimp Terminal Lugs
SES1.25 Copper Insulated Crimp Terminal Lugs
Regular price
$106.95 NZD
Regular price
$158.70 NZD
Sale price
$106.95 NZD
Taxes included.
Shipping calculated at checkout.
- Type : Crimp Terminal, Easy Entry Type
- Model Number : SES1.25-6/Red
- Brand Name : GP, Greenpower
- Place of Origin : Zhejiang, China
- Material : Copper
- Certificate : CE
- Surface treatment : Silver coated
- Size : #4,#6,#8, #10, 1/4, 5/16
- Color : Red,Blue,Yellow, Black
- Size in mm : 0.5~6mm2
- website : www.sinogp.com
- Package : 1 bag=1000pcs
Product Description
|

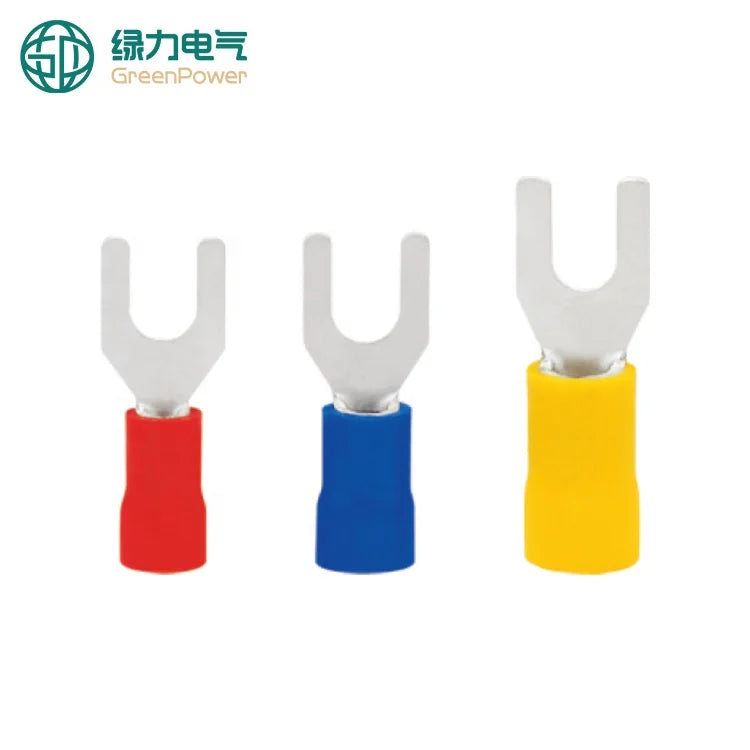

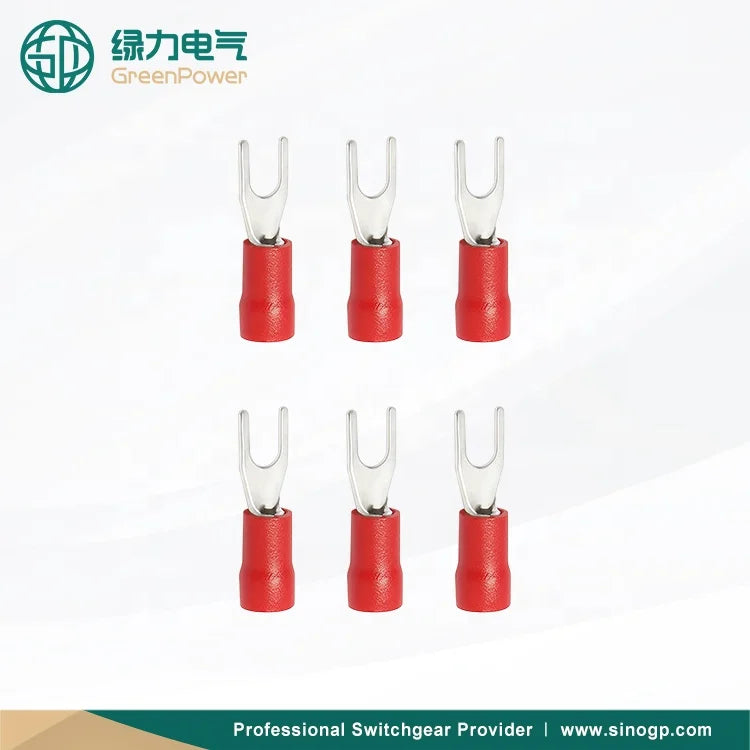

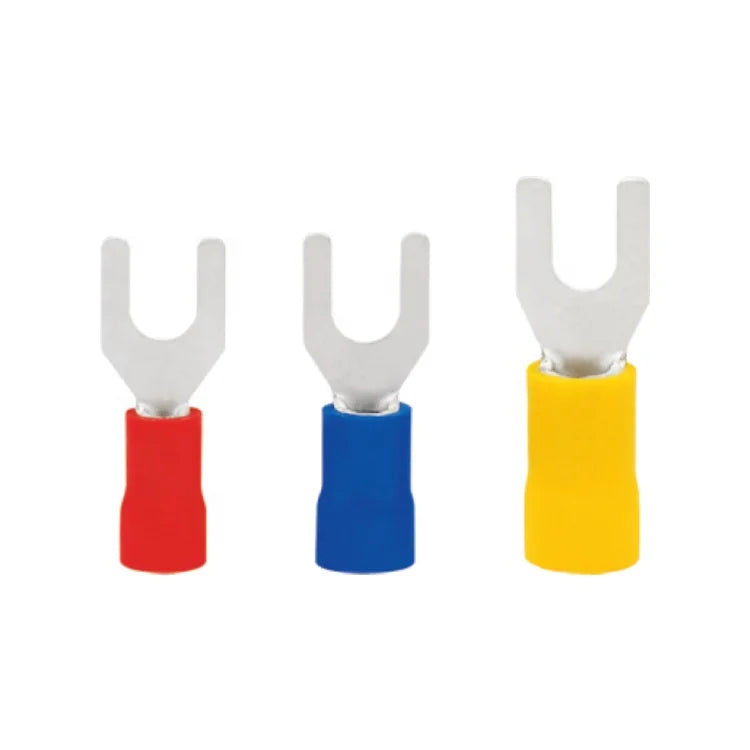

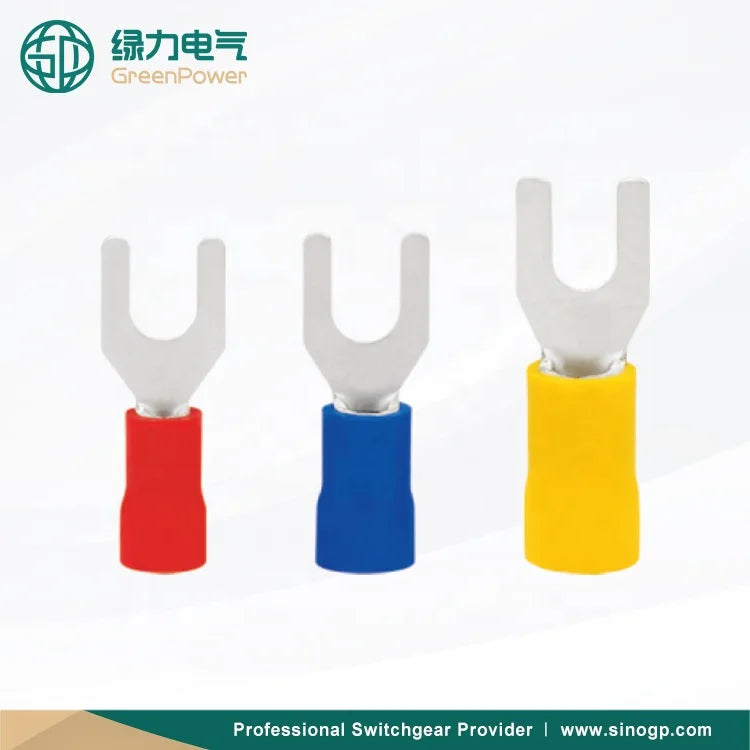

Fork pre-insulated terminal lug
|
|
|
Cable size
|
0.5~1.5mm² / 1.5~2.5mm² / 2.5~4mm² / 4~6mm²
|
|
Max current
|
Imax=19A / 27A / 37A / 48A
|
|
Material
|
Copper
|
|
Insulating material
|
Vinyl. nylon
|
|
Thickness
|
0.75mm / 0.8mm / 1.0mm
|
Max current: Imax=19A Thickness: 0.75mm
Max current: lmax=27A Thickness: 0.8mm
Max current: Imax=37A Thickness: 1.0mm
Max current: lmax=48A Thickness: 1.0mm
|
Word
|
Meaning
|
Word
|
Meaning
|
|
R
|
Ring terminal
|
B
|
Middle joint (Weld)
|
|
S
|
Standard fork terminal
|
BT
|
Long connectors (Solid)
|
|
DR
|
Ring terminal (German type)
|
MD
|
Male disconnector
|
|
DS
|
Standard fork terminal (German type)
|
FD
|
Female disconnector
|
|
LS
|
Lock fork terminal
|
MP
|
Male bullet disconnector
|
|
FS
|
Flanged fork terminal
|
FR
|
Female bullet disconnector
|
|
PT
|
Pin terminal
|
FDF
|
Fully insulated female disconnector
|
|
H
|
Hook ring terminal
|
PBD
|
Multi-stack disconnector
|
|
DB
|
Flat blade terminal
|
FLD
|
Female flag disconnector
|
|
LB
|
Lipped blade terminal
|
|
|
|
Wire
|
Wire range
|
A.W.G
|
Wire
|
Wire range
|
A.W.G
|
|
1.25
|
0.5-1.5
|
22-26
|
60
|
50-70
|
1/0
|
|
2
|
1.5-2.5
|
16-14
|
70
|
70-95
|
2/0
|
|
3.5
|
2.5-4
|
14-12
|
80
|
95-120
|
3/0
|
|
5.5
|
4-6
|
12-10
|
100
|
120-150
|
4/0
|
|
8
|
6-10
|
8
|
150
|
150-185
|
250/300mcm
|
|
14
|
10-16
|
6
|
180
|
185-240
|
300/350mcm
|
|
22
|
16-25
|
4
|
200
|
240-300
|
400/500mcm
|
|
38
|
25-35
|
2
|
325
|
300-400
|
500/600mcm
|
|
Stud size(mm)
|
A.W.G.(mm)
|
Stud size(mm)
|
A.W.G.(mm)
|
|
3.2
|
#4
|
13.0
|
1/2
|
|
3.7
|
#6
|
15.0
|
9/16
|
|
4.3
|
#8
|
17.0
|
5/8
|
|
5.3
|
#10
|
18.0
|
11/16
|
|
6.4
|
1/4
|
21.0
|
3/4
|
|
8.4
|
5/16
|
23.0
|
7/8
|
|
10.5
|
3/8
|
25.0
|
15/16
|
|
11.0
|
7/6
|
28.0
|
1
|
