Zhejiang Greenpower I&e Co., Ltd.

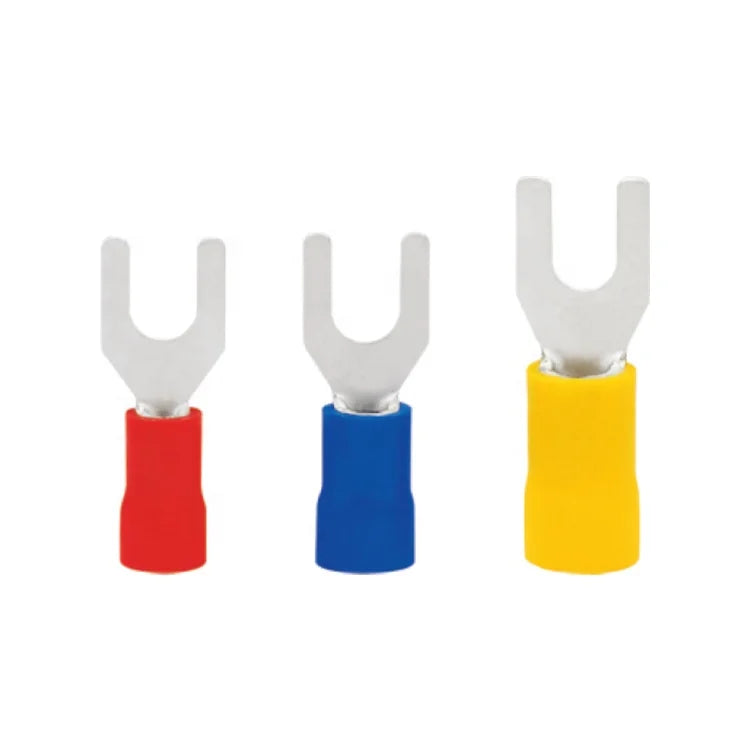

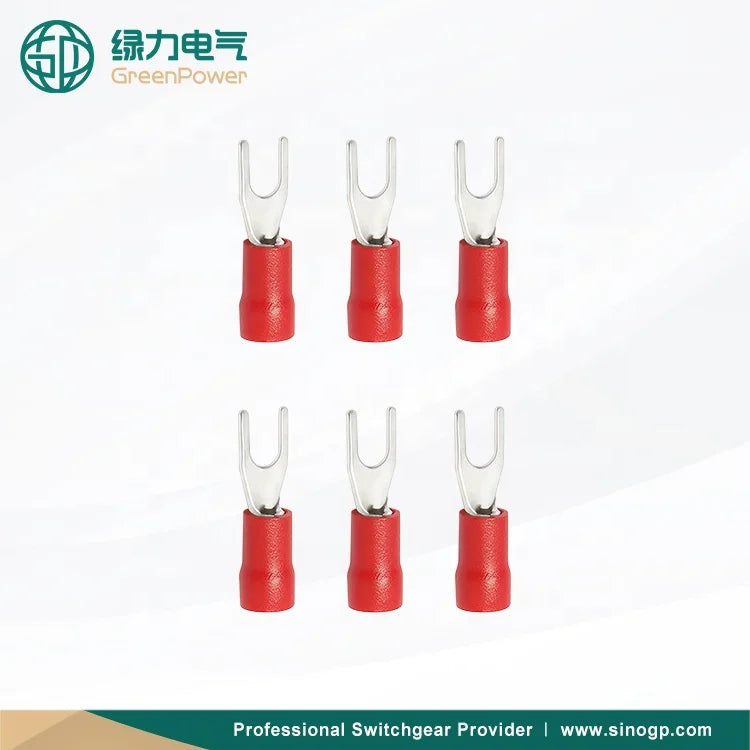

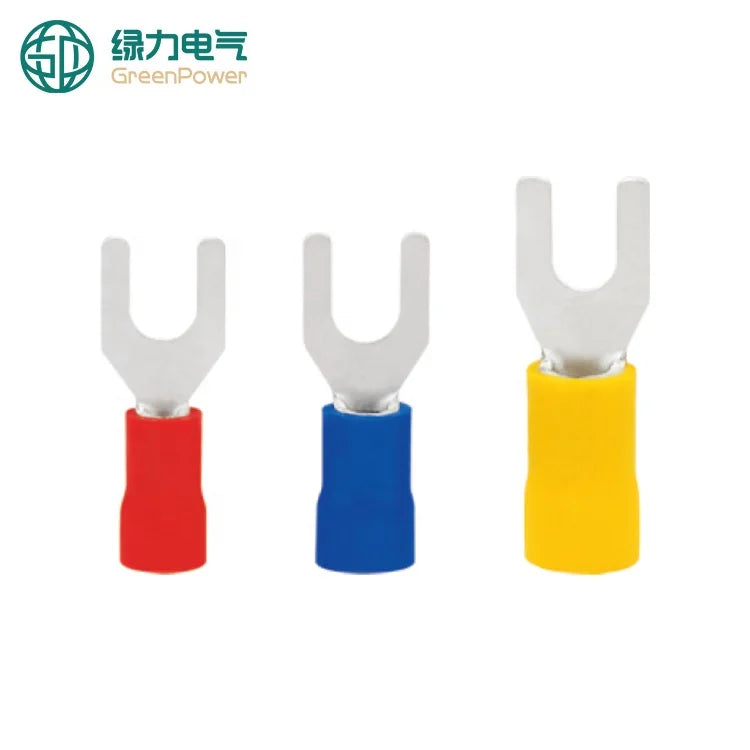

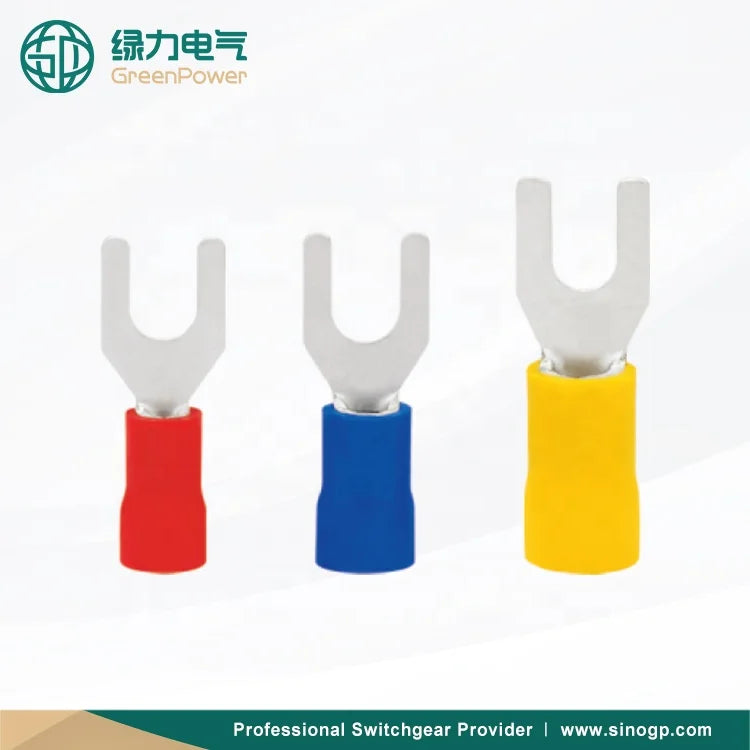

SES1.25 Terminal Connectors Copper Insulated Crimp Terminal Lugs

SES1.25 Terminal Connectors Copper Insulated Crimp Terminal Lugs

$106.95 NZD
$158.70 NZD $106.95 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Type : Crimp Terminal, Easy Entry Type
  • Model Number : SES1.25-6/Red
  • Brand Name : GP, Greenpower
  • Place of Origin : Zhejiang, China
  • Material : Copper
  • Certificate : CE
  • Surface treatment : Silver coated
  • Size : #4,#6,#8, #10, 1/4, 5/16
  • Color : Red,Blue,Yellow, Black
  • Size in mm : 0.5~6mm2
  • website : www.sinogp.com
  • Package : 1 bag=1000pcs

Product Description

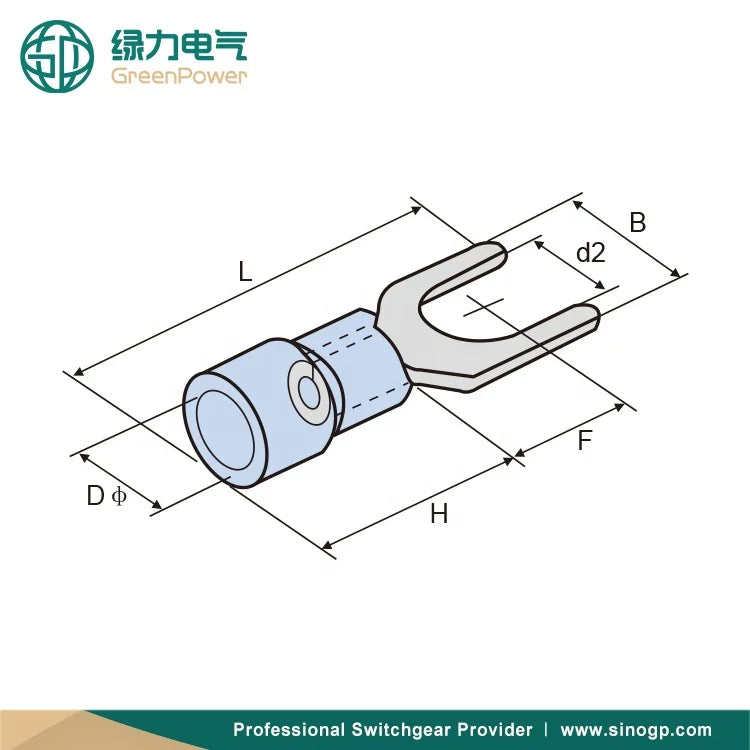

Fork pre-insulated terminal lug
Cable size
0.5~1.5mm² / 1.5~2.5mm² / 2.5~4mm² / 4~6mm²
Max current
Imax=19A / 27A / 37A / 48A
Material
Copper
Insulating material
Vinyl. nylon
Thickness
0.75mm / 0.8mm / 1.0mm

Cable size: 0.5~1.5mm² (A.W.G.22~16)
Max current: Imax=19A Thickness: 0.75mm

Cable size: 1.5~2.5mm² (A.W.G.16~14)
Max current: lmax=27A Thickness: 0.8mm

Cable size: 2.5~4mm² (A.W.G.14~12)
Max current: Imax=37A Thickness: 1.0mm

Cable size: 4~6mm² (A.W.G.12~10)
Max current: lmax=48A Thickness: 1.0mm
Word
Meaning
Word
Meaning
R
Ring terminal
B
Middle joint (Weld)
S
Standard fork terminal
BT
Long connectors (Solid)
DR
Ring terminal (German type)
MD
Male disconnector
DS
Standard fork terminal (German type)
FD
Female disconnector
LS
Lock fork terminal
MP
Male bullet disconnector
FS
Flanged fork terminal
FR
Female bullet disconnector
PT
Pin terminal
FDF
Fully insulated female disconnector
H
Hook ring terminal
PBD
Multi-stack disconnector
DB
Flat blade terminal
FLD
Female flag disconnector
LB
Lipped blade terminal


Wire
Wire range
A.W.G
Wire
Wire range
A.W.G
1.25
0.5-1.5
22-26
60
50-70
1/0
2
1.5-2.5
16-14
70
70-95
2/0
3.5
2.5-4
14-12
80
95-120
3/0
5.5
4-6
12-10
100
120-150
4/0
8
6-10
8
150
150-185
250/300mcm
14
10-16
6
180
185-240
300/350mcm
22
16-25
4
200
240-300
400/500mcm
38
25-35
2
325
300-400
500/600mcm
Stud size(mm)
A.W.G.(mm)
Stud size(mm)
A.W.G.(mm)
3.2
#4
13.0
1/2
3.7
#6
15.0
9/16
4.3
#8
17.0
5/8
5.3
#10
18.0
11/16
6.4
1/4
21.0
3/4
8.4
5/16
23.0
7/8
10.5
3/8
25.0
15/16
11.0
7/6
28.0
1
