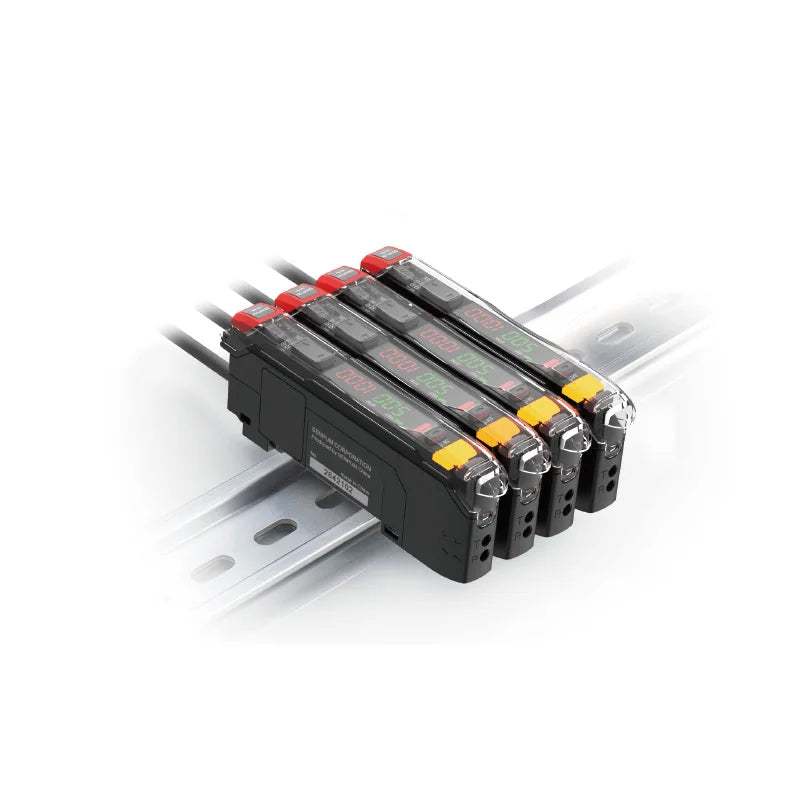

Senpum Fiber Optic Sensor Dual Digital Display
Senpum Fiber Optic Sensor Dual Digital Display
Regular price
$230.00 NZD
Regular price
$287.50 NZD
Sale price
$230.00 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Series : FX-N10
- Mounting Type : easy
- Description : Dual Digital Display Fiber Optic Sensor Amplifier, optic fiber sensor amplifier
- Manufacturer Part Number : FX-N18P
- Type : FIBER OPTIC SENSOR
- Place of Origin : Guangdong, China
- Brand Name : Senpum
- Usage : Detection
- Light source LED : Red,4-element LED(wavelength 630nm )
- Output toggle : LIGHT-ON/DARK-ON switch
- Timer function : Timer OFF OFF-delay timer, ON-delay timer, One-shot timer
- Power voltage : Between 12-24VDC±10%, ripple voltage (P-P): 10% or less
- Ambient light : Incandescent lamp:20000 lux or less, sunlight 30000 lux or less
Cable Type
|
Type
|
|
Standard model
|
|
|
|
High functionality 2 output
|
|
Zero line type
|
|
|
|
Main unit
|
Main unit
|
Main unit
|
Expansion unit
|
Main unit
|
Expansion unit
|
Expansion unit
|
|
Model
|
NPN
|
FX-N18N
|
FX-N18N-CN
|
FX-N11N
|
FX-N12N
|
FX-N13N
|
FX-N14N
|
FX-N10 ( No output, no distinction NPN'PNP)
|
|
|
PNP
|
FX-N18P
|
FX-N18P-CN
|
FX-N11P
|
FX-N12P
|
FX-N13P
|
FX-N14P
|
|
|
Control output
|
|
1
|
|
|
|
2 output
|
|
|
|
External input
|
|
1 input
|
|
|
|
1 input
|
|
-
|
|
Light source LED
|
|
Red,4-element LED(wavelength 630nm )
|
|
|
|
|
|
|
|
Response time
|
|
100μs(HIGH SPEED)/250μs(FINE)500μs(TURBO)/1ms(SUPER)4ms(ULTRA)/16ms(MEGA)
|
|
50μS( HIGH SPEED)/250μS( FINE )/500μs(TURBO )/1ms( SUPER )/4ms ( ULTRA ) /16ms ( MEGA )
|
|
|
|
|
|
Output toggle
|
|
LIGHT-ON/DARK-ON switch
|
|
|
|
|
|
|
|
Conductive material
|
|
Cable
|
|
|
|
|
|
|
|
Timer function
|
|
Timer OFF OFF-delay timer, ON-delay timer, One-shot timer
|
|
|
|
|
|
|
|
Control output
|
|
Max. load current. 100mA or 20mA (when connecting multiple expansion units)Residual voltage. Less than 1V
|
|
|
|
|
|
|
|
Expansion unit
|
|
Up to 15 units can be connected (there are 16 units including the main unit)
|
|
|
|
|
|
|
|
Protection circuit
|
|
Reversed polarity protection, output overcurrent protection, output surge protection
|
|
|
|
|
|
|
|
Number of anti-interferenceunits
|
|
Up to 16 units can be connected, the actual situation varies according to the power mode. HIGH SPEED: 0;FINE:4;TURBO/SUPER/ULTRA/MEGA: 8 (these numbers double when "DOUBLE" is selected.)
|
|
|
|
|
|
|
|
Power voltage
|
|
Between 12-24VDC±10%, ripple voltage (P-P): 10% or less
|
|
|
|
|
|
|
|
Ambient light
|
|
Incandescent lamp:20000 lux or less, sunlight 30000 lux or less
|
|
|
|
|
|
|
|
Ambient temperature
|
|
-20 to +55 °C -4 to +131 °F(no freezing)
|
|
|
|
|
|
|
|
Relative humidity
|
|
35 to 85% RH (no condensation)
|
|
|
|
|
|
|
|
Vibration resistance
|
|
10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
|
|
|
|
|
|
|
|
Shock resistance
|
|
500 m/s² 3 times for each of X,YZ axis
|
|
|
|
|
|
|
|
Case material
|
|
Both main unit and expansion unit housing material: polycarbonate
|
|
|
|
|
|
|
|

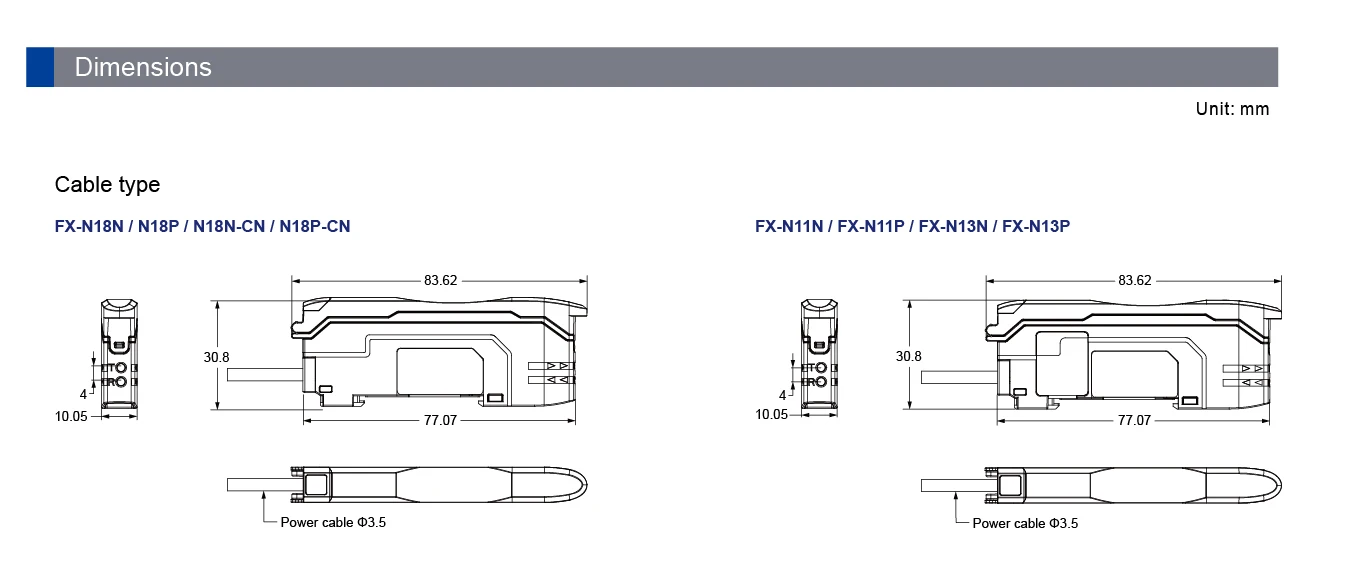

Dimensions(H"W"Lmm)
|
|
30.8x10.05x83.62
|
|
|
|
|
|
|
|
Weight
|
|
Approx.55.6g
|
|
|
|
|
|
|
Relay Type
|
Type
|
|
Standard model
|
|
High functionality 2 output
|
|
|
|
|
Main unit
|
Expansion unit
|
Main unit
|
Expansion unit
|
|
Model
|
NPN
|
FX-N11CAN
|
FX-N12CAN
|
FX-N13CAN
|
FX-N14CAN
|
|
|
PNP
|
FX-N11CAP
|
FX-N12CAP
|
FX-N13CAP
|
FX-N14CAP
|
|
Control output
|
|
1 input
|
|
2 output
|
|
|
External input
|
|
1 input
|
|
1 input
|
|
|
Light source LED
|
|
Red,4-element LED
|
|
|
|
|
Response time
|
|
50μs( HIGH SPEED)/250μs( FINE )/500μs(TURBO )/1ms( SUPER )/4ms ( ULTRA ) /16ms ( MEGA )
|
|
|
|
|
Output toggle
|
|
LIGHT-ON/DARK-ON switch
|
|
|
|
|
Conductive material
|
|
Cable
|
|
|
|
|
Timer function
|
|
Timer OFF OFF-delay timer, ON-delay timer, One-shot timer
|
|
|
|
|
Control output
|
|
Max. load current. 100mA or 20mA (when connecting multiple expansion units)Residual voltage. Less than 1V
|
|
|
|
|
Expansion unit
|
|
Up to 15 units can be connected total (there are 16 units including the main unit)
|
|
|
|
|
Protection circuit
|
|
Reversed polarity protection, output overcurrent protection, output surge protection
|
|
|
|
|
Number of anti-interferenceunits
|
|
Up to 16 units can be connected total, the actual situation varies according to the power mode. HIGH SPEED: 0;FINE:4;TURBO/SUPER/ULTRA/MEGA: 8 (these numbers double when "DOUBLE" is selected.)
|
|
|
|
|
Power voltage
|
|
Between 12-24VDC±10%, ripple voltage (P-P): 10% or less
|
|
|
|
|
Ambient light
|
|
Incandescent lamp:20000 lux or less, sunlight 30000 lux or less
|
|
|
|
|
Ambient temperature
|
|
-20 to +55 °C -4 to +131 °F(no freezing)
|
|
|
|
|
Relative humidity
|
|
35 to 85% RH (no condensation)
|
|
|
|
|
Vibration resistance
|
|
10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
|
|
|
|
|
Shock resistance
|
|
500 m/s² 3 times for each of X,YZ axis
|
|
|
|
|
Case material
|
|
Both main unit and expansion unit housing material: polycarbonate
|
|
|
|
|
Dimensions(H"W"Lmm)
|
|
30.8x10.05x83.62
|
|
|
|
|
Weight
|
|
Approx.55.6g
|
|
|
|
Features:

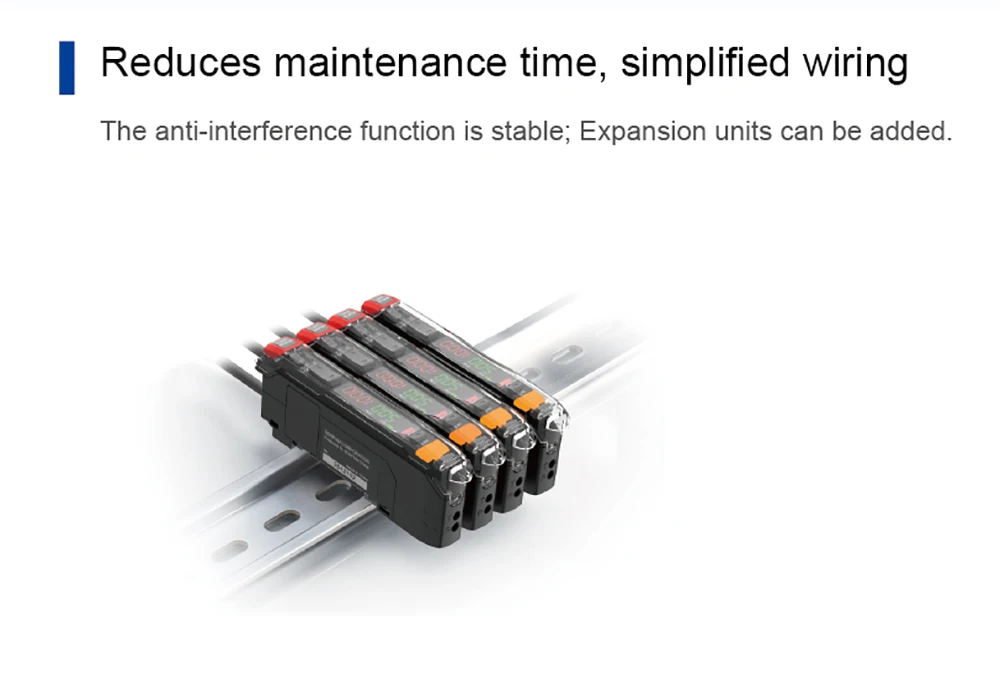

1. Reduces maintenance time, simplified wiring. The anti-interference function is stable; Expansion units can be added.

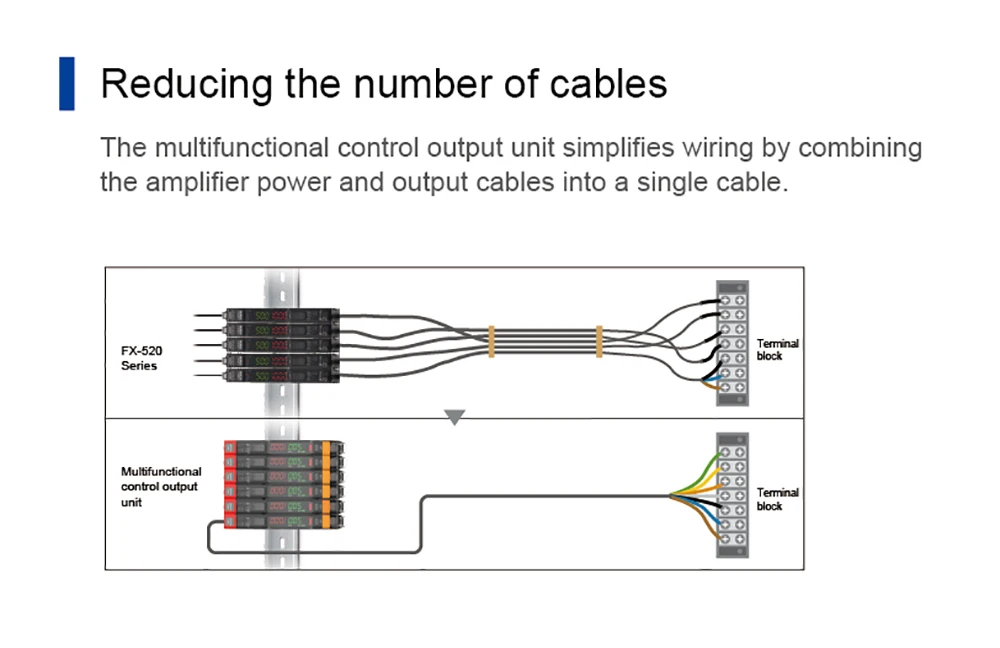

2. Reducing the number of cables.The multifunctional control output unit simplifies wiring by combiningthe amplifier power and output cables into a single cable.

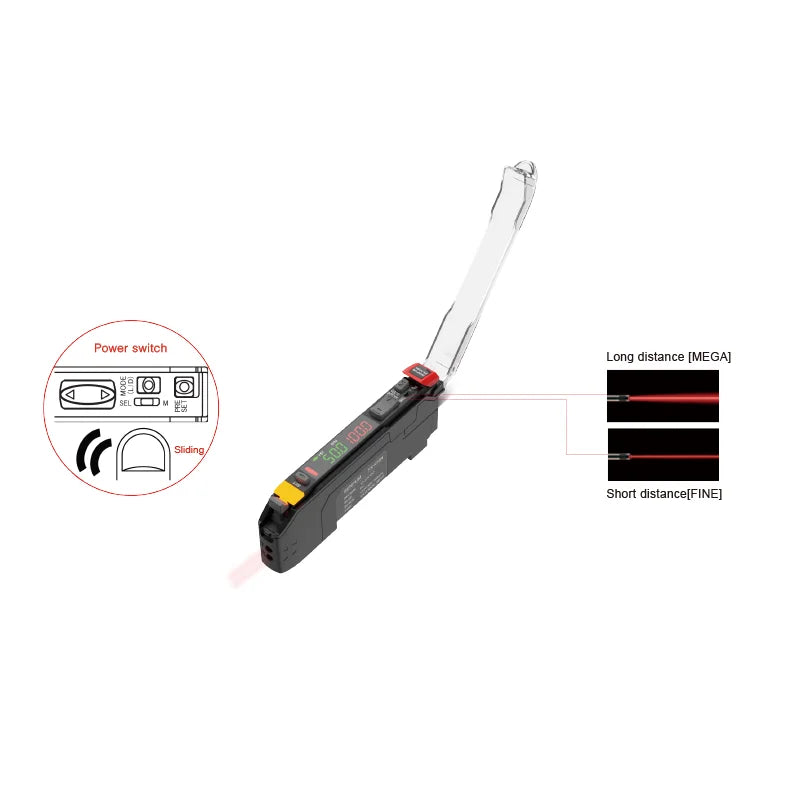

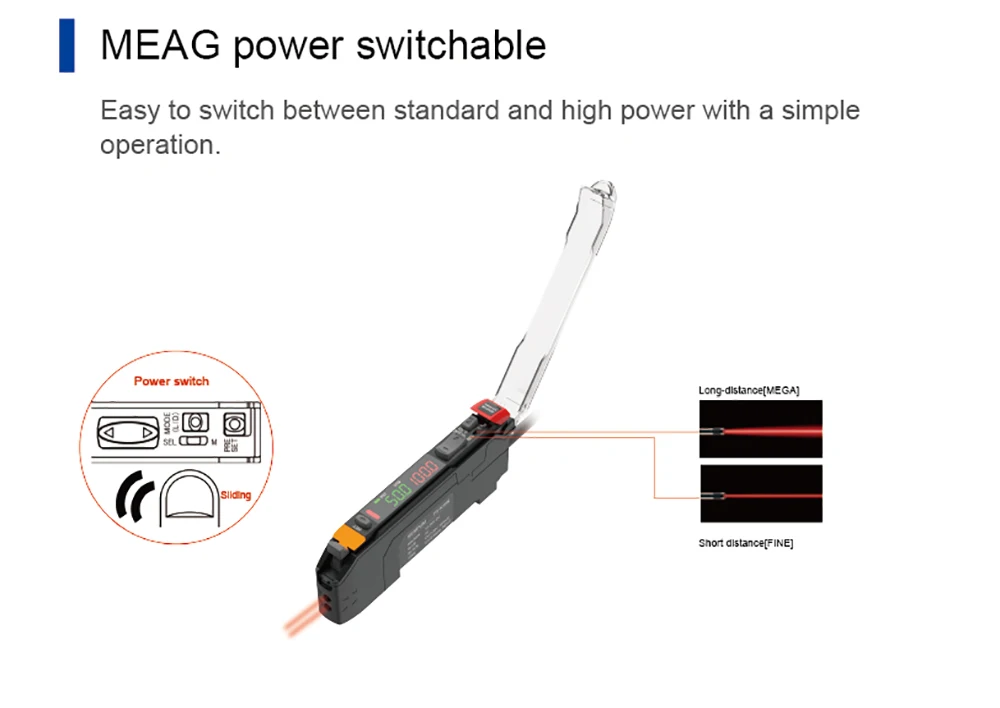

3. MEAG power switchable. Easy to switch between standard and high power with a simpleoperation.
