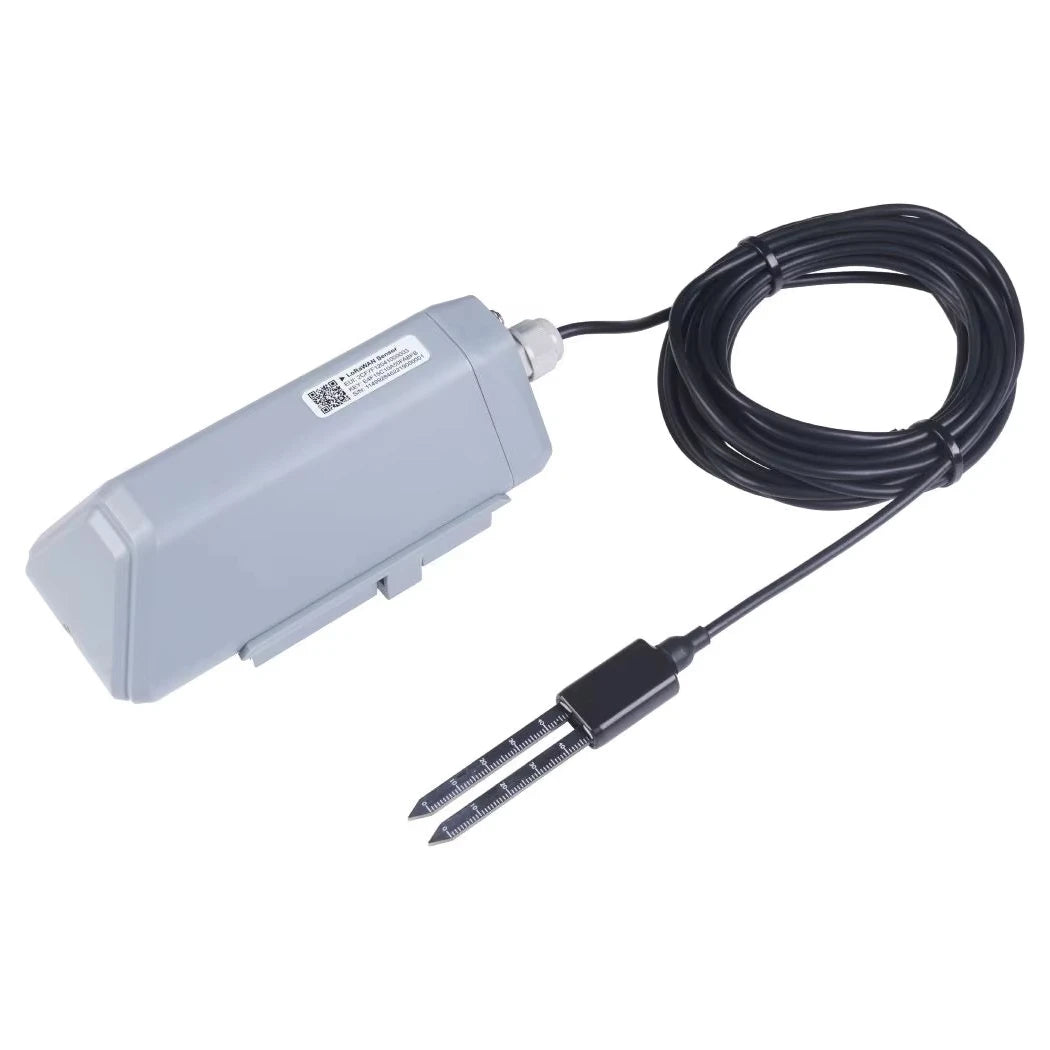

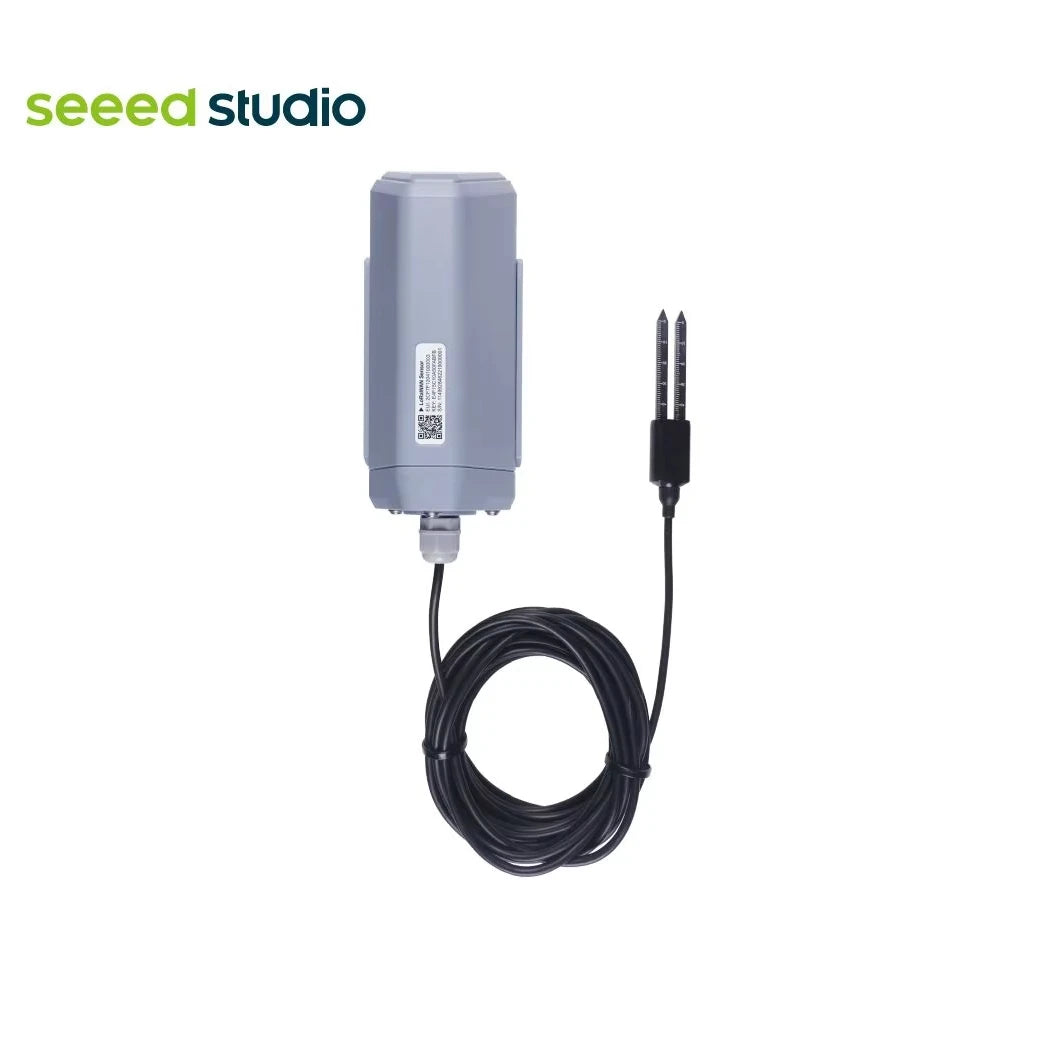

Seeedstudio SenseCAP S2105 - LoRaWAN Soil Moisture, Temperature and EC Sensor
Seeedstudio SenseCAP S2105 - LoRaWAN Soil Moisture, Temperature and EC Sensor
- Series : SenseCAP
- Description : LoRaWAN Soil Moisture, Temperature and EC Sensor
- Model Number : 114992871
- Type : Development Board
- Place of Origin : Guangdong, China
- Brand Name : Seeedstudio
- Function : Soil Moisture, Temperature and EC Sensor
- Sampling Rate (Per Second) : 0 to 50%: ±3% 50 to 100%: ±5%
- Voltage - Supply : Standard D-size SOCl2 Battery
- Main Purpose : Agriculture Irrigation,Greenhouse,Drought Monitor
- Current - Output : 19Ah (non-rechargeable)
- Frequency - Switching : IN865/EU868/US915/AU915/ AS923/KR920/RU864
- Core Processor : Wio-E5
- Operating System : LoRaWAN v1.0.3 Class A
- Sensitivity : -136dBm@SF12 BW=125KHz
- Sensing Range : 2 to10km (depending on gateway antenna and environ
|
Soil Temperature |
|
|
Range |
-40 to +80 °C |
|
Accuracy |
0 to 50°C: ±0.5 °C -40 to 0, 50 to 80°C: ±1 °C |
|
Resolution |
0.1 °C |
|
Soil Moisture (VWC-Volumetric Water Content) |
|
|
Range |
0 to 100% (air-water) |
|
Accuracy |
0 to 50%: ±3% 50 to 100%: ±5% |
|
Resolution |
0 to 50%: 0.1% 50 to 100%: 0.5% |
|
General Parameters |
|
|
Product Model |
S2104 |
|
Microcontroller |
Wio-E5 |
|
Support Protocol |
LoRaWAN v1.0.3 Class A |
|
Built-in Bluetooth |
App Tool to change parameters |
|
LoRaWAN Channel Plan |
IN865/EU868/US915/AU915/ AS923/KR920/RU864 * |
|
Max Transmitted Power |
19dBm |
|
Sensitivity |
-136dBm@SF12 BW=125KHz |
|
Communication Distance |
2 to10km (depending on gateway antenna and environments) |
|
IP Rating |
IP66 |
|
Operating Temperature |
-40 to +85 °C |
|
Operating Humidity |
0 to 100 %RH (non-condensing) |
|
Device Weight |
405g |
|
Cable Length |
5 meters |
|
Certification |
CE / FCC / RoHS |
|
Battery (Contained in equipment) |
|
|
Battery Life |
Up to 10 years** |
|
Battery Capacity |
19Ah (non-rechargeable) |
|
Battery Type |
Standard D-size SOCl2 Battery |
* Every single device can support 7 frequency plans.
** This wireless LoRaWAN sensor supports up to 10 years of battery life, but the actual battery life varies from data upload interval, data payload, and distance between gateways.
*** We have updated the battery life table, which should provide you with a better estimate of the actual battery life of your device. We recommend that you refer to the updated table when making any judgment or decision related to the battery life of your device.
