Seeed Technology Co., Ltd.
Regular price
$78.20 NZD
Regular price
$132.25 NZD
Sale price
$78.20 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
-

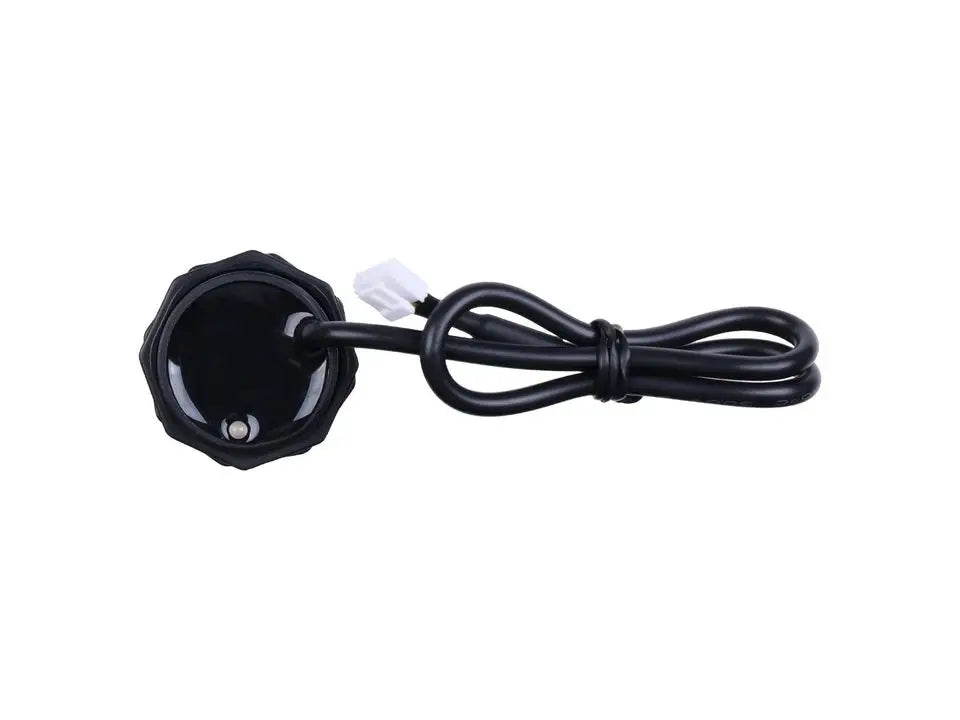

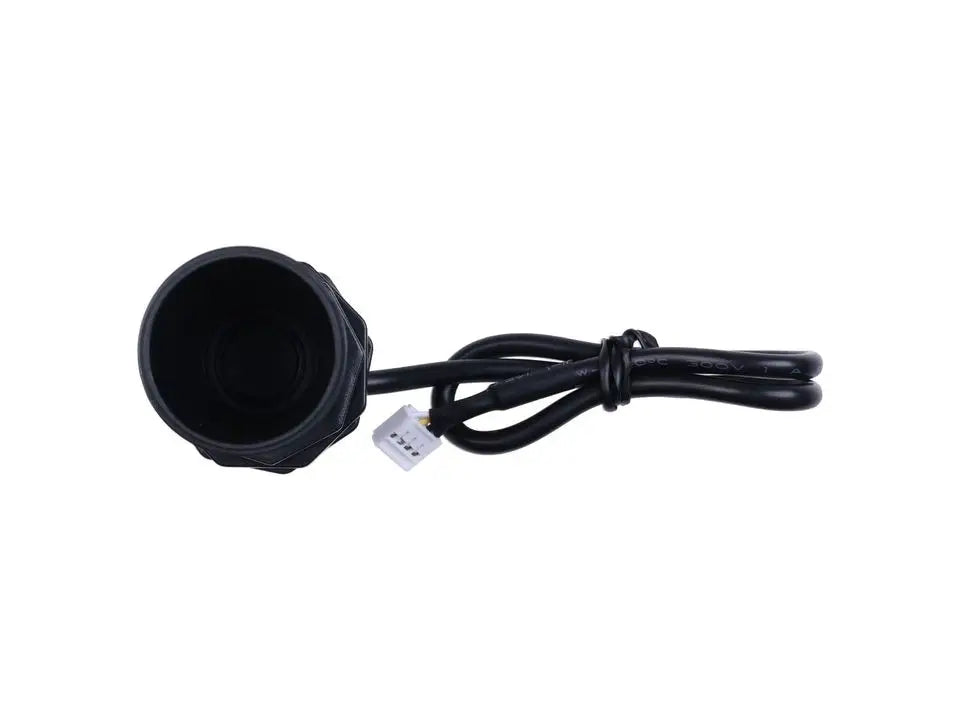

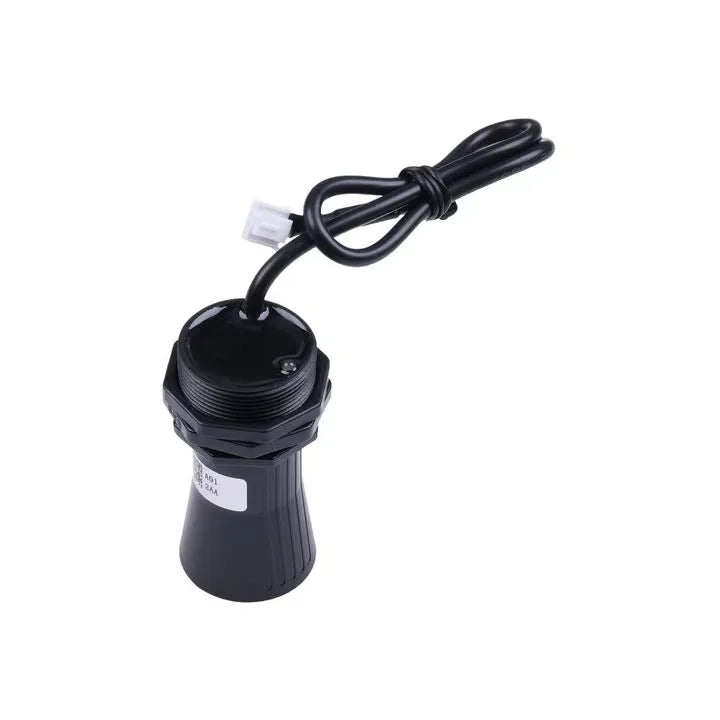

Series : RS485 750cm Ultrasonic Level Sensor
-
Mounting Type : RS485
-
Description : RS485 750cm Ultrasonic Level Sensor
-
Manufacturer Part Number : 101991041
-
Type : Ultrasonic Sensor
-
Place of Origin : Guangdong, China
-
Brand Name : Seeed Studio
-
Usage : Horizontal ranging,Object proximity
Specifications
|
Accuracy
|
±(1+S*0.3%)
|
|
Resolution
|
1 mm
|
|
Blind zone distance
|
0~28 cm
|
|
Measurement range (w/o bell-mouth)
|
28 ~ 450 cm
|
|

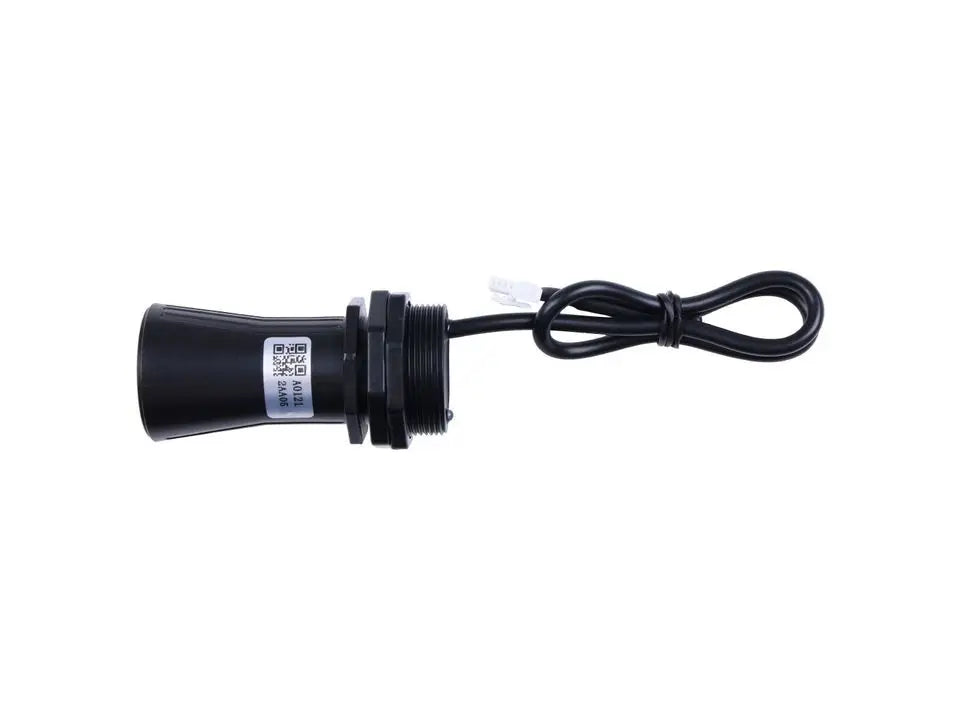

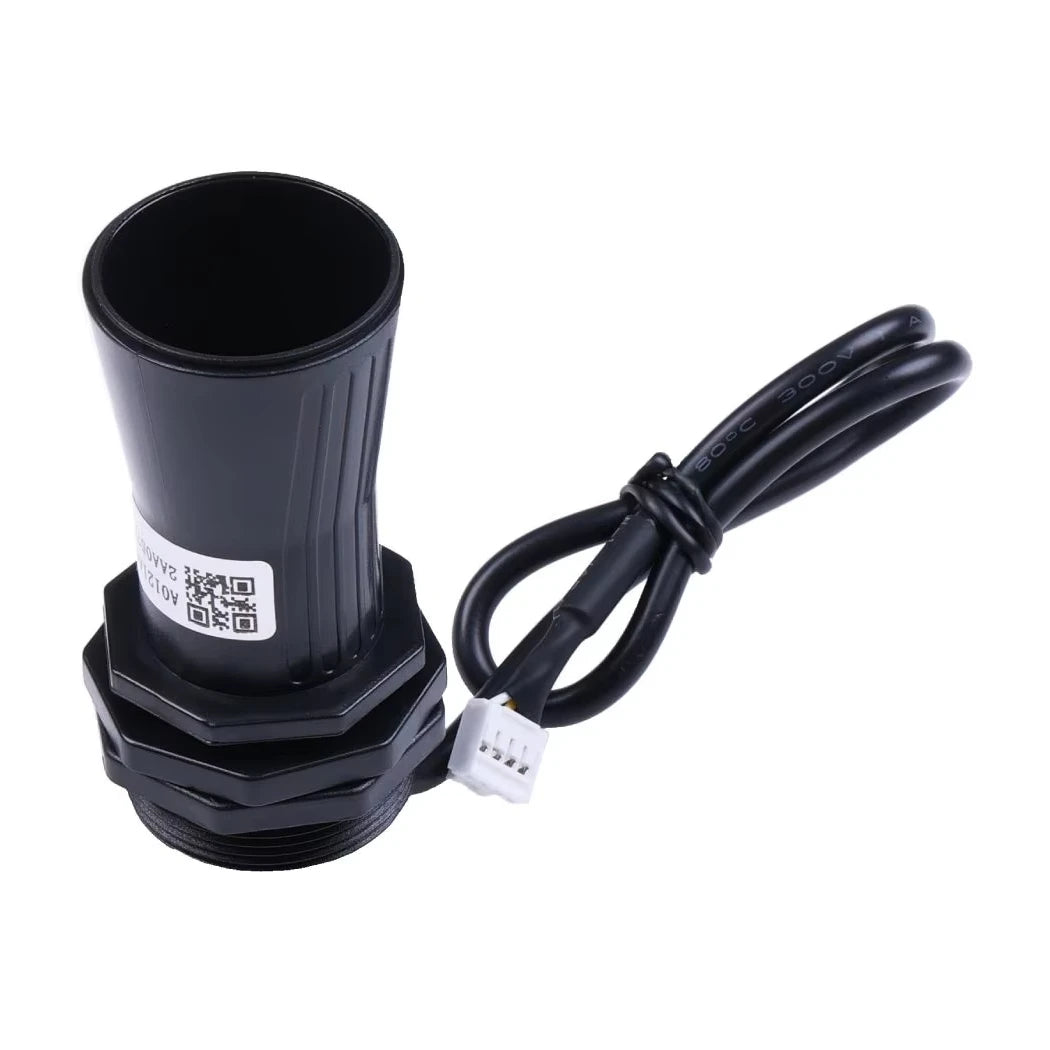

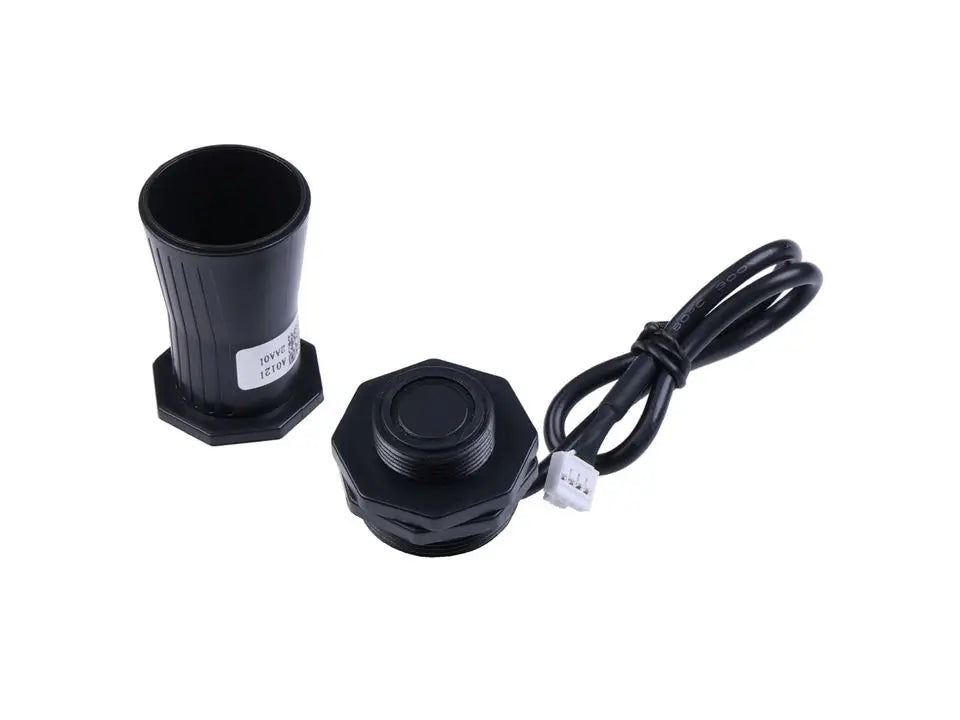

Measurement range (with bell-mouth)
|
28 ~ 750 cm
|
|
Beam angle(w/o bell-mouth)
|
--
|
|
Beam angle(with bell-mouth)
|
≈40°
|
General Parameter
|
Operating voltage
|
5~12 V
|
|
Average current
|
|
|
Output method
|
RS485 Output
|
|
IP Rating
|
IP 67
|
|
Working Temperature
|
-15℃ ~ 60℃
|
Interface
|
PIN #
|
Color
|
PIN name
|
Description
|
|
1
|
Red
|
VCC
|
5V~12V power input
|
|
2
|
Black
|
GND
|
Ground
|
|
3
|
Yellow
|
B
|
RS485 B
|
|
4
|
White
|
A
|
RS485 A
|
