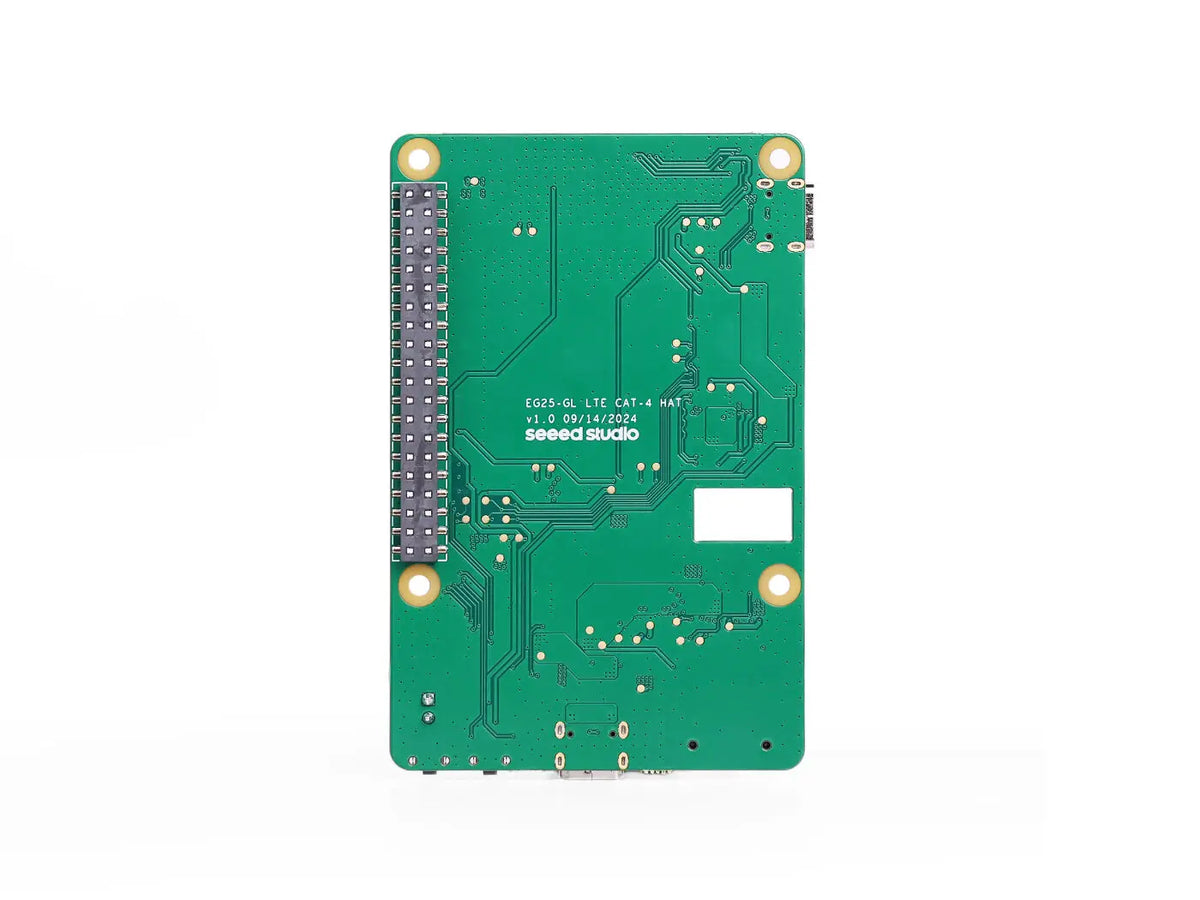

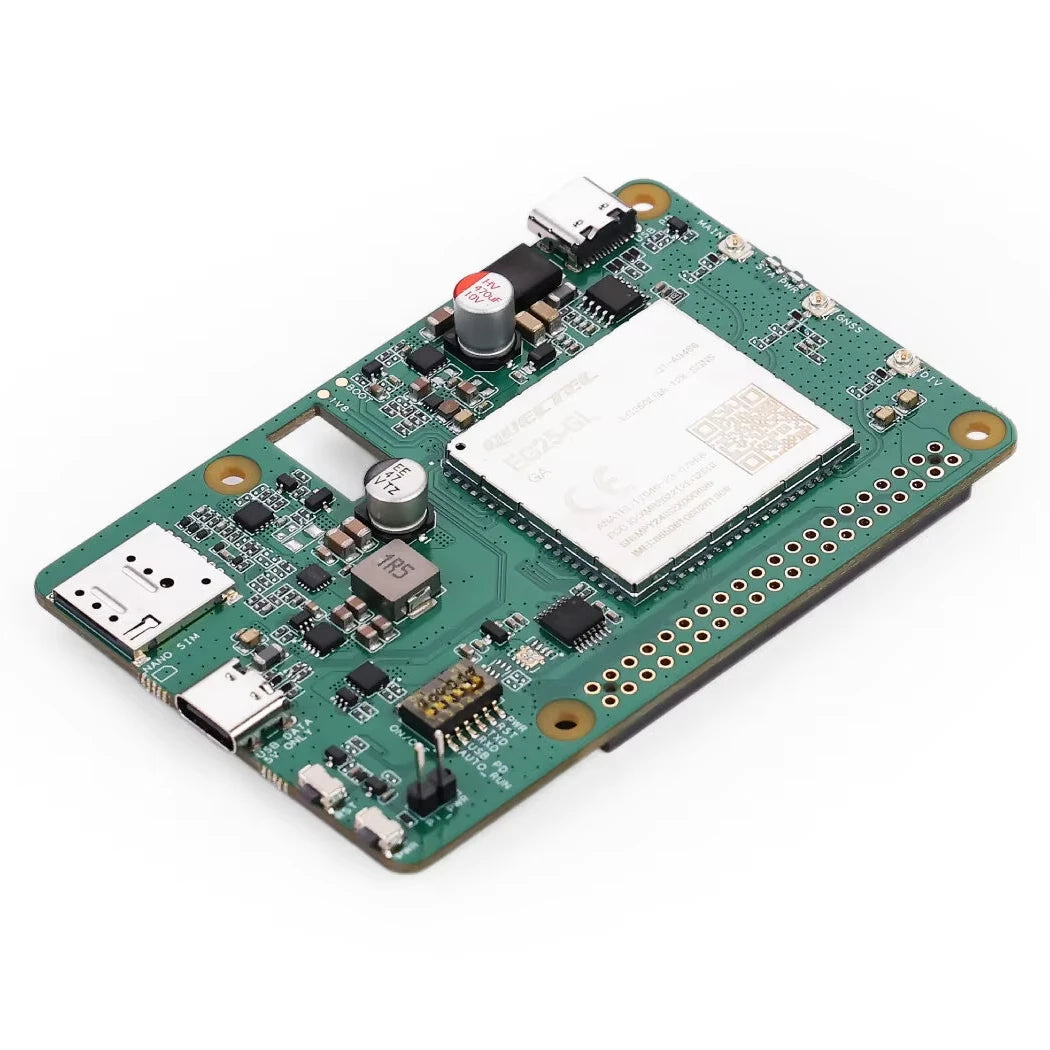

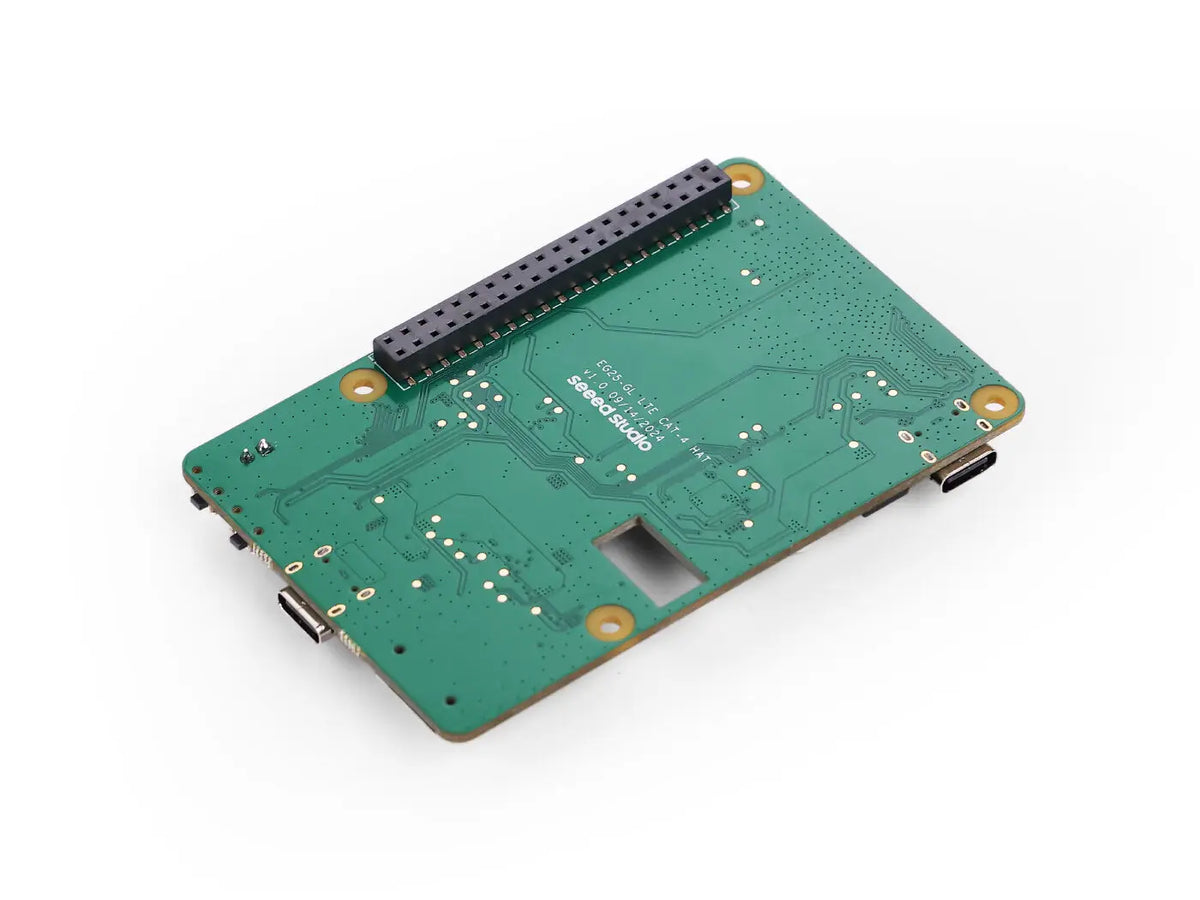

Raspberry Pi 4G LTE CAT4 HAT with Quectel EG25-GL

Attribute

Details

Region/Operator

Global

LTE-FDD

B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66

LTE-TDD

B34/38/39/40/41

WCDMA

B1/2/4/5/6/8/19

TD-SCDMA

Not supported

GSM/EDGE

B2/3/5/8

GNSS

GPS/GLONASS/BDS/Galileo/QZSS

Enhanced Features

DTMF , DFOTA, QMI/RmNet,QuecOpen®, QuecLocator®, QuecFile®, (U)SIM Card Detection

Max. Data Rates

LTE-FDD (Mbps): 150 (DL)/50 (UL)

LTE-TDD (Mbps): 130 (DL)/30 (UL)

DC-HSPA+ (Mbps): 42 (DL)/5.76 (UL)

WCDMA (kbps): 384 (DL)/384 (UL)

EDGE (kbps): 296 (DL)/236.8 (UL)

GPRS (kbps): 107 (DL)/85.6 (UL)

Protocols Supported

TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE

Supply Voltage Range

3.3–4.3 V, typical 3.8 V

Power supply

5V via USB-C1;
5-15V DC power via USB-C2, with USB Power Delivery support

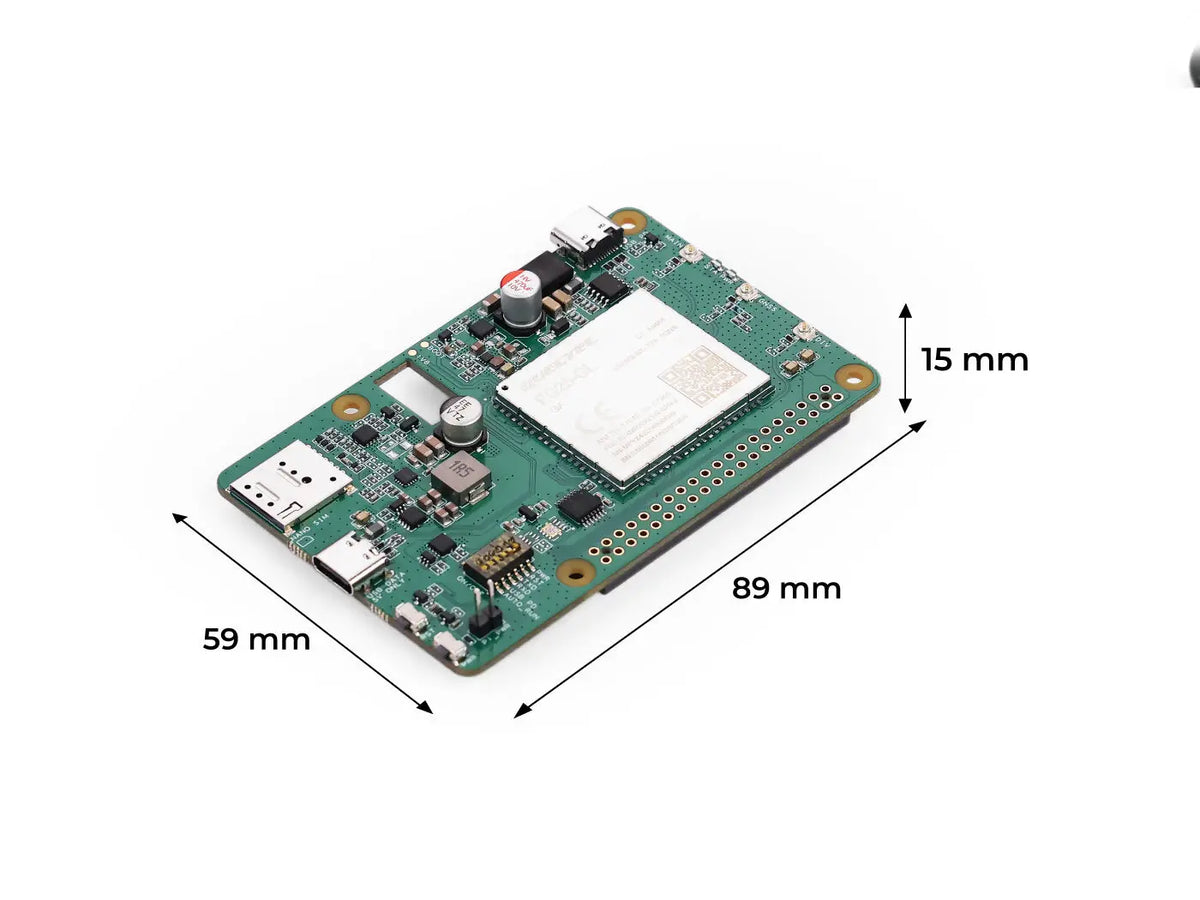

Dimensions

59mm x 89mm x 15mm
