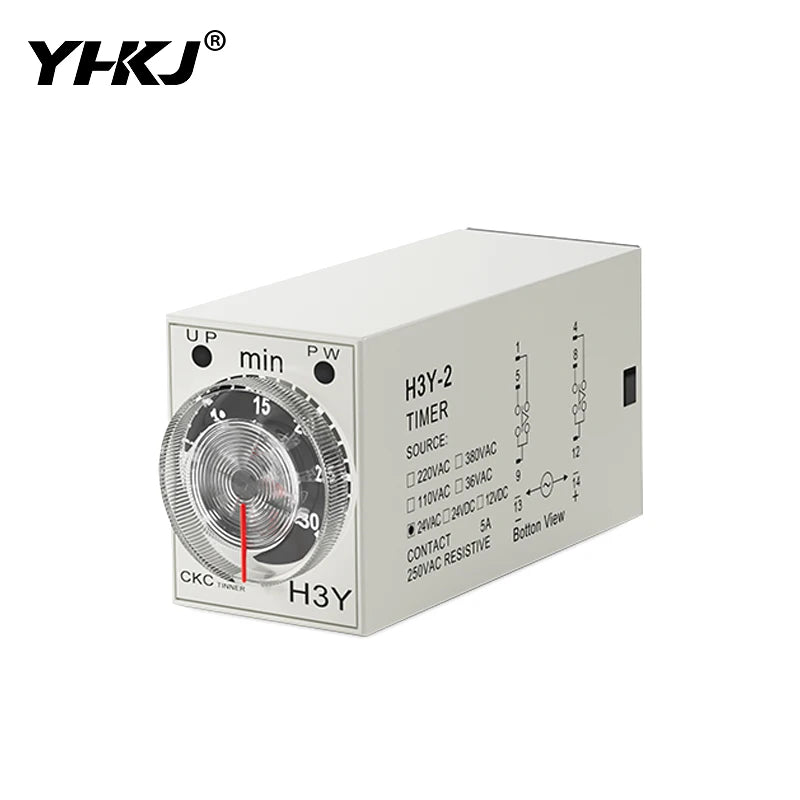

Power-on Delay Timer H3Y-4 H3Y-2 with Base Socket

• Contact Load : Low Power
• Model Number : H3Y series
• Brand Name : CKtinner
• Place of Origin : China
• Protect Feature : Sealed
• Size : Miniature
• Theory : Time Relay
• application : General Purpose

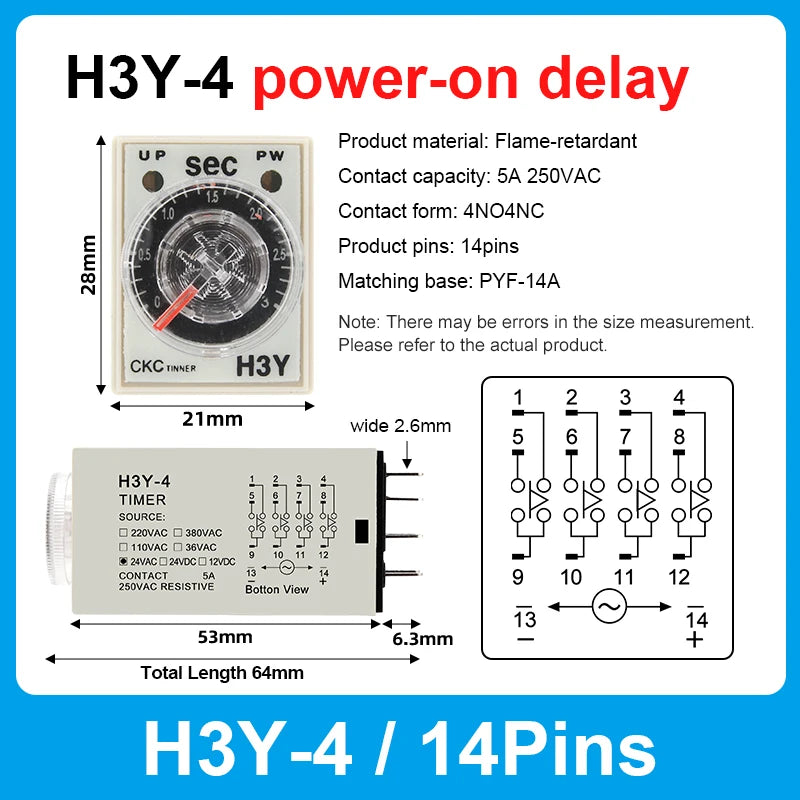

• Type : H3Y-4
• Contact Type : 4PDT
• Source : 12VDC/24VDC/24VAC/110VAC/220VAC
• Contact : 3A 250VAC Resistive Load
• Time Range : 0-5 Seconds
• Number of Terminals : 14
• Mount Rail Type : 3.5mm DIN Rail
• Fixing Mount Hole Size : 6 x 4mm/ 2.4" x 0.15"(L*W)
• Fixing Mount Center Hole Distance : 59 x 22mm/2.3" x 0.9"(L*W)

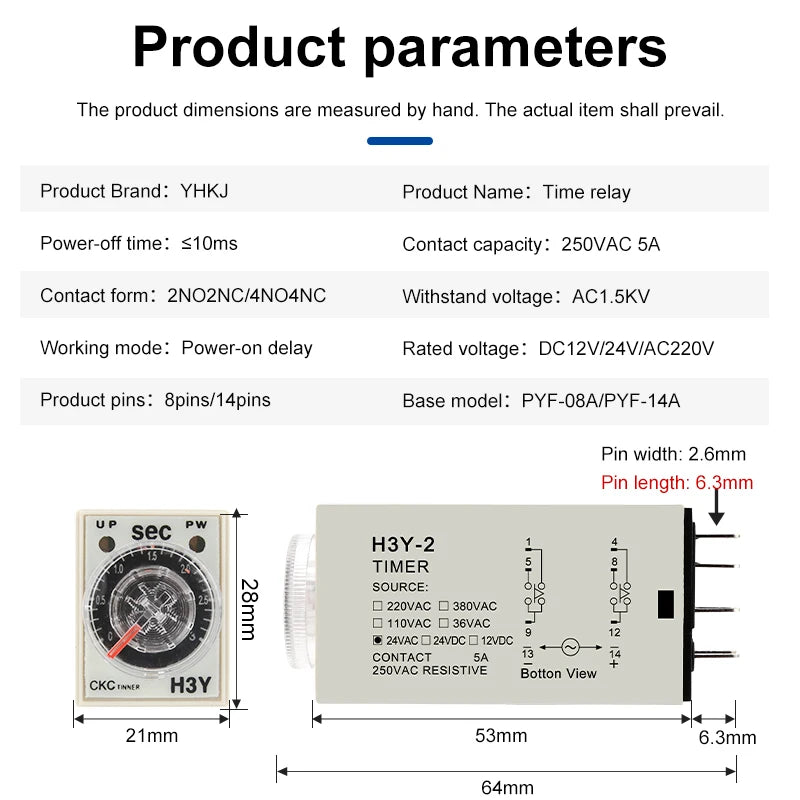

• Total Size (Approx.) : 68 x 29 x 88mm/ 2.7" x 1.1" x 3.5"(L*W*H)

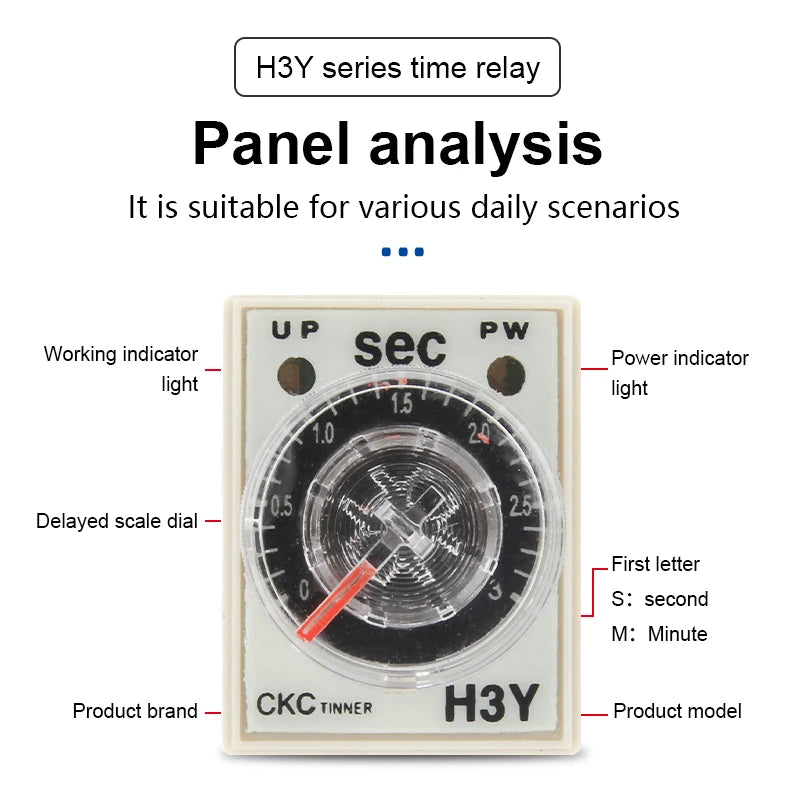

H3Y time relay, white dial version, power-on delay, knob setting

Multiple voltage options, selectable time range, compact size, space-saving, easy to install

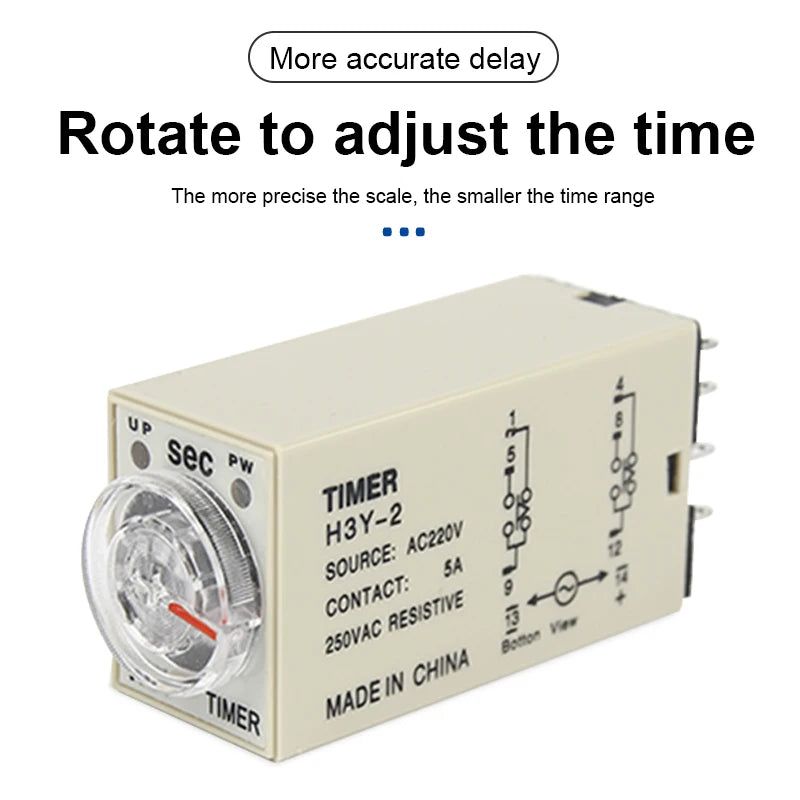

Adjust the time by turning the knob, featuring convenient operation and simple wiring. It can be installed with a base rail

High-precision chip, pure silver contacts, copper coil, good conductivity, long service life

Suitable for timing switch scenarios in industrial production, laboratories, power systems, household appliances, etc

1-year warranty, along with after-sales service and technical support
