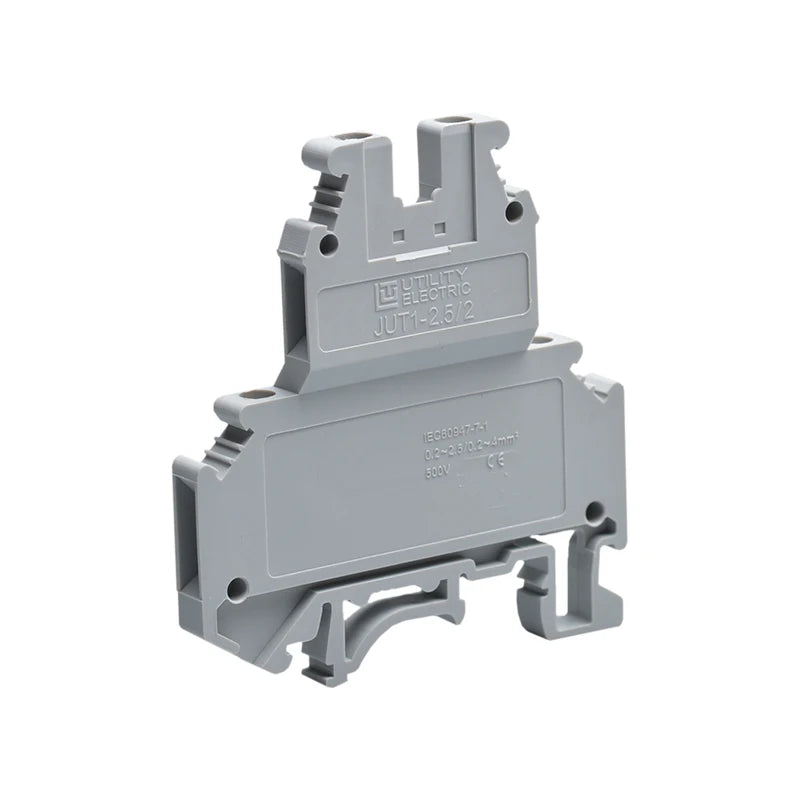

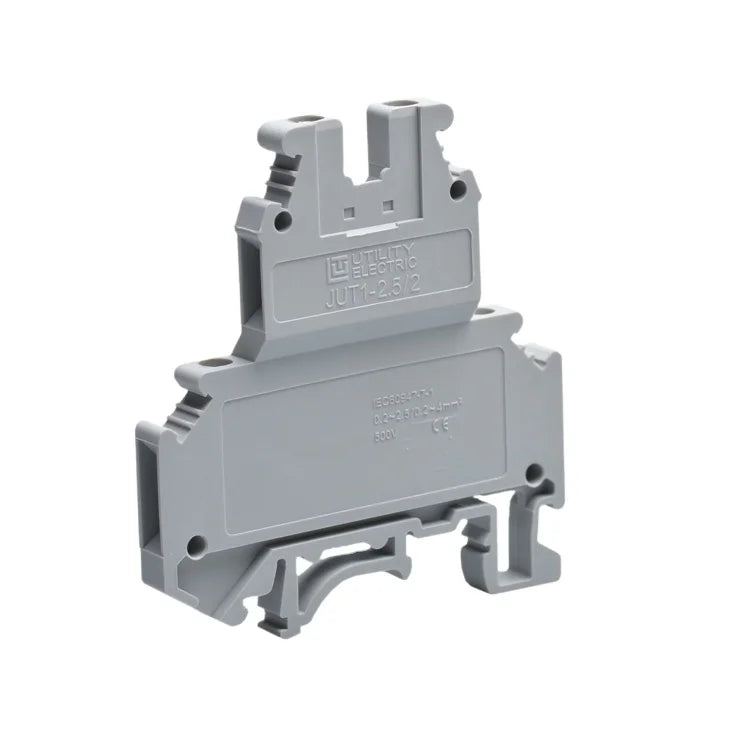

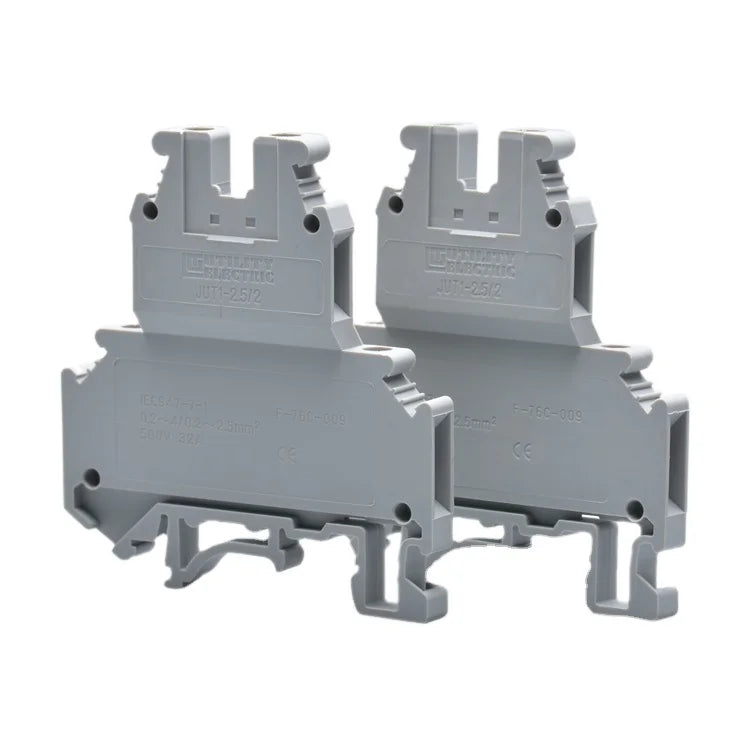

PA66 UTL Double Layer Terminal Blocks UKK3
PA66 UTL Double Layer Terminal Blocks UKK3
Regular price
$2.30 NZD
Regular price
$3.45 NZD
Sale price
$2.30 NZD
Taxes included.
Shipping calculated at checkout.
- Conductor Size : 21 - 30 AWG
- Type : Screw
- Model Number : JUT1-2.5/2L
- Brand Name : UTL
- Place of Origin : ZHEJIANG
- Number Of Contacts : 1 - 10
- Model : JUT1-2.5/2L
- Number of connection points : 4
- Color : Grey,blue,customized
- Pollution degree : 3
- Rated surge voltage : 8kv
- Rated voltage : 500V
- Nominal current : 32A
- Min.connection capacity : 0.2mm²/24AWG
- Max.connection capacity : 4mm²/12 AWG
- Line direciton : Side inlet
JUT1 Screw clamp terminal blocks with traditional screw jumper system
Products Description
1. The insulating shell is made of imported engineering plastic polyamide (nylon) 66 with high mechanical strength, good electrical characteristics and excellent elasticity.

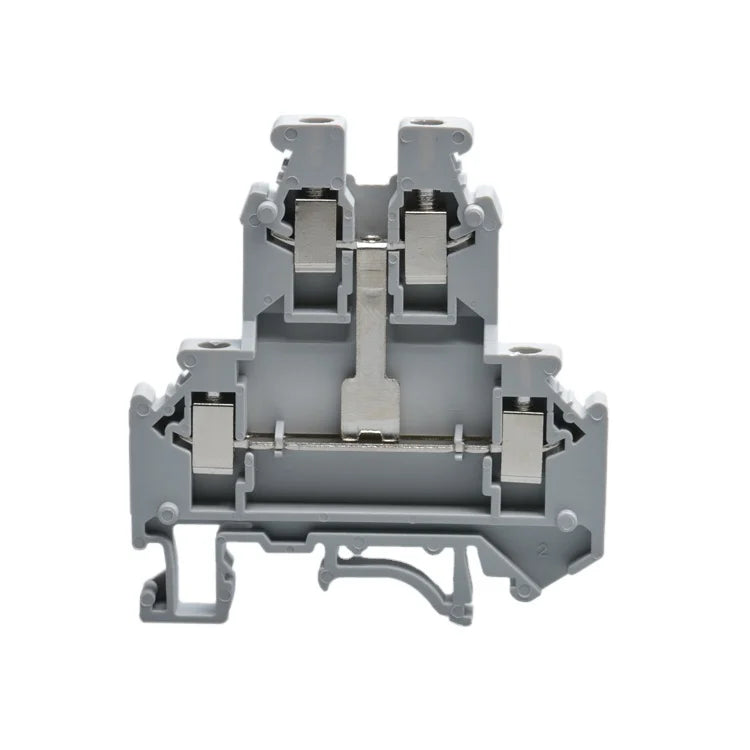

2.The conductive strip is made of red copper plated with matte tin, and the line-pressing frame is made of brass plated with nickel, which has good electrical conductivity.
3. Flame retardant grade UL94 V0.

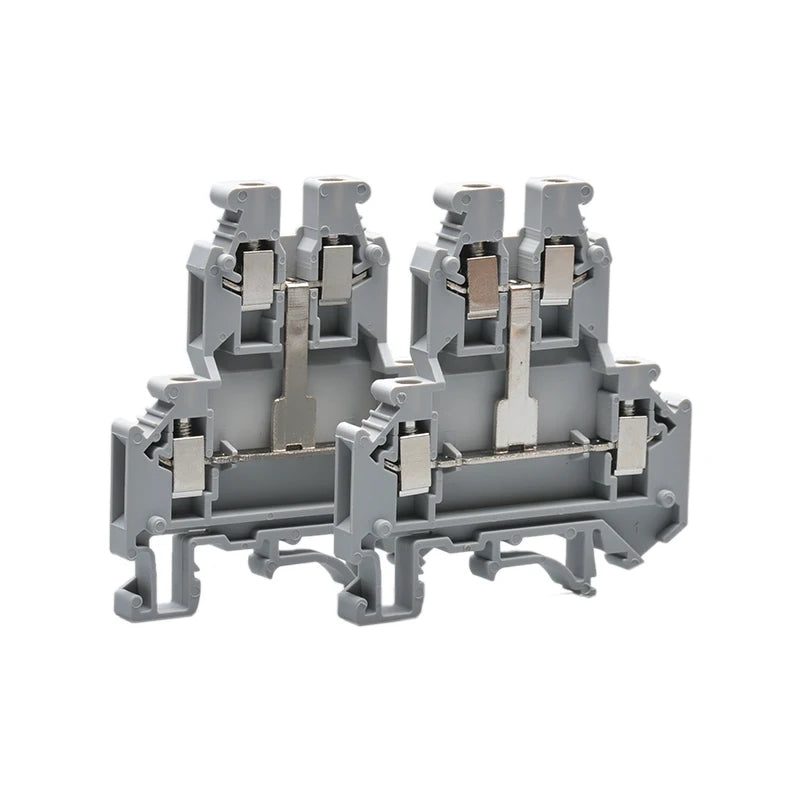

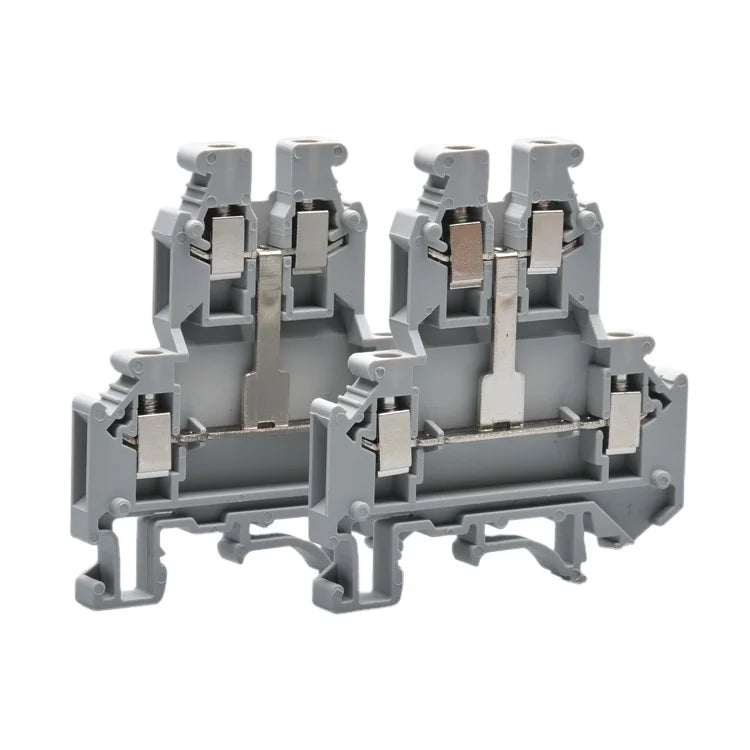

4. The closed screw guide hole is not only convenient for the screwdriver to operate, but also prevents the screw from falling out of the machine after being loosened. The potential distribution can be realized by the central adaptor connecting to the terminal center or the side adaptor inserted into the tapered wiring hole.
5. The product has universal mounting feet, which can be easily and quickly installed on the NS15 rail.
2.The conductive strip is made of red copper plated with matte tin, and the line-pressing frame is made of brass plated with nickel, which has good electrical conductivity.
3. Flame retardant grade UL94 V0.
4. The closed screw guide hole is not only convenient for the screwdriver to operate, but also prevents the screw from falling out of the machine after being loosened. The potential distribution can be realized by the central adaptor connecting to the terminal center or the side adaptor inserted into the tapered wiring hole.
5. The product has universal mounting feet, which can be easily and quickly installed on the NS15 rail.

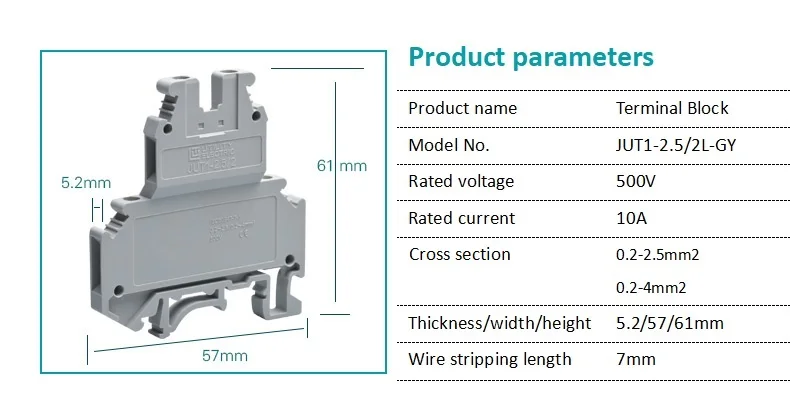

Parameters
|
Name
|
Data
|
Unit
|
|
Number of connection points
|
2
|
|
|
Number of potentials
|
1
|
|
|
Color
|
gray
|
|
|
Length
|
72
|
mm
|
|
Width
|
8.2
|
mm
|
|
With U-rail height
|
51.5
|
mm
|
|
With G-rail height
|
56.5
|
mm
|
|
Pollution degree
|
3
|
|
|
Insulation material group
|
Ⅰ
|
|
|
Rated surge voltage
|
6
|
KV
|
|
Meet standard①
|
IEC60947-7-1
|
|
|
Rated voltage ①
|
400
|
V
|
|
Nominal current①
|
57
|
A
|
|
Meet standard②
|
UL1059
|
|
|
Rated voltage②
|
400
|
V
|
|
Nominal current②
|
40
|
A
|
|
Min.connection capacity for solid wire
|
0.5/20
|
mm²/AWG
|
|
Max.connection capacity for solid wire
|
42651
|
mm²/AWG
|
|
Min.connection capacity for strand wire
|
0.5/20
|
mm²/AWG
|
|
Max.connection capacity for strand wire
|
42531
|
mm²/AWG
|
|
Line direciton
|
Side inlet
|
|
|
Strip length
|
10
|
mm
|
|
Insulation material
|
PA66
|
|
|
Flame-retarded Rating
|
UL94 V-0
|
|
