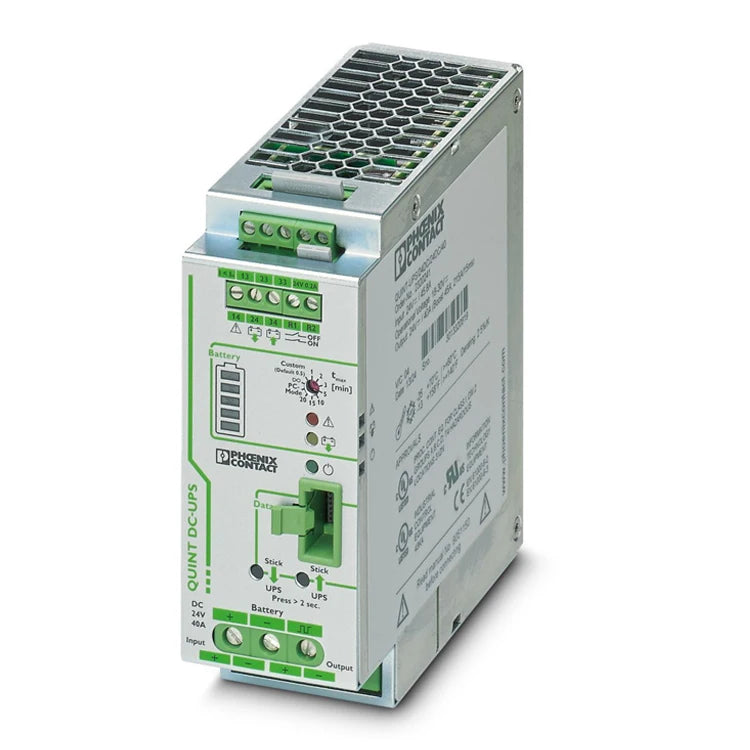

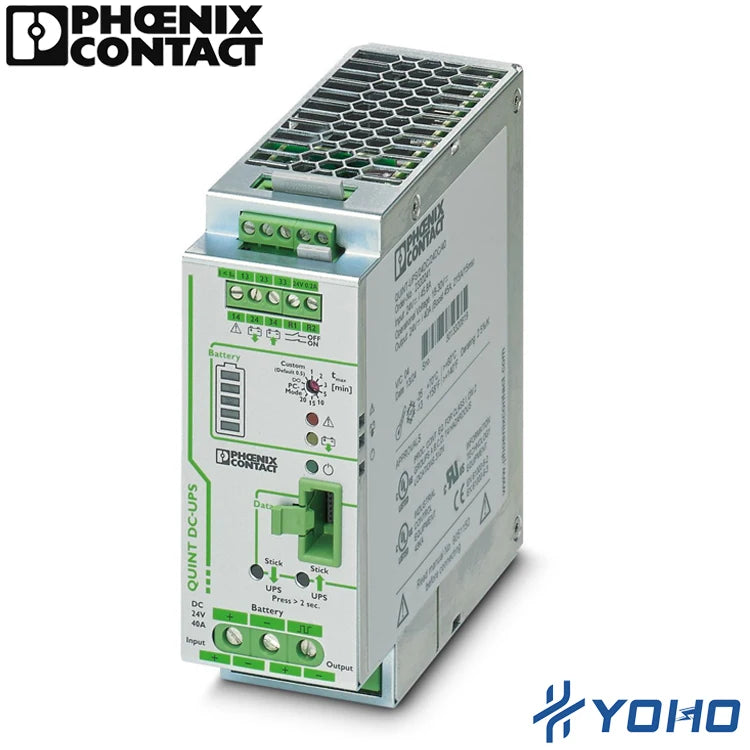

PhoenixContact Uninterruptible Power Supply QUINT-UPS
PhoenixContact Uninterruptible Power Supply QUINT-UPS
Regular price
$1,723.85 NZD
Regular price
Sale price
$1,723.85 NZD
Taxes included.
Shipping calculated at checkout.
- Place of Origin : India
- Brand Name : phoenixcontact
- Model Number : QUINT-UPS/ 24DC/ 24DC/40
- Application : Industry and residential
- Type : AC
- Features : Degree of pollution 2
- Mounting Type : DIN rail mounting
- Size / Dimension : 47 mm Height 130 mm Depth 125 mm
- Description : 24 V DC with output currents ranging
- Weight per piece (including packing) : 874.9 g
- Packing unit : 1 pc
- Input voltage : 24 V DC
- Input voltage range : 18 V DC ... 30 V DC
- Output description : Relay (floating)
- Battery presence check/time interval : 1 min.
- Connection method : Screw connection
- Conductor cross section, : 0.5 mm²
- Conductor cross section : 16 mm²
- Screw thread : M4
Products Description
Product advantages
* Easy handling thanks to automatic battery detection, tool-free battery replacement during operation, and communication via the
IFS interface
* Optimum use of the buffer time and preventive monitoring of the energy storage
* Rapid battery charging
* Comprehensive signaling and parameterization
* Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology
* Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current
permanently
IFS interface
* Optimum use of the buffer time and preventive monitoring of the energy storage
* Rapid battery charging
* Comprehensive signaling and parameterization
* Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology
* Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current
permanently
Product Paramenters
|
Product name
|
2320241 Uninterruptible Power Supply With Iq Technology For Din Rail Mounting
|
|
Electromagnetic compatibility
|
Conformance with EMC Directive 2014/30/EU
|
|
Contact discharge
|
8 kV (Test Level 4)
|
|
Discharge in air
|
15 kV (Test Level 4)
|
|
Frequency range
|
80 MHz ... 1 GHz
|
|
Test field strength
|
3 V/m
|
|
I/O/S
|
asymmetrical
|
|
Radio interference voltage in acc. with EN 55011
|
EN 55011 (EN 55022) Class B, area of application: Industry and
residential |
|
Criterion A
|
Normal operating behavior within the specified limits.
|
|
Criterion B
|
Temporary impairment to operational behavior that is corrected
by the device itself. |
