Nanjing Youhuo Electric Co., Ltd.

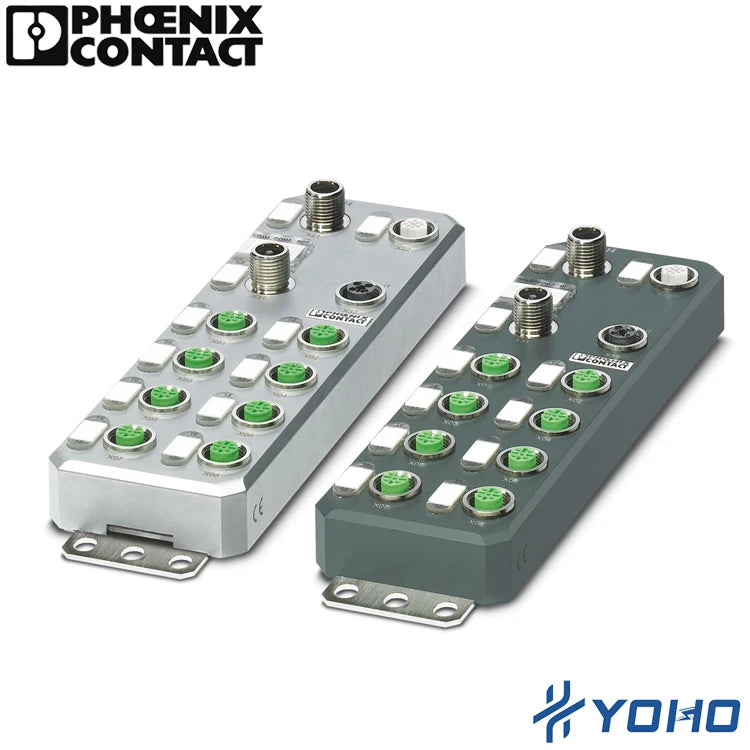

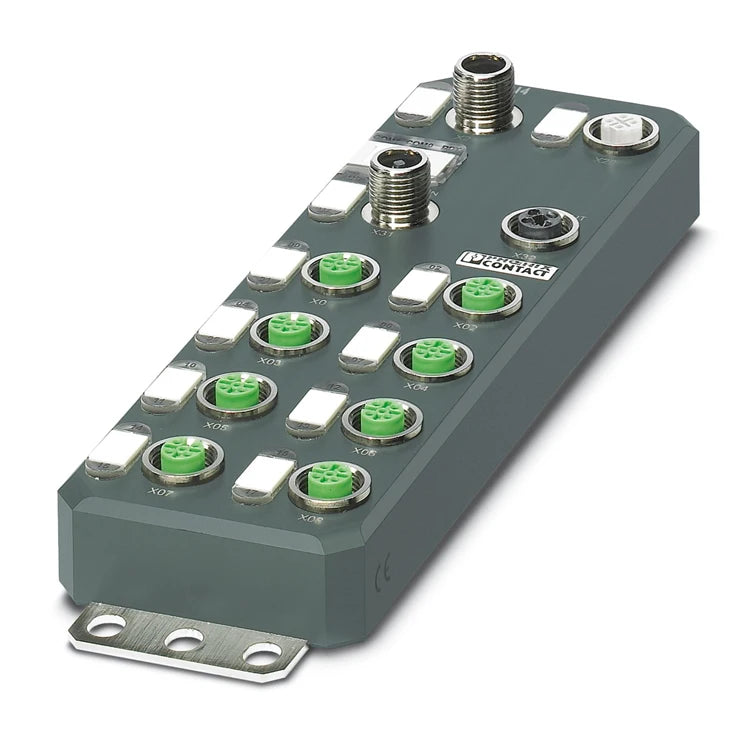

Phoenix Contact 2701503 AXL E PB IOL8 DI4 M12 6P Communication Module

Phoenix Contact 2701503 AXL E PB IOL8 DI4 M12 6P Communication Module

$1,684.75 NZD
$2,526.55 NZD $1,684.75 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Model Number : AXL E PB IOL8 DI4 M12 6P
  • Place of Origin : Germany
  • Brand Name :  Phoenix Contact
  • Functional Application : Industrial Control
  • Product name :  Phoenix Contact 2701503 AXL E PB IOL8 DI4 M12 6P Communication Module
  • Connection method : M12 connector
  • Transmission speed : 9.6 kbps ... 12 Mbps (Automatic baud rate detection)
  • Transmission physics : PROFIBUS-DP-compliant copper cable
  • Address area assignment : 1 ... 126, adjustable
  • Product type : I/O component
  • Connection technology : 3-conductor
  • ID code (hex) : 0E57
  • Filter time : < 1000
  • Input voltage : -0.3 V DC ... 5 V DC
Products Description

Product advantages

* Connection to PROFIBUS DP using M12 connectors (B-coded)
* Baud rate of up to 12 Mbaud (automatic baud rate detection)

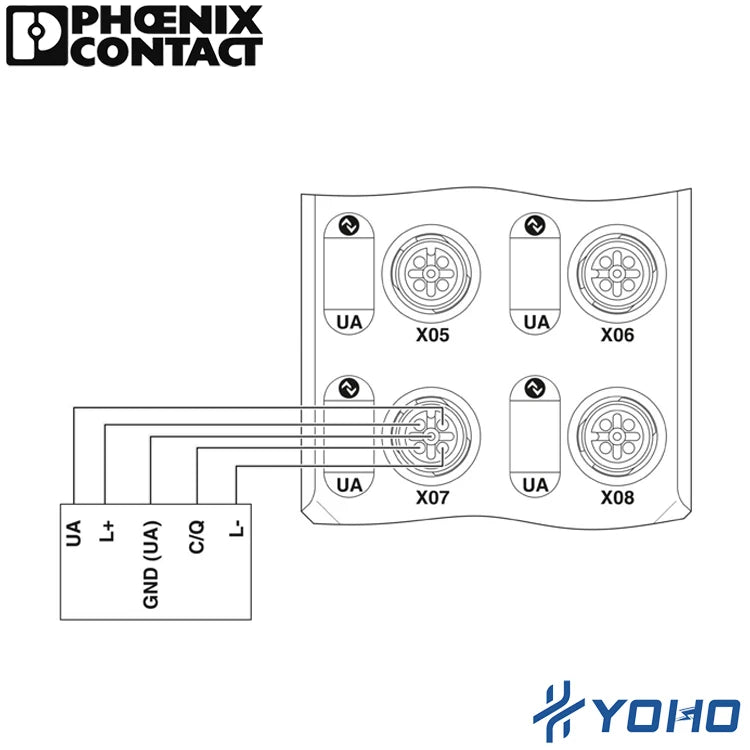

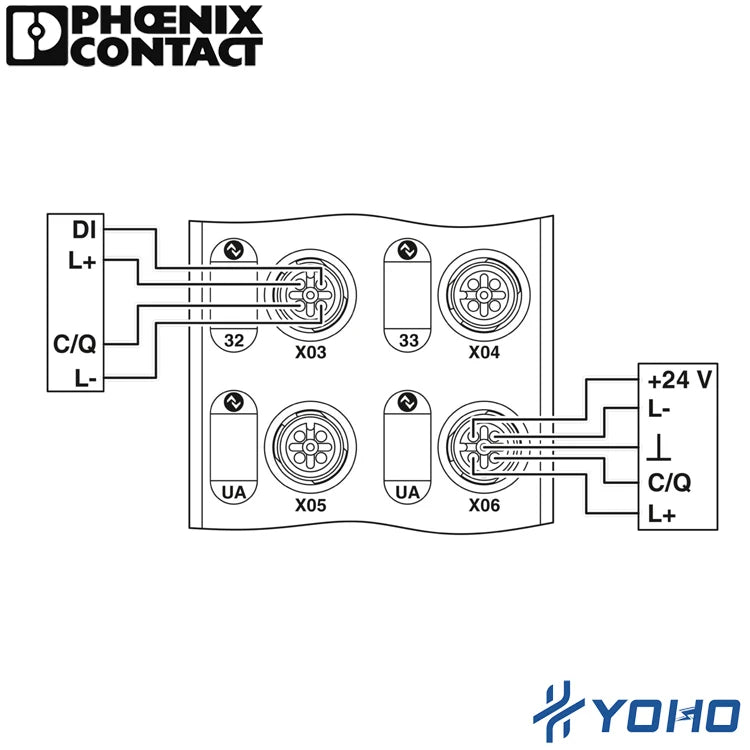

* Connection of four IO-Link devices with additional digital input
* Connection of four IO-Link actuators with additional power supply
* Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
* IO-Link specification V1.1.2
* Diagnostic and status indicators
* Short-circuit and overload protection of the sensor supply
* IP65/IP67 degree of protection
Product Paramenters
Product name
Phoenixcontact 2701503 Communication Module
Item number
2701503
Packing unit
1 pc
Country of origin
DE
Product type
I/O component
Type
modular
Limitation of the voltage induced on circuit interruption
-15 V DC

View full details
