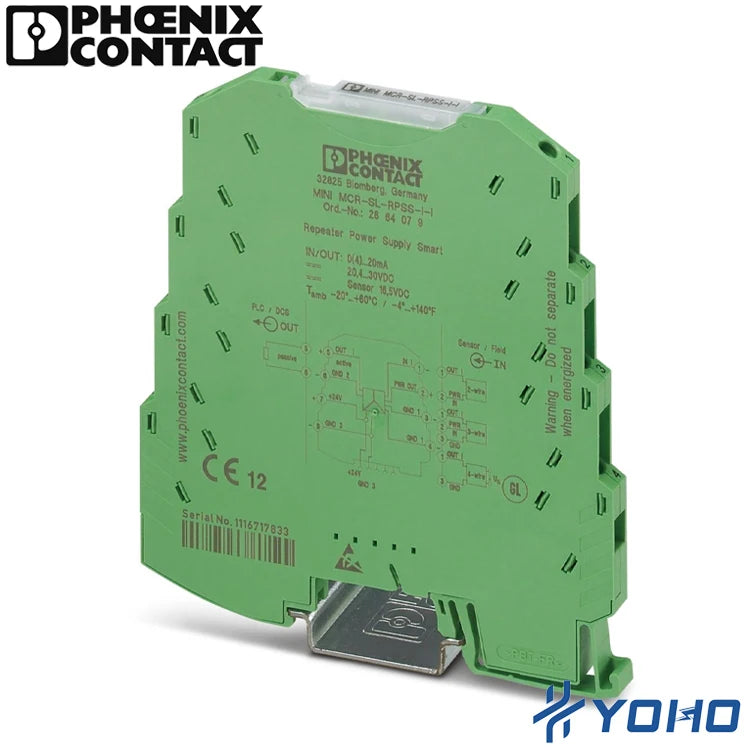

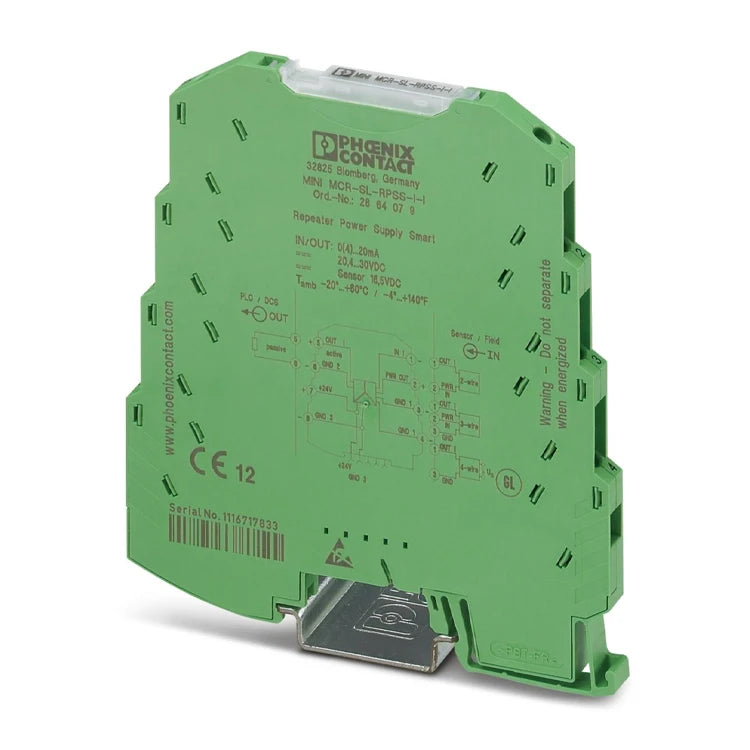

Phoenix Contact Repeater Power Supply MINI MCR-SL-RPSS-I-I-2864079
Phoenix Contact Repeater Power Supply MINI MCR-SL-RPSS-I-I-2864079
Regular price
$577.30 NZD
Regular price
Sale price
$577.30 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Application : Industrial Equipment, Automation, Building, Cnc Machine, Electric Power Transmission, Electronic Equipment, Power Station
- Material : Plastic
- Model Number : MINI MCR-SL-RPSS-I-I
- Brand Name : Phoenixcontact
- Place of Origin : Germany
- Product name : Mcr Repeater Power Supply With Hart Transparency Repeater Power Supply
- Product type : Repeater power supplies
- Screw thread : M3
- Stripping length : 12 mm
- Conductor cross section AWG : 26 ... 12
- Pollution degree : 2
- Step response : < 2 ms
- Power consumption : < 600 mW (at 24 V DC and in isolator operation)
- Country of origin : DE
- Description of the input : Sensor circuit
Products Description
Product advantages

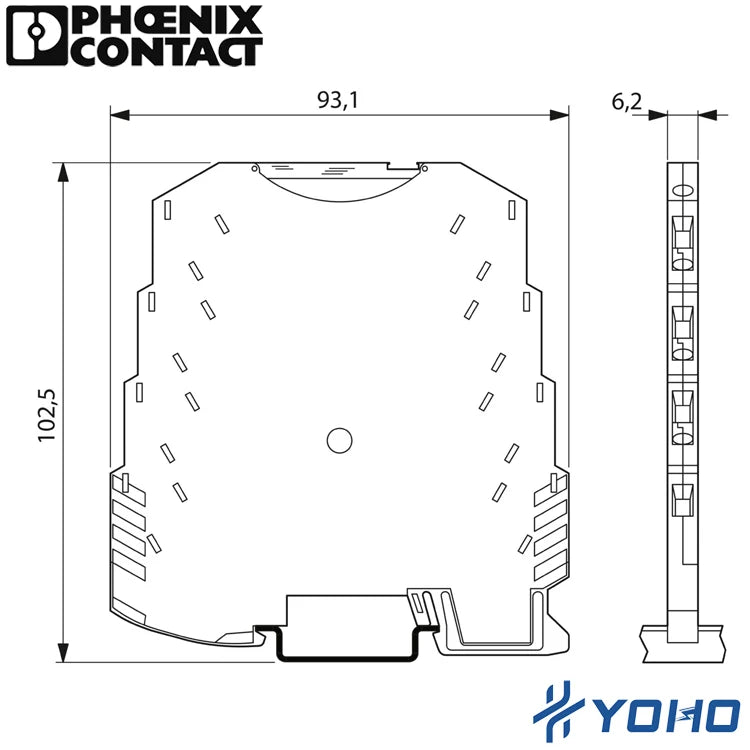

The 6.2 mm wide MINI MCR-SL-RPSS-I-I... repeater power supply supplies the transmitter in the field in case of simultaneous
galvanic 3-way
separation between input, output and supply.
HART data protocols can be transmitted bidirectionally. The module can be used in both isolator and repeater power supply
operation.
On the input and output side, the analog standard signals 0...20 mA or 4...20 mA are available, electrically isolated.
Voltage (20.4 V DC to 30 V DC) can be supplied through connection terminal blocks on the modules or in conjunction with the DIN
rail connector.
Your advantages
* Bidirectional HART transmission as an option
* Power supply possible via the foot element (TBUS)

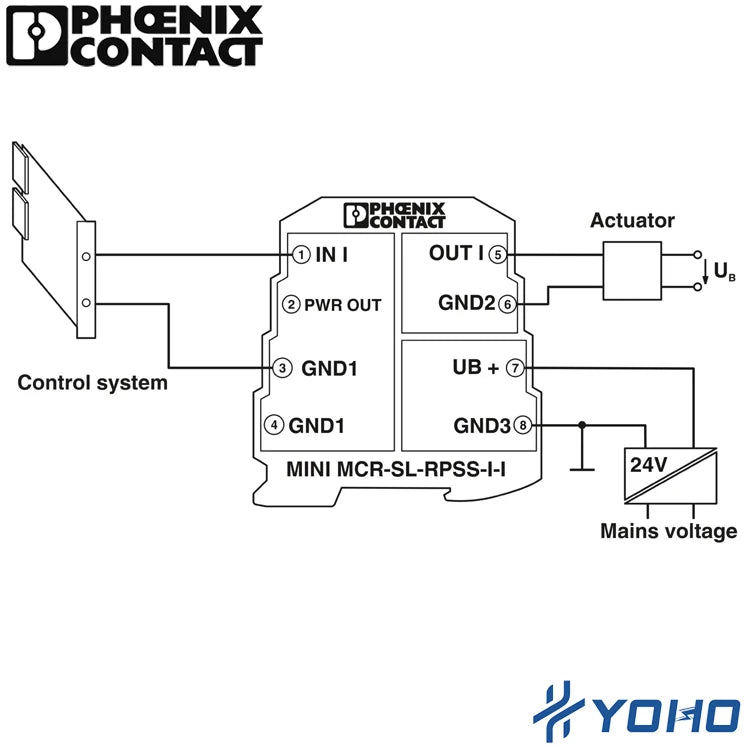

* Can be used as an isolator with passive input
* Highly-compact repeater power supplies for electrical isolation, amplification, and filtering of standard analog signals

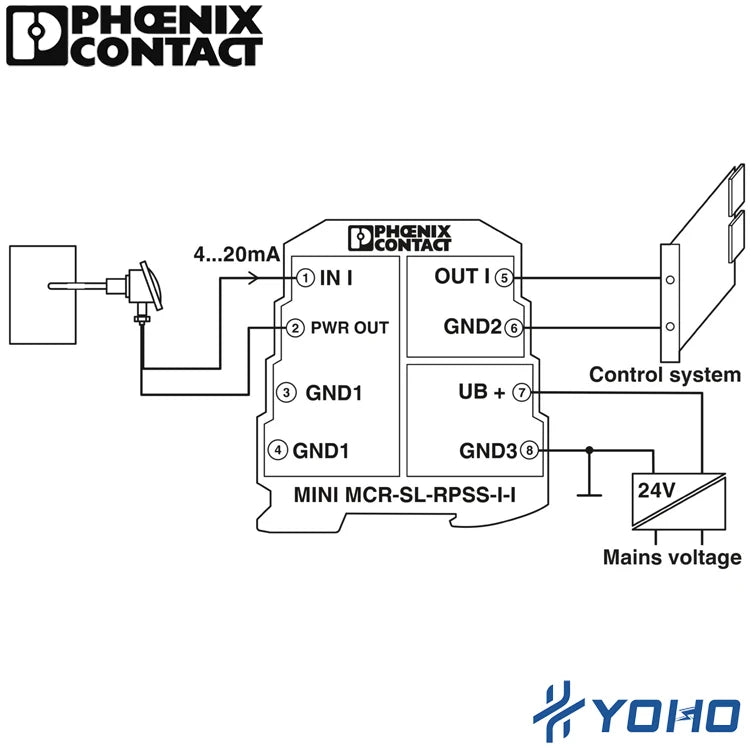

* Supply of 2-conductor and passive 3-conductor sensors
* 3-way isolation
galvanic 3-way
separation between input, output and supply.
HART data protocols can be transmitted bidirectionally. The module can be used in both isolator and repeater power supply
operation.
On the input and output side, the analog standard signals 0...20 mA or 4...20 mA are available, electrically isolated.
Voltage (20.4 V DC to 30 V DC) can be supplied through connection terminal blocks on the modules or in conjunction with the DIN
rail connector.
Your advantages
* Bidirectional HART transmission as an option
* Power supply possible via the foot element (TBUS)
* Can be used as an isolator with passive input
* Highly-compact repeater power supplies for electrical isolation, amplification, and filtering of standard analog signals
* Supply of 2-conductor and passive 3-conductor sensors
* 3-way isolation
Product Paramenters
|
Product name
|
2864079 Mcr Repeater Power Supply With Hart Transparency Repeater Power Supply
|
|
Item number
|
2864079
|
|
Screw thread
|
M3
|
|
GTIN
|
4046356046428
|
|
Product family
|
MINI Analog
|
|
Power consumption
|
< 900 mW (at 24 V DC and in repeater power supply operation)
|
|
Degree of protection
|
IP20
|
