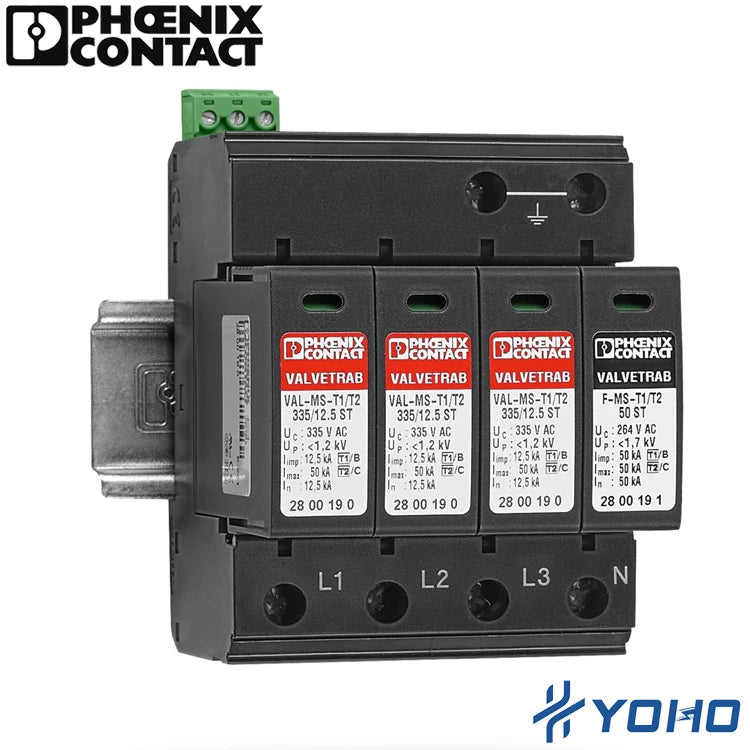

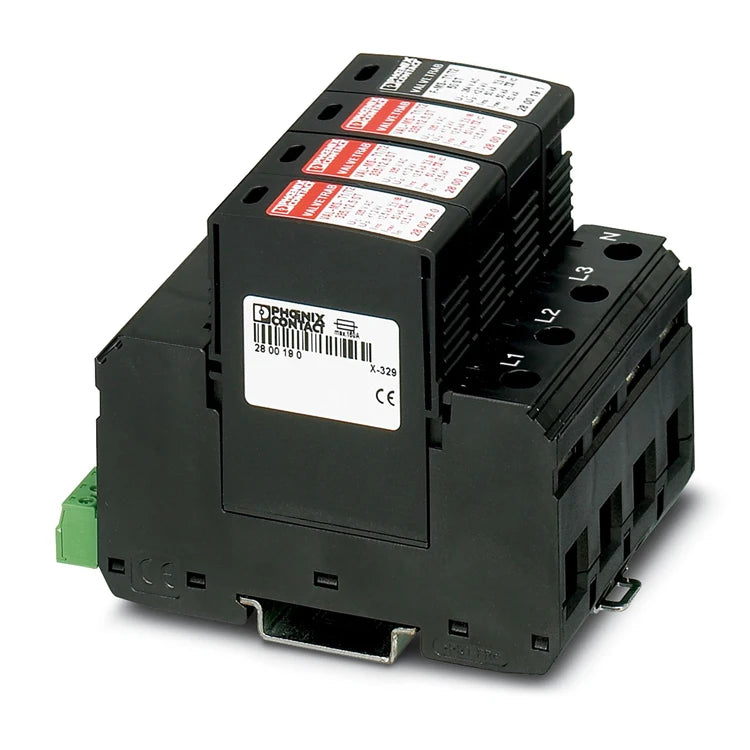

Phoenix Contact Lightning Surge Arrester 2800183
Phoenix Contact Lightning Surge Arrester 2800183
Regular price
$1,429.45 NZD
Regular price
$2,144.75 NZD
Sale price
$1,429.45 NZD
Taxes included.
Shipping calculated at checkout.
- Max Discharge Current : 50000 A
- Type : T2
- Model Number : VAL-MS-T1/T2 335/12.5/3+1-FM
- Brand Name : Phoenixcontact
- Place of Origin : Germany
- Product name : VAL-MS-T1/T2 335/12.5/3+1-FM Lightning/Surge Arrester Type 1/2
- Product type : Arrester combination
- Screw thread : M5
- Stripping length : 16 mm
- Conductor cross section AWG : 15 ... 2
- Pollution degree : 2
- Material group : I
- Open side panel : No
- Nominal voltage : 240/415 V AC
- Country of origin : Germany
Products Description
Product advantages
* Quality proven millions of times over in the widest range of applications
* Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
* Easy testing and insulation measurement, thanks to pluggable protection modules
* Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
* Vibration-resistant latching ensures the plug remains firmly in place
* Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
* Easy testing and insulation measurement, thanks to pluggable protection modules
* Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
* Vibration-resistant latching ensures the plug remains firmly in place
Product Paramenters
|
Product name
|
Phoenixcontact 2800183 VAL-MS-T1/T2 335/12.5/3+1-FM Lightning/Surge Arrester Type 1/2
|
|
Item number
|
2800183
|
|
Screw thread
|
M5
|
|
Tightening torque
|
3 Nm (1.5 mm² ... 16 mm²)
4.5 Nm (25 mm² ... 35 mm²) |
|
Overvoltage category
|
III
|
|
Insulating material
|
PA 6.6/PBT
|
|
Housing material
|
PA 6.6
PBT |
