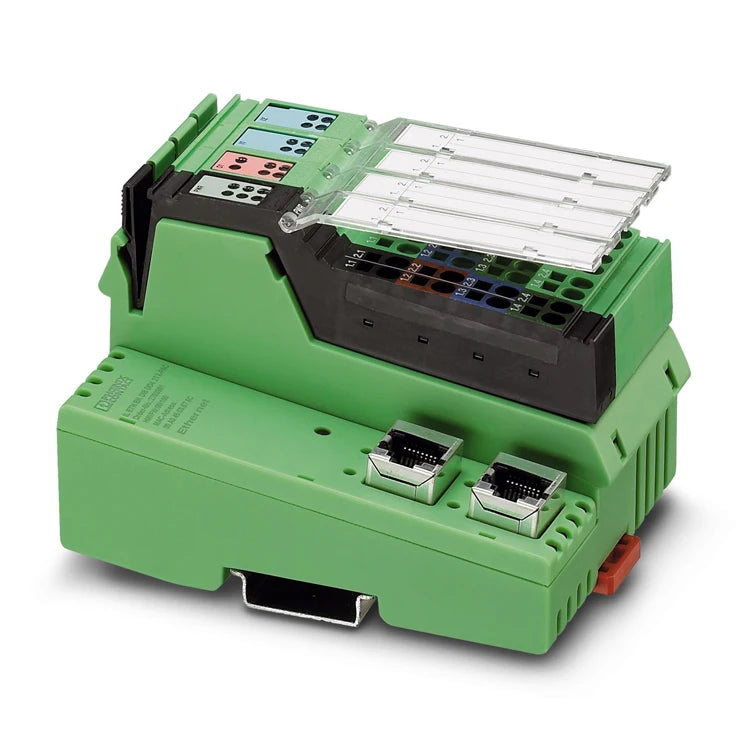

Phoenix Contact IL PN BK DI8 DO4 2TX-PAC 2703994 Automation Controller
Phoenix Contact IL PN BK DI8 DO4 2TX-PAC 2703994 Automation Controller
Regular price
$1,544.45 NZD
Regular price
$2,316.10 NZD
Sale price
$1,544.45 NZD
Taxes included.
Shipping calculated at checkout.
- Model Number : IL PN BK DI8 DO4 2TX-PAC
- Place of Origin : Germany
- Brand Name : Phoenixcontact
- Functional Application : Industrial Automation
- Product name : 2703994 Automation Controller and Components Bus Coupler Inline
- Connection method : RJ45 jack
- Transmission speed : 100 Mbps (acc. to PROFINET standard)
- Device function : PROFINET device
- Transmission physics : Ethernet in RJ45 twisted pair
- Product type : I/O component
- Connection technology : 3-conductor
- ID code (hex) : none
- Filter time : 3 ms
- Input voltage : 24 V DC
Products Description
Product advantages
* 2x Ethernet twisted pair according to 802.3 with auto negotiation and auto crossover
* Transmission speeds 100 Mbps
* IP parameter setting via PROFINET controller
* Connection to the PROFINET network via 8-pos. RJ45 jack
* Electrical isolation between Ethernet interface and logic
* Ethernet TCP/IP (100 Base-TX, management via SNMP)
* Connection of up to 61 other Inline devices
* Connection of a maximum of 16 PCP devices
* Supported protocols: SNMPv1, TFTP, PROFINET, LLDP, ICMP, and MRP (from firmware 3.21)
* PROFINET IRT (firmware 4.00 or later)
* Conformance with PROFINET specification V2.3 (firmware 4.00 or later)
* PROFINET Netload Class III (from firmware 4.00)
* 8 digital inputs, 4 digital outputs (on-board)
* Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
* Approved for PROFIsafe applications
* Transmission speeds 100 Mbps
* IP parameter setting via PROFINET controller
* Connection to the PROFINET network via 8-pos. RJ45 jack
* Electrical isolation between Ethernet interface and logic
* Ethernet TCP/IP (100 Base-TX, management via SNMP)
* Connection of up to 61 other Inline devices
* Connection of a maximum of 16 PCP devices
* Supported protocols: SNMPv1, TFTP, PROFINET, LLDP, ICMP, and MRP (from firmware 3.21)
* PROFINET IRT (firmware 4.00 or later)
* Conformance with PROFINET specification V2.3 (firmware 4.00 or later)
* PROFINET Netload Class III (from firmware 4.00)
* 8 digital inputs, 4 digital outputs (on-board)
* Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
* Approved for PROFIsafe applications
Product Paramenters
Product name |
Phoenixcontact IL PN BK DI8 DO4 2TX-PAC 2703994 Automation Controller and Components Bus Coupler Inline |
Item number |
2703994 |
Packing unit |
1 pc |
Country of origin |
DE |
Product type |
I/O component |
Type |
modular |
Pollution degree |
2 (IEC 60664-1, EN 60664-1) |
