Phoenix Contact 2717139 Initiator Actuator Terminal Block
Phoenix Contact 2717139 Initiator Actuator Terminal Block
Regular price
$862.50 NZD
Regular price
Sale price
$862.50 NZD
Unit price
$17.25 each
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Model Number : DOK 1,5-2D
- Type : Sensor/actuator terminal block
- Place of Origin : Poland
- Brand : phoenixcontact
- Packaging : 6.2*6.2*6.25
- Description : Initiator/actuator terminal block
- Product name : Initiator Actuator Terminal Block Terminal Blocks with System
- Product type : Sensor/actuator terminal block
- Color : gray
- Packing unit : 50 pc
- Sales key : BE1217
- Mounting type : NS 35/7,5 NS 35/15
- ETIM 9.0 : EC000900
- GTIN : 4017918102111
- Customs tariff number : 8536901900
- Ambient temperature (assembly) : -5 °C ... 70 °C
Products Description
Product advantages
* Same shape as DIK ... three-level initiator terminal blocks
* The forks of the insertion bridge can be easily loosened for bridging between non-adjacent terminal blocks

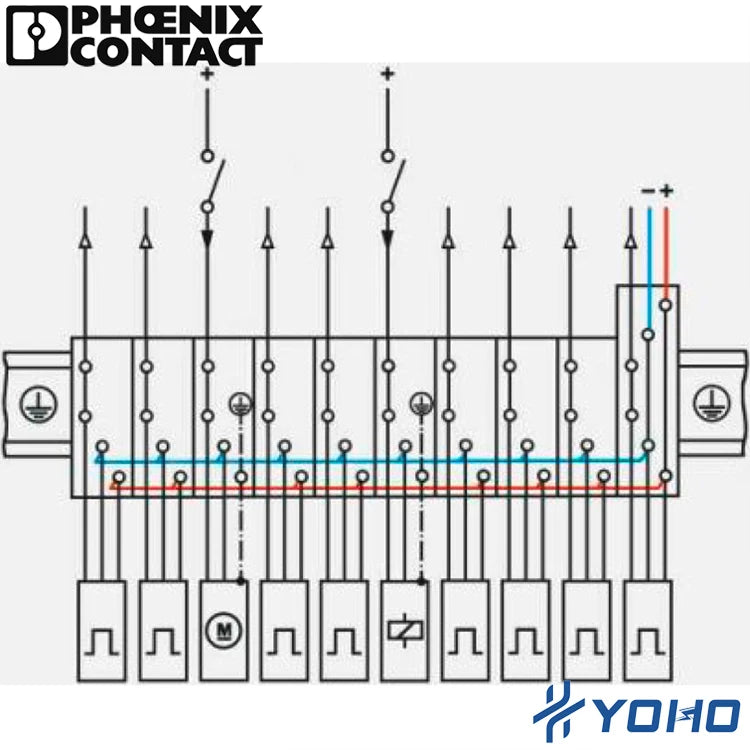

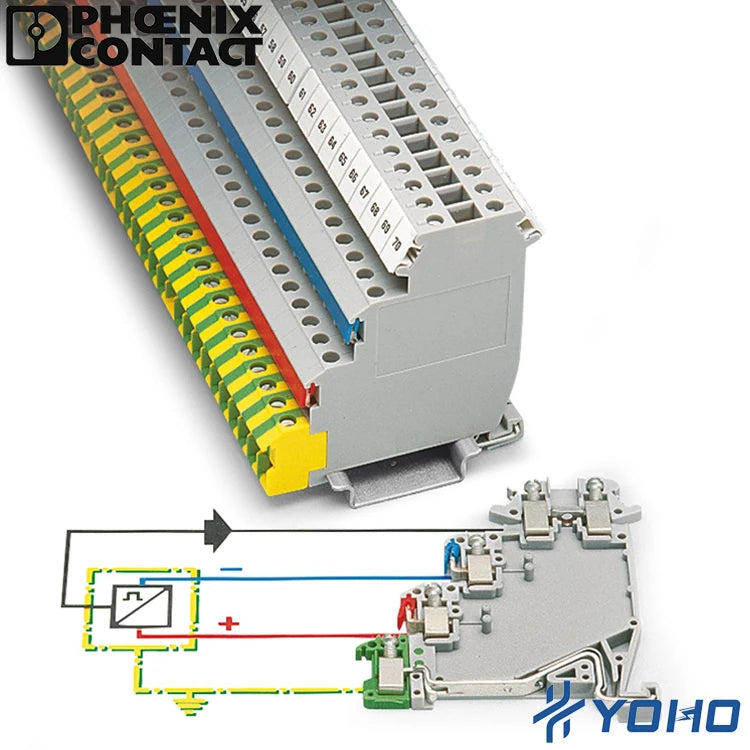

* Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
* Because the spine of the insertion bridge can be snapped into place with the terminal block housing, all the terminal points can be wired freely and the bridge can be securely positioned
* Unlike the DIK terminal blocks, the lower level of these output terminal blocks makes direct contact with the DIN rail and as a PE connection are marked yellow-green
* The upper level contains the feed-through connections for the signal cable which can be labeled
* Alternate wiring of an actuator followed by an initiator is easy
* The middle level supplies the connected actuators with power
* The forks of the insertion bridge can be easily loosened for bridging between non-adjacent terminal blocks
* Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
* Because the spine of the insertion bridge can be snapped into place with the terminal block housing, all the terminal points can be wired freely and the bridge can be securely positioned
* Unlike the DIK terminal blocks, the lower level of these output terminal blocks makes direct contact with the DIN rail and as a PE connection are marked yellow-green
* The upper level contains the feed-through connections for the signal cable which can be labeled
* Alternate wiring of an actuator followed by an initiator is easy
* The middle level supplies the connected actuators with power
Product Paramenters
|
Product name
|
Phoenixcontact DOK 1,5-2D 2717139 Initiator Actuator Terminal Block Terminal Blocks with System
|
|
Item number
|
2717139
|
|
Packing unit
|
50 pc
|
|
Product key
|
BE1217
|
|
GTIN
|
4017918102111
|
|
Country of origin
|
PL
|
|
Grounding foot
|
Yes
|
