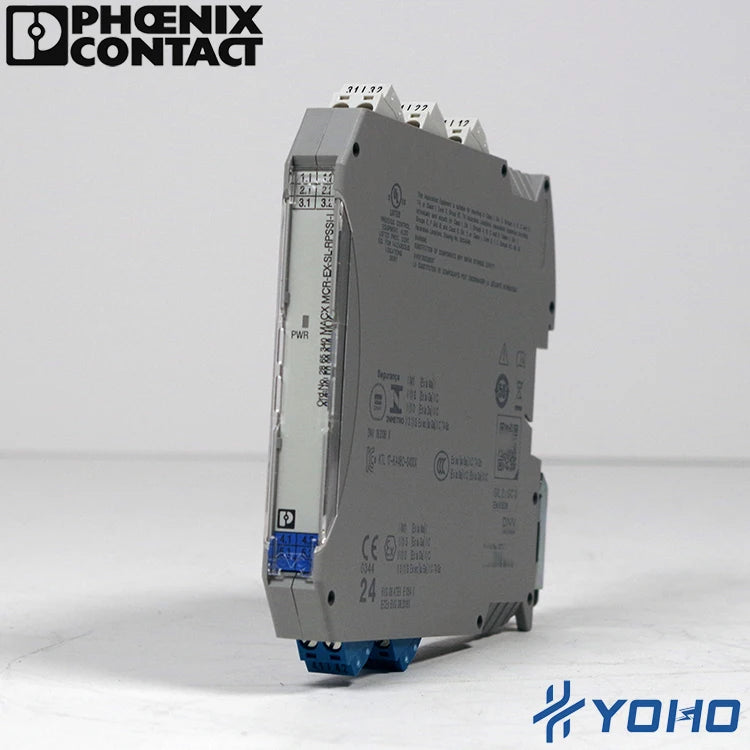

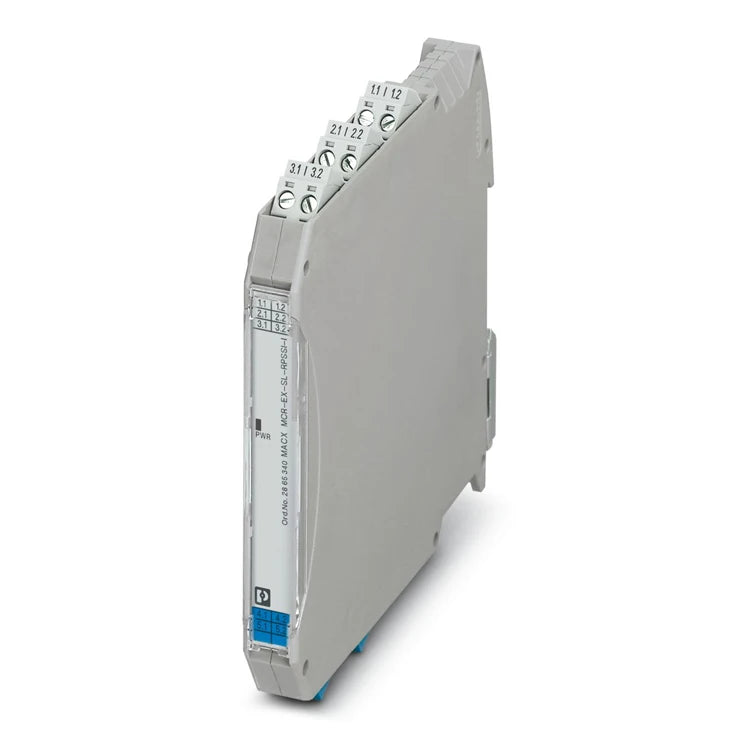

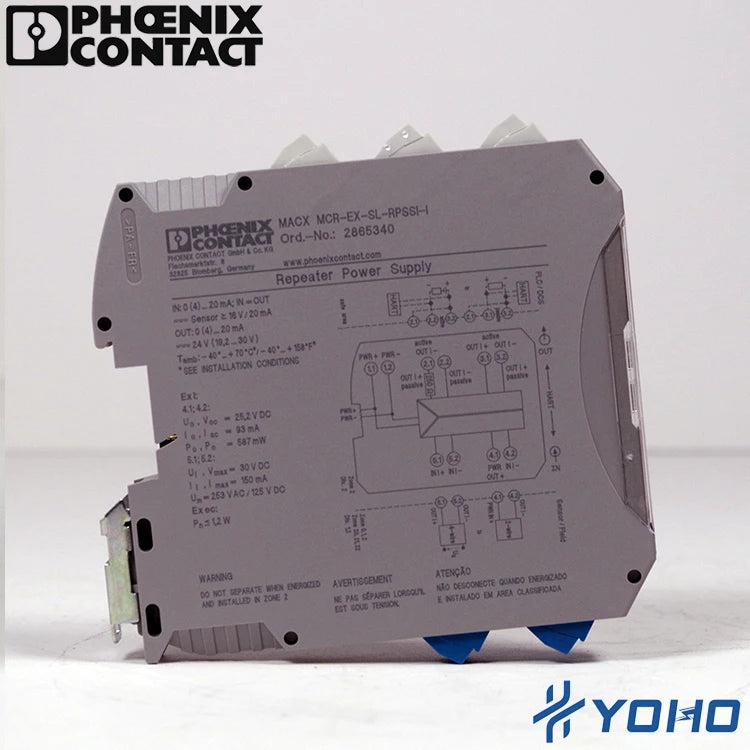

Phoenix Contact 2865340 MACX MCR-EX-SL-RPSSI-I Isolating Amplifier
Phoenix Contact 2865340 MACX MCR-EX-SL-RPSSI-I Isolating Amplifier
Regular price
$363.40 NZD
Regular price
Sale price
$363.40 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Application : Industrial Equipment
- Material : Plastic
- Model Number : MACX MCR-EX-SL-RPSSI-I
- Brand Name : Phoenixcontact
- Place of Origin : Germany
- Product name : Power/Input Isolating Amplifier
- Keyword : Ex I Repeater Power Supply Input Signal Conditioner
- Screw thread : M3
- Stripping length : 7 mm
- Conductor cross section AWG : 24 ... 14
- Pollution degree : 2
- Certificate : CE-compliant
- Number of inputs : 1
- Country of origin : DE
- Housing material : PA 6.6-FR
Products Description
Product advantages
* 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
* Measuring transducer supply voltage > 16 V
* 0/4 mA ... 20 mA output, active up to 1000 Ω load or passive
* Bidirectional HART signal transmission
* Error indication according to NAMUR NE 43
* SIL 2 according to IEC/EN 61508
* Installation in zone 2, protection type "ec" (EN 60079-7) permitted
* 3-way electrical isolation
* Power supply possible via DIN rail connector
* Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators
* Housing width: 12.5 mm
* Minimal power dissipation
* High transmission accuracy
* Measuring transducer supply voltage > 16 V
* 0/4 mA ... 20 mA output, active up to 1000 Ω load or passive
* Bidirectional HART signal transmission
* Error indication according to NAMUR NE 43
* SIL 2 according to IEC/EN 61508
* Installation in zone 2, protection type "ec" (EN 60079-7) permitted
* 3-way electrical isolation
* Power supply possible via DIN rail connector
* Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators
* Housing width: 12.5 mm
* Minimal power dissipation
* High transmission accuracy
Product Paramenters
|
Product name
|
2865340 MACX MCR-EX-SL-RPSSI-I Minimal Power Dissipation Power/Input Isolating Amplifier
|
|
Item number
|
2865340
|
|
Screw thread
|
M3
|
|
GTIN
|
4046356160353
|
|
Product family
|
MACX Analog
|
|
Description of the input
|
Active current input, intrinsically safe
|
|
Degree of protection
|
IP20
|
