Nanjing Youhuo Electric Co., Ltd.

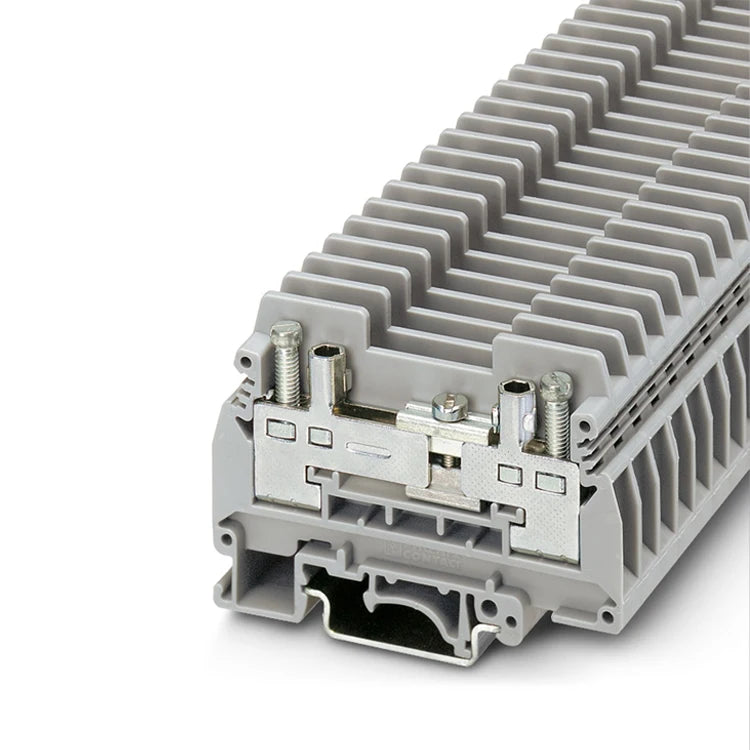

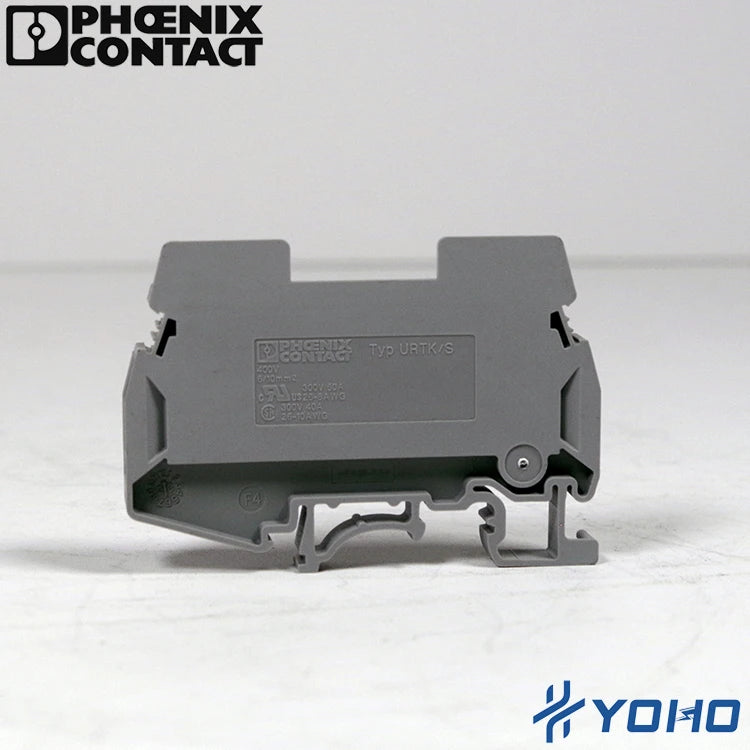

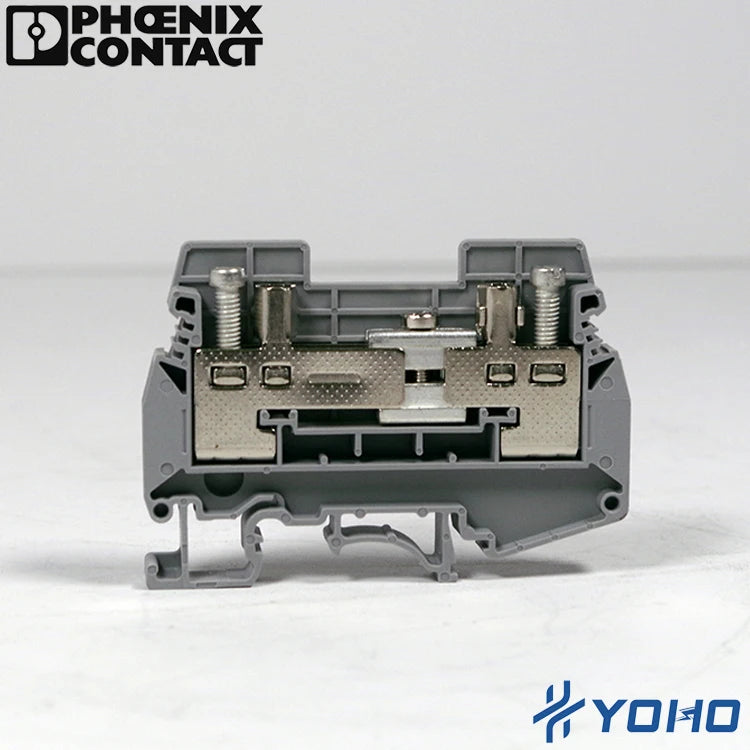

Phoenix Contact 0311087 Test Disconnect Terminal Block

Phoenix Contact 0311087 Test Disconnect Terminal Block

$172.50 NZD
$172.50 NZD
$3.45 each
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Model Number : URTK/S
  • Type : Test disconnect terminal block
  • Place of Origin : China
  • Brand : phoenixcontact
  • Packaging : 0.82*0.22*7.2
  • Description : Test disconnect terminal block
  • Product name : 0311087 URTK/S Test Disconnect Terminal Block With Two Test Sockets
  • Product type : Test disconnect terminal block
  • Number of connections : 2
  • Overvoltage category : III
  • Rated surge voltage : 6 kV
  • Nominal voltage : 400 V
  • Screw thread : M4
  • Stripping length : 13 mm
  • Internal cylindrical gage : A5
  • Nominal current : 41 A
Products Description

Product advantages

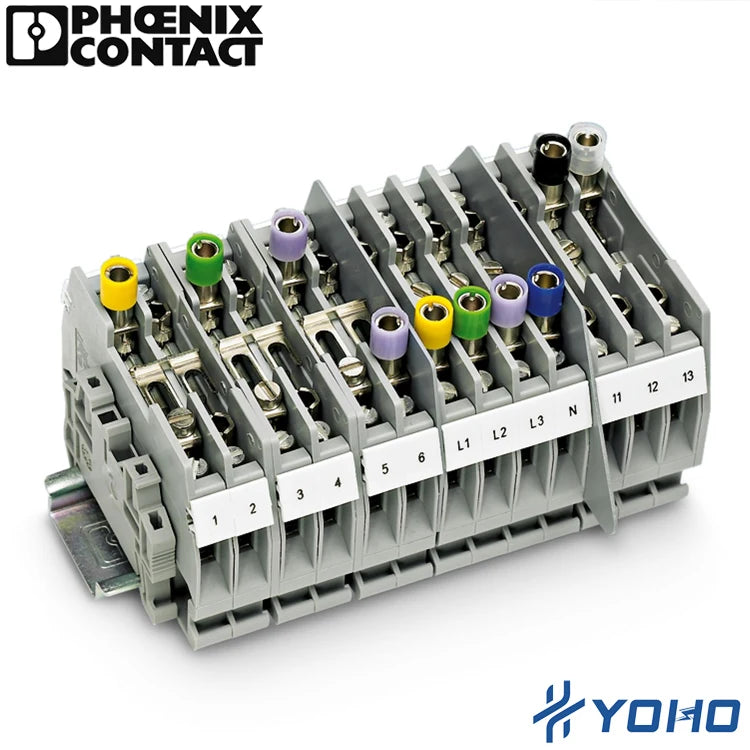

The URTK/S series test breaking terminals can be used to test the secondary circuit of the current transformer, and the operation is simple and clearOn both sides of the breakpoint, the terminal has a test socket that can also be used to switch to adjacent terminals
Product Paramenters
Product name
phoenixcontact 0311087 URTK/S Test Disconnect Terminal Block With Two Test Sockets
Number of rows
1
Potentials
1
Maximum power dissipation for nominal condition
1.31 W
Nominal cross section
6 mm²
Internal cylindrical gage
A5
Conductor cross section flexible
0.5 mm² ... 6 mm²

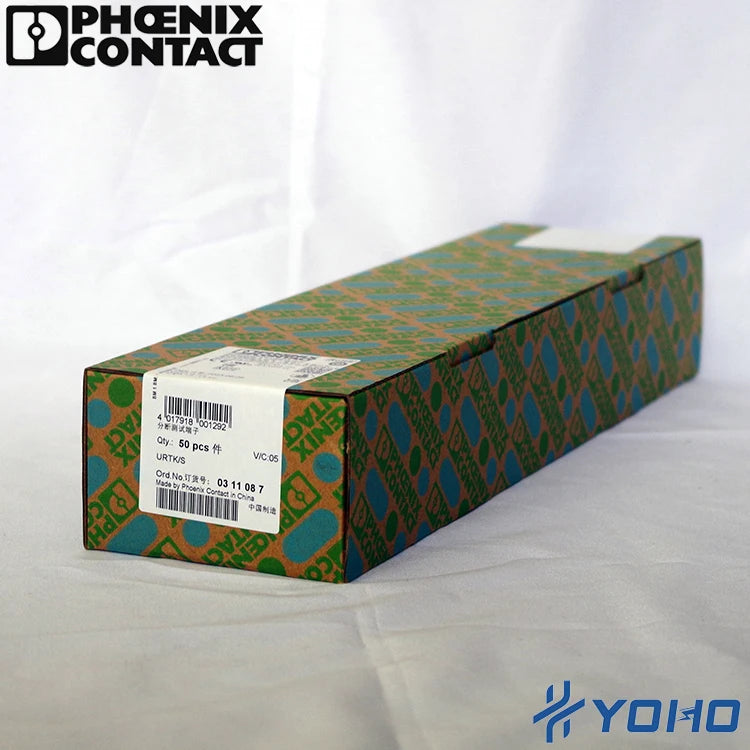

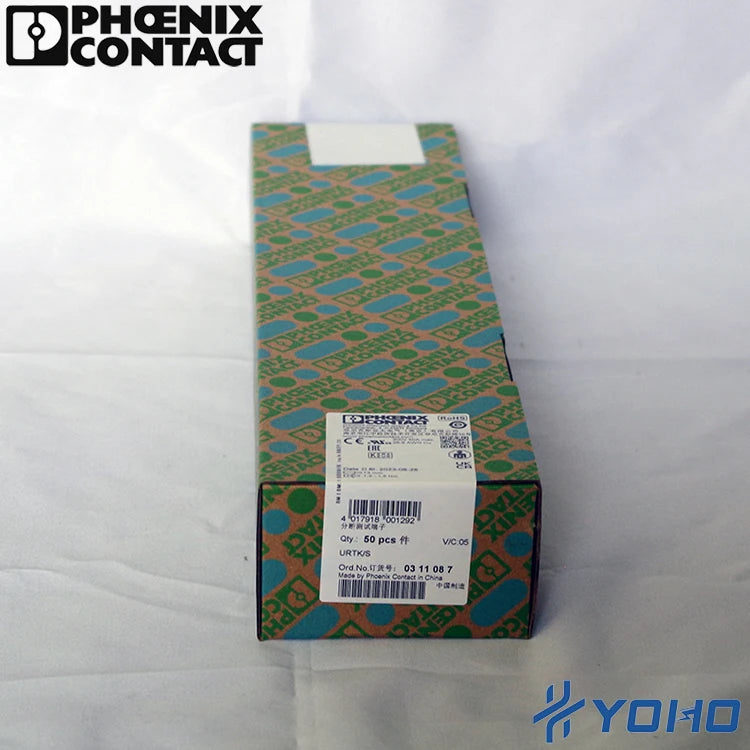

50 PCS per pack
