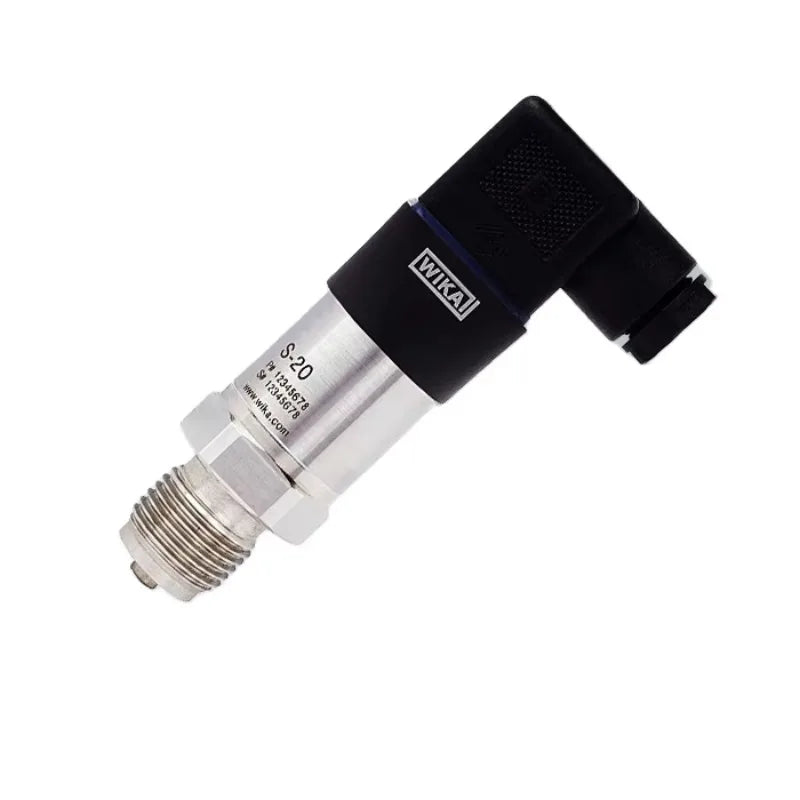

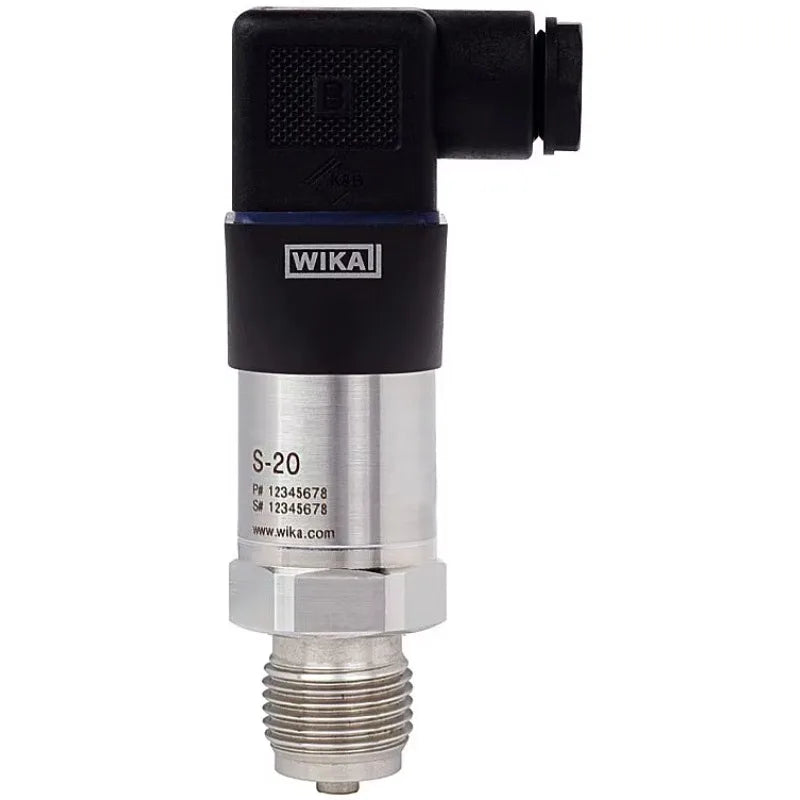

WIKA Pressure Transmitter Model S-20

Applications

1,Critical industrial applications
2, Demanding applications in research and development
3,Harsh environments in the process industry

Special features

1,Extreme variety, available at short notice from 1 piece
2,High accuracy, low temperature error, selectable adjustment temperature
3, Proven technology
4, Special media and special versions

Description

The S-20 pressure transmitter is a versatile specialist for demanding tasks and harsh environments. The measuring ranges from 0 ... 0.4 to 0 ... 1,600 bar [0 ... 5.8 to 0 ... 23,200 psi] can be combined with many output signals, electrical connections and process connections.

These configuration options allow for over 1 billion versions and leave much room for tailor-made customisation. The S-20 is also at home in critical industrial applications and works reliably with heat, vibrations or aggressive media. Extreme variety, available at short notice from 1 piece The S-20 can be freely configured and optimally adapted to the plant requirements. All common versions are available from a batch size of 1 within a few days.High accuracy, low temperature error, selectable adjustment temperature The S-20 measures pressures particularly accurately and reliably and is available in three accuracy classes.

The selectable adjustment temperatures of +4 °C, +40 °C, +60 °C and +80 °C [+39°F, +104 °F, +140 °F, +176 °F] reduce the temperature error to a minimum. Proven technology The S-20 is based on proven technologies, tried and tested in the field. With up to 100 million load cycles and a long-term stability to < 0.1 %, it constantly provides precise data for processes and plants. Regular audits permanently ensure highest quality standards. Special media and special versions Versions for special media, e.g. oxygen or hydrogen applications, high temperatures and cleanliness levels are available. In addition, the S-20 can be delivered with IP68 and IP6K9K
ingress protection.
