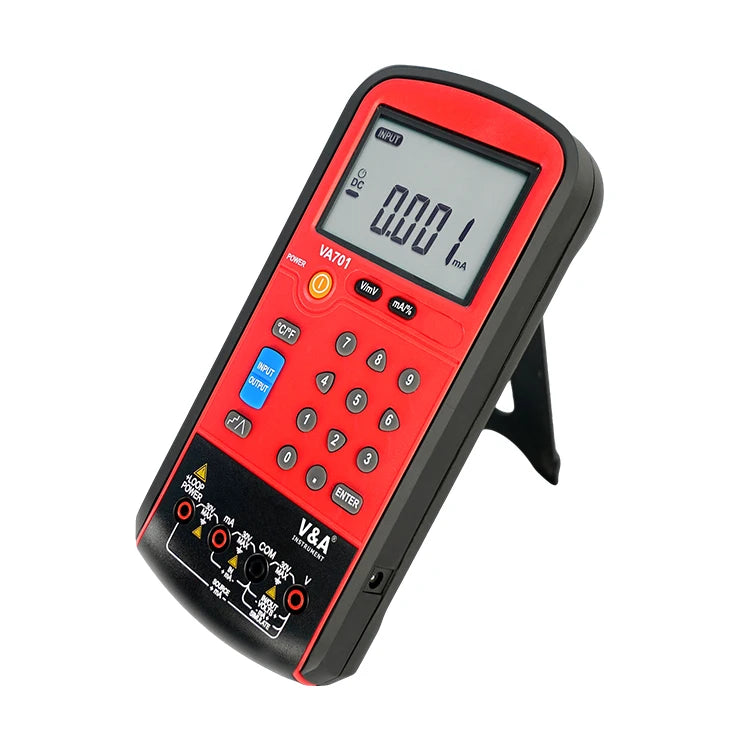

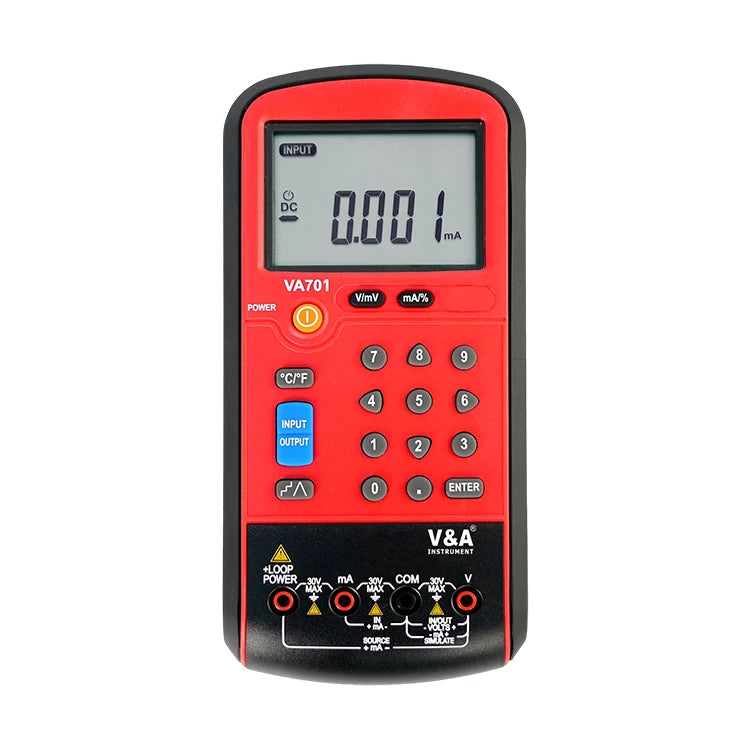

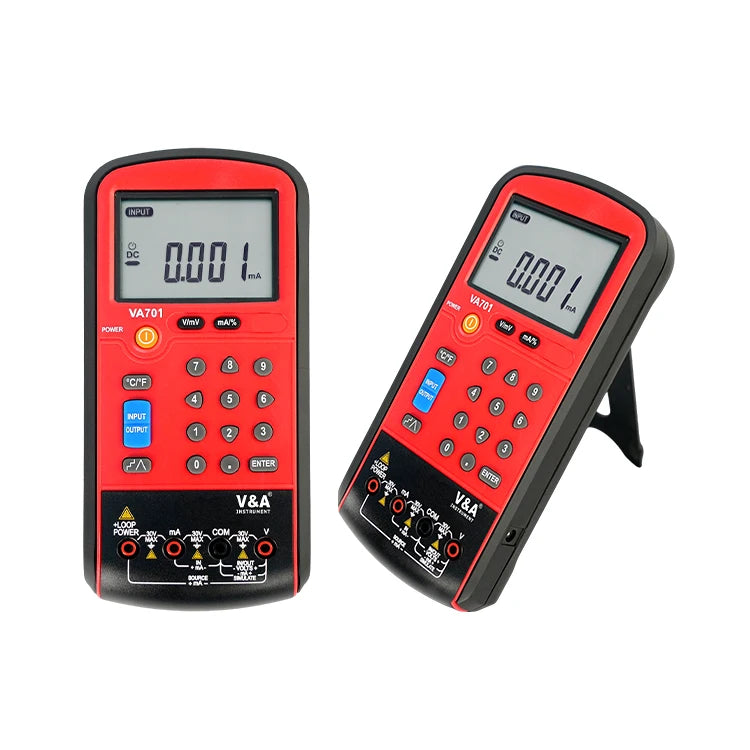

Multifunction Electronic Power Loop Calibrator VA701 with Calibration Loop Scan and Programming Modes 1-Year Warranty
Multifunction Electronic Power Loop Calibrator VA701 with Calibration Loop Scan and Programming Modes 1-Year Warranty
Regular price
$447.35 NZD
Regular price
$669.30 NZD
Sale price
$447.35 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Type : Process Calibrator
- Accuracy : 0.1%+5
- brand name : V&A
- place of origin : Shanghai, China
- customized support : OEM, ODM
- power : /
- Protection Class : IP65
- Voltage : 0~20V
- warranty : 1 Year

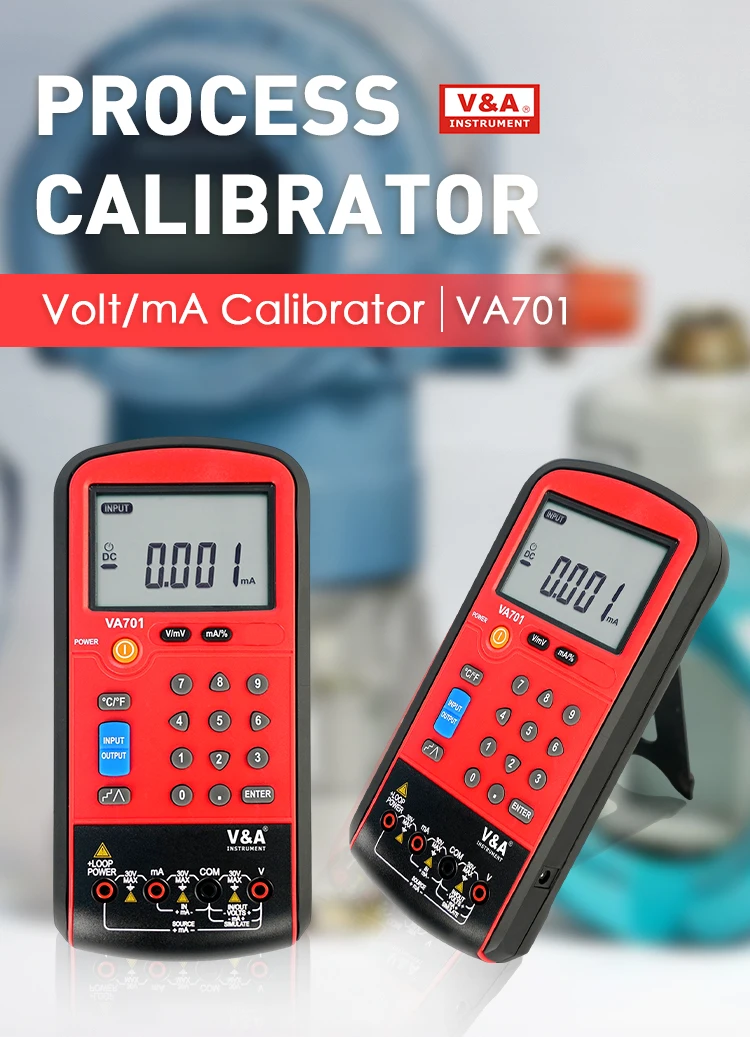

- Product Name : Volt / mA Calibrator VA701
- Input / Output Voltage Range : 0~20.00 V
- Voltage Range : -10~100.00mV

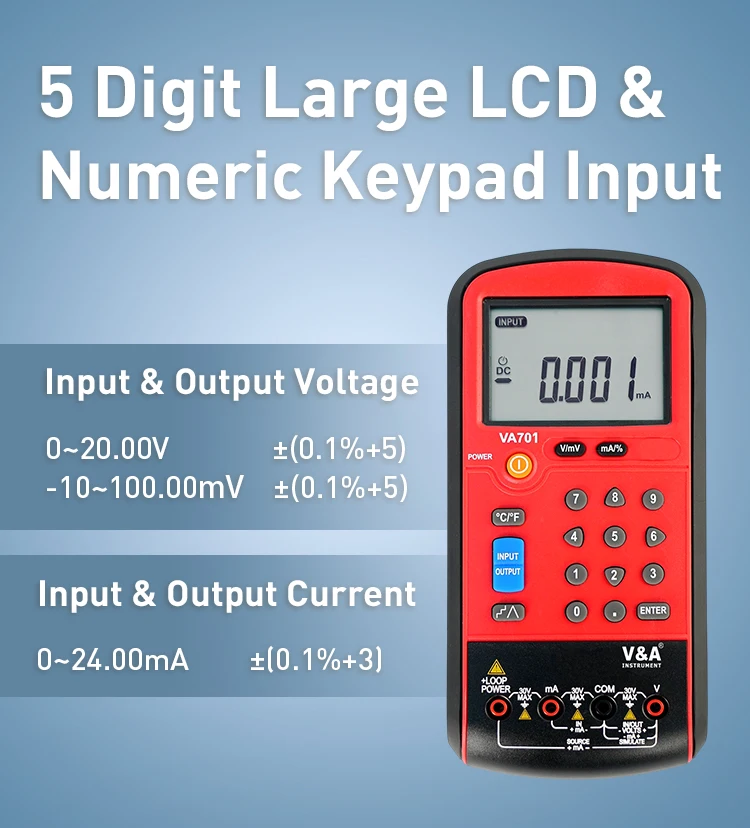

- Feature : Numeric Keypad Input
- Storage Temperature : -40℃~60℃
- Operating Temperature : -10℃~55℃
- Operating Altitude : 2000 meters maximum
- Power : AAA*6

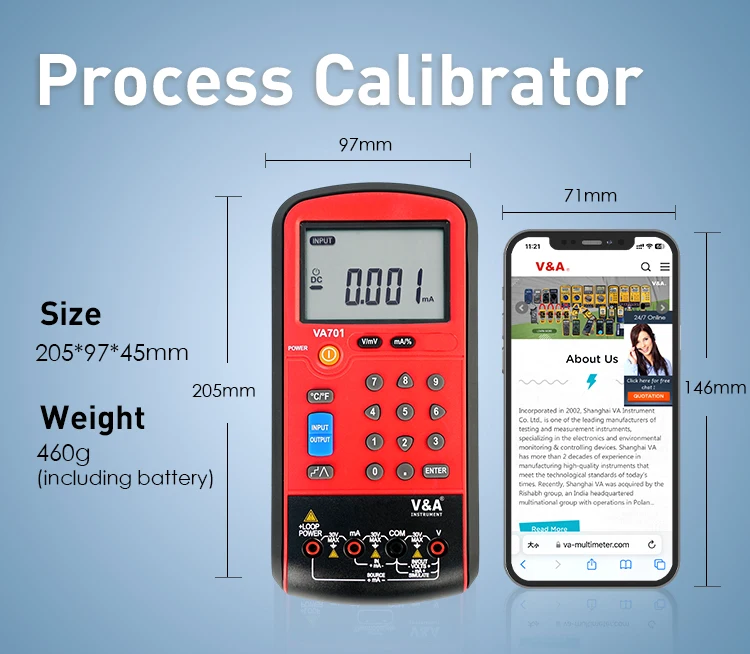

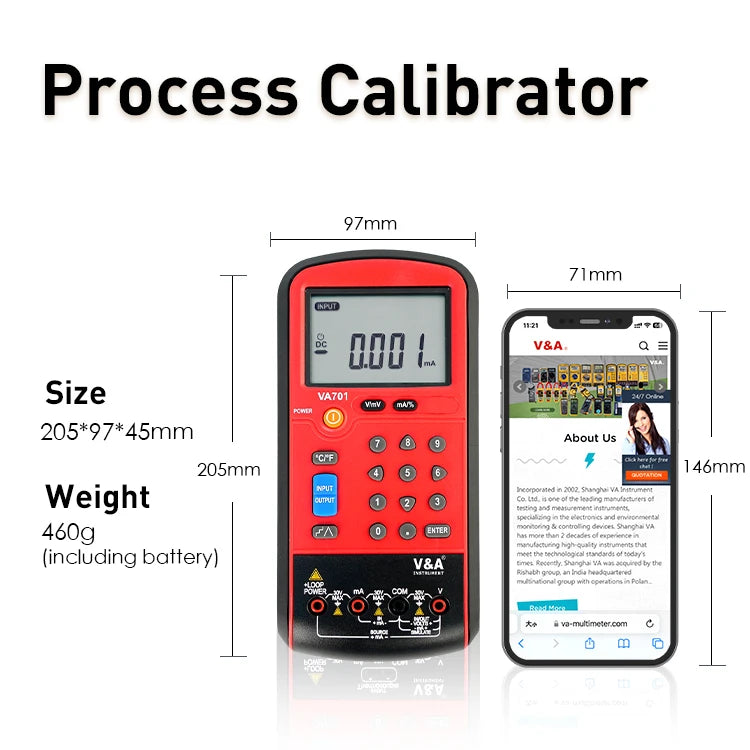

- Size : 205x97x45mm
- Weight : 460g (include battery)
| Range | Resolution | Accuracy | ||

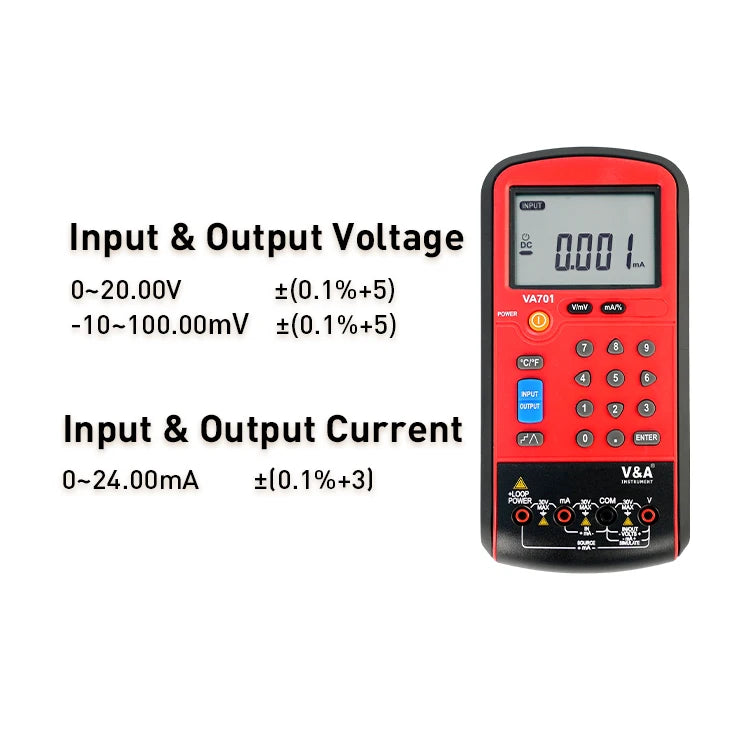

| Input / Output Voltage | 20.00V | 0~20.00 V | 10mV | ±(0.1%+5) |
| 100.00mV | -10~100.00mV | 10μV | ±(0.1%+5) | |
| Input / Output Current | 24.00mA | 0~24.00mA | 10μA | ±(0.1%+3) |
| Thermocouple | K(CA) | -200.0℃ ~+1372.0℃ | 0.1℃ | N/A |
| J(IC) | -200.0℃ ~+1200.0℃ | 0.1℃ | ||
| E(CRC) | -200.0℃ ~+1000.0℃ | 0.1℃ | ||
| T(CC) | -200.0℃ ~+400.0℃ | 0.1℃ | ||
| N | -250.0℃ ~+1300.0℃ | 0.1℃ | ||
| S(PR10) | -20℃ ~+1750℃ | 1℃ | ||
| R(PR13) | -20℃ ~+1750℃ | 1℃ | ||
| B(PR30) | +600℃ ~+1800℃ | 1℃ |
