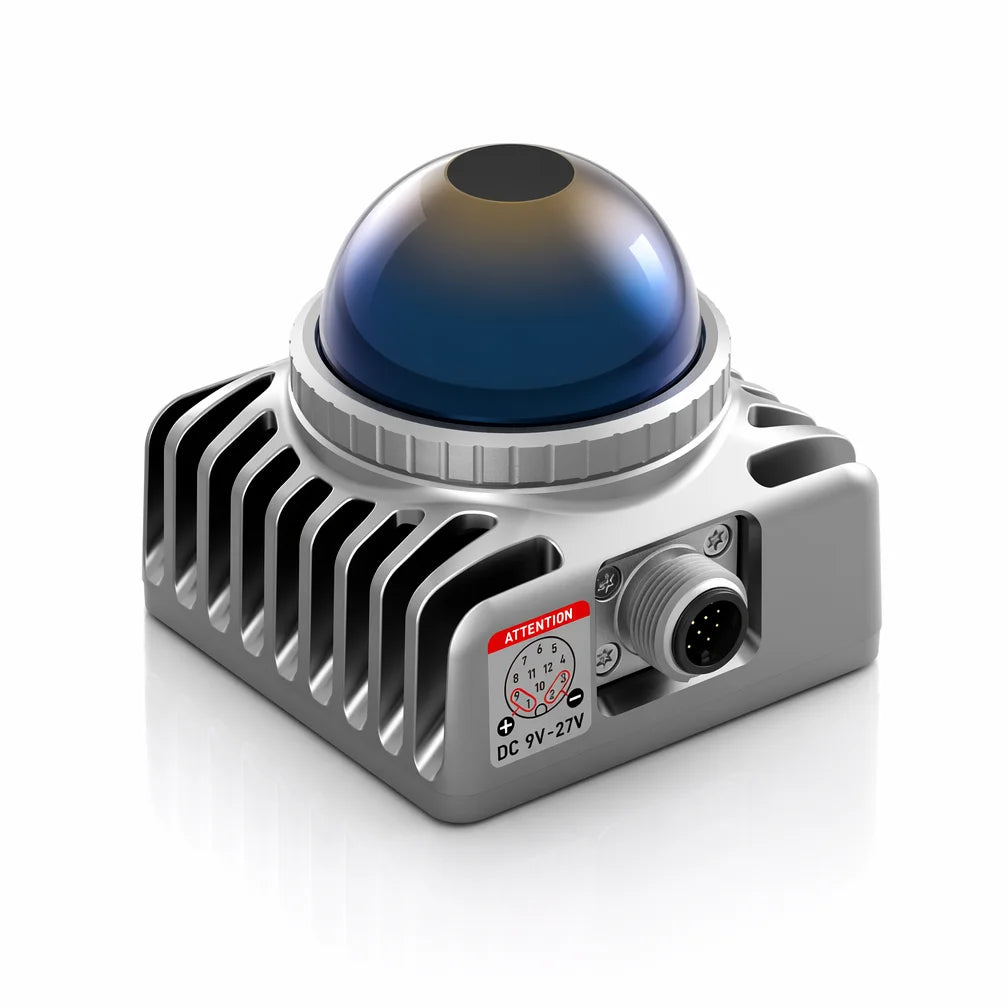

Livox Mid-360S LiDAR Sensor

Livox Mid-360S LiDAR Sensor

$3,116.50 NZD
$4,673.60 NZD $3,116.50 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

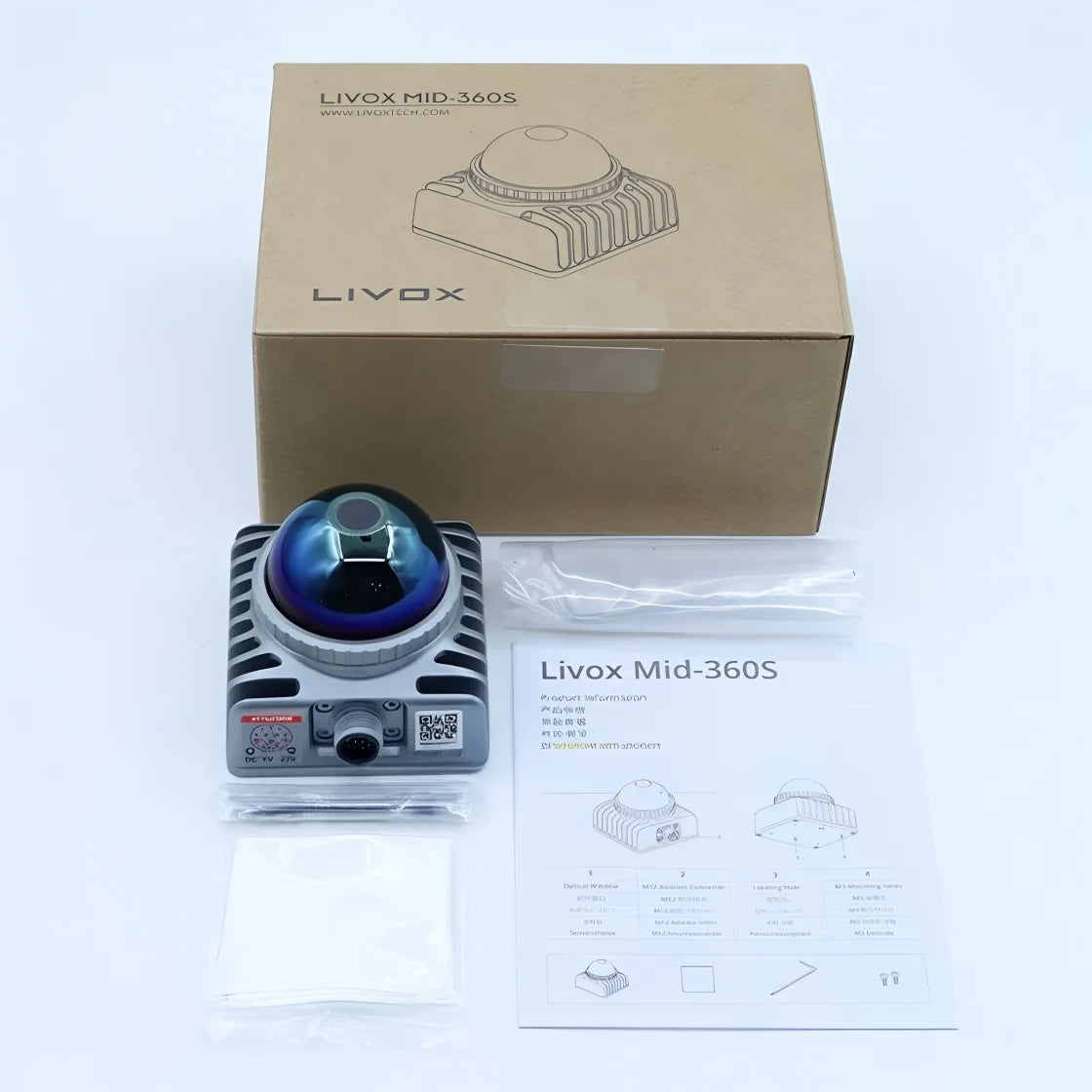

Package/Case
Specification
  • Series : Mid Series
  • Mounting Type : Flat Surface Mounting (Fixed with M3 Screws)
  • Description : High-performance LiDAR sensor
  • Manufacturer Part Number : Mid-360s
  • Place of Origin : Guangdong, China
  • Brand Name : Livox
  • Usage : Automated Guided Vehicles, Robotics
  • Theory : Laser Non-Repetitive Scanning Ranging Principle
  • Output : Not Mentioned
  • Brand : LiDAR Sensor
  • Amplifier Type : Not Mentioned
  • Voltage - Supply : 9-27V DC
  • Output Type : Not Mentioned
  • Current - Supply : Approx. 1.5A (Peak Power 18W under 12V Voltage)
  • Operating Temperature : -20℃ to 55℃ (-4°F to 131°F)
  • Resolution (Bits) : Not Mentioned
  • Features : Anti-Interference Function, Built-in IMU
  • Packaging : Standard Protective Packaging
  • Frequency : 200Hz for IMU data push; 10Hz for frame rate
  • Output Configuration : UDP protocol data output
  • Voltage Rating : 12V DC (Recommended Operating Voltage)
  • Operating Force : Not Applicable
  • Oxygen Range : Not Applicable
  • Humidity Range : Not Applicable
  • Size : Sensor
  • Size / Dimension : 65 (Width)X65 (Depth)X60 (Height) mm
  • Measuring Range : 40m @ 10% reflectivity; 70m @ 80% reflectivity
  • Resolution : Angular Resolution ≤0.15°
  • Interface : M12 Aviation Connector/100 BASE-TX Ethernet
  • Technology : Optoelectronic Mechanical System
  • Sensing Range : 40m @ 10% reflectivity; 70m @ 80% reflectivity
  • Current - Output (Max) : Not Mentioned
  • Bandwidth : Not Mentioned
  • Function : Mapping, Positioning, Recognition, Obstacle Avoida
  • Acceleration Range : Not Mentioned
  • Sensitivity (LSB/g) : Not Mentioned
  • Sensitivity (mV/g) : Not Mentioned
  • Sensitivity (LSB/(°/s)) : Not Mentioned
  • Sensitivity (mV/°/s) : Not Mentioned
  • Sensing Distance : 0.1m-100m
  • Current - Output : Not Mentioned
  • Power - Rated : 6.5W (25℃ Environment)
  • Voltage - Output Difference (Typ) @ Distance : Not Mentioned
  • Voltage - Output (Typ) @ Distance : Not Mentioned
  • Power - Max : 18W/14W
  • Sensing Object : Various environmental objects
  • Sensing Light : 905nm infrared laser
  • Resistance : Not Mentioned
  • Current Rating - AC : Not Applicable
  • Current Rating - DC : Approx. 0.54A during normal operation (12V/6.5W)
  • Laser Wavelength : 905nm
  • Laser Safety Level : Class 1 (IEC 60825-1:2014), Eye-Safe
  • Close-up Blind Spot : 0.1m
  • Distance Random Error : ≤2cm (@10m); ≤3cm (@0.2m)
  • Point Cloud Rate : 200,000 points/s
  • Frame Rate : 10Hz (Typical Value)
  • IMU Model Number : ICM40609 (Built-in)
  • Data Sync : IEEE 1588-2008 (PTP v2), GPS
