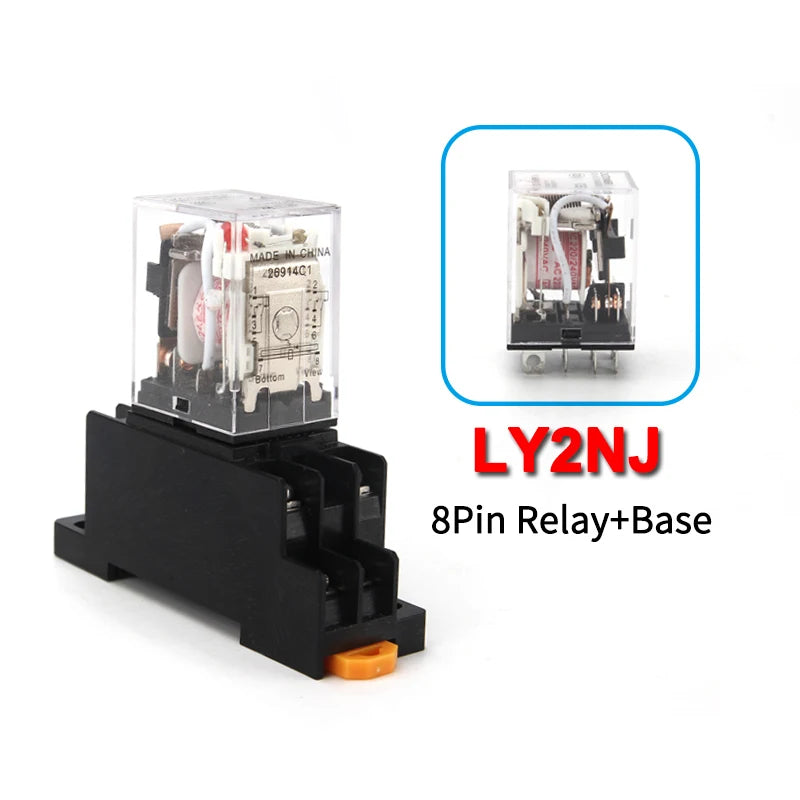

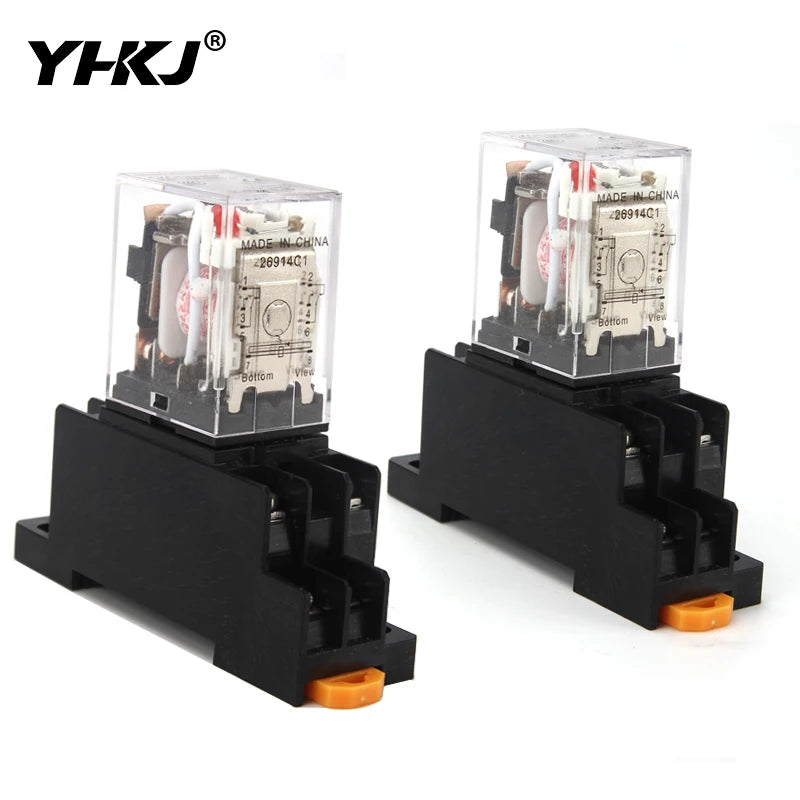

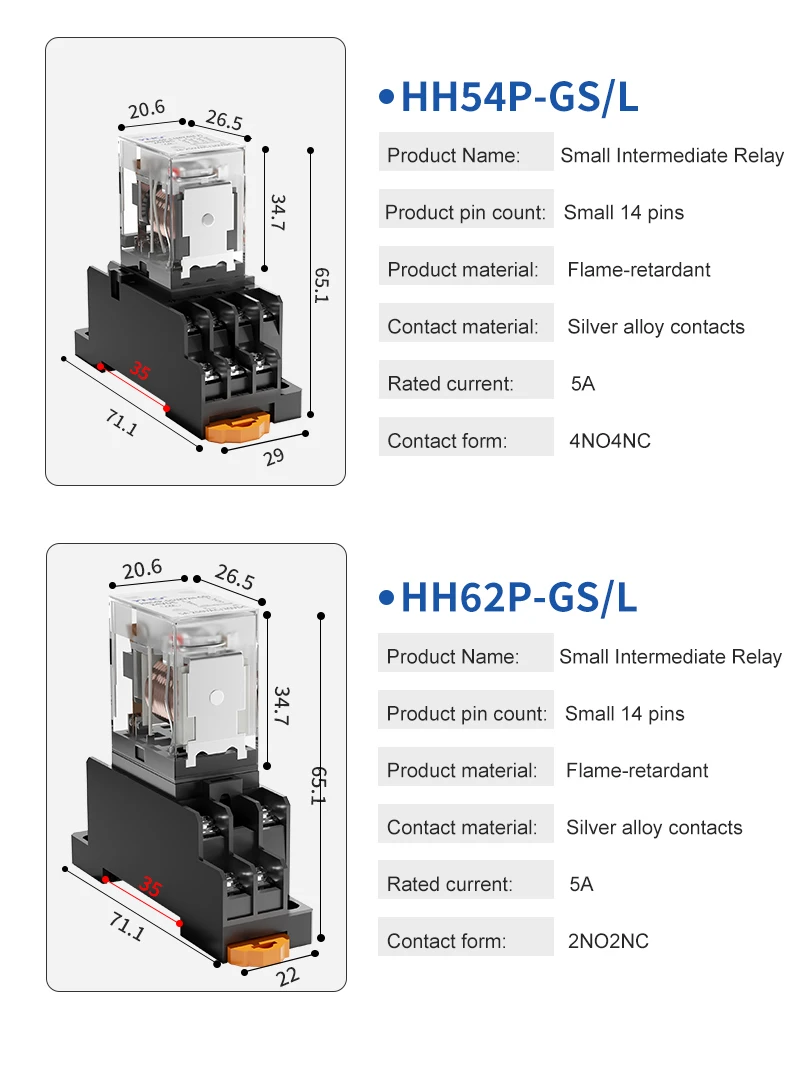

Intermediate Relay HH62P LY2NJ Miniature Electromagnetic Relay

• Contact Load : Low Power, Low Power
• Model Number : LY2NJ
• Brand Name : CKCTINNER
• Place of Origin : Zhejiang, China
• Protect Feature : Sealed
• Size : Miniature
• Theory : Electromagnetic Relay
• application : General Purpose
• Product name : Intermediate relay
• Material : ABS

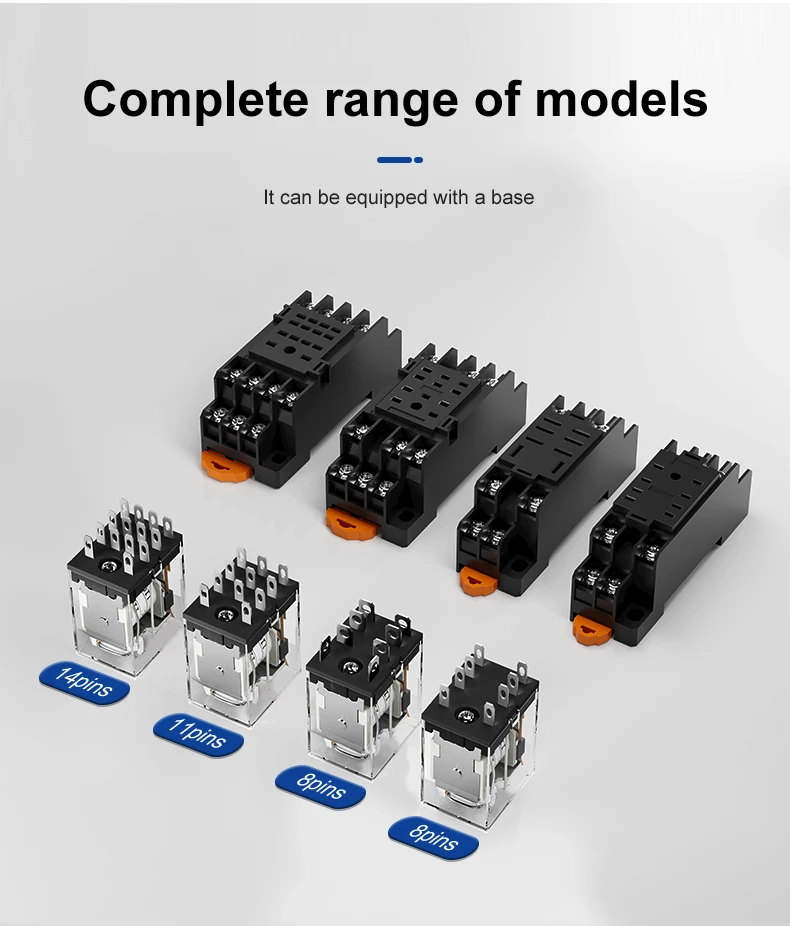

• Contact Form : 2Z,3Z,4Z
• Max. oprating current : 2Z:5A 3Z:5A 4Z:3A
• Rated Load(Resistive Load) : 2Z/3Z:5A 250VAC/30VDC 4Z/:5A 250VAC/30VDC
• Rated Voltage : 6~240VAC 5~110VDC
• Mechanical life(Min) : 2.5mm2 4.0mm2 6.0mm2
• Gende : 2*10^7
• Electrical life(Min) : 1*10^5

The rated contact load is 10A, which can adapt to most industrial conventional load control requirements. It can stably drive various industrial control components such as contactor coils, solenoid valves, indicator lights, etc., with excellent practicality.

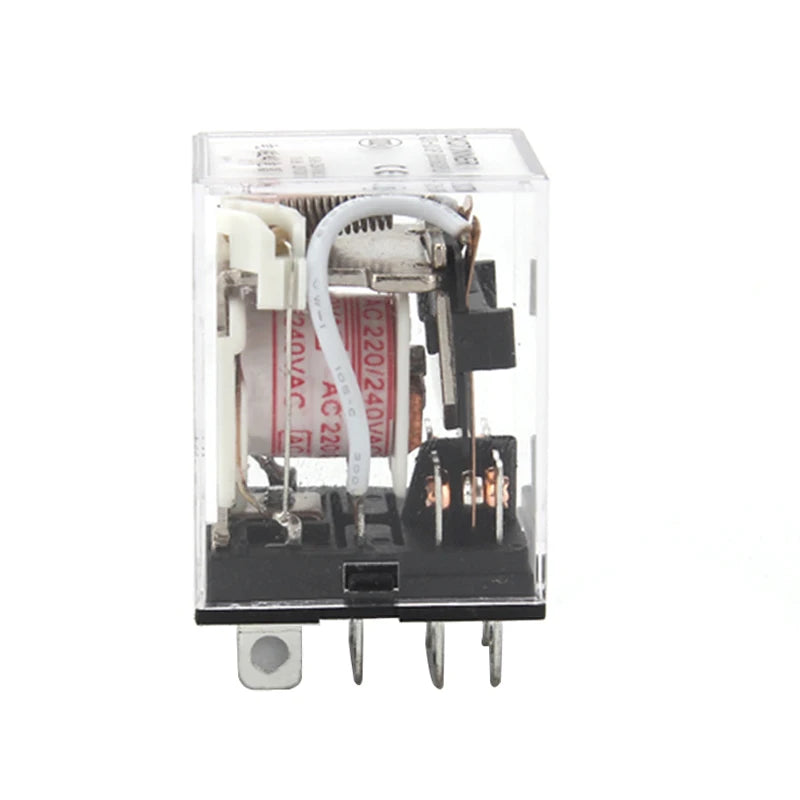

Adopting high-quality electromagnetic coil design, the coil response speed is fast and the suction is firm, effectively avoiding misoperation. The core components have good durability and extend the overall service life of the equipment.

Equipped with silver alloy contacts, it has excellent conductivity and resistance to arc erosion. The contact resistance is low and stable, and the circuit switching process is more reliable, reducing the risk of poor contact.

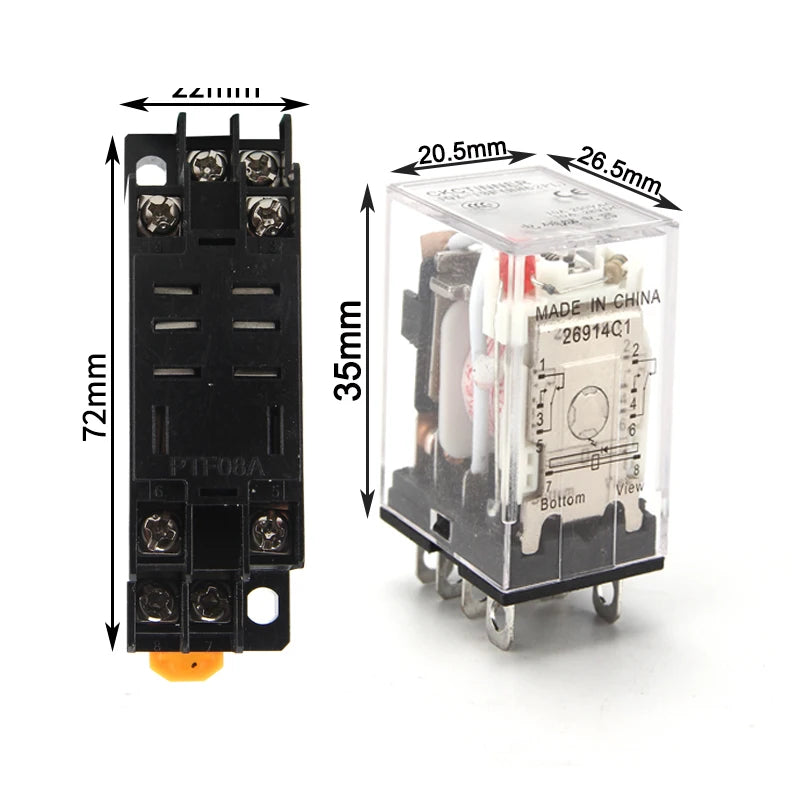

The overall design is compact and compact, with a small volume that does not take up space. It can easily adapt to various industrial control cabinets with dense wiring scenarios, and the installation layout is more flexible and efficient.

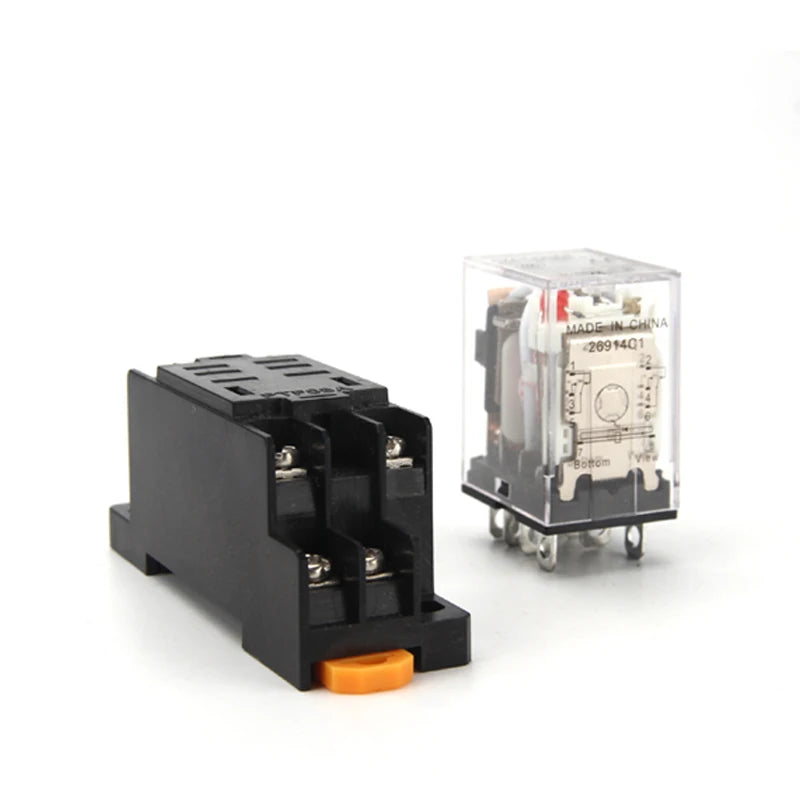

Support standard rail installation method, easy installation and disassembly operation, low daily maintenance cost, suitable for rapid deployment and later operation and maintenance needs in industrial sites.

Supports multiple rated voltage specifications, can match different industrial power environments, and can adapt well to both DC control signals and AC power supply scenarios, with a wide range of applications.

Built in comprehensive electrical protection design effectively ensures the safe operation of relays and load equipment, avoiding equipment damage caused by abnormal conditions such as overcurrent and overvoltage, and high reliability.

The product has passed multiple authoritative certifications, strict quality control through factory testing, and provides a one-year official warranty. The price advantage of direct supply from the factory is obvious, and it supports small batch customization and bulk procurement.
