Industrial pH Sensor MODBUS-RTU RS485 & 0-2V Analog Voltage (S-pH-01B), with Waterproof Aviation Connector
Industrial pH Sensor MODBUS-RTU RS485 & 0-2V Analog Voltage (S-pH-01B), with Waterproof Aviation Connector
Regular price
$496.80 NZD
Regular price
$840.65 NZD
Sale price
$496.80 NZD
Taxes included.
Shipping calculated at checkout.
- Accuracy : ±0.1ph
- type : Water quality monitoring
- brand name : Seeed studio
- place of origin : Guangdong, China
- model number : 314990622
Specification
|
pH |
|
|
Range |
0 ~ 14pH |
|
Accuracy |
± 0.1 pH |
|
Resolution |
0.01 pH |
|
General Parameters |
||
|
Product Model |
S-pH-01A |
|
|
Output Interface |
Analog Voltage 0-2V (Output resistance ~0ohm) |
RS-485 MODBUS-RTU |
|
Power Supply |
3.9-30V/DC |
3.9-30V/DC |
|
Power Consumption |
35mA@24V DC |
35mA@24V DC |
|
Start-up time |
< 2 seconds |
|
|
pH Measurement |
High impedance and isolated input;
Range: 0 - 14PH,
Resolution: 0.01PH,
Accuracy: +/- 0.1PH;
Can be used for a solution or semi-solid substrate
|
|
|
Temperature Measurement |
Range: - 40~80°C,
Resolution: 0.1°C,
Accuracy: +/-0.5°C
|
|
|
IP Rating |
Electrode: IP68; Transmitter: IP65 |
|
|
Operating Temperature |
-40℃ ~ 85℃ |
|
|
Installation |
Electrode: 3/4"NPT screw threads; Transmitter: Mounting hole |
|
|
Cable Length |
Power and Signal Cable:2 meters (Customizable)
Electrode Cable: 5 meters
|
|
|

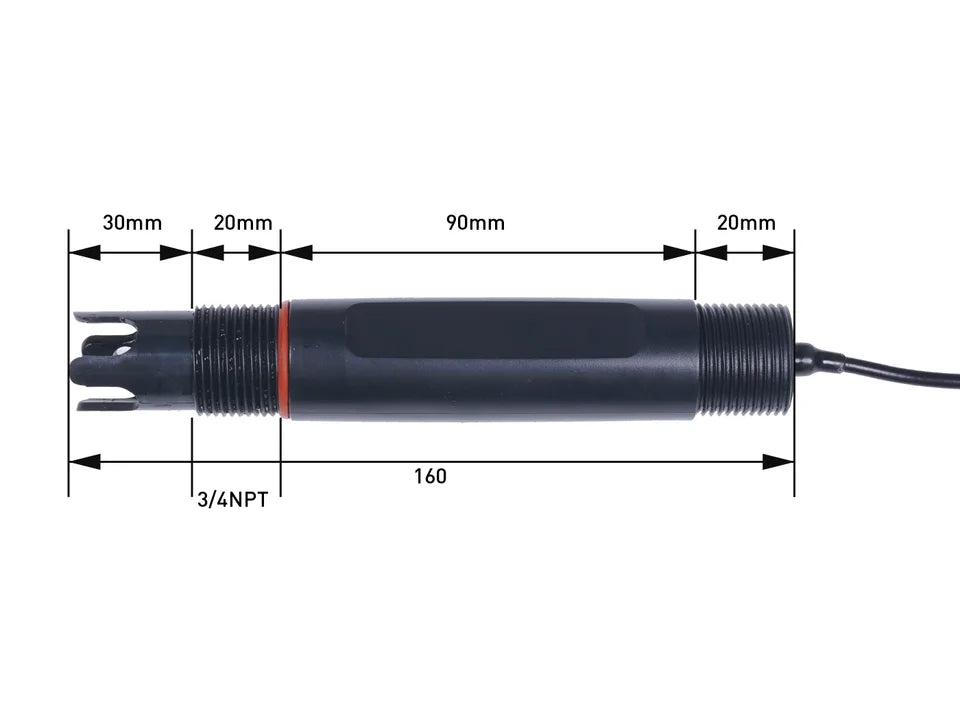

Dimension |
Electrode: Width*Diameter 160*30mm; 3/4"NPT screw threads
Transmitter: 140mm*65mm*50mm
|
|
Hardware Overview

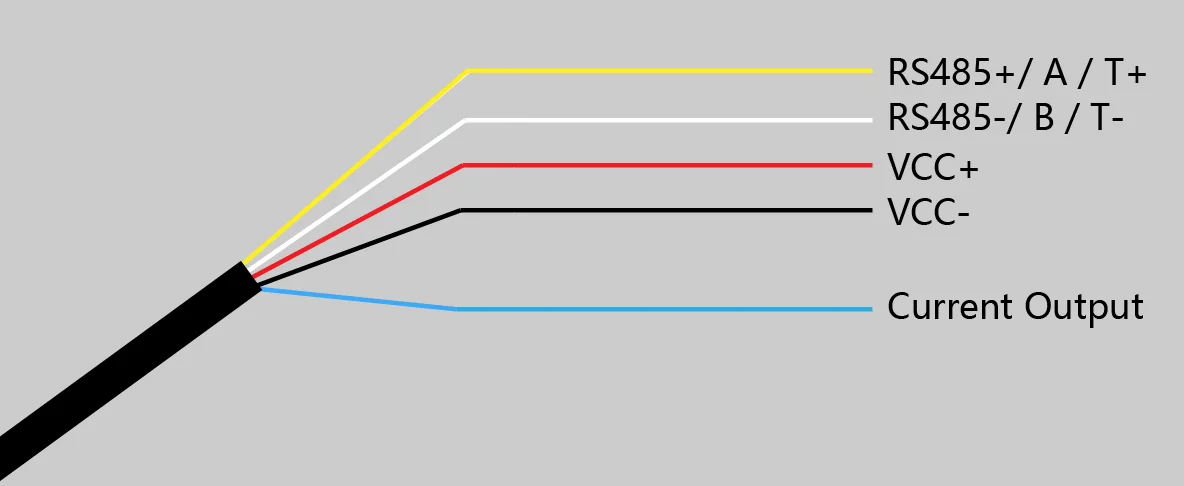

Wiring Diagram
