Conductor Size : 24-12
-
Type : Screw
-
Model Number : JUT1-35
-
Brand Name : UTL
-
Place of Origin : Zhejiang, China
-
Product name : terminal block
-
Material : PA66+Copper
-
Wire range of rigid cable : 0.2-4m㎡
-
Current : 41A
-
Voltage : 800V
-
Sample : Accept
-
Custom : Accept
-
Color : Green,Yellow
-
Brand : UTL

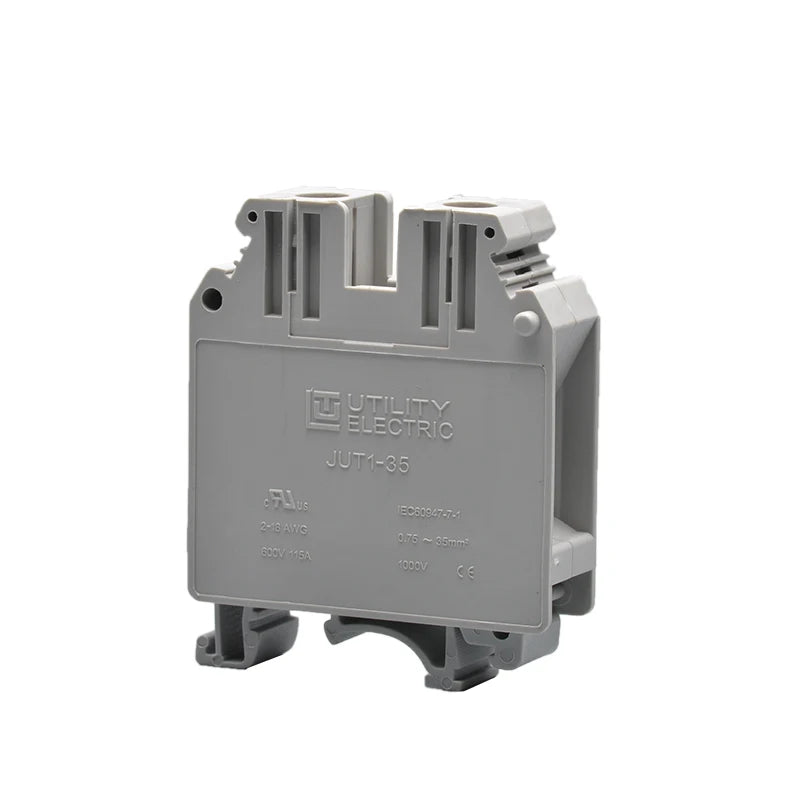

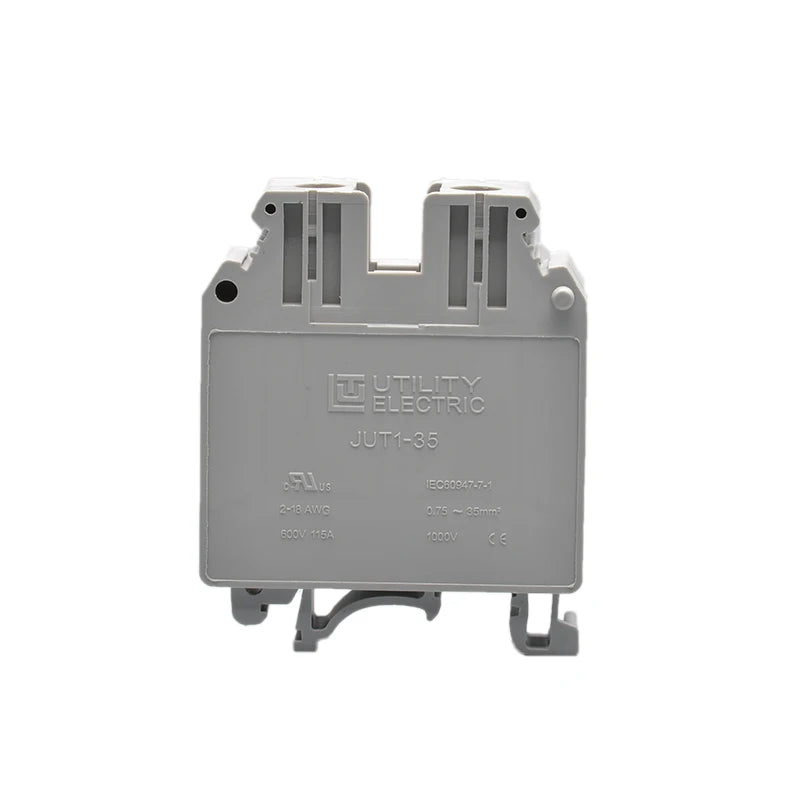

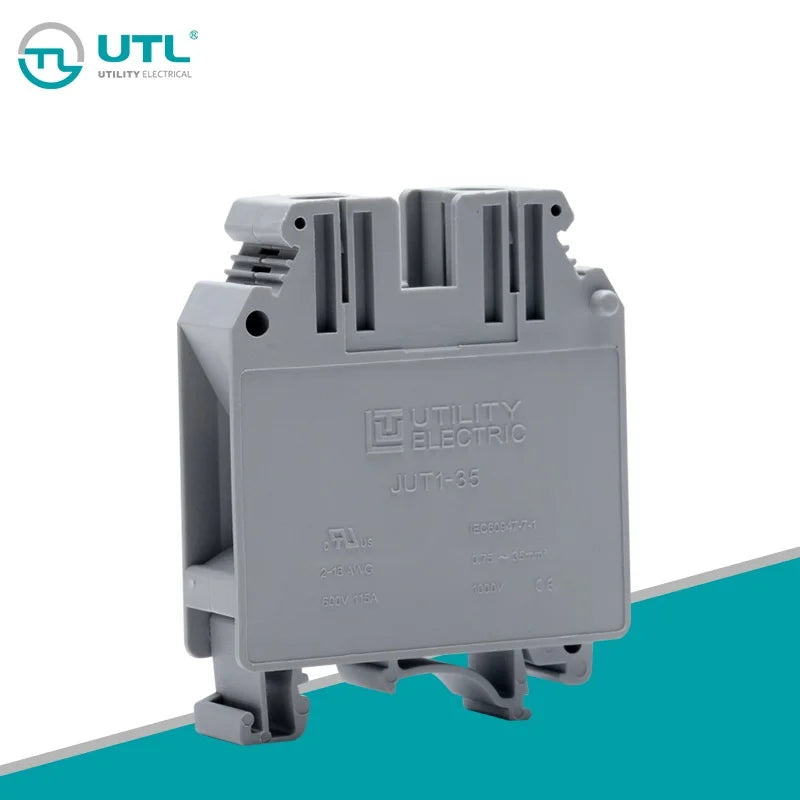

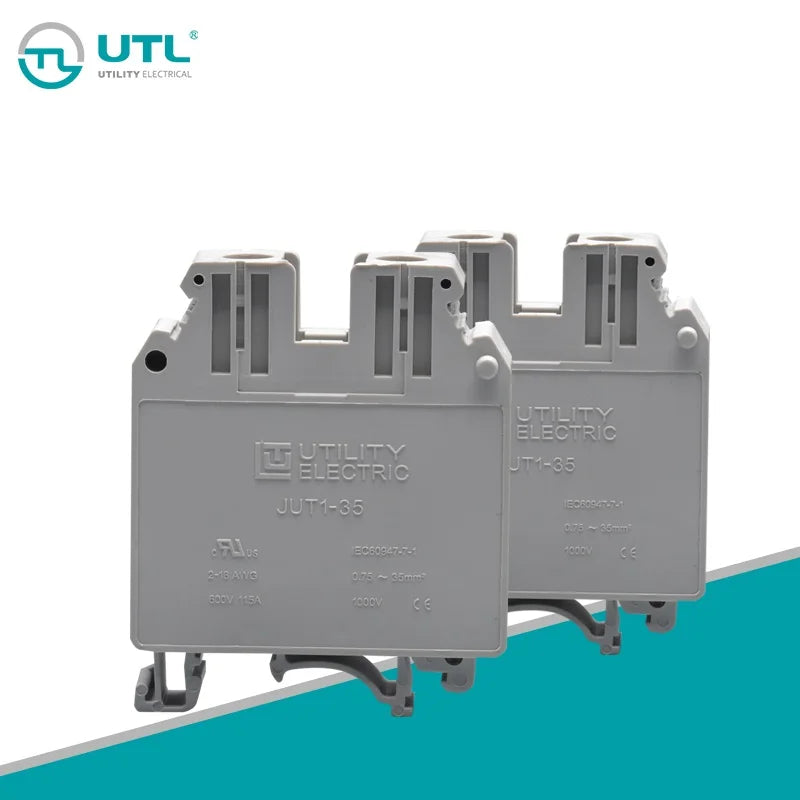

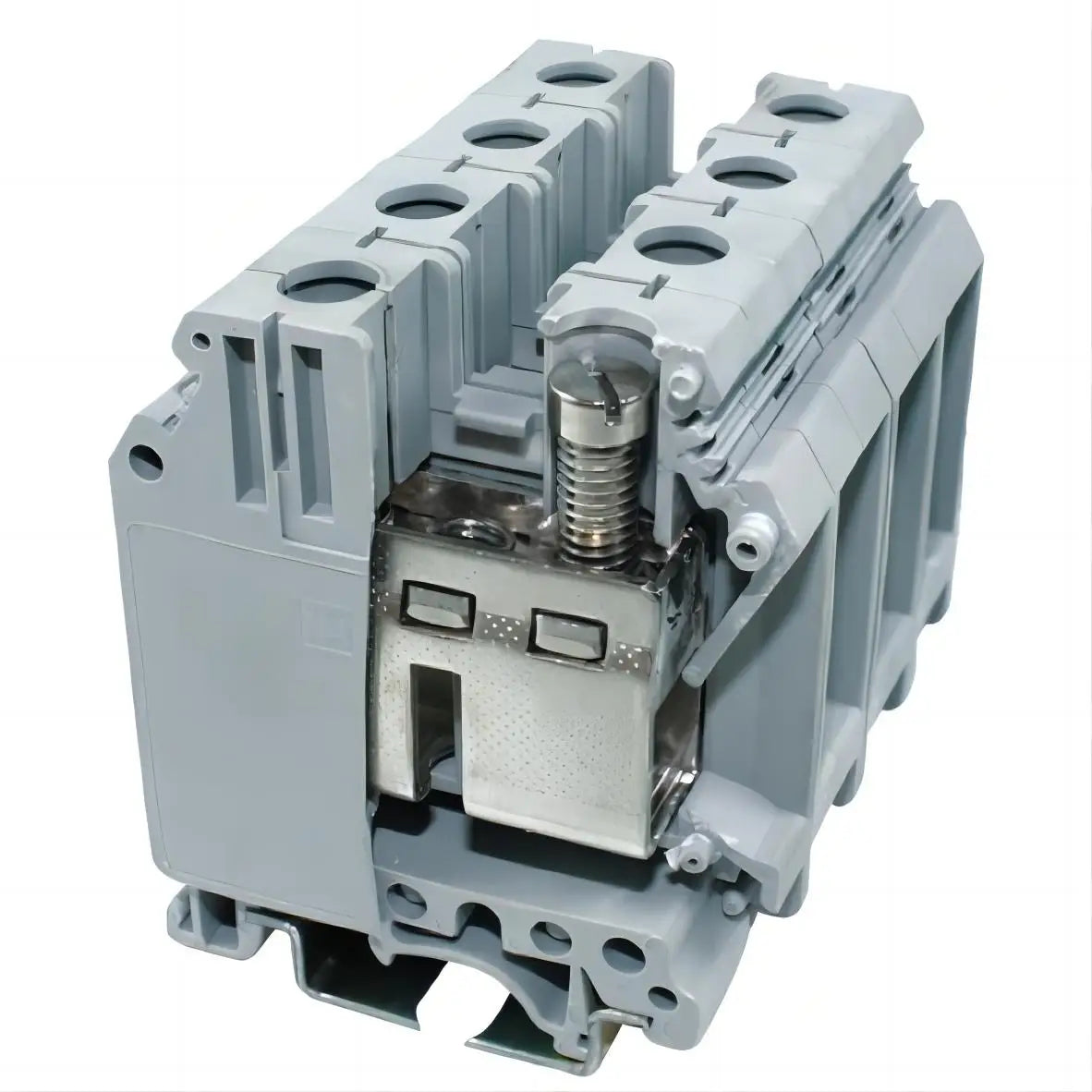

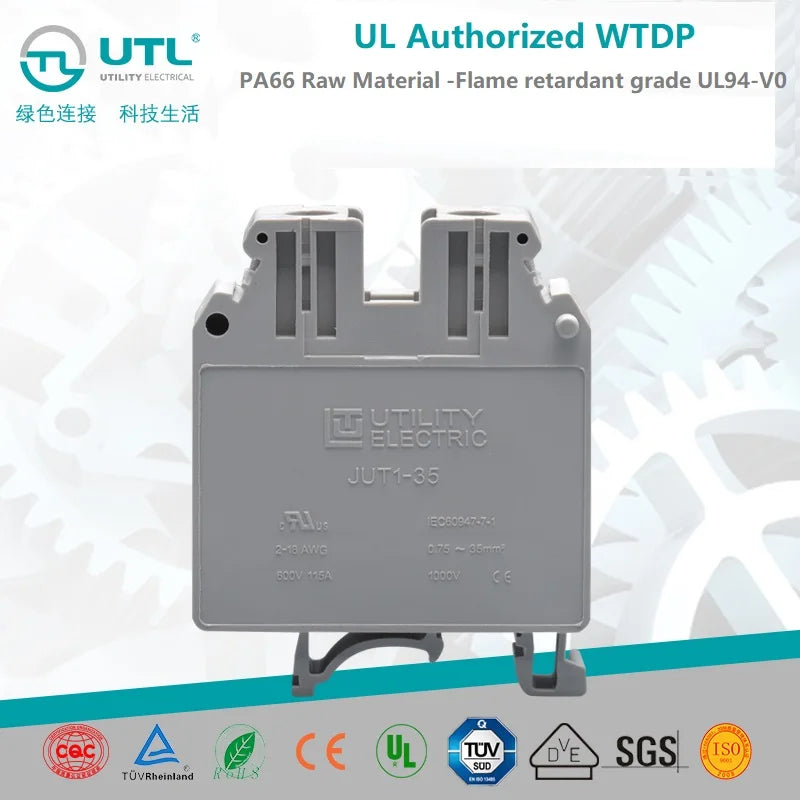

Hot wholesale manufacturers PA66 V0 Screw type Copper big current terminal blocks connectors
|
Product name
|
terminal block
|
|
Material
|
PA66+Copper
|
|
Wire range
|
2.5-35m㎡
|
|
AWG
|
14-2
|
|
Certificate
|
UL, CE
|
|
IEC
|
60947-7-2
|
|
|
|
|
|
|
ame
|
Data
|
Unit
|
|
|
|
Number of connection points
|
2
|
|
|
|
|
Number of potentials
|
1
|
|
|
|
|
Color
|
gray
|
|
|
|
|
Length
|
50
|
mm
|
|
|
|
Width
|
15.2
|
mm
|
|
|
|
With U-rail height
|
62
|
mm
|
|
|
|
With G-rail height
|
67
|
mm
|
|
|
|
Pollution degree
|
3
|
|
|
|
|
Insulation material group
|
Ⅰ
|
|
|
|
|
Rated surge voltage
|
8
|
KV
|
|
|
|
Meet standard①
|
IEC60947-7-1
|
|
|
|
|
Rated voltage ①
|
1000
|
V
|
|
|
|
Nominal current①
|
150
|
A
|
|
|
|
Meet standard②
|
UL1059
|
|
|
|
|
Rated voltage②
|
600
|
V
|
|
|
|
Nominal current②
|
115
|
A
|
|
|
|
Min.connection capacity for solid wire
|
0.75/18
|
mm²/AWG
|
|
|
|
Max.connection capacity for solid wire
|
50/0
|
mm²/AWG
|
|
|
|
Min.connection capacity for strand wire
|
0.75/18
|
mm²/AWG
|
|
|
|
Max.connection capacity for strand wire
|
12816
|
mm²/AWG
|
|
|
|
Line direciton
|
Side inlet
|
|
|
|
|
Strip length
|
16
|
mm
|
|
|
|
Insulation material
|
PA66
|
|
|
|
|
Flame-retarded Rating
|
UL94 V-0
|
|
|
|
