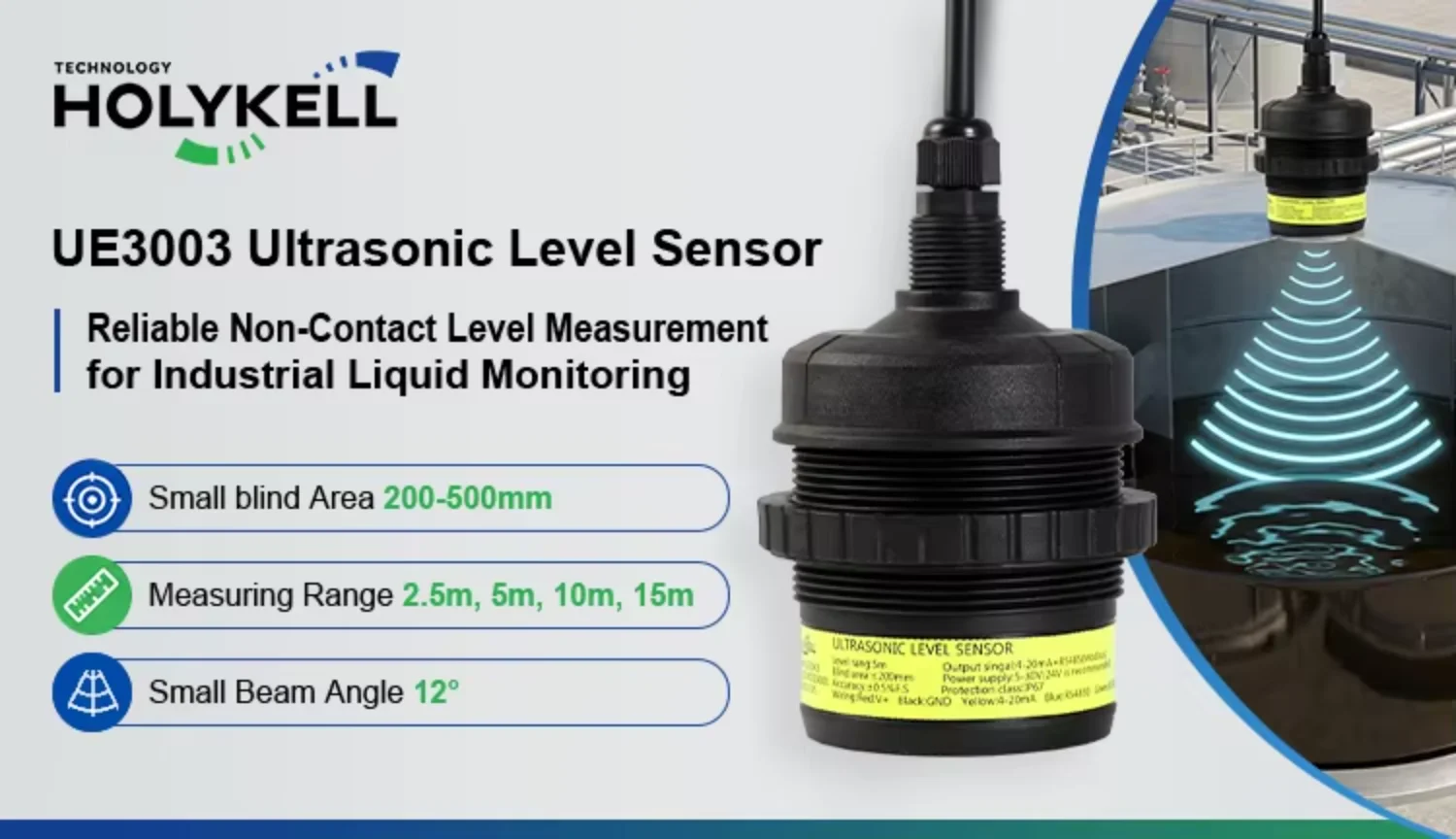

Holykell UE3003 High Accuracy Ultrasonic Level Sensor Transmitter
Holykell UE3003 High Accuracy Ultrasonic Level Sensor Transmitter
Regular price
$520.95 NZD
Regular price
$780.85 NZD
Sale price
$520.95 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)
- Type : Ultrasonic Level Sensor
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Polypropylene + glass fiber
- warranty : 1 Year
- Measuring range : 2.5 m, 5 m, 10 m, 15 m, others on request
- Beam angle : 12°
- Measuring mode : Distance mode(default), or level mode optional
- Output signal : 4-20 mA& RS485; 0-5 V&RS485 Optional
- Power supply : DC 24 V(default); DC 12 V(by customized)
- Working temp. : -10 °C to +50 °C
- Installation mode : Nut clamping fixed installation, screw-in installation, M68*2
- IP rating : IP67 typical, IP68 by customized
- Working current : ≤300 mA

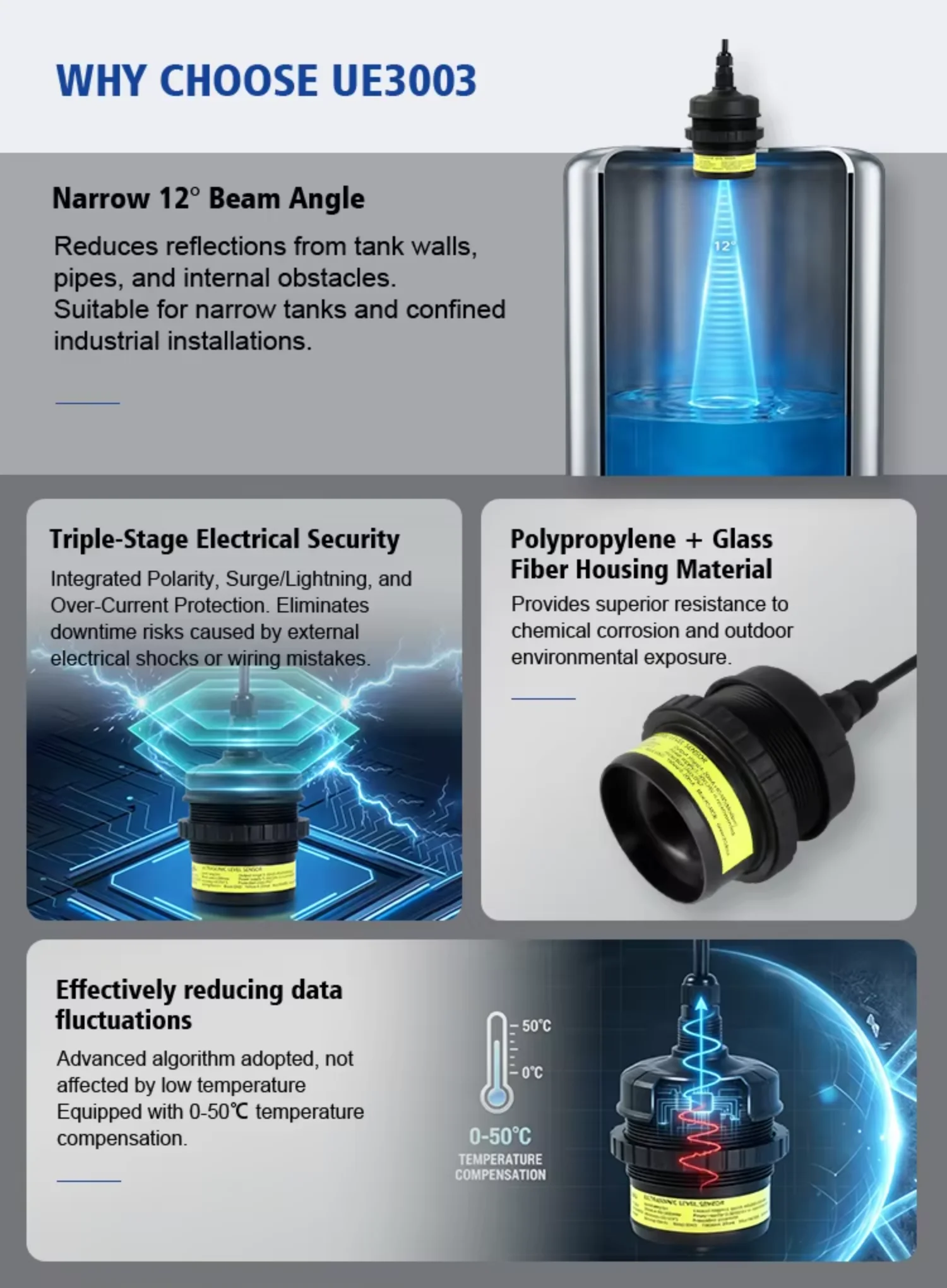

PRODUCT HIGHLIGHTS

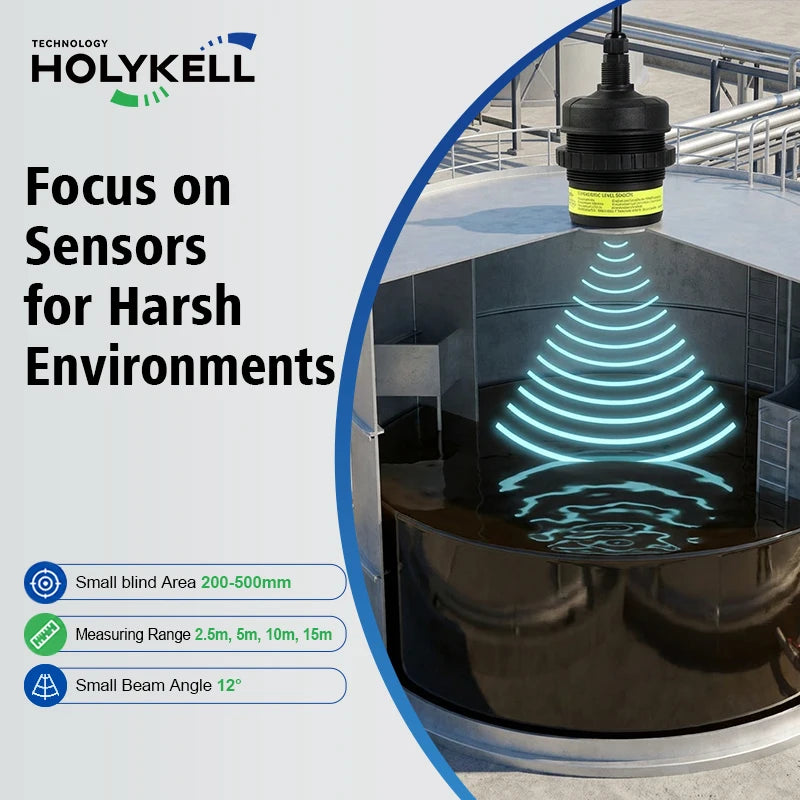

- Narrow 12° Beam Angle - Reduces reflections from tank walls, pipes, and internal obstacles. Suitable for narrow tanks and confined industrial installations.
- Triple-Stage Electrical Security - Integrated Polarity, Surge/Lightning, and Over-Current Protection. Eliminates downtime risks caused by external electrical shocks or wiring mistakes.
- Polypropylene + Glass Fiber Housing Material - Provides superior resistance to chemical corrosion and outdoor environmental exposure.
- Effectively reducing data fluctuations - Advanced algorithm adopted, not affected by low temperature Equipped with 0-50℃ temperature compensation
Product DescriptionThe UE3003 is a compact ultrasonic level sensor engineered for high-stability industrial process monitoring.By adopting advanced internal processing algorithms, it effectively filters out ripples and surface turbulence to deliver a stable, fluctuation-free signal. The UE3003 is equipped with 0-50℃ temperature compensation, ensuring that measurement accuracy remains unaffected by thermal shifts in the environment. Designed for long-term reliability, the UE3003’s logic is not affected by low temperatures, making it the standardized choice for outdoor reservoirs and unheated industrial storage tanks.

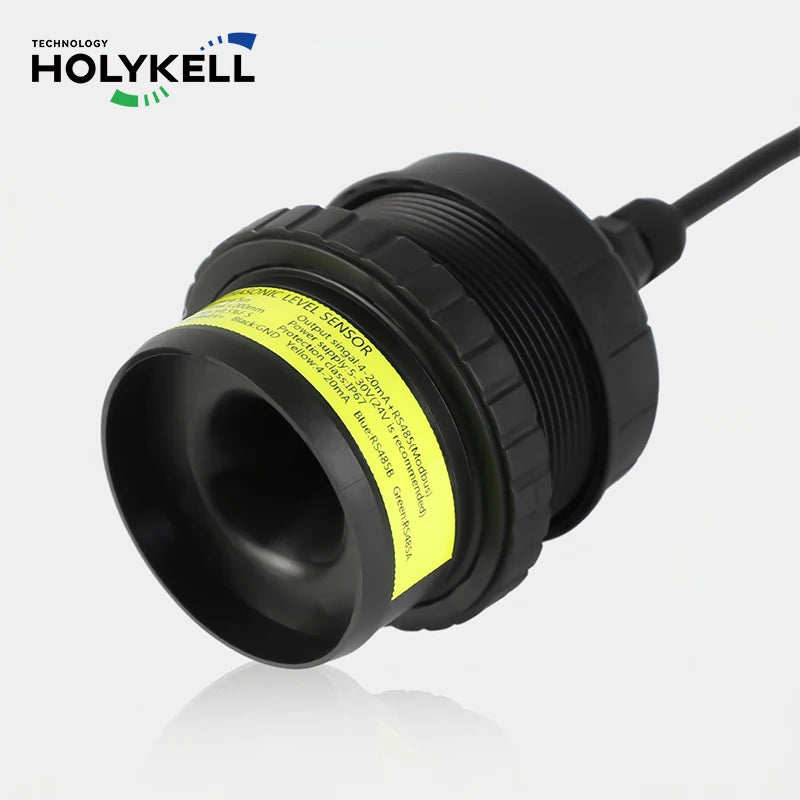

DETAIL SHOT
Additional Technical Advantages

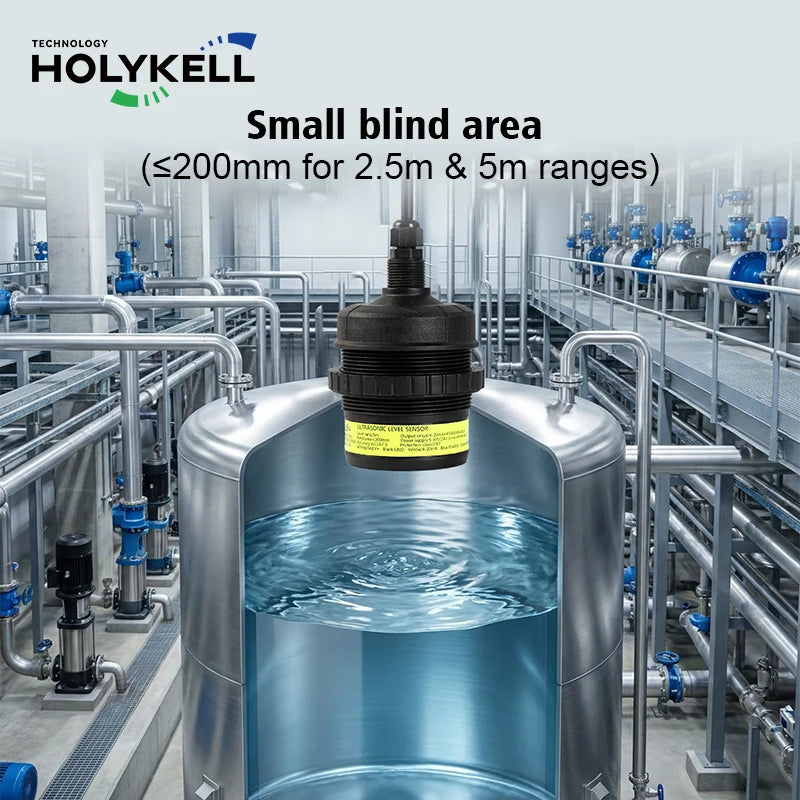

*Ultra-Small Blind Area: Minimal 200mm dead zone maximizes the effective measurement range in small tanks.*Flexible Industrial Integration: Supports standard RS485 Modbus RTU with adjustable baud rates up to 115200.*Strong EMC Anti-Interference Capability
SPECIFICATIONS
|
Measuring range
|
2.5 m, 5 m, 10 m, 15 m, others on request
|
|
Blind area
|
4-20 mA/0-5 V(2.5 m/5 m):≤200 mm
4-20 mA/0-5 V(10 m):≤300 mm 4-20 mA/0-5 V(15 m):≤500 mm |
|
Accuracy
|
0.5%F.S (typical), 0.25%F.S (by customized)
|
|
Beam angle
|
12°
|
|
Measuring mode
|
Distance mode(default), or level mode optional
|
|
Output signal
|
4-20 mA(3 wires) & RS485 Modbus RTU; 0-5 V(3 wires)&RS485 Modbus RTU Optional
|
|
Power supply
|
DC 24 V(default); DC 12 V(by customized)
|
|
Working temp.
|
-10 °C to +50 °C
|
|
Working current
|
≤300 mA
|
|
Installation mode
|
Nut clamping fixed installation, screw-in installation, M68*2
|
|
Response time
|
0.5s (2.5 m/5 m default); 1s (10 m default); 2s (15 m default);
0.5s to10s adjustable with software or Modbus commands, the faster, the shorter the lifetime |
|
Product material
|
Polypropylene + glass fiber
|
|
IP rating
|
IP67 typical, IP68 by customized
|

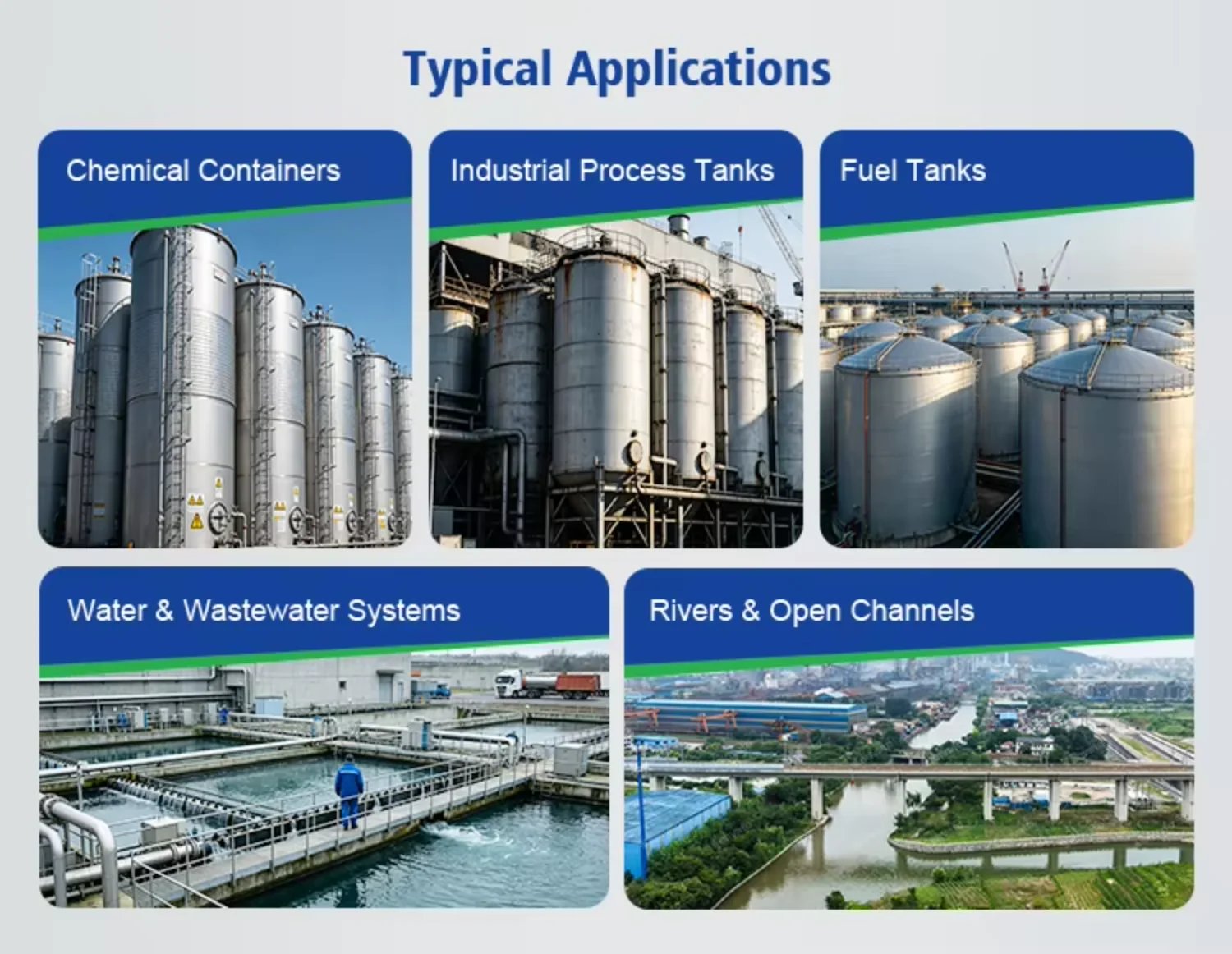

PRODUCT APPLICATION
