Holykell Titanium Alloy Submersible Level Sensor Ship Ballast Tank Monitoring System
Holykell Titanium Alloy Submersible Level Sensor Ship Ballast Tank Monitoring System
Regular price
$1,997.55 NZD
Regular price
$2,995.75 NZD
Sale price
$1,997.55 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, ≤ ±0.50%F.S(Typical); ≤ ±0.25%F.S (by customized)
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel, Titanium Alloy
- warranty : 1 Year
- Measuring Range : 0-1m.....200m H2O Optional
- Working Temp. : -20 to +80°C(non-corrosive medium)
- Signal Output : 4-20mA, 4-20mA+Hart, RS485 Modbus RTU
- Power Supply : 7-30 V DC, 12-30 V DC, 3.5-36 V DC
- Cable Optional : PE/ PU/ FEP
- Overload : 300% F.S
- Burst Pressure : 500% F.S
- Long-term Stability : ≤ ±0.2%F.S/ year
- Pressure Type : Gauge pressure; Sealed gauge and absolute optional

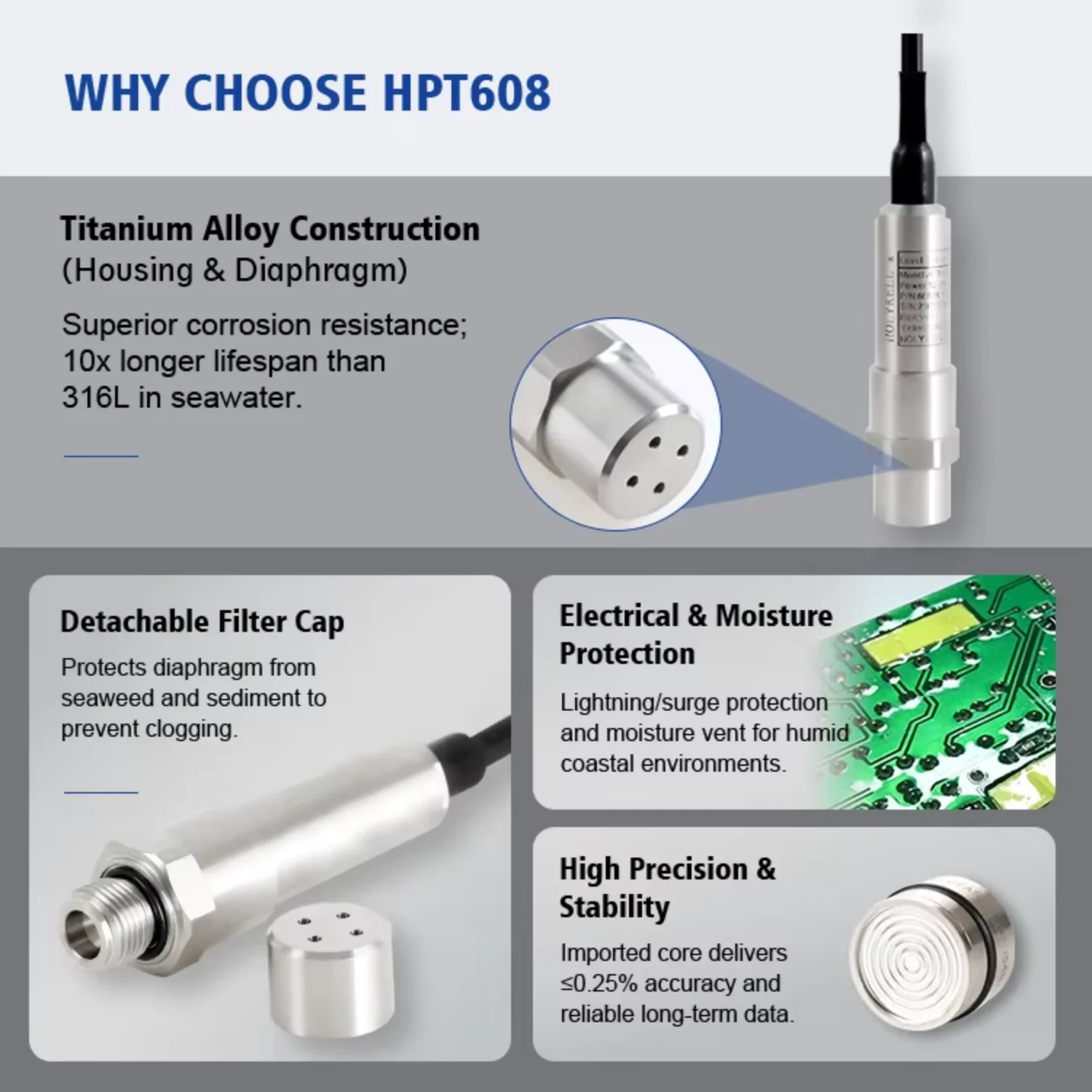

PRODUCT HIGHLIGHTS

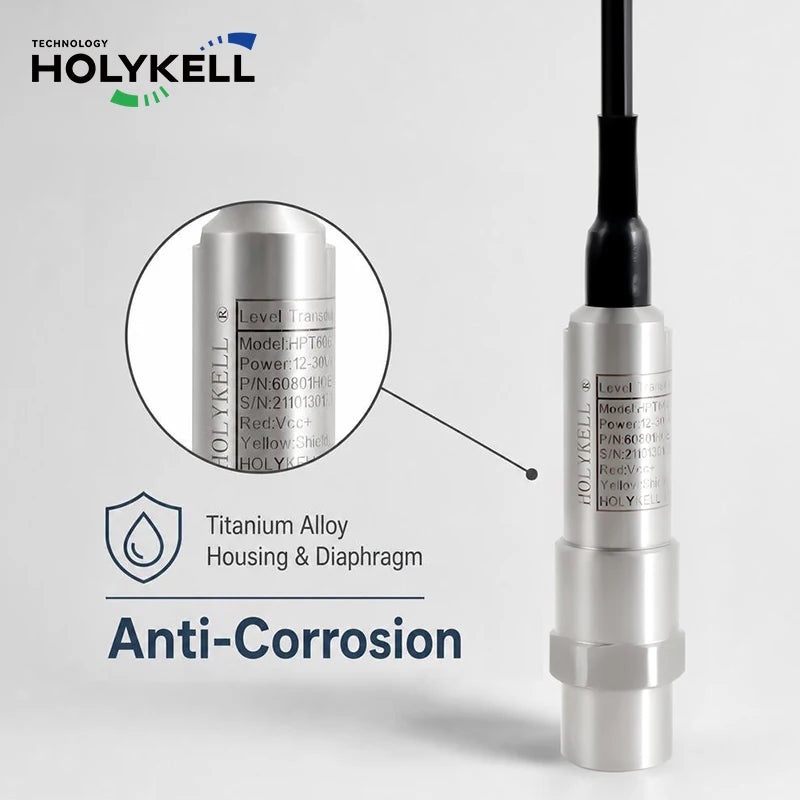

- Titanium Alloy Construction(Housing & Diaphragm) - Superior corrosion resistance; 10x longer lifespan than 316L in seawater.

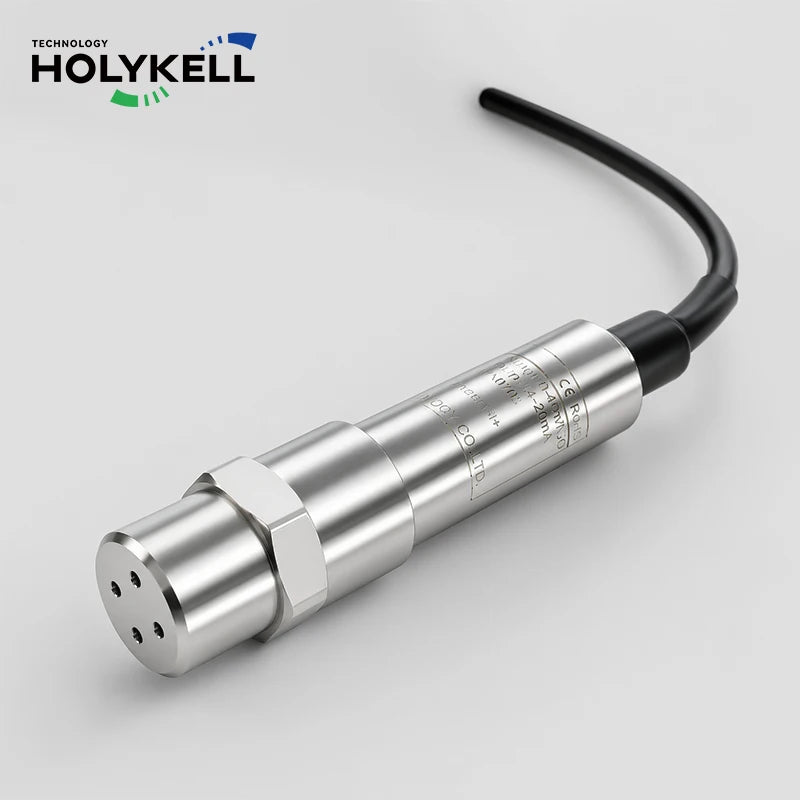

- Detachable Filter Cap - Protects diaphragm from seaweed and sediment to prevent clogging.
- High Precision & Stability - Imported core delivers ≤0.25% accuracy and reliable long-term data.

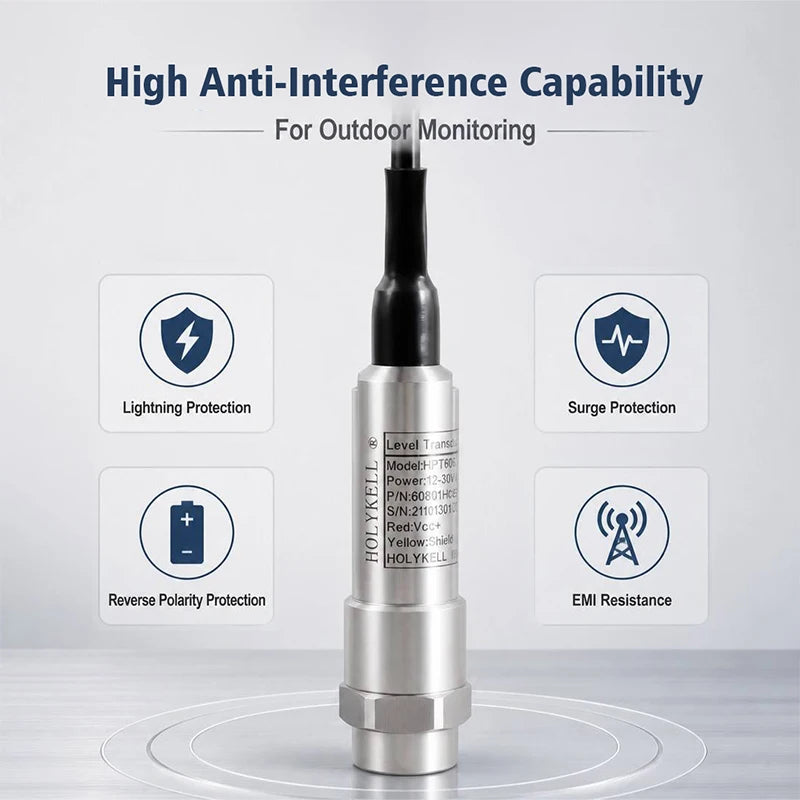

- Electrical & Moisture Protection - Lightning/surge protection and moisture vent for humid coastal environments.

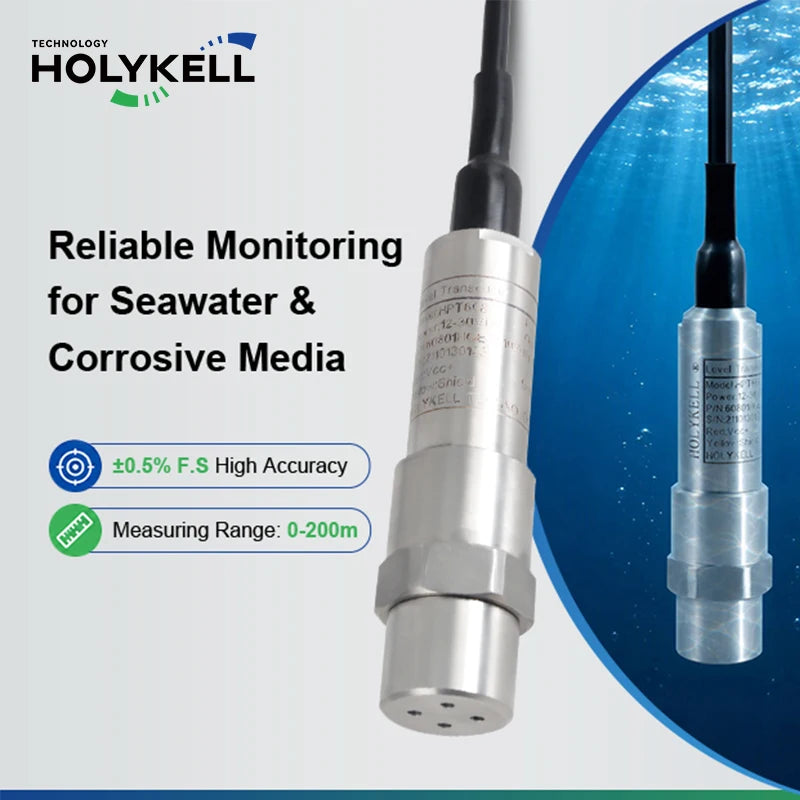

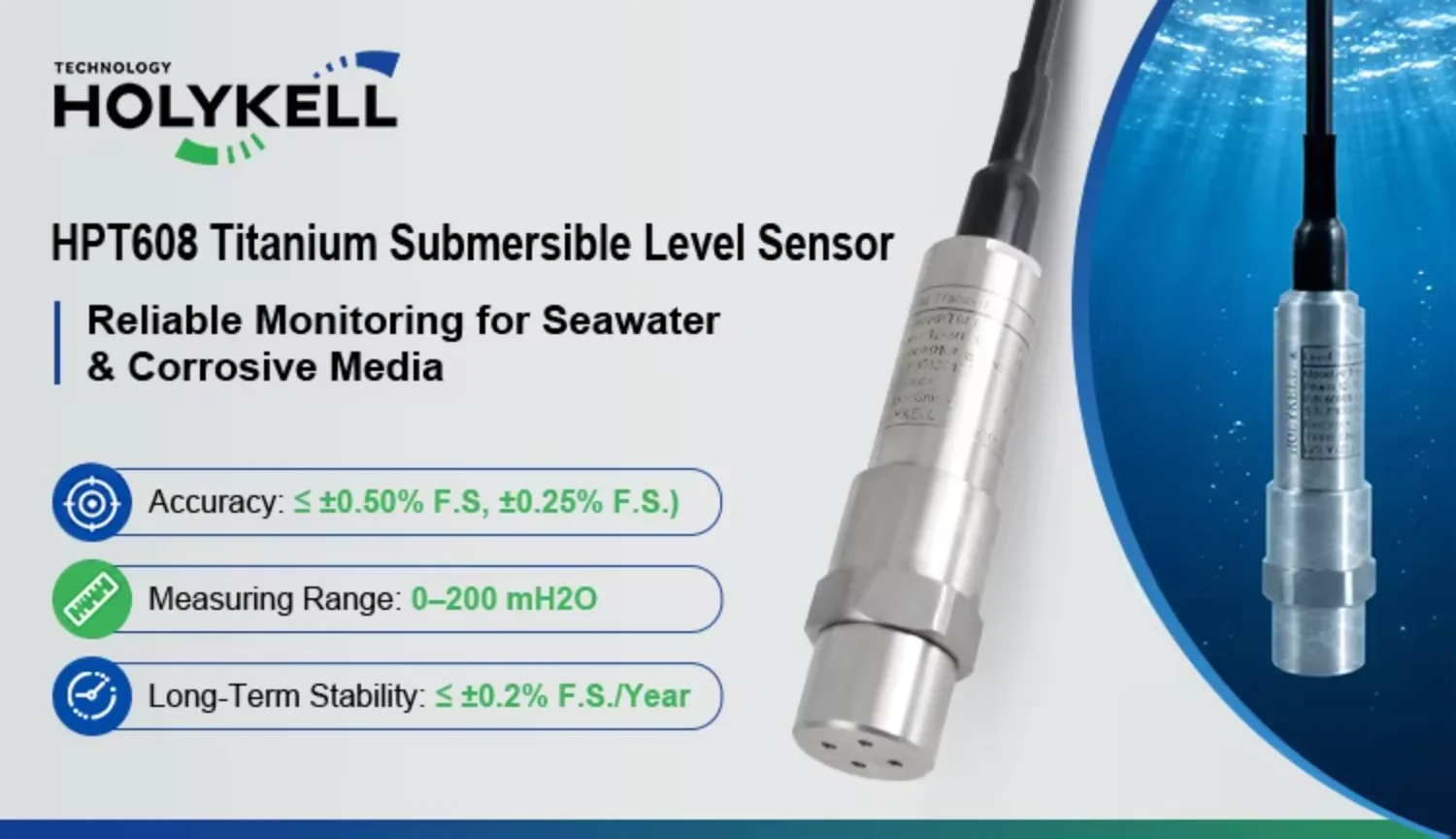

Product DescriptionThe Holykell HPT608 is a fully submersible level sensor specifically engineered for seawater, ballast tanks, marine vessels, and harsh chemical applications.Featuring an all-titanium construction and an imported sensing element, the HPT608 provides superior corrosion resistance and long-term stability in saltwater and acidic/alkaline environments. The IP68 hermetically sealed design, combined with advanced electrical protection, ensures reliable performance in the most demanding marine and industrial conditions.
DETAIL SHOT
Additional Technical Advantages

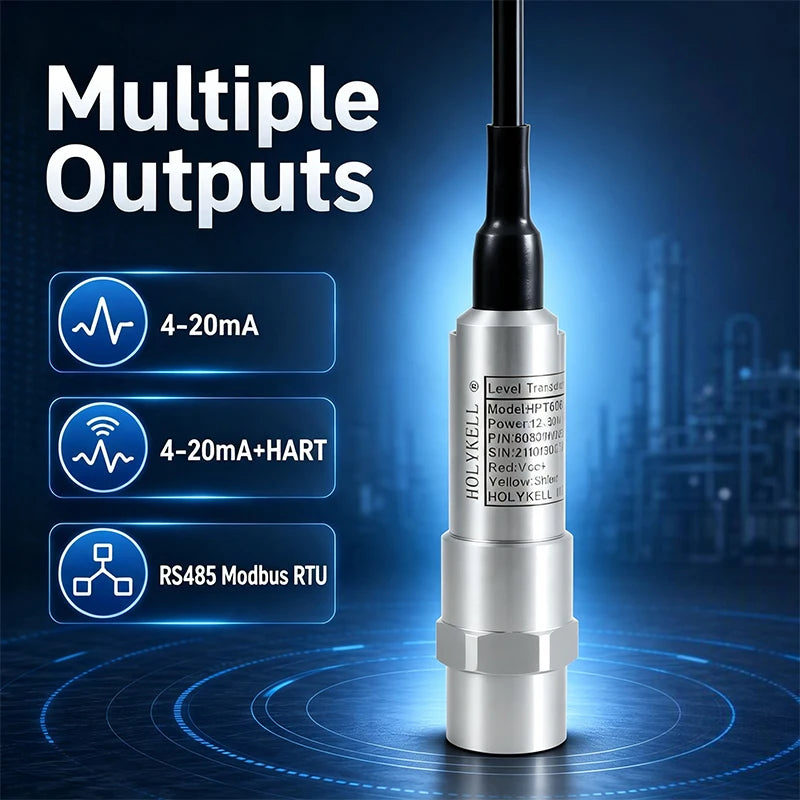

*Automatic atmospheric pressure compensation through the vented cable*Multiple outputs: 4-20mA, 4-20mA+HART, RS485 Modbus RTU*Specialized cable materials: PE (waterproof), PU (oil-resistant), FEP (anti-corrosive)
SPECIFICATIONS
|
Measuring range
|
0-1m…..200m H2O Optional
|
|
Overload
|
300% F.S
|
|
Burst Pressure
|
500% F.S
|
|
Accuracy
|
≤ ±0.50%F.S(Typical); ≤ ±0.25%F.S (by customized)
|
|
Long-term Stability
|
≤ ±0.2% FS/year
|
|
Working Temp.
|
-20 to +80°C(non-corrosive medium)
|
|
Storage Temp.
|
-40 to +80°C(Nitrile rubber sealing ring); -20 to +80°C(fluororubber rubber sealing ring)
|
|
Temperature Compensation
|
0 to +50°C
|
|
Medium Compatible
|
Compatible with titanium alloy
|
|
Output
|
4-20mA, 4-20mA+Hart, RS485 Modbus RTU
|
|
Power Supply
|
7-30 V DC, 12-30 V DC, 3.5-36 V DC
|
|
Insulation Resistance
|
>100M Ω@100V
|
|
Zero-point Temp. Drift
|
0.01%FS/°C
|
|
Full scale Temp. Drift
|
0.005%FS/°C
|
|
Electrical Connection
|
Fixed cable with vented tube and water proof IP68
|
|
Response Time
|
≤20 ms(Current and voltage signals); ≤100 ms (digital signals)
|
|
Pressure Type
|
Gauge pressure; Sealed gauge and absolute optional
|
|
Certificate
|

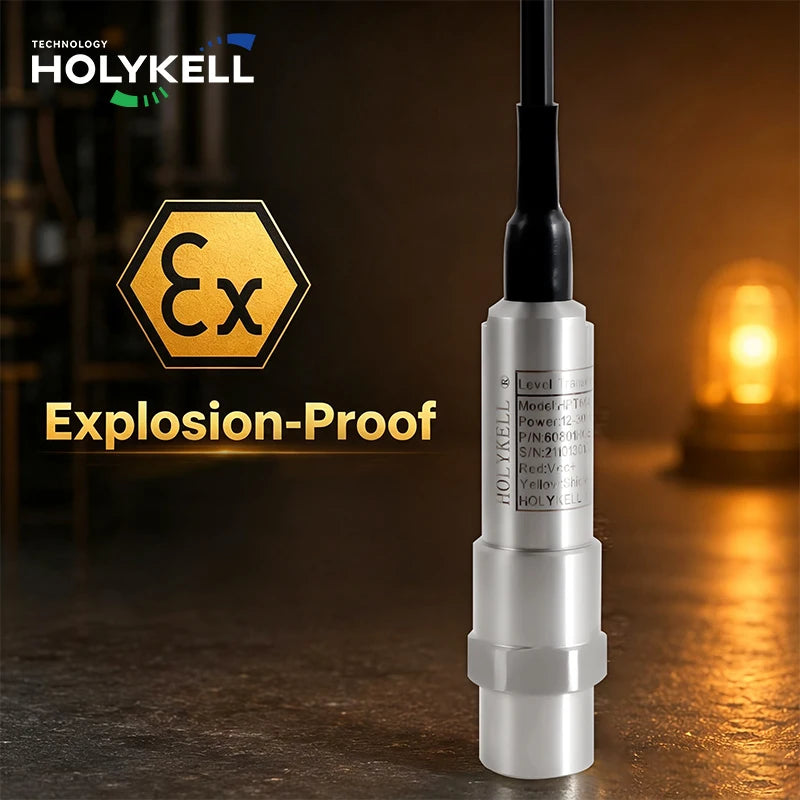

Ex ia IIC T5 Ga, TUV RoHS and CE Certificate
|
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013; EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
|
Surge & Lightning Protection
|
Surge ±2000V (digital); Air discharge ±8000V; contact discharge ±6000V
|
|
Cable Optional
|
PE Cable(Water Proof); PU Cable(Oil/Fuel Proof); FEP Cable(Anti-Corrosive)
|

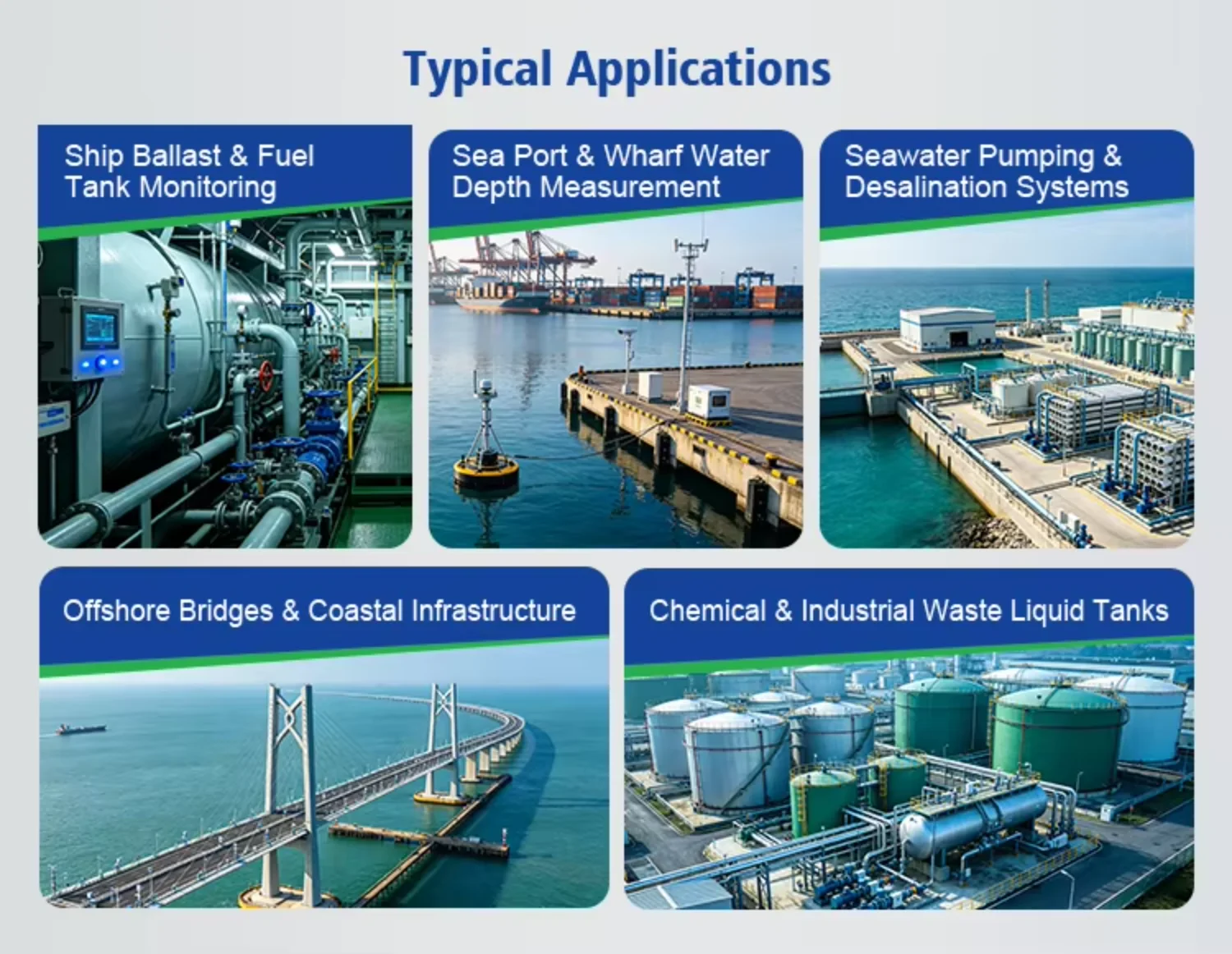

PRODUCT APPLICATION
