Holykell IP68 Level Transmitter for River Lake and Dam Monitoring
Holykell IP68 Level Transmitter for River Lake and Dam Monitoring
Regular price
$388.70 NZD
Regular price
$583.05 NZD
Sale price
$388.70 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, ≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S; ≤ ±0.1%F.S optional
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel
- warranty : 1 Year
- Measuring Range : 0-1m.....200m H2O Optional(80m max for SDI-12 signal)
- Working Temp. : -40 °C to +85°C
- Signal Output : 4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
- Power Supply : 7-30 V DC, 8-30 V DC, 13-30 V DC, 5 V DC±5%, 12 V DC, 3.5-36 V DC
- Cable Optional : PE/ PU/ FEP
- Overload : 150% F.S
- Burst Pressure : 500% F.S
- Long-term Stability : ≤ ±0.2%F.S/ year
- Pressure Type : Gauge pressure and absolute optional

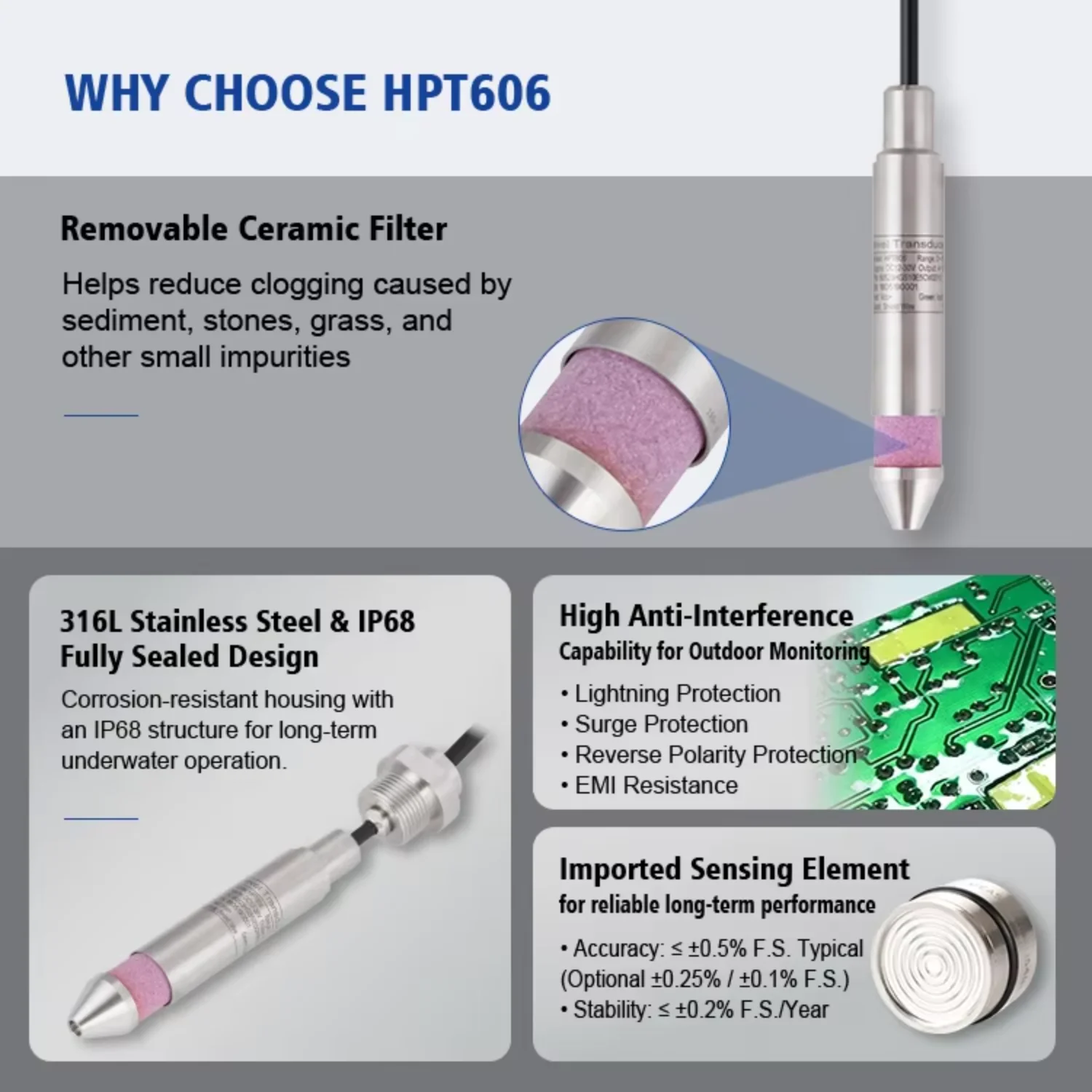

PRODUCT HIGHLIGHTS
- Removable Ceramic Filter - Helps reduce clogging caused by sediment, stones, grass, and other small impurities

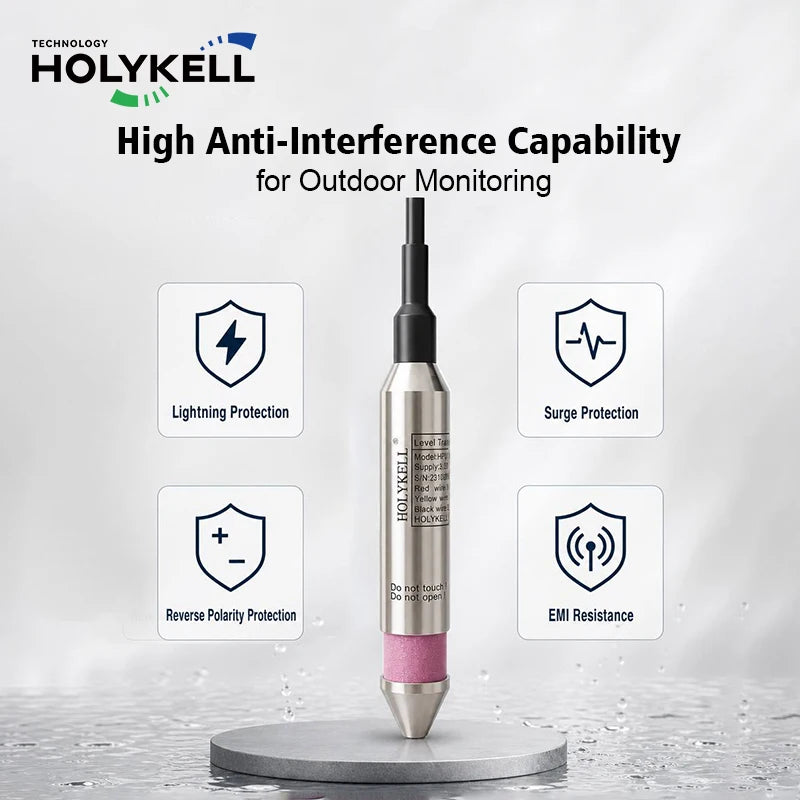

- High Anti-Interference Capability for Outdoor Monitoring · Lightning Protection · Surge Protection · Reverse Polarity Protection · EMI Resistance

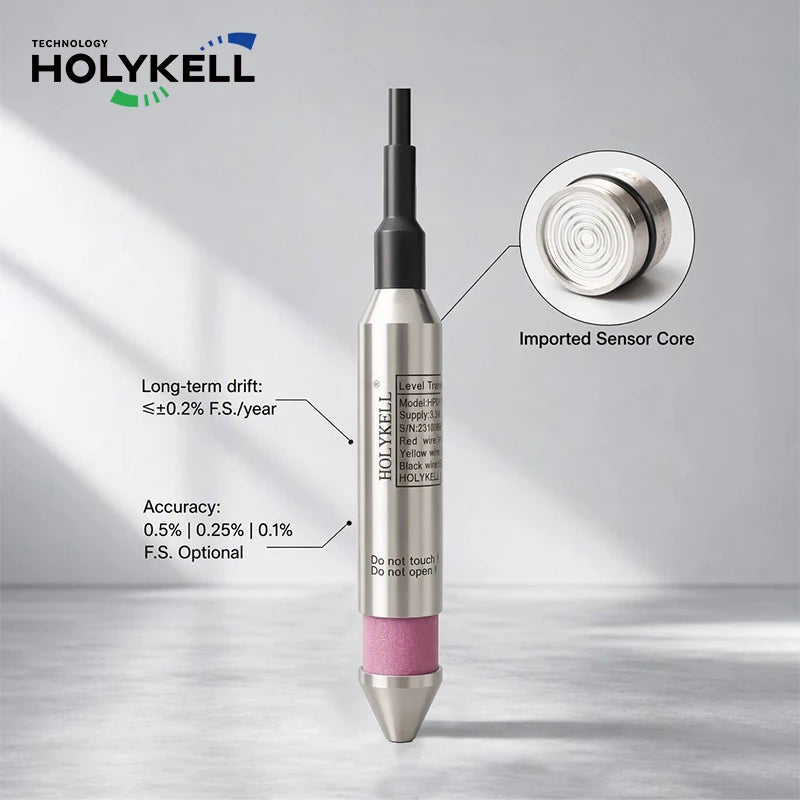

- Imported Sensing Element for reliable long-term performance · Accuracy: ≤ ±0.5% F.S. Typical (Optional ±0.25% / ±0.1% F.S.) · Stability: ≤ ±0.2% F.S./Year
- 316L Stainless Steel & IP68 Fully Sealed Design -Corrosion-resistant housing with an IP68 structure for long-term underwater operation.

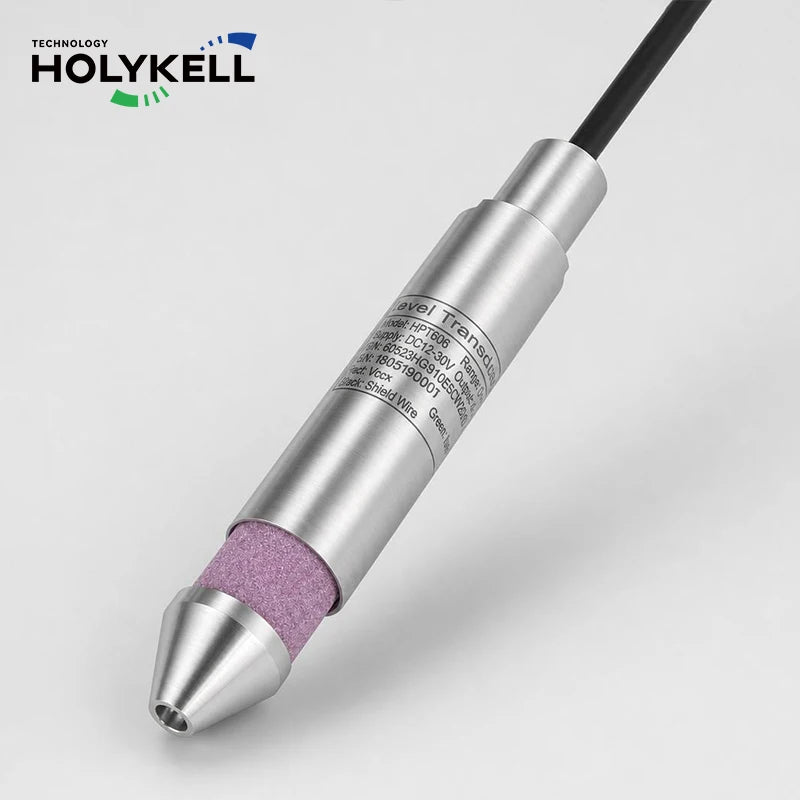

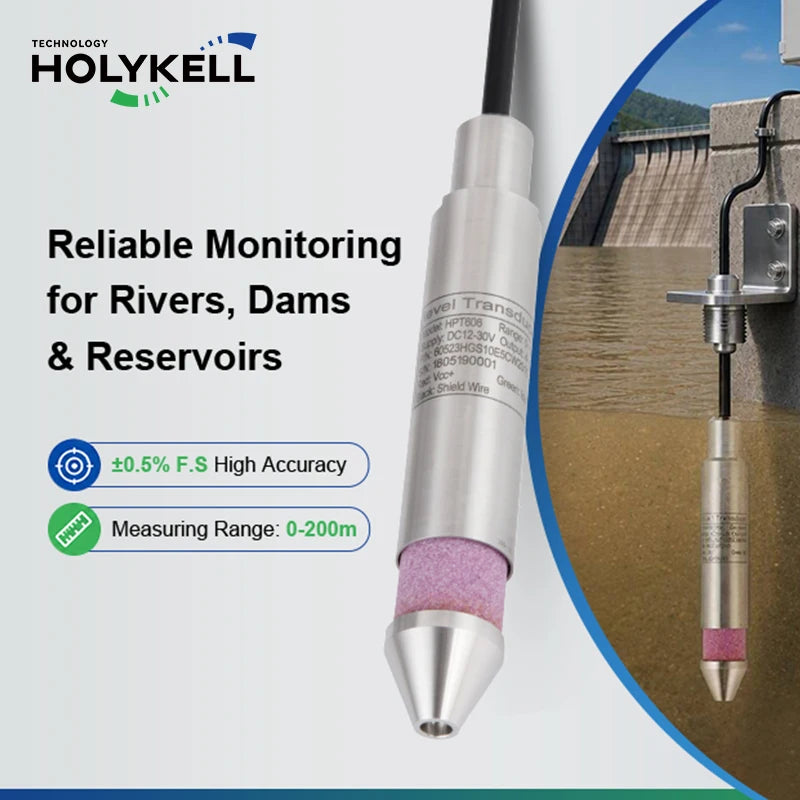

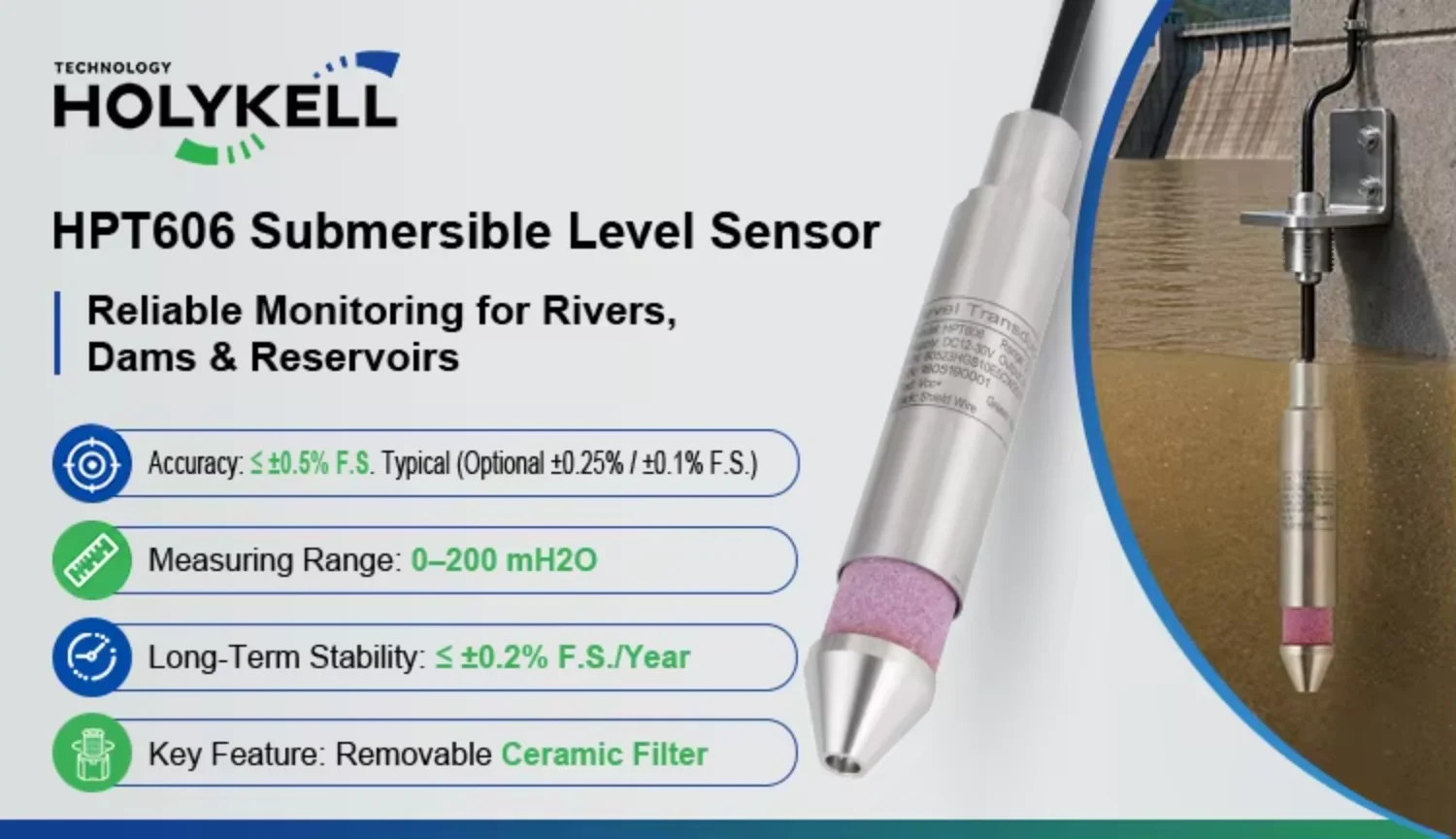

Product DescriptionThe Holykell HPT606 Submersible Level Sensor is engineered for continuous water level measurement in rivers, lakes, reservoirs, canals, dams, and hydrological monitoring stations.Designed for long-term outdoor deployment, the HPT606 combines a removable anti-clogging ceramic filter, imported piezoresistive sensing element, rugged 316L stainless steel housing, and comprehensive electrical protection to deliver accurate, stable, and maintenance-friendly water level monitoring for flood early warning systems.
DETAIL SHOT
Additional Technical Advantages

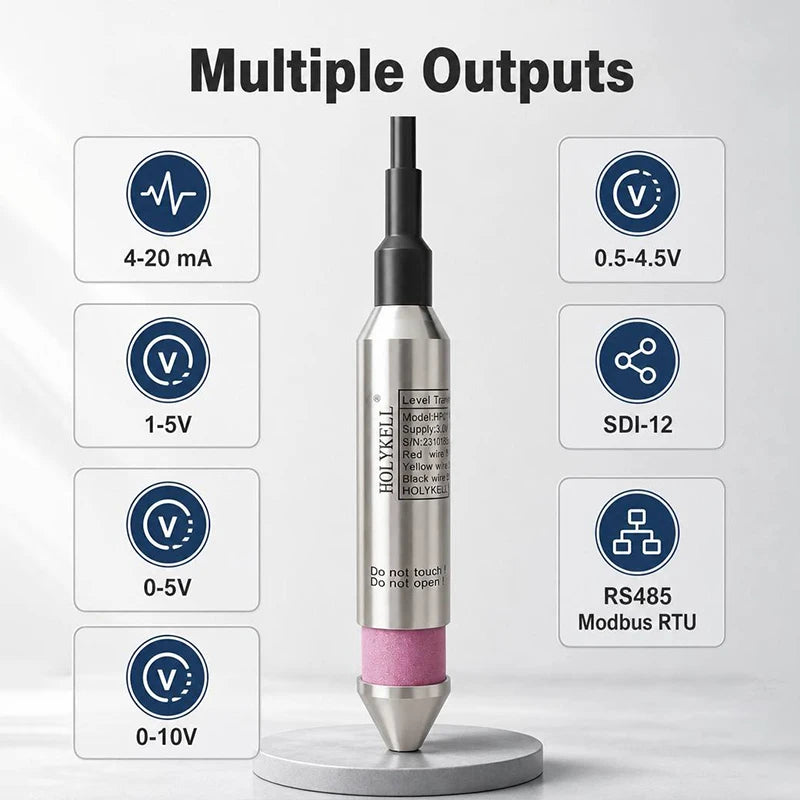

*Automatic atmospheric pressure compensation through the vented cable*Optional 4-20 mA, 1-5V, 0-5V, 0-10V, 0.5-4.5V, SDI-12, and RS485 Modbus RTU outputs*Optional PE, PUR, and FEP cable materials
SPECIFICATIONS
|
Measuring range
|
0-1m…..200m H2O Optional(80m max for SDI-12 signal)
|
|
Overload
|
150% F.S
|
|
Burst Pressure
|
500% F.S
|
|
Accuracy
|
≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S; ≤ ±0.1%F.S optional
|
|
Long-term Stability
|
≤ ±0.2% FS/year
|
|
Working Temp.
|
-40 to +80°C(non-corrosive medium)
|
|
Storage Temp.
|
-40 to +80°C(Nitrile rubber sealing ring); -20 to +80°C(fluororubber rubber sealing ring)
|
|
Temperature Compensation
|
0 to +50°C
|
|
Medium compatible
|
Compatible with 316L Stainless Steel
|
|
Output
|
4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
|
|
Power Supply
|
7-30 V DC, 8-30 V DC, 13-30 V DC, 5 V DC±5%, 12 V DC, 3.5-36 V DC
|
|
Insulation Resistance
|
>100M Ω@100V
|
|
Zero-point Temp. Drift
|
0.01%FS/°C
|
|
Full scale Temp. Drift
|
0.005%FS/°C
|
|
Process Connection
|
Submersible Type
|
|
Electrical connection
|
Fixed cable with vented tube and water proof IP68
|
|
Response Time
|
≤20 ms(Current and voltage signals); ≤100 ms (digital signals)
|
|
Pressure Type
|
Gauge pressure and absolute optional
|
|
Certificate
|
RoHS and CE Certificate
|
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013;EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
|
Surge & Lightning Protection
|
Surge ±2000V (digital); Air discharge ±8000V; contact discharge ±6000V
|
|
Cable optional
|
PE Cable(Water Proof); PU Cable(Oil/Fuel Proof); FEP Cable(Anti-Corrosive)
|

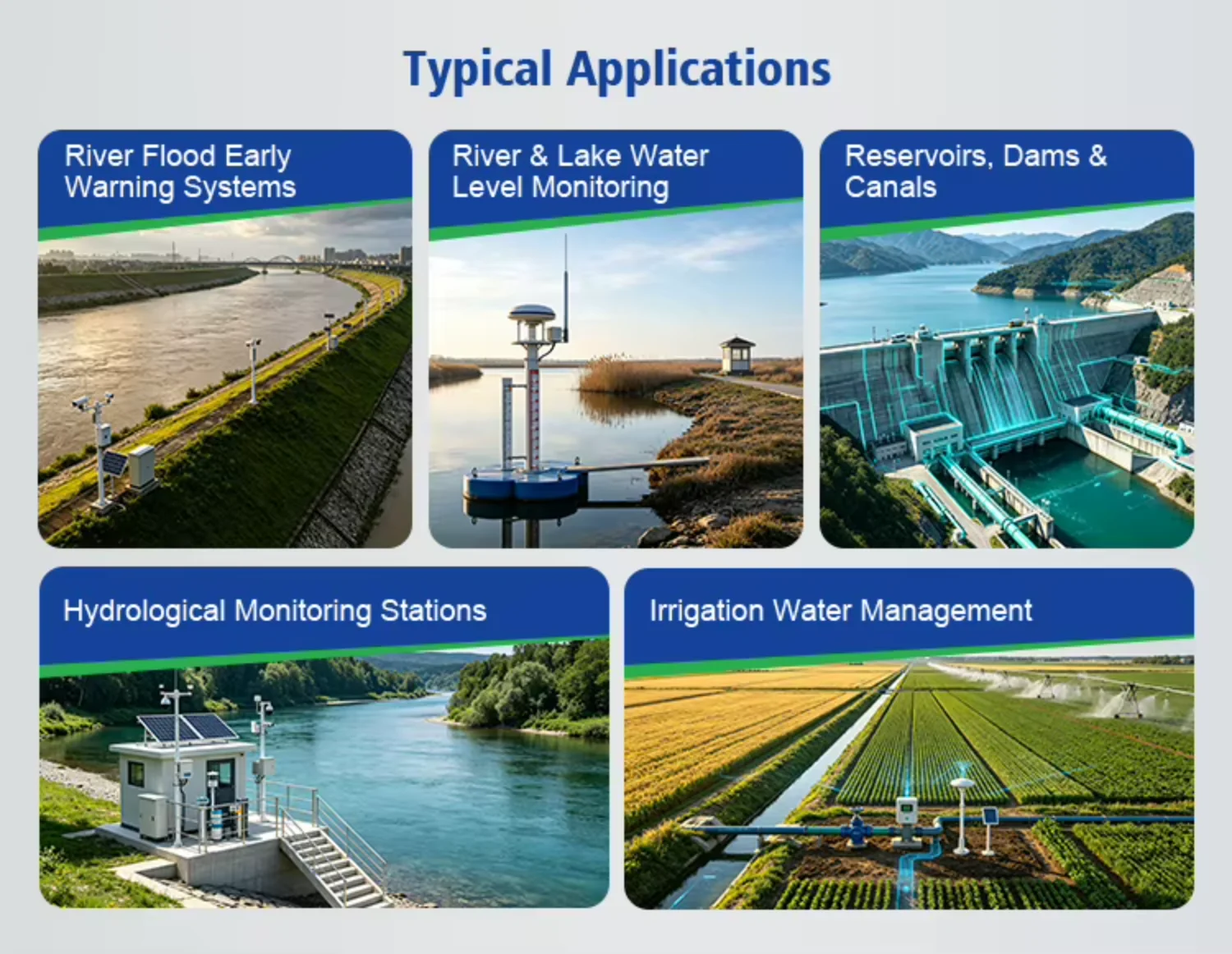

PRODUCT APPLICATION
