Holykell HPT604-BL ATEX IECEx Explosion Proof Submersible Fuel Level Transmitter
Holykell HPT604-BL ATEX IECEx Explosion Proof Submersible Fuel Level Transmitter
Regular price
$356.50 NZD
Regular price
$534.75 NZD
Sale price
$356.50 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, ≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional), 0.1%F.S (customized)
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel
- warranty : 1 Year
- Measuring Range : 0-2bar/20m
- Working Temp. : -40 °C to +85°C
- Medium Temp. : -20 °C to +85°C
- Signal Output : 4-20mA/0-5V/0-10V/SDI-12/RS485/0.5-4.5V
- Power Supply : 7-30Vdc/8-30Vdc/5Vdc/3.6-5Vdc/13-30Vdc
- Cable Optional : PE/ PU/ FEP
- Overload : 150% F.S
- Burst Pressure : 500% F.S
- Long-term Stability : ≤ ±0.2%F.S/ year

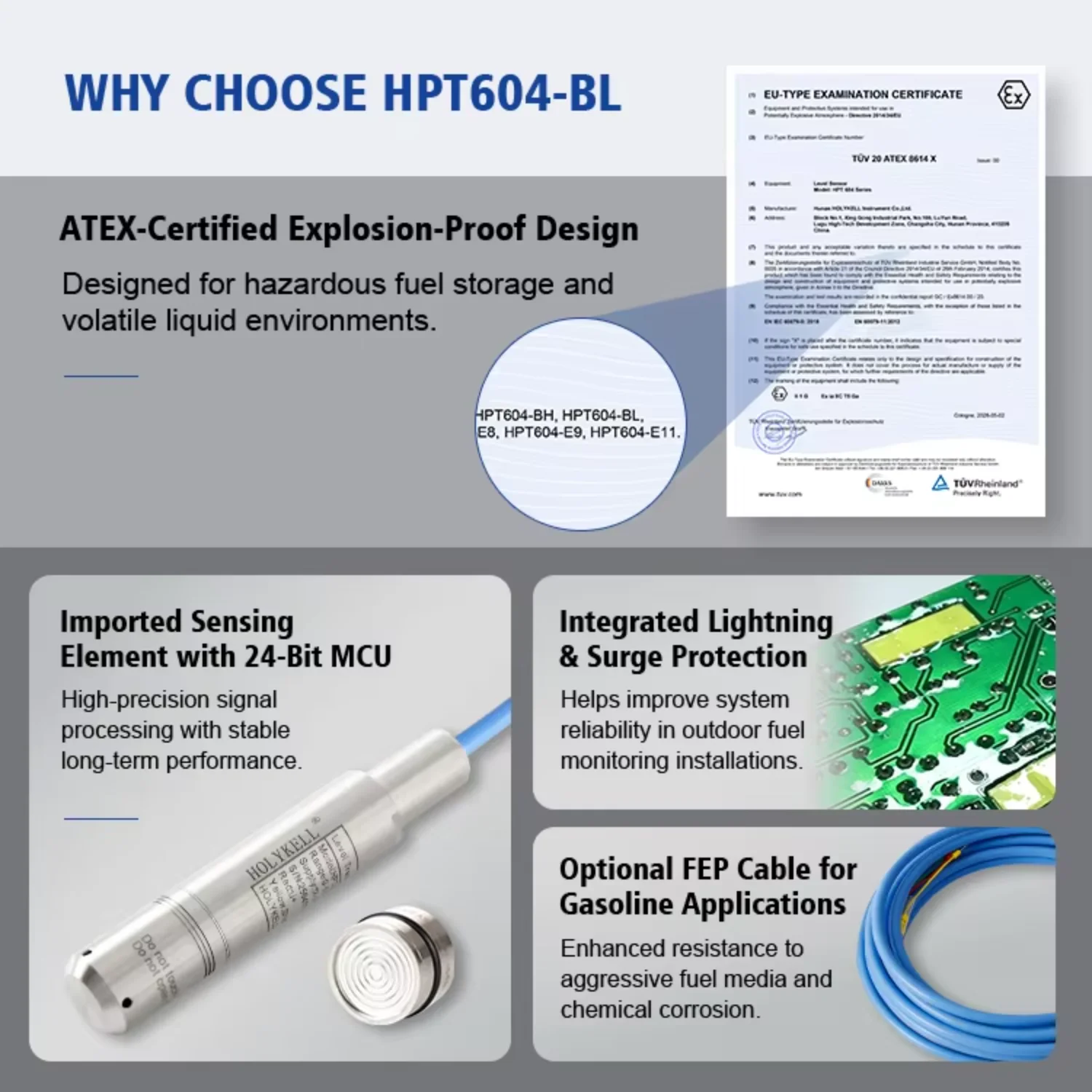

PRODUCT HIGHLIGHTS

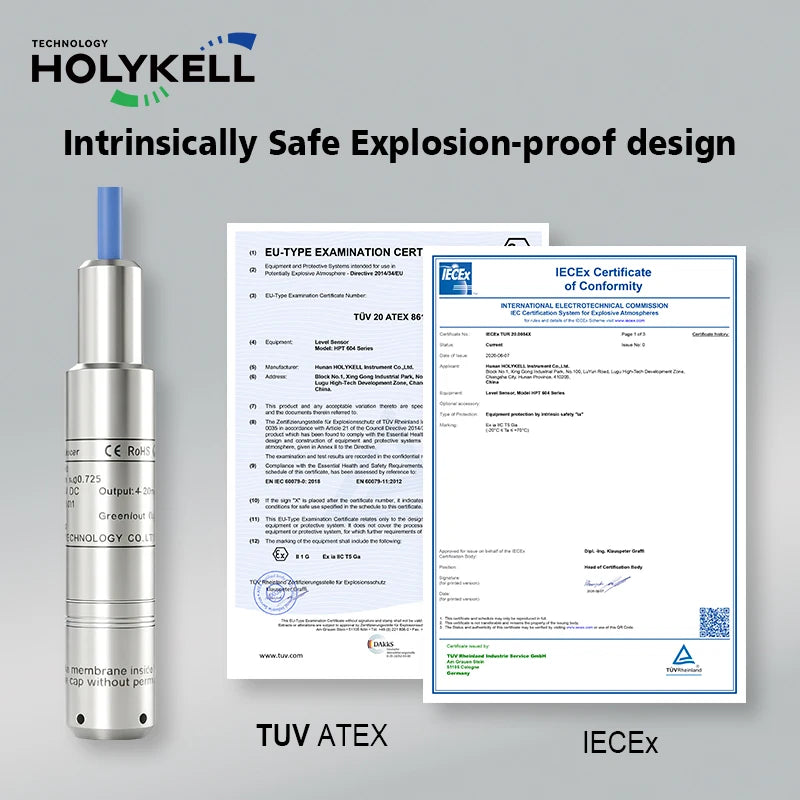

- ATEX-Certified Explosion-Proof Design - Designed for hazardous fuel storage and volatile liquid environments.

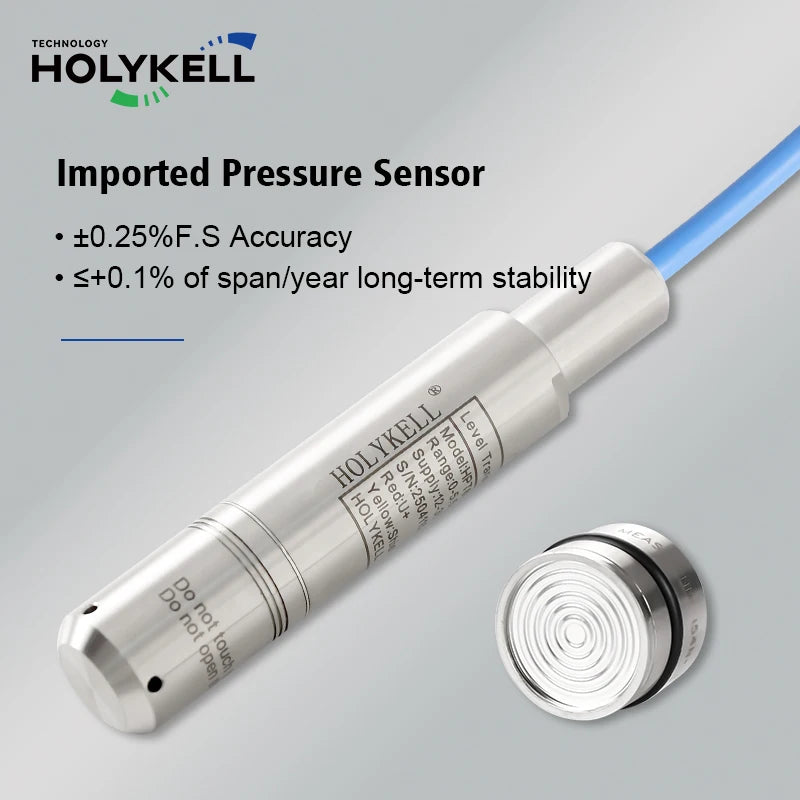

- Imported Sensing Element with 24-Bit MCU - High-precision signal processing with stable long-term performance.
- Integrated Lightning & Surge Protection - Helps improve system reliability in outdoor fuel monitoring installations.
- Optional FEP Cable for Gasoline Applications - Enhanced resistance to aggressive fuel media and chemical corrosion.

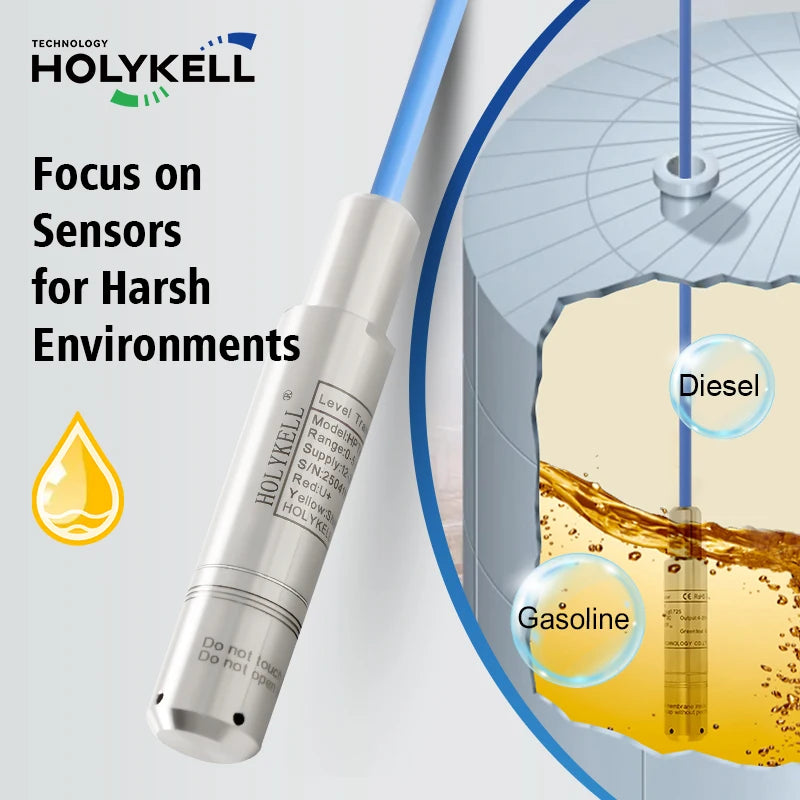

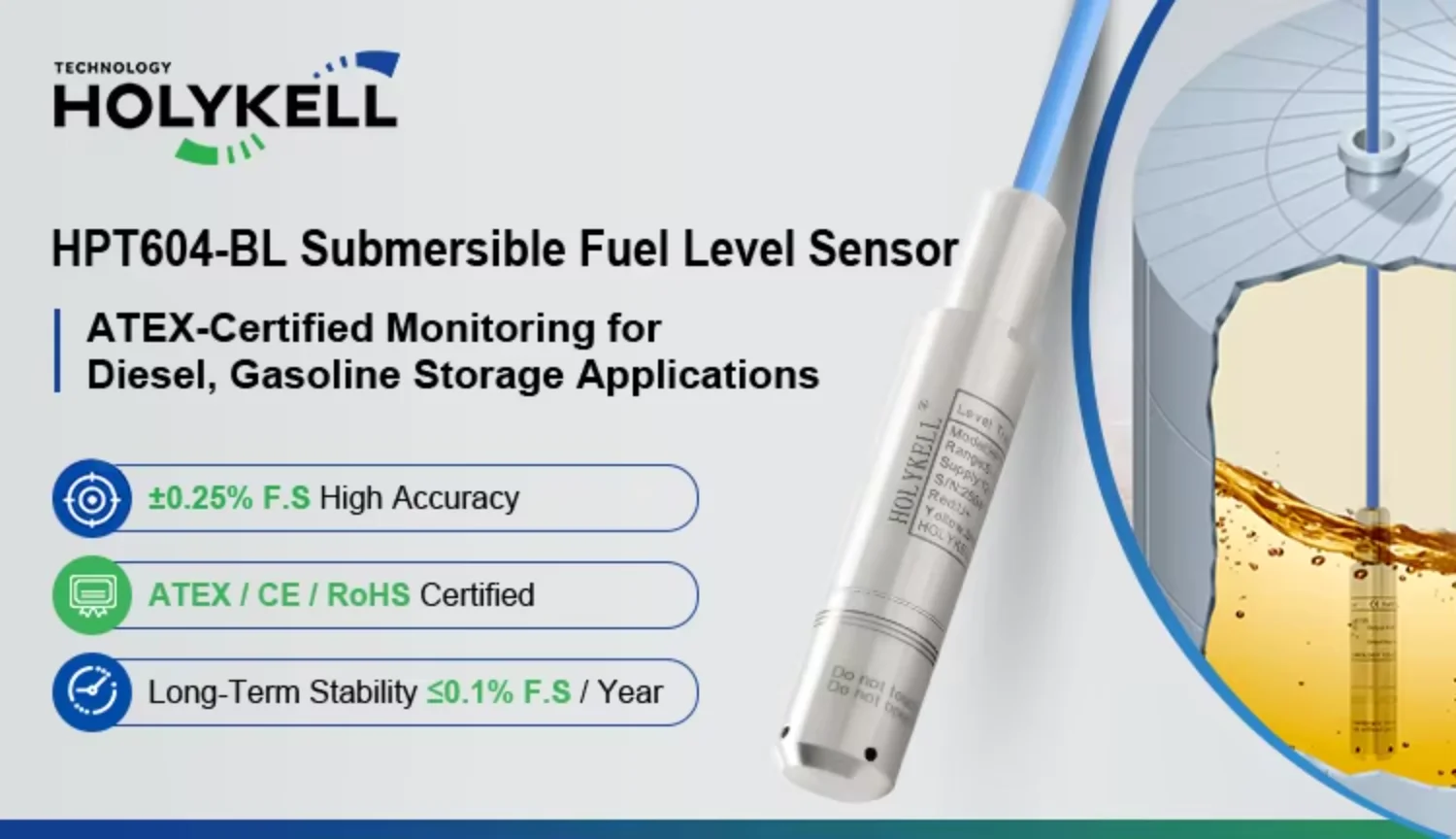

Product DescriptionThe HPT604-BL is engineered for continuous fuel level monitoring in gasoline, diesel, and bio-fuel storage tanks, specifically designed for hazardous environments where safety and precision are paramount.An ATEX-certified explosion-proof design combined with a full-welded 316L stainless steel housing ensures reliable long-term operation in volatile industrial settings. To meet the aggressive nature of fuel media, specialized FEP (Teflon) cable options are available to prevent chemical degradation.Its integrated 24-bit AD MCU microprocessor and high-precision sensing element provide superior resolution for accurate fuel inventory management. The unique 8-pressure-hole nose cone maintains measurement integrity in fuel tanks containing sediment or impurities.The vented cable structure with an internal atmospheric compensation tube balances air pressure changes, helping maintain stable and accurate level readings under varying environmental conditions.
DETAIL SHOT
Additional Technical Advantages

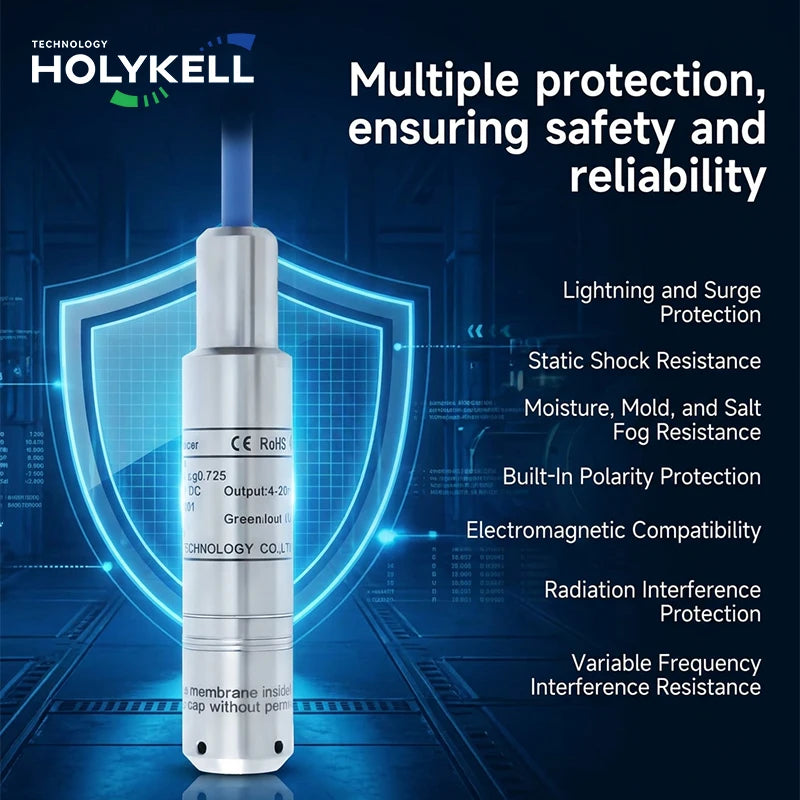

*EMI / RFI Interference Protection*Automatic Temperature Compensation*IP68 Waterproof Construction*Multiple Signal Outputs Available(4-20mA, RS485, 0-5V, 0-10V, SDI-12)
SPECIFICATIONS
|
Pressure Range
|
0-2bar/20m
|
|
Overload
|
150% F.S
|
|
Burst Pressure
|
500% F.S
|
|
Accuracy
|
≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional), 0.1%F.S (by customized)
|
|
Long-term Stability
|
≤ ±0.2%F.S/ year
|
|
Working Temp.
|
-40 °C to +85°C
|
|
Medium Temp.
|
-20 °C to +85°C
|
|
Storage Temp.
|
-40°C to +85°C
|
|
Temp.Compensation
|
0°C to 50°C; -10°C to 70°C (Range > 200 kPa / 20 mH₂O)
|
|
Medium Compatible
|
Compatible with 304 Stainless Steel
|
|
Signal Output
|
4-20mA/0-5V/0-10V/SDI-12/RS485/0.5-4.5V
|
|
Power Supply
|
7-30Vdc/8-30Vdc/5Vdc/3.6-5Vdc/13-30Vdc
|
|
Polarity Protection
|
The power lines feature reverse polarity protection; however, the signal lines do not have reverse polarity protection against the
positive power supply and must not be cross-connected. |
|
Insulation Resistance
|
＞100M Ω@100V
|
|
Electrical Connection
|

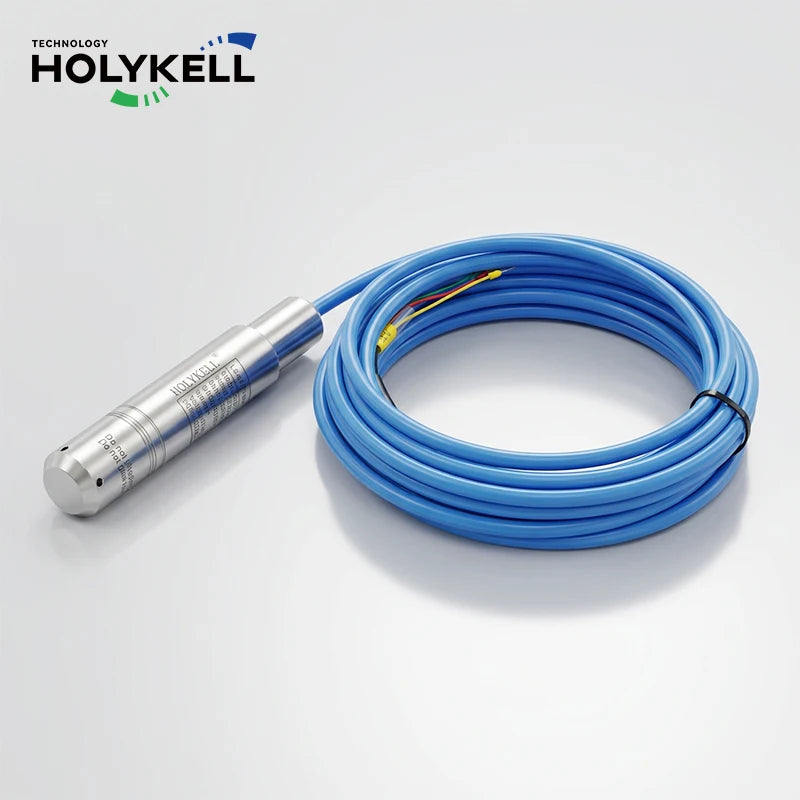

Fixed cable with vented tube and water proof IP68
|
|
Response Time
|
≤20 ms(Current and voltage signals); ≤100 ms (digital signals)
|
|
Pressure Type
|
Gauge pressure; Sealed gauge and absolute optional
|
|
Surge & Lightning Protection
|
Surge ±2000V (digital); Air discharge ±8000V; contact discharge ±6000V
|
|
Cable Optional
|
PE/ PU/ FEP
|
PRODUCT APPLICATION
