Holykell HPT200-EX TUV ATEX IECEx Explosion Proof Pressure Sensor Transmitter for Oil and Gas Industry
Holykell HPT200-EX TUV ATEX IECEx Explosion Proof Pressure Sensor Transmitter for Oil and Gas Industry
Regular price
$601.45 NZD
Regular price
$901.60 NZD
Sale price
$601.45 NZD
Taxes included.
Shipping calculated at checkout.
- accuracy : 0.5% FS
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- Protection Class : IP68
- material : stainless steel
- warranty : 1 Year
- Measuring Range : -1 to 0..0 to 0.1...0 to 600bar
- Accuracy : 0.5%F.S(Typical); 0.25%F.S; 0.1%F.S(by customized)
- Output : 4-20 mA, 0-5V, 0-10V, 0.5-4.5V, RS485, 4-20mA+HART, 4-20mA+Temp
- Power Supply : 8-30 V DC, 13-30 V DC, 5 V DC, 12-30 V DC
- Electrical connection : 1/2''NPT male thread with cable outlet IP68
- Pressure connection : G1/4''male, G1/2''male, 1/4''NPT male, 1/2''NPT male optional
- IP rating : IP68
- Overload : 150% F.S
- Burst Pressure : 500% F.S
- Case Material : Stainless steel 316L

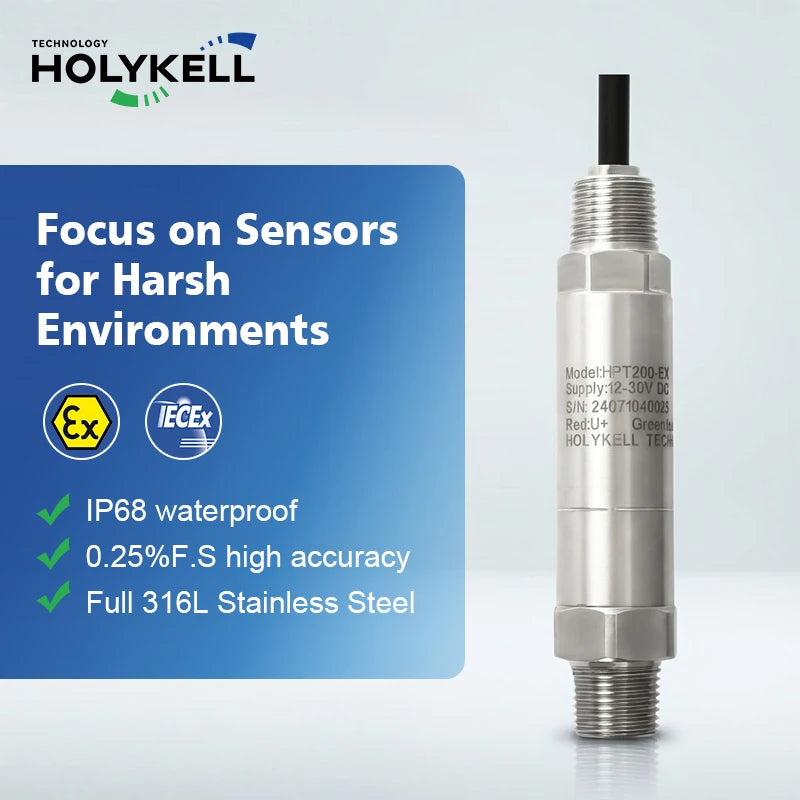

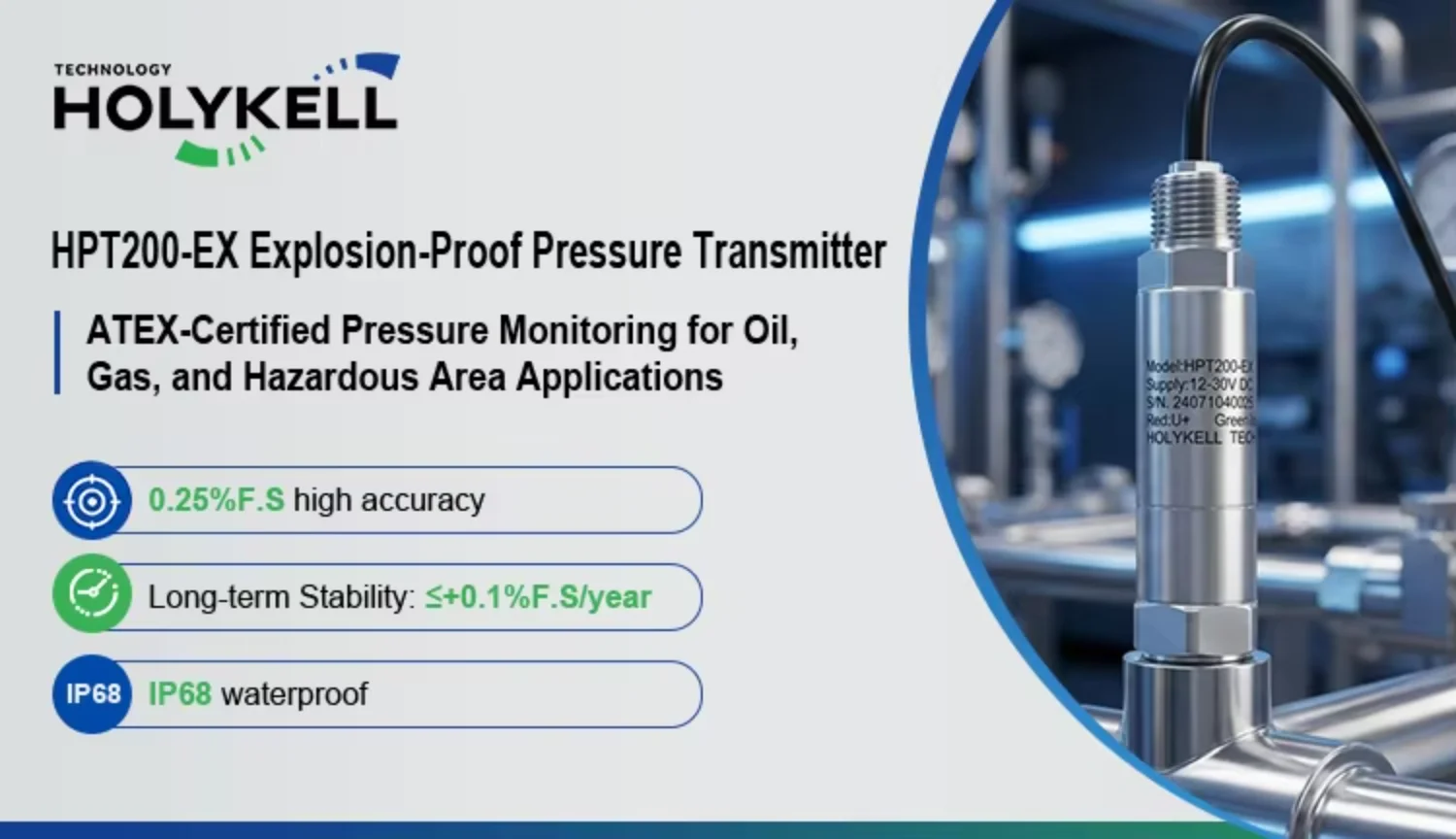

PRODUCT HIGHLIGHTS
- ATEX-Certified Explosion-Proof Design - Certified explosion protection for hazardous industrial gas groups

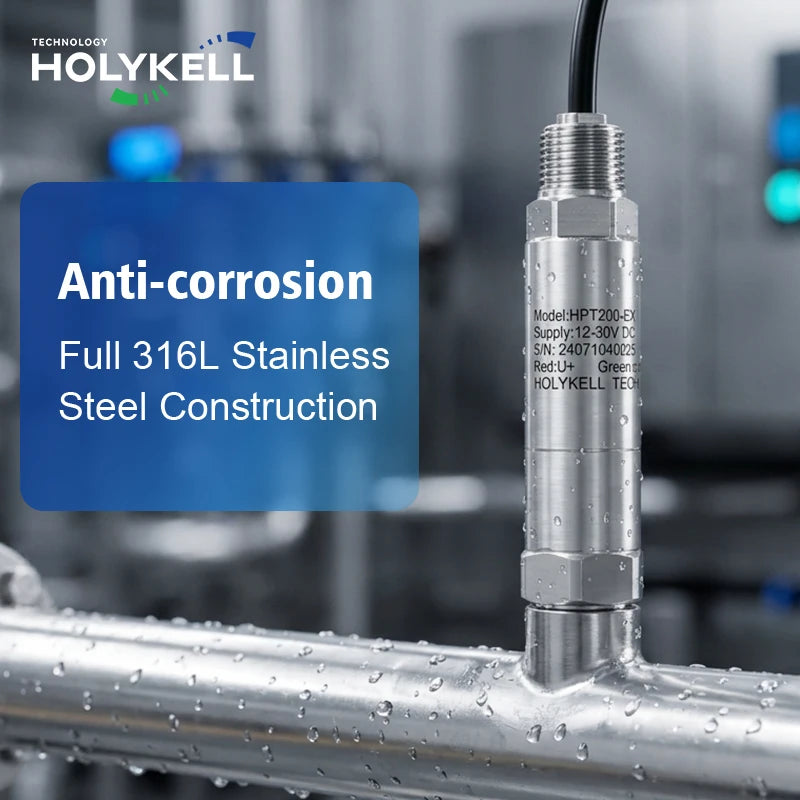

- Full 316L Stainless Steel Construction - Resists corrosion in harsh industrial environments.
- Built-in Lightning & Surge Protection - Protects internal circuits from transient overvoltage and lightning strikes.

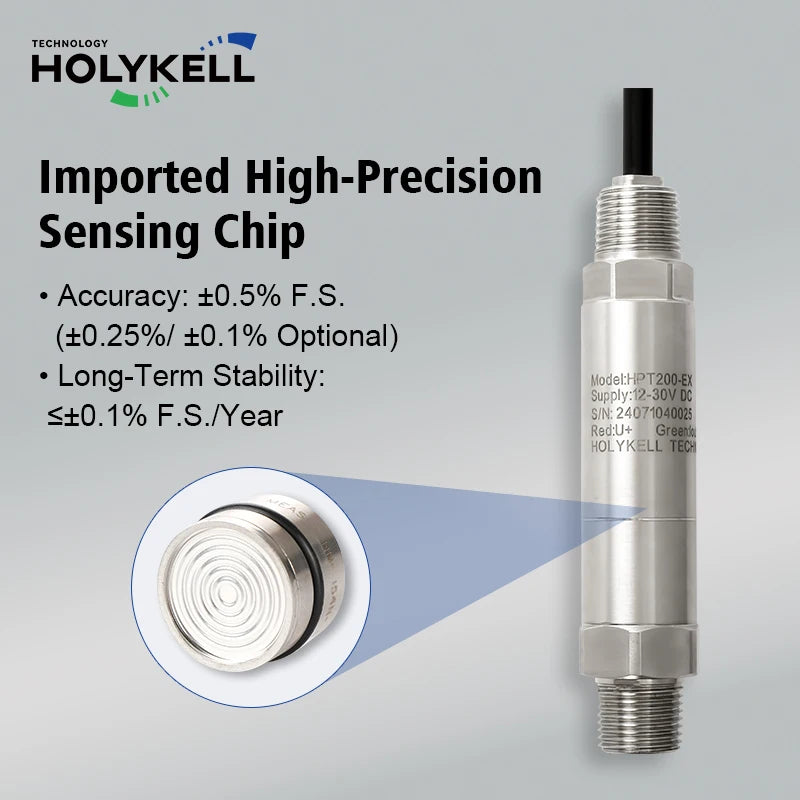

- Imported High-Precision Sensing Chip - Ensures ±0.25% F.S. accuracy with minimal annual drift(≤+0.1%F.S/year)
Product DescriptionThe HPT200-EX is an intrinsically safe pressure transmitter engineered for deployment in hazardous environments. Holding ATEX certification, it meets the global explosion protection standards required for oil and gas production sites, offshore platforms, and petrochemical facilities.Its fully welded 316L stainless steel body — covering both diaphragm and housing — delivers exceptional resistance to corrosive media and pressure spikes without mechanical sealing failure. Combined with IP68-rated submersion protection and a ruggedized high-quality cable, the HPT200-EX operates reliably in permanently wet, salt-laden, or chemically aggressive installation conditions.

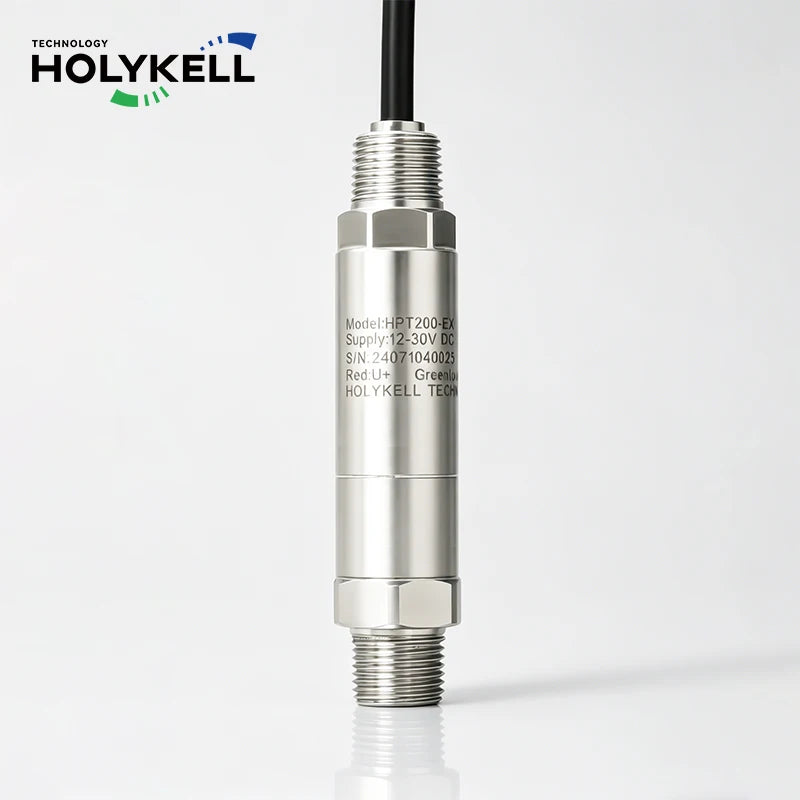

DETAIL SHOT
Additional Technical Advantages
*High-Strength Shielded Cable: Tensile-resistant internal structure with EMI shielding for stable signal transmission.*Reverse Polarity Protection: Prevents circuit damage from incorrect field wiring during installation.*IP68 Submersion Rated: Ensures reliable performance in permanently wet or flooded pits.*EMC/EMI Compatibility: Engineered for stable output near high-power industrial motors and VFDs.
SPECIFICATIONS
Measuring range |
-1 to 0..0 to 0.1…0 to 600bar |
Case Material |
Stainless steel 316L |
Pressure Measured |
Gauge /Absolute / Negative pressure optional |
Safe Overload |
150% F.S |
Burst Pressure |
500% F.S |
Accuracy |
0.5%F.S(Typical); 0.25%F.S; 0.1%F.S(by customized) at 25°C |
Long-term Stability |
≤ ±0.1%F.S/year |
Working Temp. |
-20°C to +80°C(corrosive medium),-40°C to +80°C (non-corrosive medium); -40~250°C by customized |
Storage Temp. |
-40 to +85°C |
Medium Compatible |
Compatible with SUS316L |
Output |
4-20 mA, 0-5V, 0-10V, 0.5-4.5V, RS485, 4-20mA+HART, 4-20mA+Temp |
Power Supply |
8-30 V DC, 13-30 V DC, 5 V DC, 12-30 V DC |
Insulate resistance |
>100M Ω @100 V DC |
Zero Temp. Drift |
0.01%FS/°C |
Electrical connection |
1/2’’NPT male thread with cable outlet IP68 |
Pressure connection |
G1/4’’male, G1/2’’male, 1/4’‘NPT male, 1/2’‘NPT male optional |
IP rating |
IP68 |
Response time |
≤20ms |
Certificate |

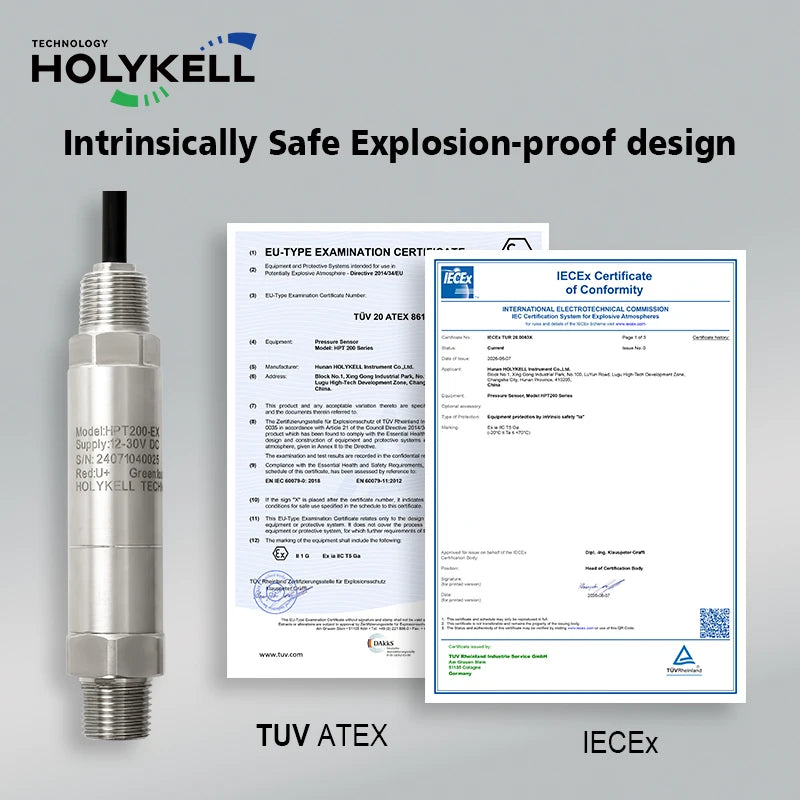

ATEX (Ex ia IIC), IECEx, CE, ROHS |

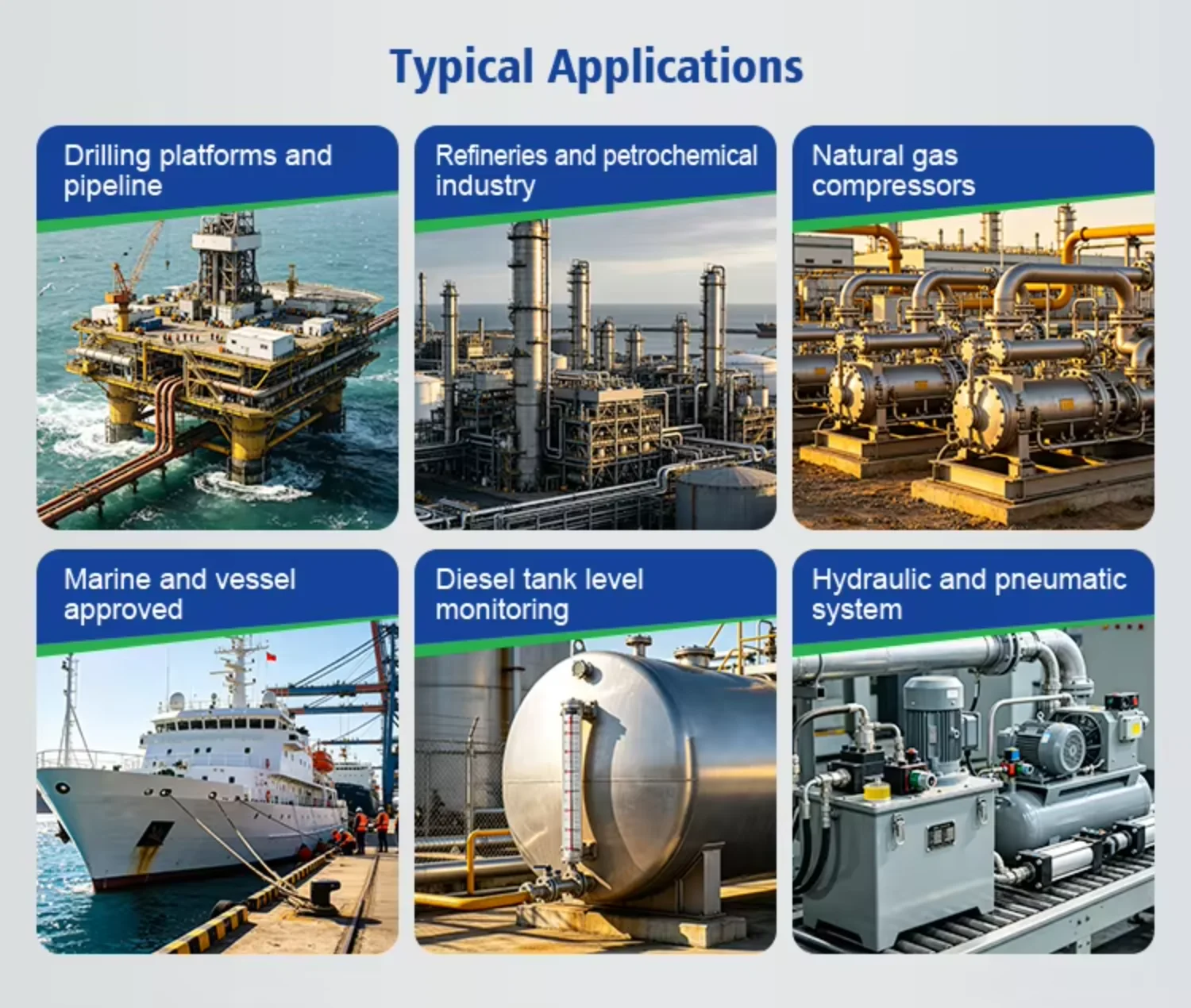

PRODUCT APPLICATION
COMPANY OVERVIEW
FAQs
What is the explosion-proof rating?
It is ATEX certified Ex ia IIC T5. This is an intrinsically safe rating suitable for a wide range of hazardous industrial locations.
Why is the imported sensing chip important?
It ensures the sensor maintains ±0.25% accuracy without significant drift over time, which is critical for safety-instrumented systems (SIS).
How does it handle lightning strikes?
The sensor includes built-in lightning protection and transient overvoltage suppression to protect the circuit in outdoor applications.
Can I use it for absolute pressure?
Yes. We provide both absolute and gauge (relative) pressure versions for ranges from vacuum up to 600 bar.
Could I visit your factory?
Of course,if you need we will help you to visit our factory.
What kind of products do you offer ?
We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
