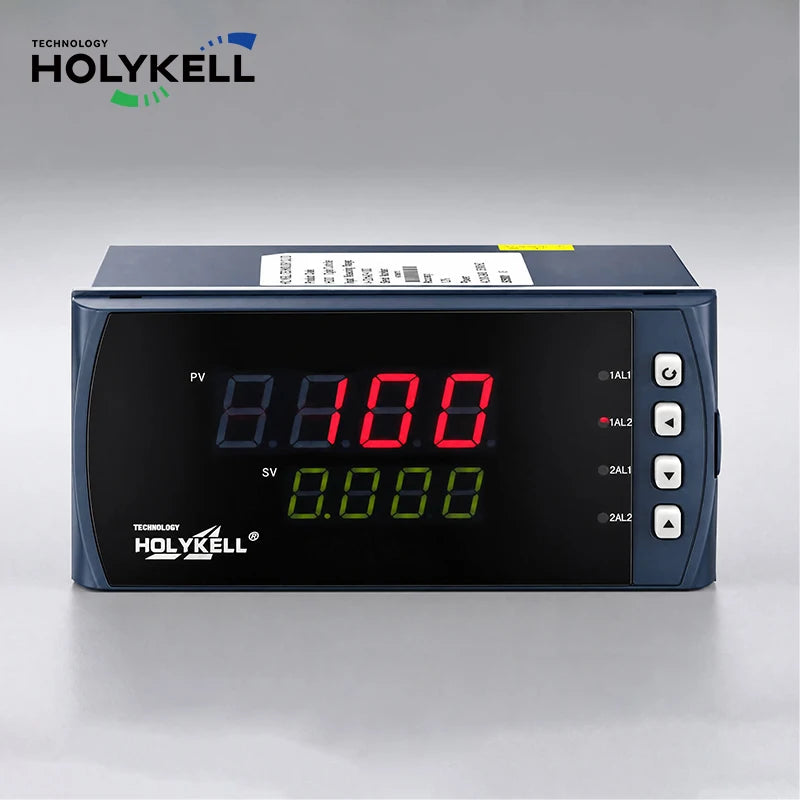

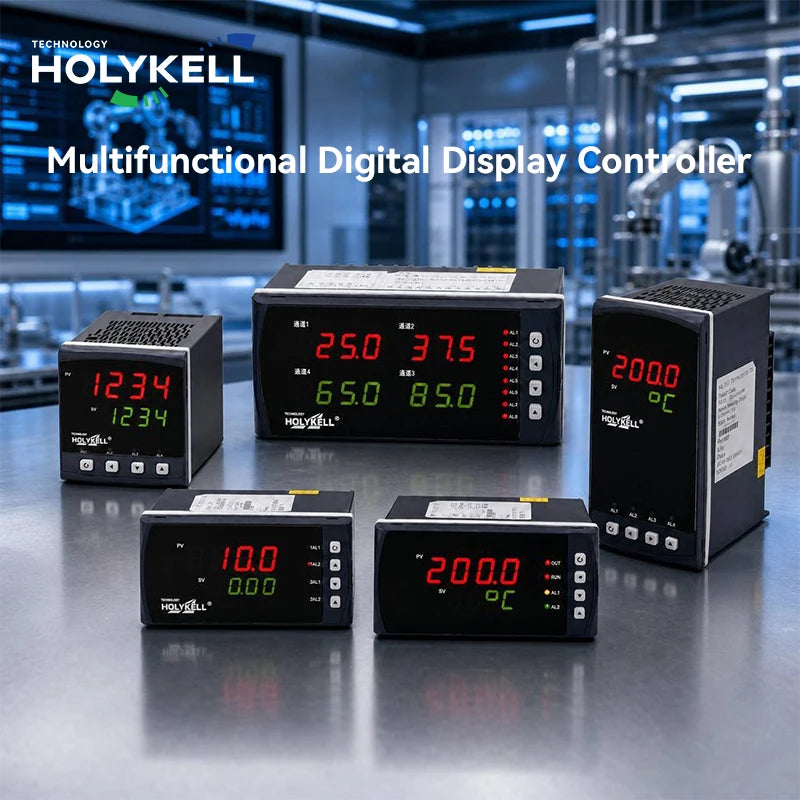

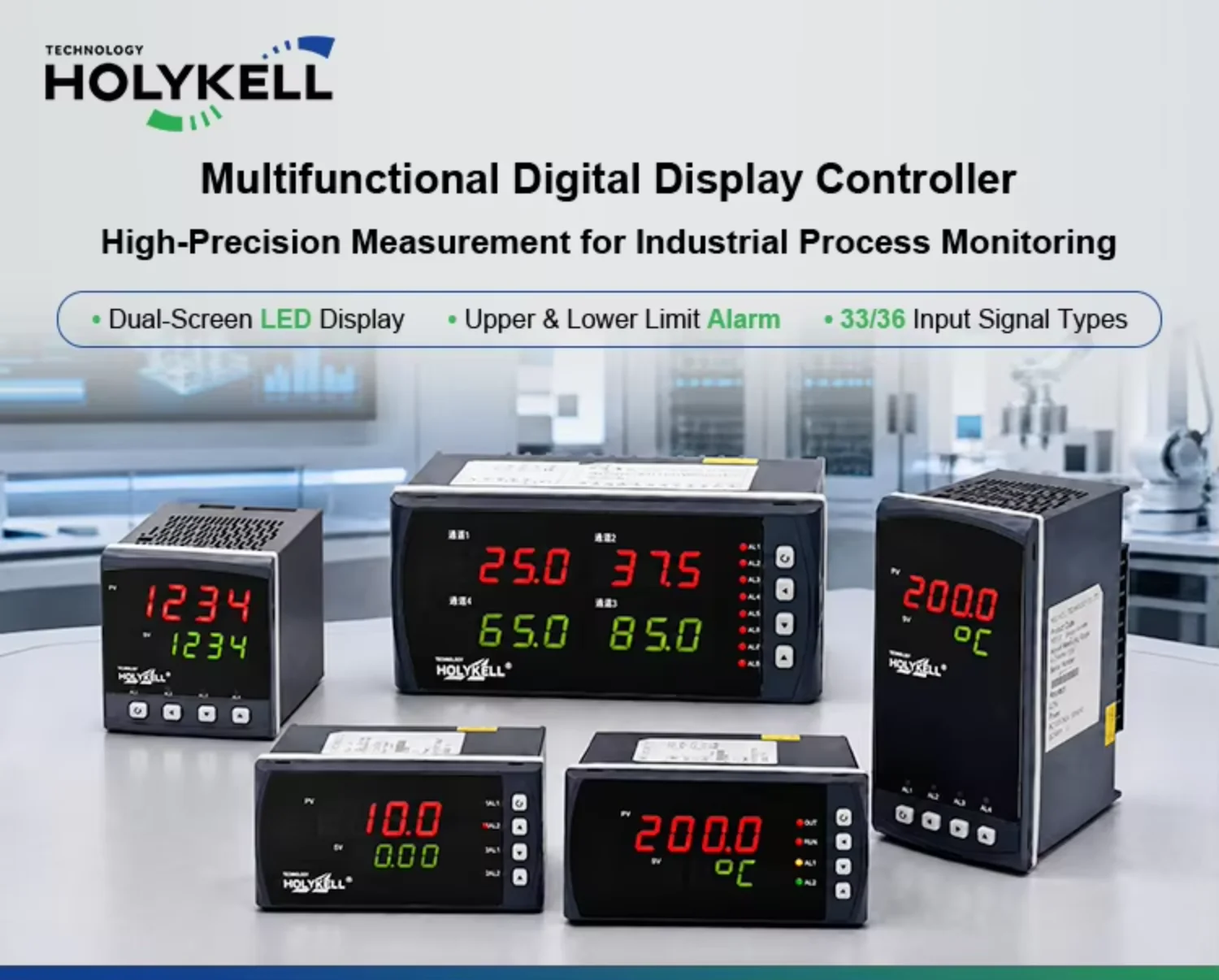

Holykell H5100 Digital Display Controller Panel Indicator
Holykell H5100 Digital Display Controller Panel Indicator
Regular price
$181.70 NZD
Regular price
$271.40 NZD
Sale price
$181.70 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Instrument Type : LED display
- brand name : Holykell
- place of origin : Hunan, China
- color : Double screen LED display
- customized support : OEM, ODM
- material : ABS
- power : RS485
- warranty : 1 Year
- Panel display : Double screen LED display
- Input signal type : 33 types input signal
- Measuring accuracy : 0.3%F.S
- Alarm : Up and down limit
- Current signals : 0-20mA/ 0-10mA/ 4-20mA
- Voltage signal : 0-5V/ 0-10V/ 1-5V
- Thermal resistance : Pt100/ Cu50/ Cu53/ Cu100/ BA1/ BA2
- Thermocouple : B/ S /K /E /T/ J/ R/ N/ Wre3-25/ Wre5-26
- Output : 0-20mA/ 0-10mA/ 4-20mA/ 0-5V/ 0-10V/ 1-5V
- Power supply : AC/DC100-240V, DC12-36V
PRODUCT HIGHLIGHTS
- Multiple Input Signal Types-One controller supports a wide range of industrial measurement signals.
- Current Inputs 0-20mA/ 0-10mA/ 4-20mA
- Voltage Inputs 0-5V/ 0-10V/ 1-5V
- RTD Inputs Pt100/ Cu50/ Cu53/ Cu100/ BA1/ BA2
- Thermocouple Inputs B/ S /K /E /T/ J/ R/ N/ Wre3-25/ Wre5-26
- Compatible with Various Industrial Sensors- Easily integrates with different measurement instruments for clear, real-time on-site display.
- Upper & Lower Limit Alarm Set upper and lower alarm limits for real-time process monitoring.

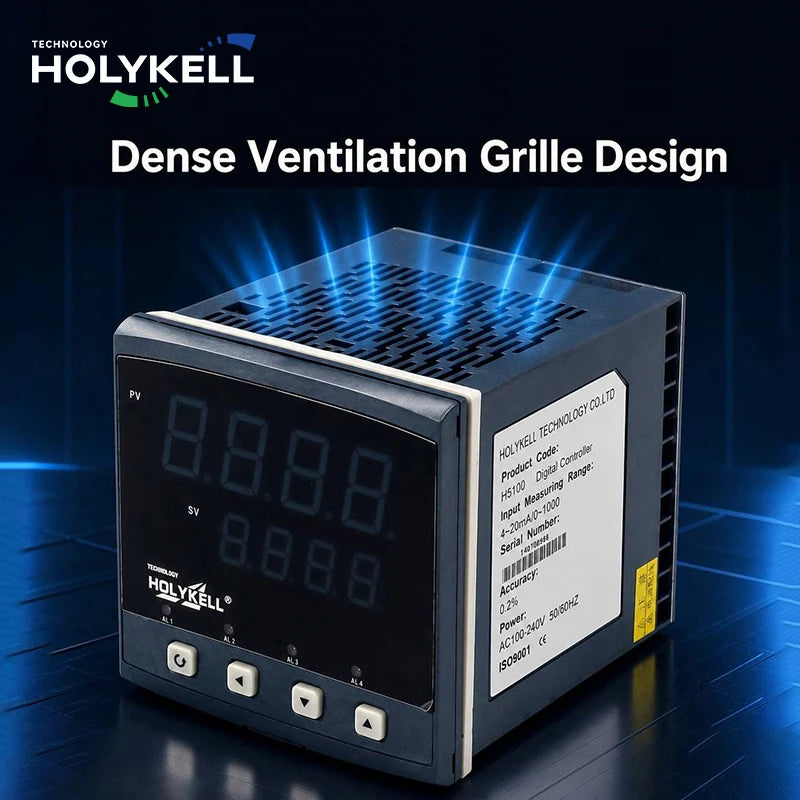

- Dense Ventilation Grille Design Improves airflow and helps maintain stable operation during continuous use.
DETAIL SHOT
SPECIFICATIONS
|
Product model
|
H1100 Single-circuit Digital Display Controller
|
|
Panel display
|
Double screen LED display
|
|
Input signal type
|
33 types input signal
|
|
Measuring accuracy
|
0.3%F.S
|
|
Alarm
|
Up and down limit
|
|
Communication
|
RS485
|
|
Signal inputs |
Current signals: 0-20mA/ 0-10mA/ 4-20mA
|
|
|
Voltage signal: 0-5V/ 0-10V/ 1-5V
|
|
|
Thermal resistance: Pt100/ Cu50/ Cu53/ Cu100/ BA1/ BA2
|
|
|
Thermocouple:B/ S /K /E /T/ J/ R/ N/ Wre3-25/ Wre5-26
|
|
Output
|
0-20mA/ 0-10mA/ 4-20mA/ 0-5V/ 0-10V/ 1-5V
|
|
Power supply
|
AC/DC100-240V, DC12-36V
|
|

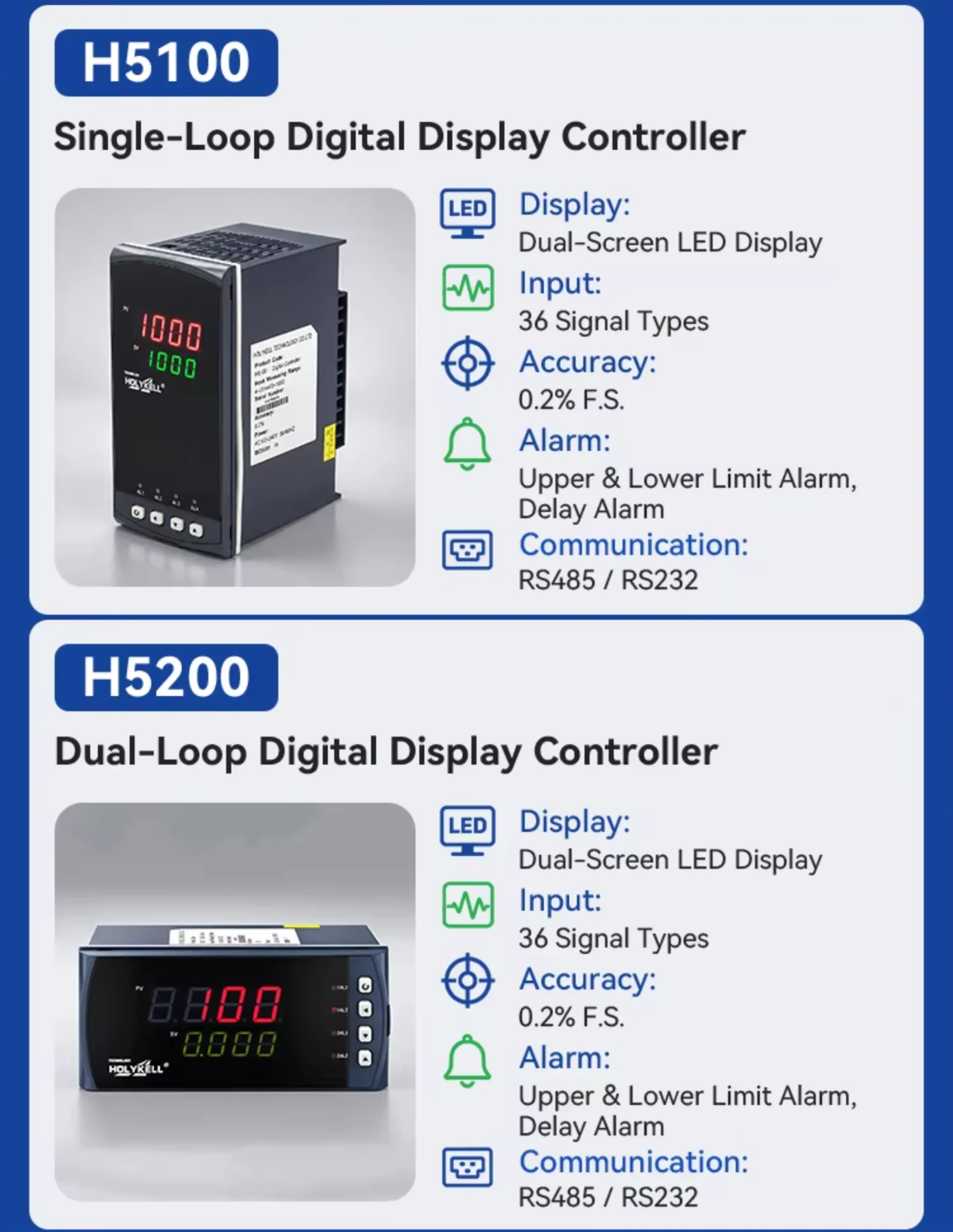

Product model
|

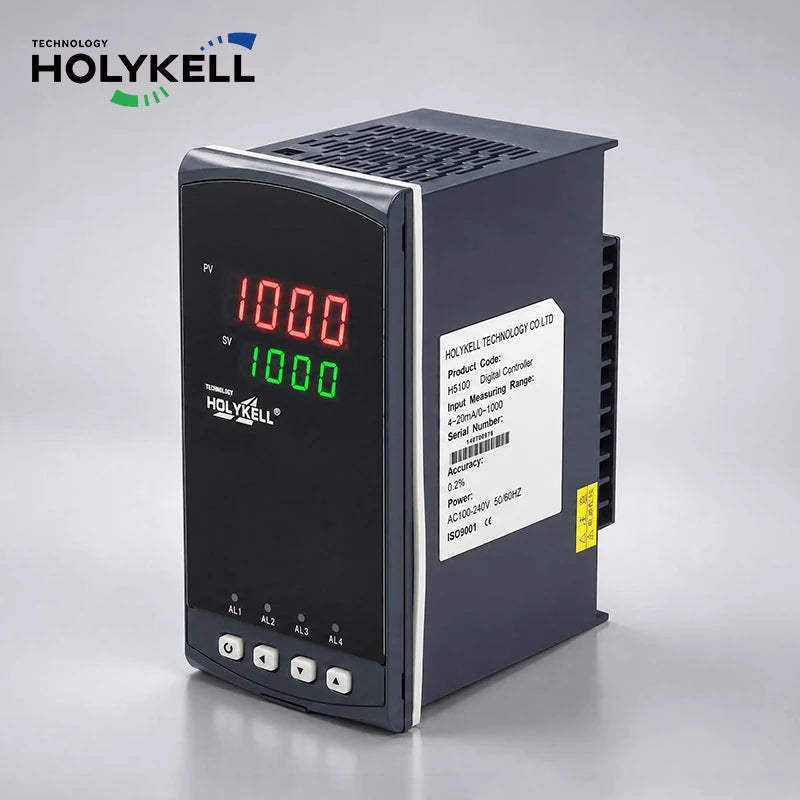

H5100 Single-loop Digital Display Controller
|
|
Panel display
|
Double screen LED display
|
|
Input signal type
|
36 types input signal
|
|
Measuring accuracy
|
0.2%F.S
|
|
Alarm
|
Up and down limit, delay alarm
|
|
Communication
|
RS485/ RS232
|
|
Signal inputs |
Current signals: 0-20mA/ 0-10mA/ 4-20mA
|
|
|
Voltage signal: 0-5V/ 0-10V/ 1-5V
|
|
|
Thermal resistance: Pt100/ Cu50/ Cu53/ Cu100/ BA1/ BA2
|
|
|
Thermocouple:B/ S /K /E /T/ J/ R/ N/ Wre3-25/ Wre5-26
|
|
Output
|
0-20mA/ 0-10mA/ 4-20mA/ 0-5V/ 0-10V/ 1-5V
|
|
Power supply
|
AC/DC100-240V, DC12-36V
|
COMPANY OVERVIEW
FAQs
Could I visit your factory?
Of course,if you need we will help you to visit our factory.
What kind of products do you offer ?
We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
Can you accept ODM & OEM service ?
We professional provide OEM &ODM service for pressure transducer.
Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
How can I get my sensors?/ What's the means of transport?
We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
