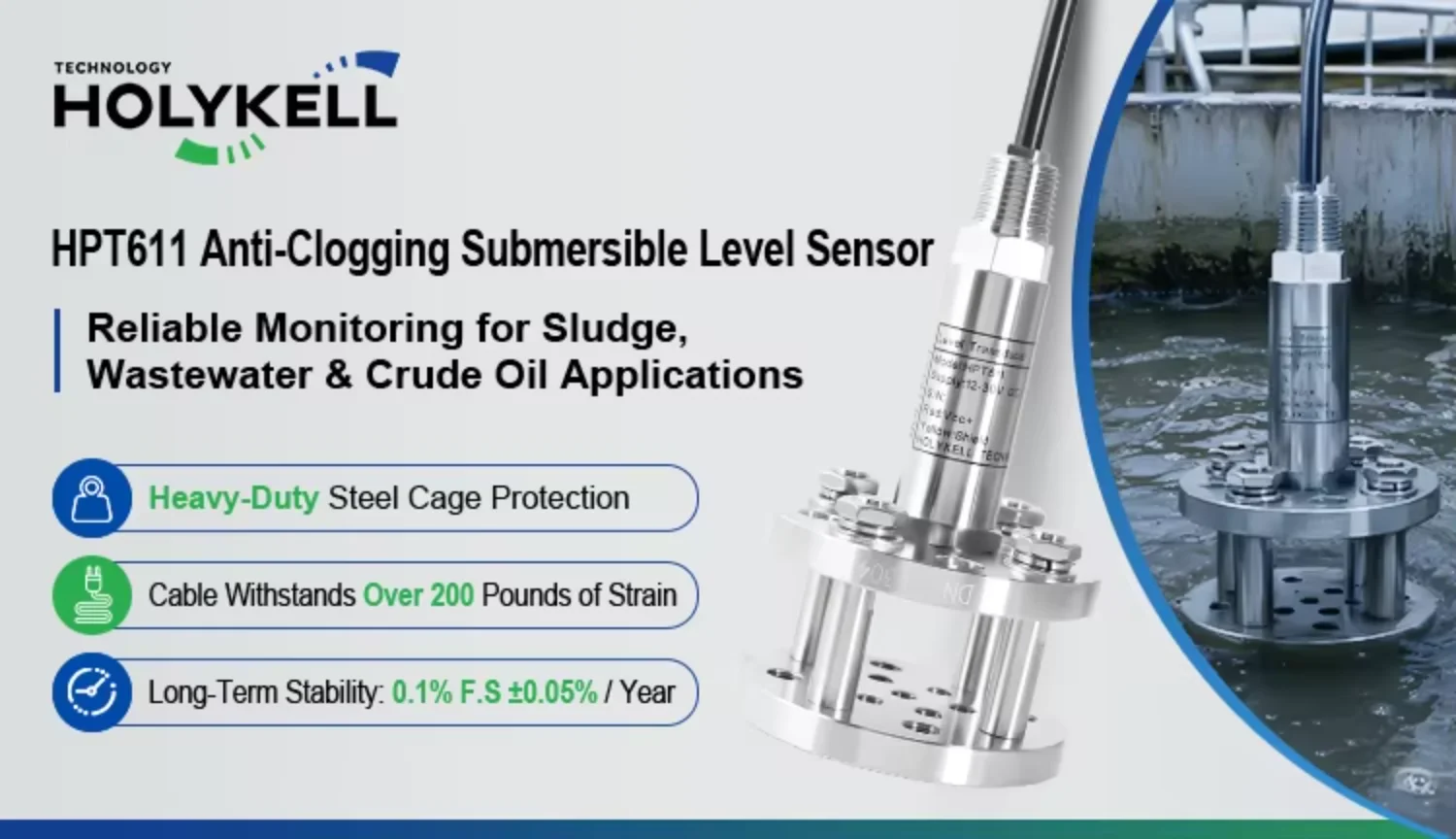

Holykell Anti-clogging Submersible Level Transmitter for Industrial Waste Water
Holykell Anti-clogging Submersible Level Transmitter for Industrial Waste Water
Regular price
$847.55 NZD
Regular price
$1,270.75 NZD
Sale price
$847.55 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, ≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional)
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel
- warranty : 1 Year
- Measuring Range : 0-10bar/100m
- Working Temp. : -40 °C to +80°C
- Temperature Compensation : 0°C to +50°C

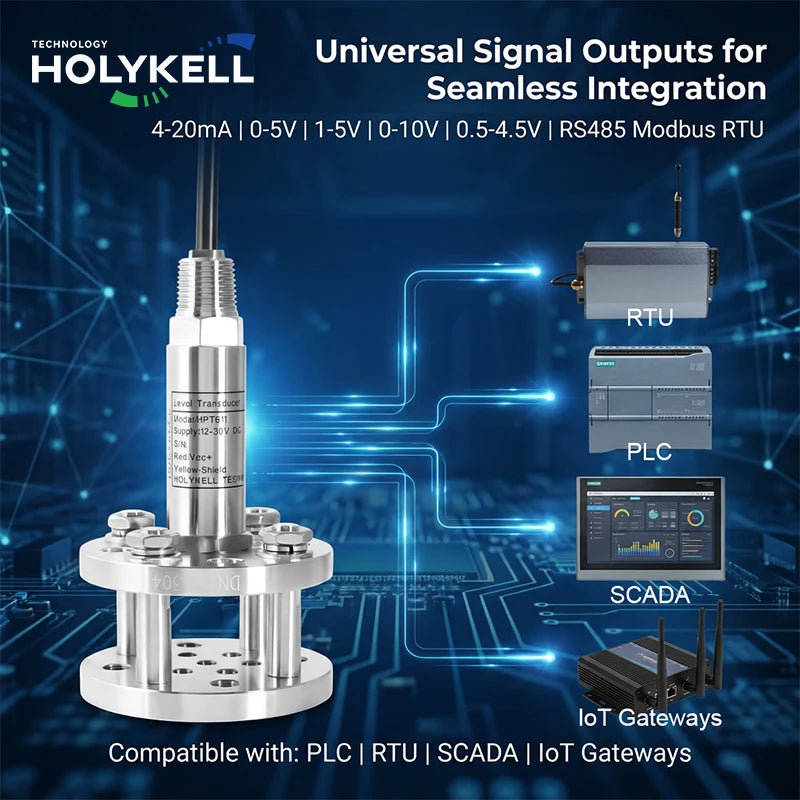

- Signal Output : 4-20mA/0-5V/0-10V/0.5-4.5V/RS485 Modbus RTU
- Power Supply : 7-30Vdc/8-30Vdc/5Vdc/3.5-36Vdc/13-30Vdc
- Pressure Type : Gauge/Absolute
- Overload : 150% F.S
- Burst Pressure : 300% F.S
- Long-term Stability : 0.1%F.S±0.05%/ year

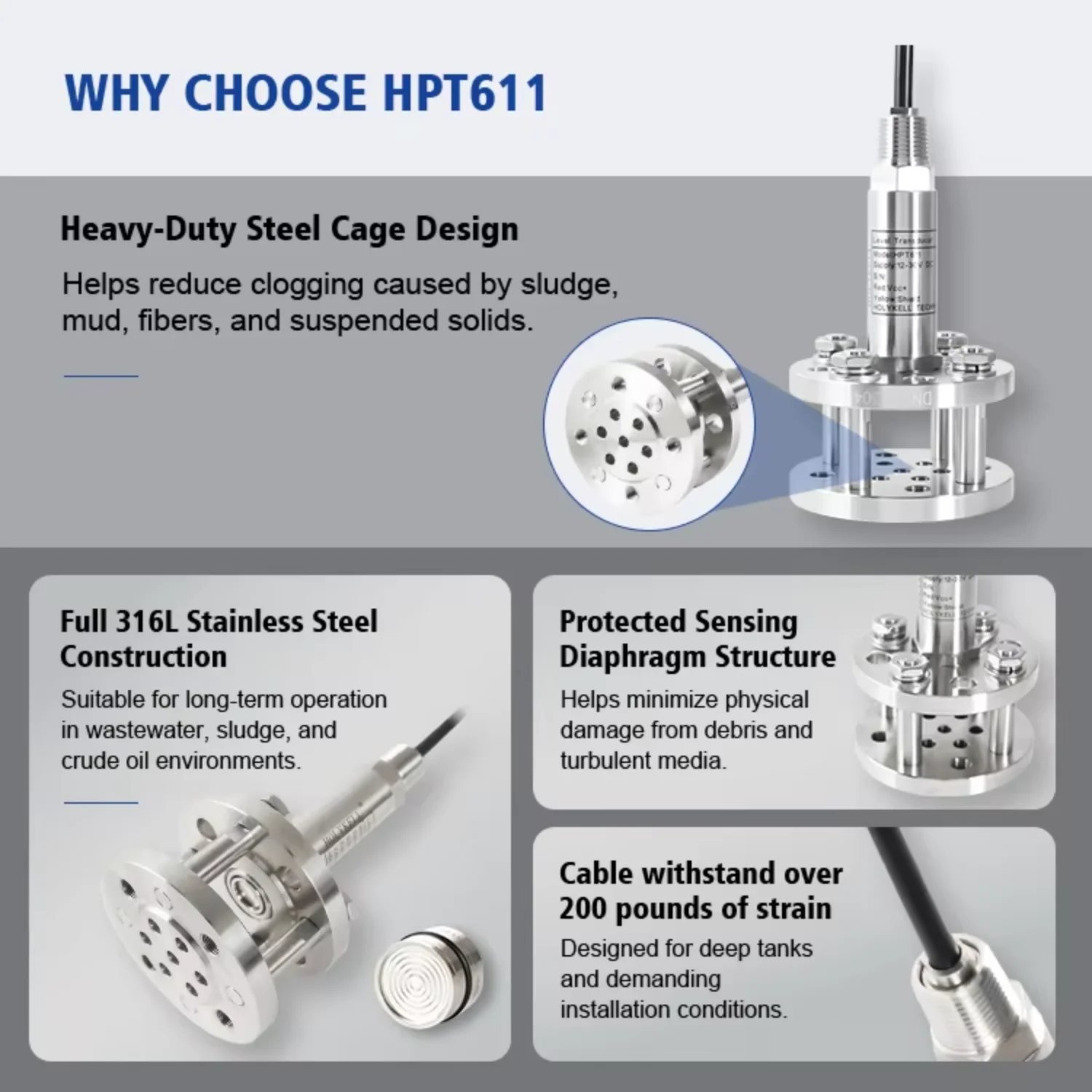

PRODUCT HIGHLIGHTS
- Heavy-Duty Steel Cage Design - Helps reduce clogging caused by sludge, mud, fibers, and suspended solids.

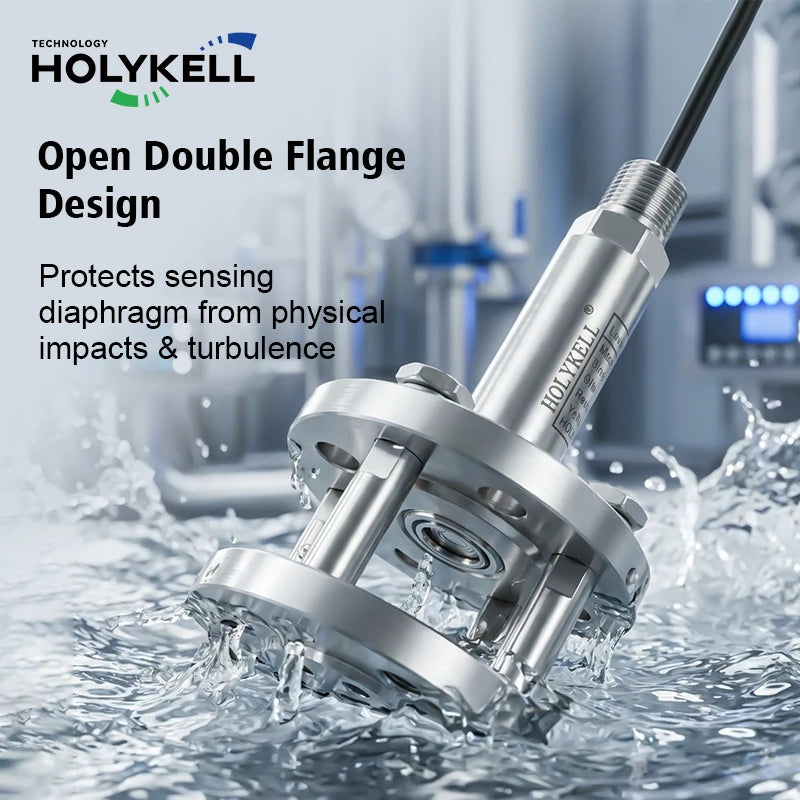

- Protected Sensing Diaphragm Structure - Helps minimize physical damage from debris and turbulent media.
- Full 316L Stainless Steel Construction - Suitable for long-term operation in wastewater, sludge, and crude oil environments.
- Cable withstand over 200 pounds of strain -Designed for deep tanks and demanding installation conditions.

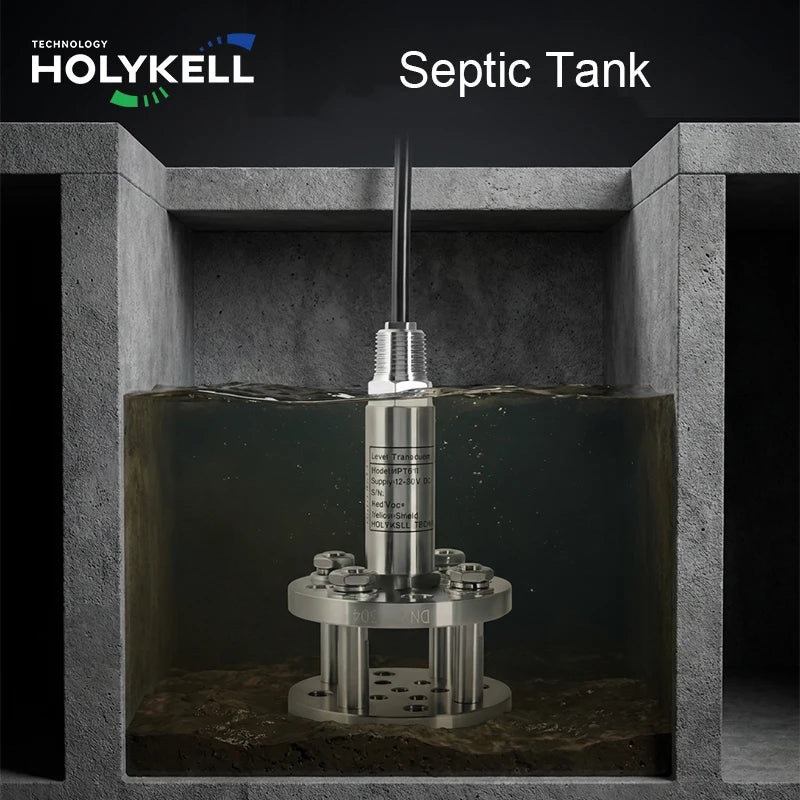

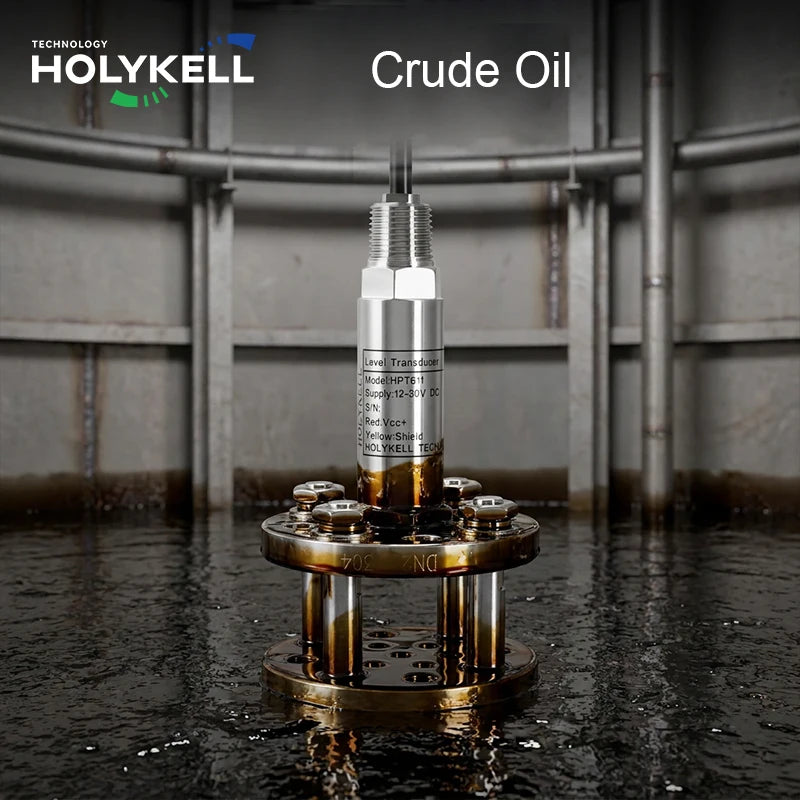

Product DescriptionThe HPT611 is engineered for sewage, sludge, slurry, crude oil, and wastewater applications where standard level sensors are vulnerable to clogging, sediment buildup, and mechanical damage.Its heavy-duty steel cage structure helps maintain stable liquid flow around the sensing diaphragm while reducing blockage caused by sludge, mud, fibers, sand, and suspended solids.Combined with a full 316L stainless steel housing and imported piezoresistive sensing element, the HPT611 delivers reliable long-term monitoring performance in harsh and viscous media environments.The reinforced vented cable structure also helps improve installation reliability in deep tanks, lift stations, and turbulent industrial applications.

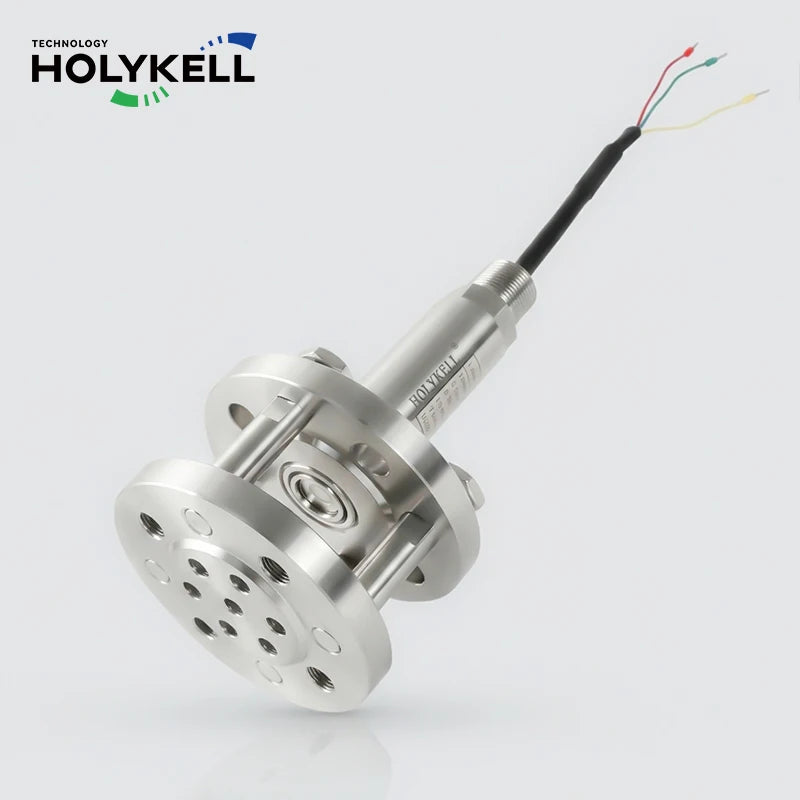

DETAIL SHOT
Additional Technical Advantages

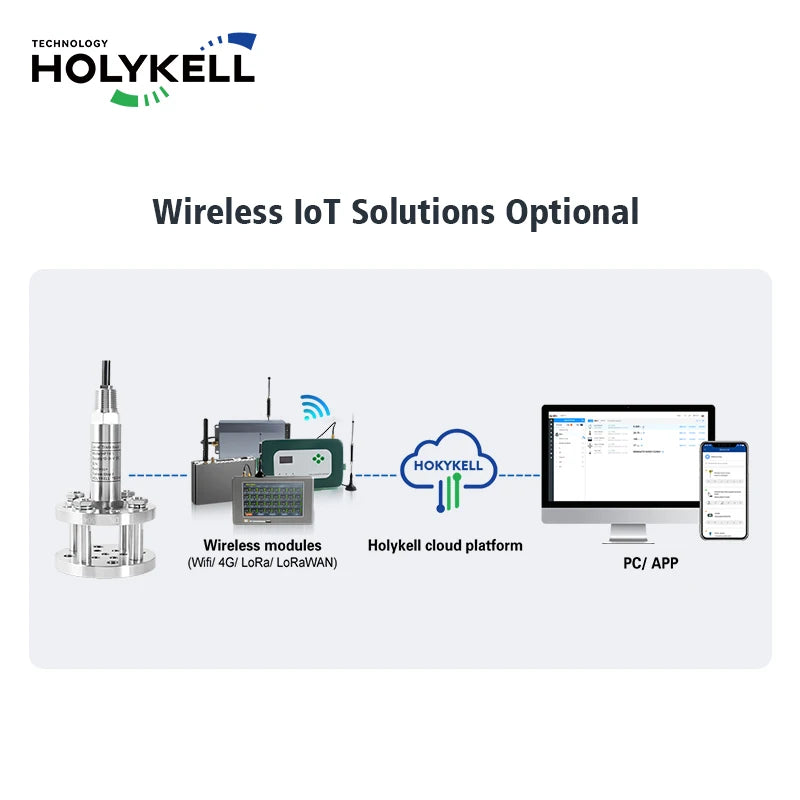

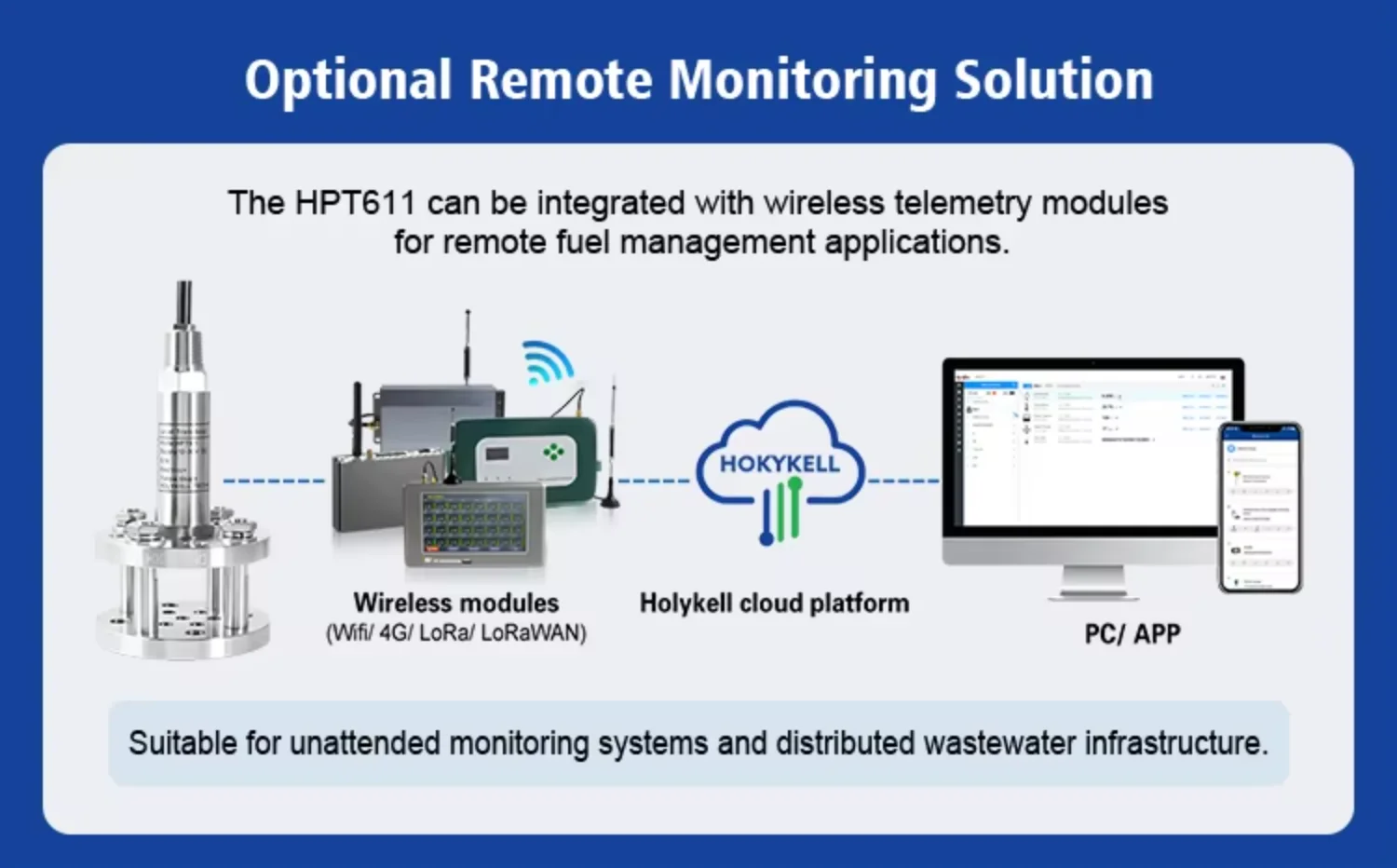

*Industrial-Grade Electrical Protection: Integrated Lightning, Anti-Surge, and Reverse Polarity Protection to ensure stable operation in outdoor and high-interference environments.*Automatic Atmospheric Compensation: Vented cable with a breathable, moisture-proof filter.*Advanced EMC Design: High immunity to industrial electrical noise.*≤10ms Fast Response Time *Optional RS485 Modbus RTU Output*IP68 Hermetically Sealed Structure*Optional FEP / PUR Cable Materials
SPECIFICATIONS
|
Pressure Range
|
0-10bar/100m
|
|
Overload
|
150% F.S
|
|
Burst Pressure
|
300% F.S
|
|
Accuracy
|
≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional)
|
|
Long-term Stability
|
0.1%F.S±0.05%/ year
|
|
Working Temp.
|
-40 °C to +80°C
|
|
Storage Temp.
|
-40°C to +80°C
|
|
Temp.Compensation
|
0°C to 50°C
|
|
Medium Compatible
|
Compatible with 316L Stainless Steel
|
|
Signal Output
|
4-20mA/0-5V/0-10V/0.5-4.5V/RS485 Modbus RTU
|
|
Power Supply
|
7-30Vdc/8-30Vdc/5Vdc/3.5-36Vdc/13-30Vdc
|
|
Insulation Resistance
|
＞100M Ω@100V
|
|
Electrical Connection
|
Over molded and Fixed cable with vented tube
|
|
Response Time
|
≤20 ms(Current and voltage signals); ≤100 ms (digital signals)
|
|
Pressure Type
|
Gauge pressure and absolute pressure optional
|
|
Process Connection
|
90mm(3.5") flangr
|
|
IP rating
|
IP68
|

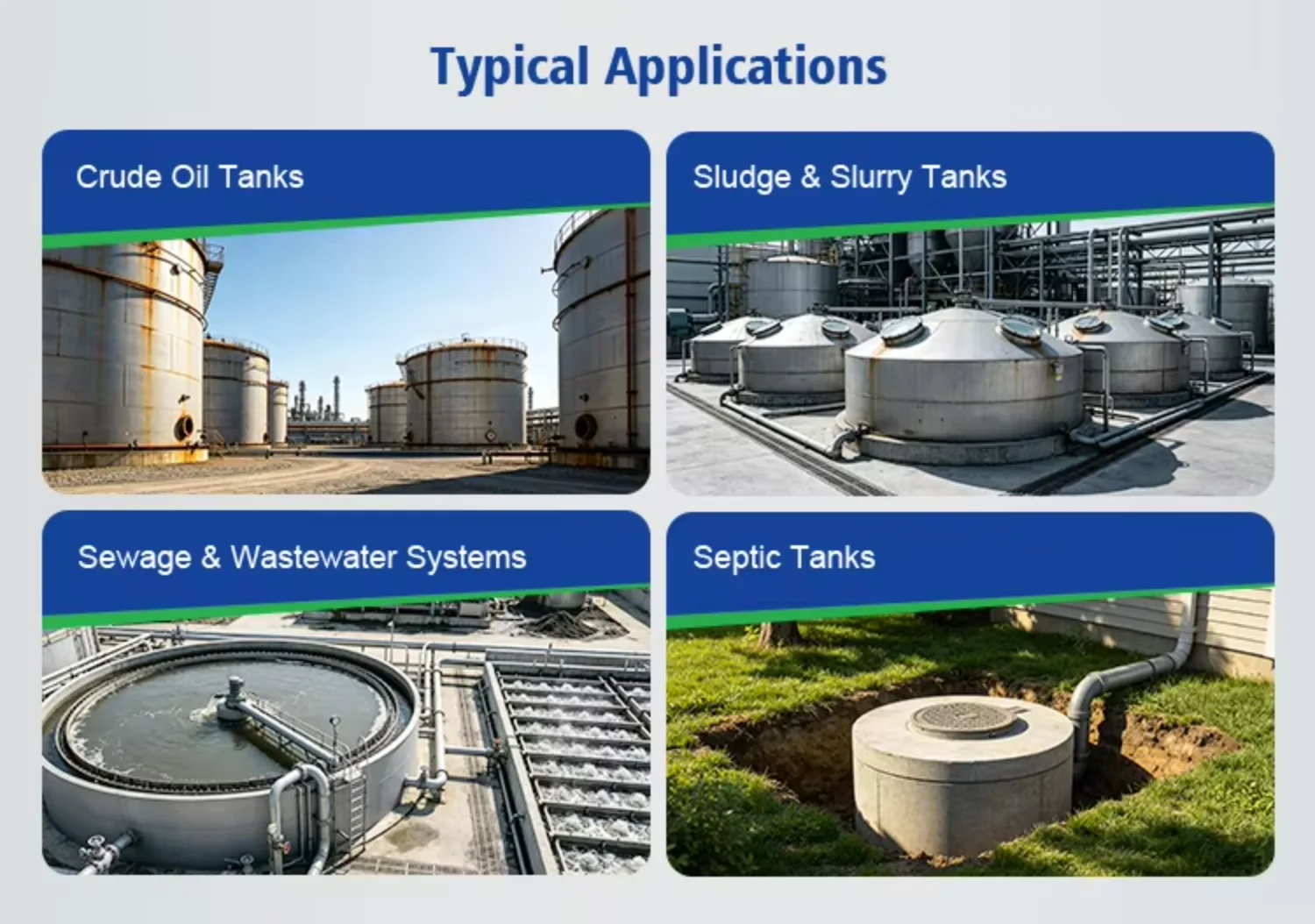

PRODUCT APPLICATION
