Holykell Submersible Level Sensor Anti Clogging for Sewage Wastewater
Holykell Submersible Level Sensor Anti Clogging for Sewage Wastewater
Regular price
$681.95 NZD
Regular price
$1,022.35 NZD
Sale price
$681.95 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Accuracy : ±0.5%, ≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S; ≤ ±0.1%F.S optional
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel
- warranty : 1 Year
- Measuring Range : 0-1m.....200m H2O Optional(80m max for SDI-12 signal)
- Working Temp. : -40 °C to +80°C
- Signal Output : 4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
- Power Supply : 7-30 V DC, 8-30 V DC, 13-30 V DC, 5 V DC±5%, 12 V DC, 3.5-36 V DC
- Cable Optional : PE/ PU/ FEP
- Overload : 150% F.S
- Burst Pressure : 500% F.S
- Long-term Stability : ≤ ±0.2%F.S/ year
- Pressure Type : Gauge pressure and absolute optional
PRODUCT HIGHLIGHTS

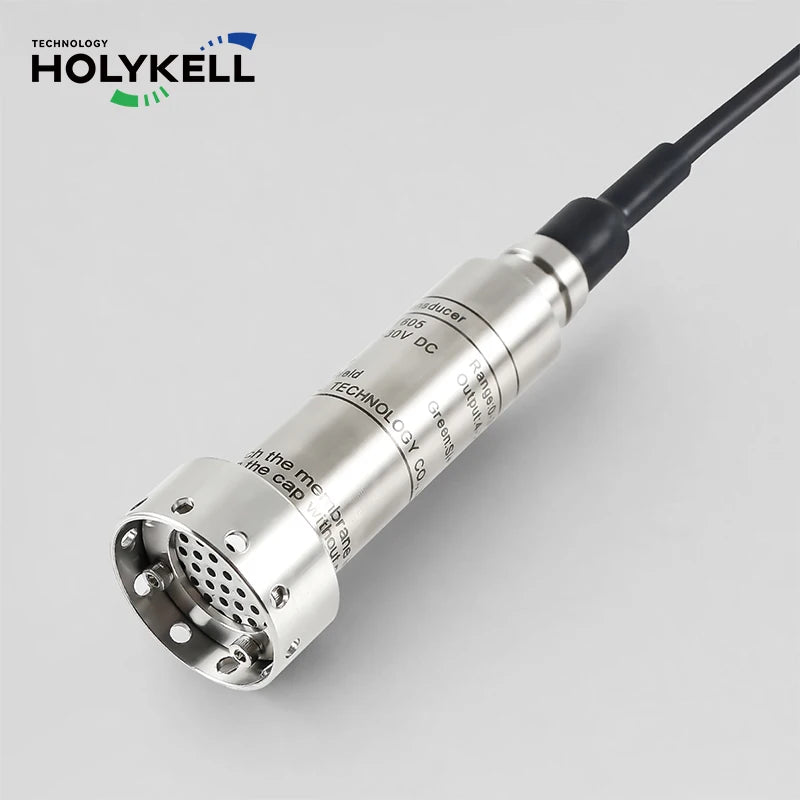

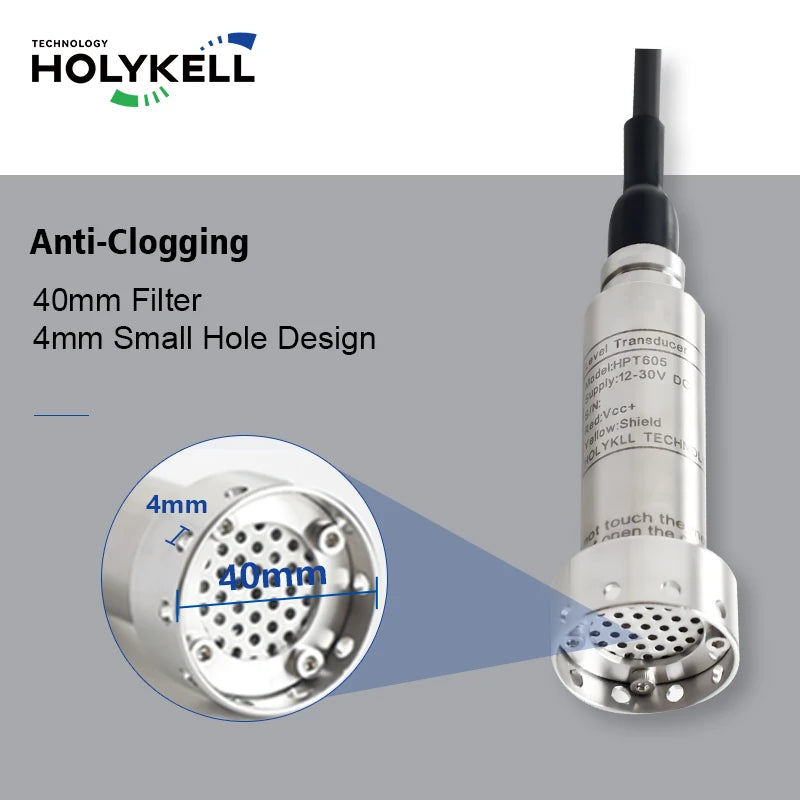

- Advanced Anti-Clogging Filter Design - 40 mm filter with 4 mm holes reduces clogging from sludge and impurities, easy to clean.
- High-Precision Sensing Element - High accuracy (≤ ±0.5% F.S.) and excellent long-term stability (≤ ±0.2% F.S./Year).
- 316L Stainless Steel & IP68 Structure - Corrosion-resistant design ensures reliable operation in turbid liquids and long-term immersion.
- Industrial Protection- Integrated lightning, surge, and reverse polarity protection with a molecular sieve vent to prevent condensation in humid environments

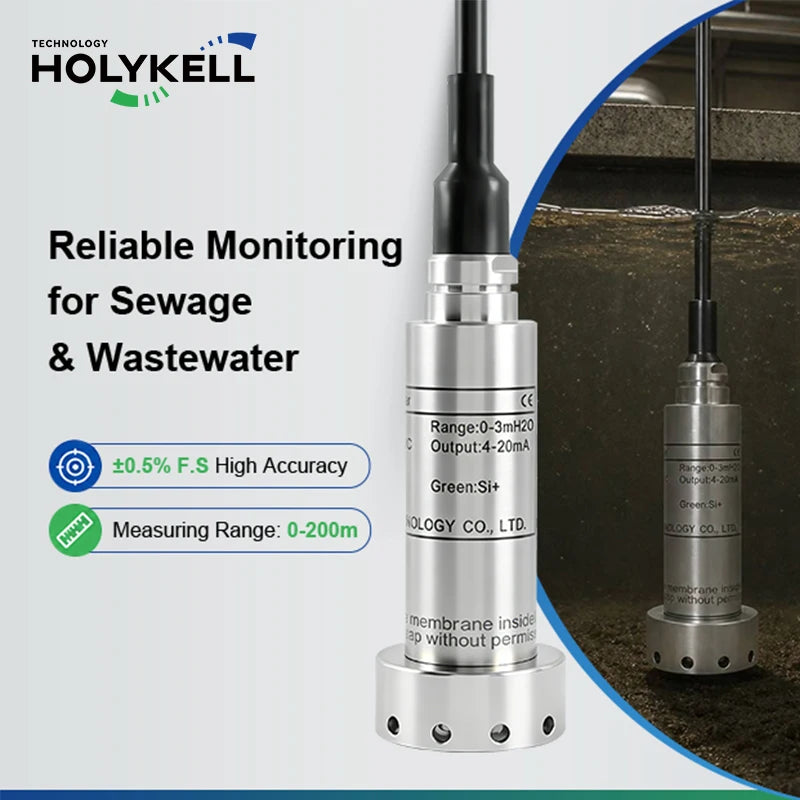

Product DescriptionThe Holykell HPT605 is a professional-grade submersible level sensor engineered for harsh sewage and turbid liquid environments.Featuring an advanced anti-clogging design with a 40mm large-diameter filter and 4mm small-hole protection, the HPT605 prevents sludge and impurities from reaching the diaphragm. Built with corrosion-resistant 316L stainless steel and an IP68 fully sealed structure, it delivers precise and stable level measurement for sewage treatment, river monitoring, and industrial waste liquids.
DETAIL SHOT
Additional Technical Advantages
*Automatic atmospheric pressure compensation through the vented cable*Multiple outputs: 4-20mA, 0-5V, 0-10V, SDI-12, RS485 Modbus RTU*Optional PE, PUR, and FEP cable materials for different media
SPECIFICATIONS
|
Measuring range
|
0-1m…..200m H2O Optional(80m max for SDI-12 signal)
|
|
Overload
|
150% F.S
|
|
Burst Pressure
|
500% F.S
|
|
Accuracy
|
≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S; ≤ ±0.1%F.S optional
|
|
Long-term Stability
|
≤ ±0.2% FS/year
|
|
Working Temp.
|
-40 to +80°C(non-corrosive medium)
|
|
Storage Temp.
|
-40 to +80°C(Nitrile rubber sealing ring); -20 to +80°C(fluororubber rubber sealing ring)
|
|
Temperature Compensation
|
0 to +50°C
|
|
Medium compatible
|
Compatible with 316L Stainless Steel
|
|
Output
|
4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
|
|
Power Supply
|
7-30 V DC, 8-30 V DC, 13-30 V DC, 5 V DC±5%, 12 V DC, 3.5-36 V DC
|
|
Insulation Resistance
|
>100M Ω@100V
|
|
Zero-point Temp. Drift
|
0.01%FS/°C
|
|
Full scale Temp. Drift
|
0.005%FS/°C
|
|
Process Connection
|
Submersible Type
|
|
Electrical connection
|
Fixed cable with vented tube and water proof IP68
|
|
Response Time
|
≤20 ms(Current and voltage signals); ≤100 ms (digital signals)
|
|
Pressure Type
|
Gauge pressure and absolute optional
|
|
Certificate
|
RoHS and CE Certificate
|
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013;EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
|
Surge & Lightning Protection
|
Surge ±2000V (digital); Air discharge ±8000V; contact discharge ±6000V
|
|
Cable optional
|
PE Cable(Water Proof); PU Cable(Oil/Fuel Proof); FEP Cable(Anti-Corrosive)
|
PRODUCT APPLICATION
