Holykell 4-20mA IP68 Stainless Steel Hydrostatic Submersible Liquid Level Sensor for Water Tanks
Holykell 4-20mA IP68 Stainless Steel Hydrostatic Submersible Liquid Level Sensor for Water Tanks
Regular price
$520.95 NZD
Regular price
$780.85 NZD
Sale price
$520.95 NZD
Taxes included.
Shipping calculated at checkout.
- Accuracy : ±0.5%, ≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional), 0.1%F.S (customized)
- Type : Level Gauge
- brand name : Holykell
- place of origin : Hunan, China
- customized support : OEM, ODM
- material : Stainless Steel
- warranty : 1 Year
- Measuring Range : 0-50bar/500m
- Working Temp. : -40 °C to +85°C
- Medium Temp. : 0°C to +70°C
- Signal Output : 4-20mA/0-5V/0-10V/SDI-12/RS485/0.5-4.5V
- Power Supply : 7-30Vdc/8-30Vdc/5Vdc/3.6-5Vdc/13-30Vdc
- Cable Optional : PE/ PU/ FEP
- Overload : 150% F.S
- Burst Pressure : 500% F.S
- Long-term Stability : ≤ ±0.2%F.S/ year

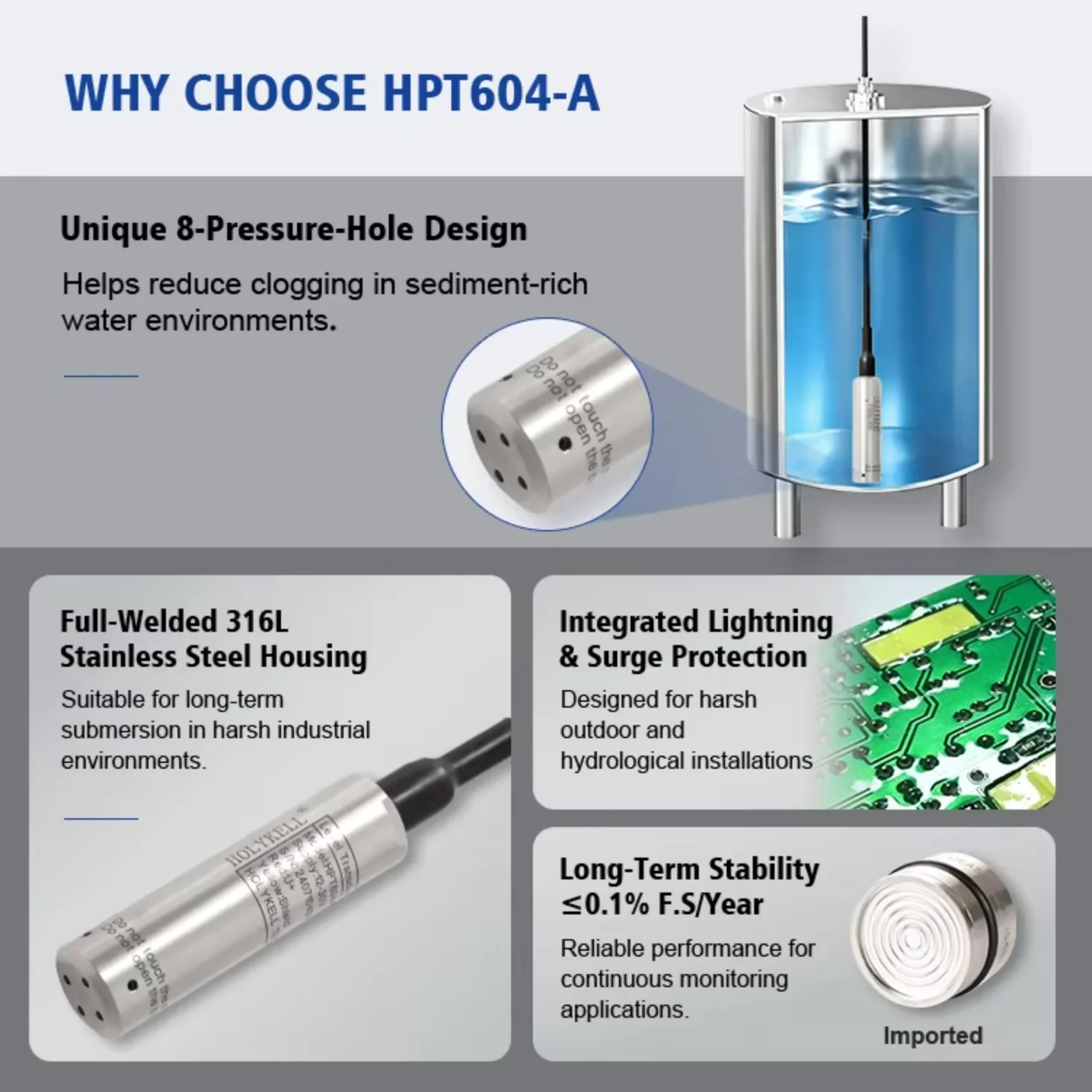

PRODUCT HIGHLIGHTS

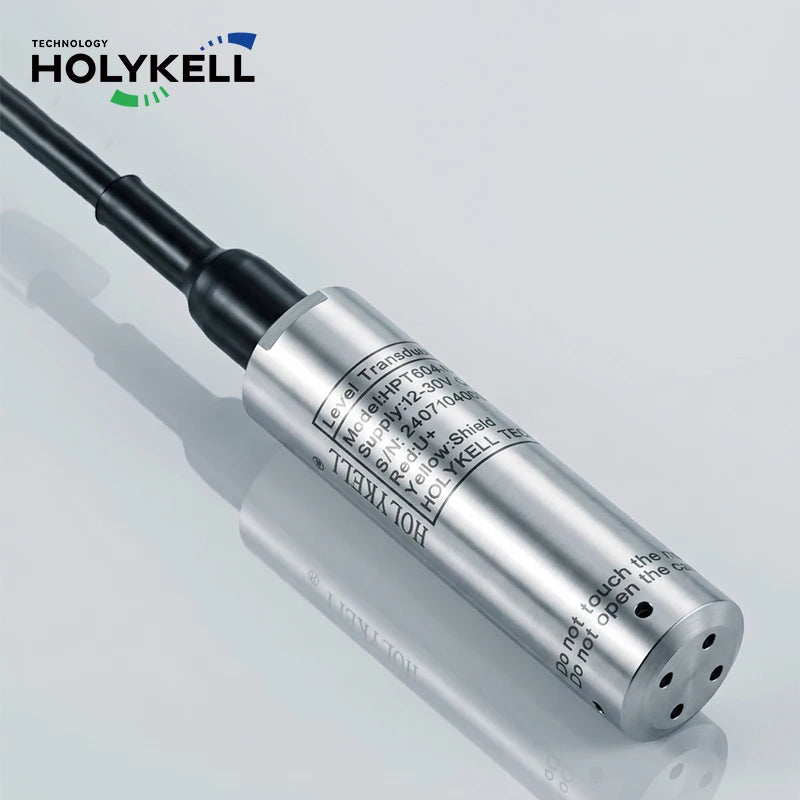

- Unique 8-Pressure-Hole Design-Helps reduce clogging in sediment - rich water environments
- Integrated Lightning & Surge Protection - Designed for harsh outdoor and hydrological installations
- Full-Welded 316L Stainless Steel Housing - Suitable for long-term submersion in harsh industrial environments.
- Long-Term Stability ≤0.1% F.S / Year - Reliable performance for continuous monitoring applications.
Product DescriptionThe HPT604-A is designed for continuous liquid level monitoring in deep wells, industrial tanks, groundwater systems, and harsh outdoor environments.
A full-welded 316L stainless steel housing combined with an imported piezoresistive sensing element helps ensure reliable long-term operation under high pressure and corrosive conditions.Its unique 8-pressure-hole nose cone improves resistance to clogging in sediment-rich water, while integrated lightning and surge protection enhances reliability in remote outdoor installations.The vented cable structure automatically compensates for atmospheric pressure changes, helping maintain stable and accurate level measurements under varying environmental conditions.
DETAIL SHOT
Additional Technical Advantages
*Atmospheric pressure compensation vented cable*High-tensile shielded cable*Optional PE / PU / FEP cable materials*Multiple signal outputs available
SPECIFICATIONS
Pressure Range |
0-50bar/500m |
Overload |
150% F.S |
Burst Pressure |
500% F.S |
Accuracy(Linearity, Hysteresis,Repeatability) |
≤ ±0.5%F.S(Typical); ≤ ±0.25%F.S (optional), 0.1%F.S (by customized) |
Long-term Stability |
≤ ±0.2%F.S/ year |
Working Temp. |
-40 °C to +85°C |
Medium Temp. |
0°C to +70°C |
Storage Temp. |
-40°C to +85°C |
Temp.Compensation |
0°C to 50°C; -10°C to 70°C (Range > 200 kPa / 20 mH₂O) |
Medium Compatible |
Compatible with 316L Stainless Steel |

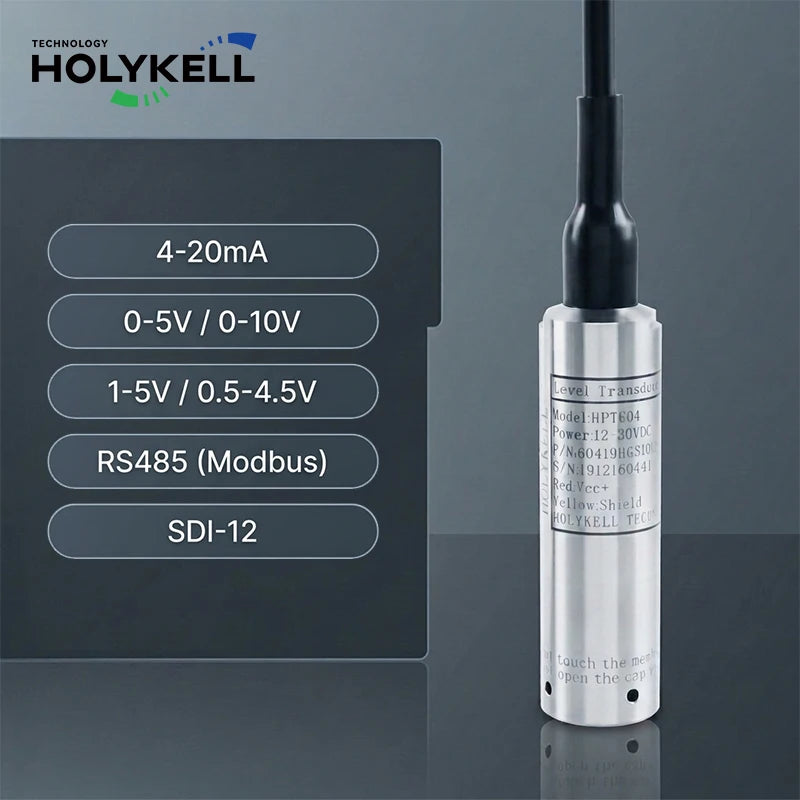

Signal Output |
4-20mA/0-5V/0-10V/SDI-12/RS485/0.5-4.5V |
Power Supply |
7-30Vdc/8-30Vdc/5Vdc/3.6-5Vdc/13-30Vdc |
Polarity Protection |
The power lines feature reverse polarity protection; however, the signal lines do not have reverse polarity protection against the positive power supply and must not be cross-connected. |
Insulation Resistance |
＞100M Ω@100V |
Electrical Connection |
Fixed cable with vented tube and water proof IP68 |
Response Time |
≤20 ms(Current and voltage signals); ≤100 ms (digital signals) |
Pressure Type |
Gauge pressure; Sealed gauge and absolute optional |
Surge & Lightning Protection |
Surge ±2000V (digital); Air discharge ±8000V; contact discharge ±6000V |
Cable Optional |
PE/PU/FEP |

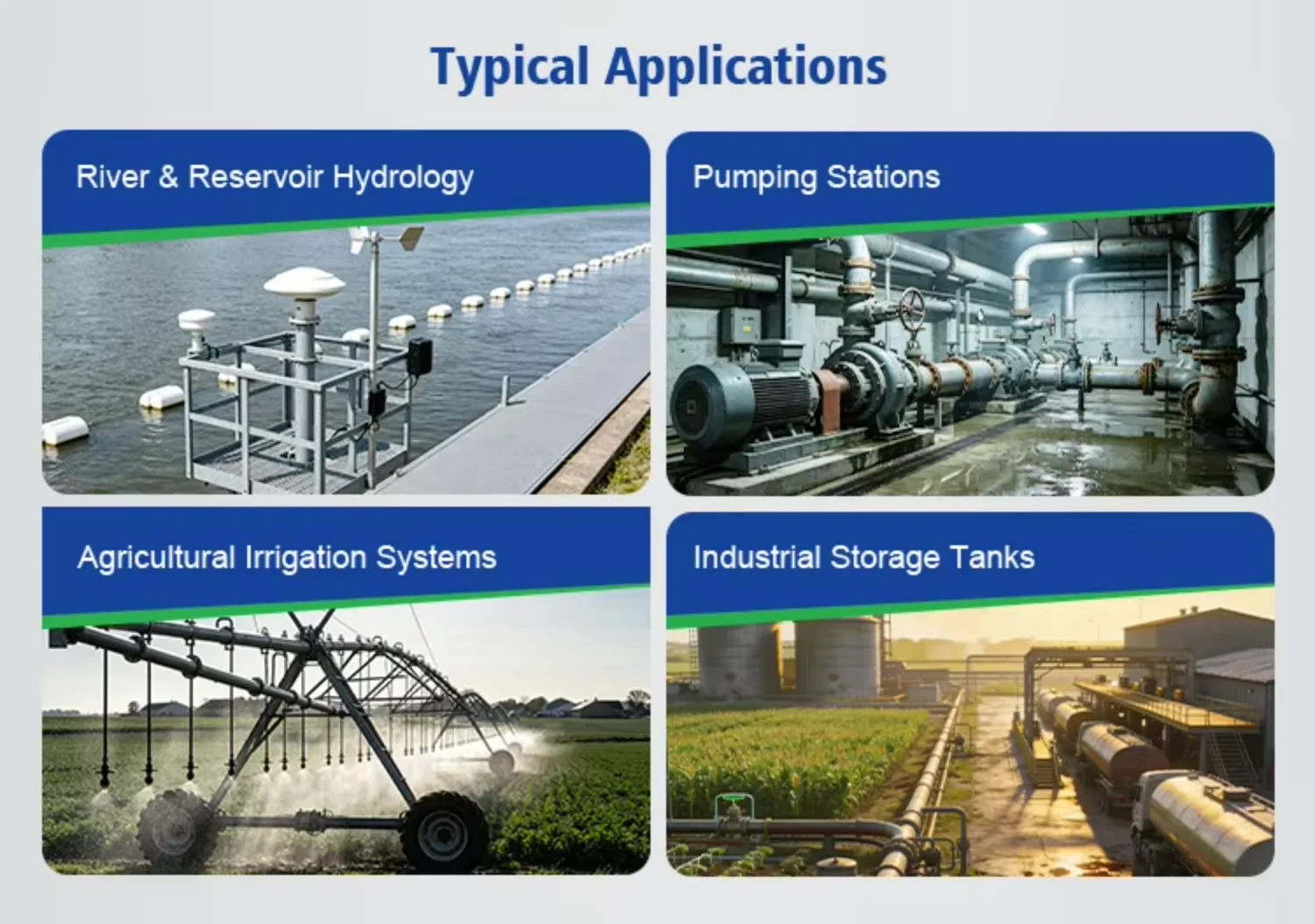

PRODUCT APPLICATION
COMPANY OVERVIEW
FAQs
How does the 8-hole design help in muddy water?
The multi-hole nose cone helps maintain stable pressure transmission in sediment-rich environments where single-port structures are more likely to clog.
Can the cable support deep-well installations?
Yes. The shielded vented cable is designed for long vertical suspension applications and demanding deep-well environments.
Is the sensor suitable for outdoor hydrological monitoring?
Integrated lightning and surge protection helps improve reliability in outdoor and remote monitoring installations.
How is long-term measurement stability maintained?

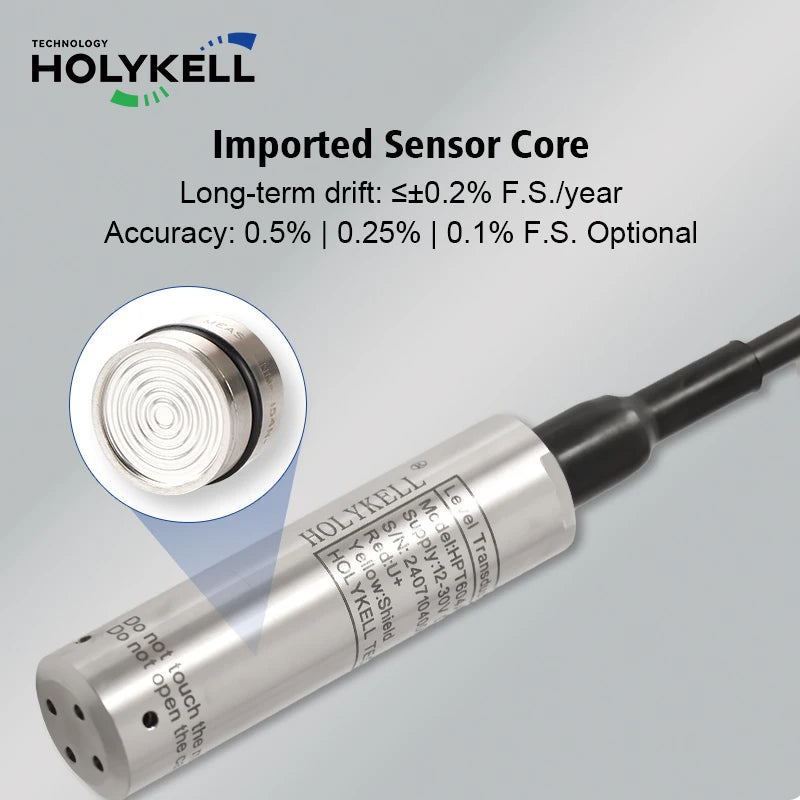

The imported piezoresistive sensing element provides stable output performance with long-term stability up to ≤0.1% F.S / Year.
How does atmospheric compensation work?
The vented cable structure automatically balances atmospheric pressure changes to help maintain accurate level measurements.
Could I visit your factory?
Of course,if you need we will help you to visit our factory.
What kind of products do you offer ?
We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
