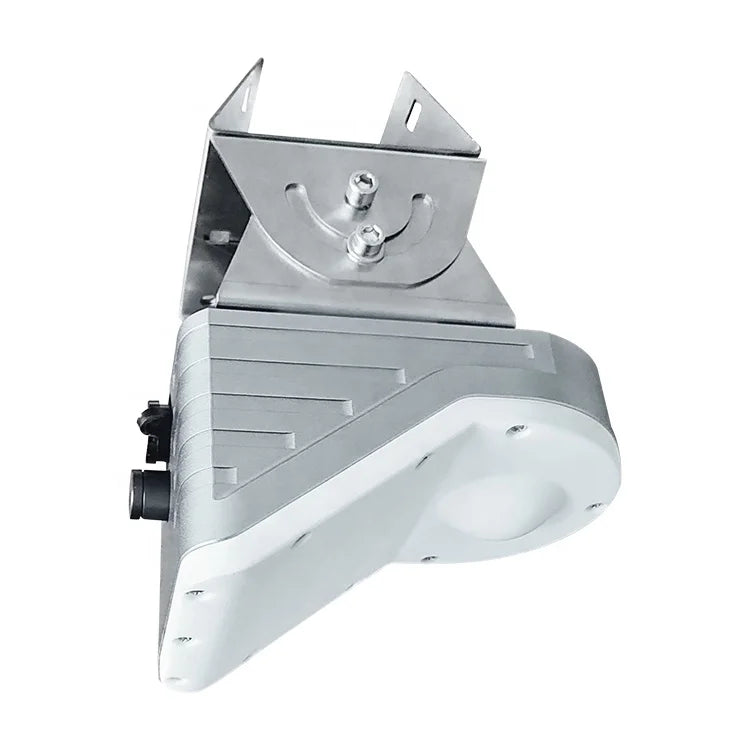

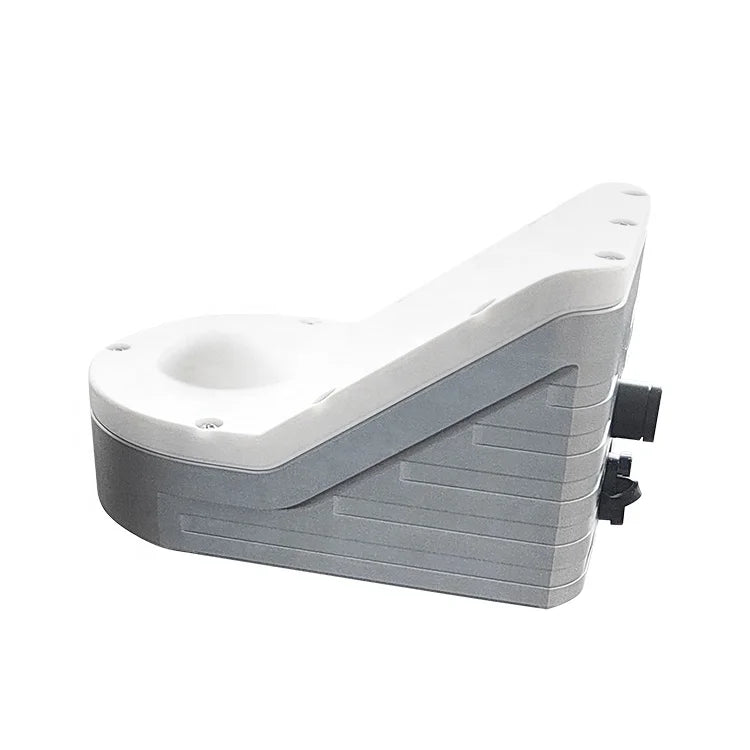

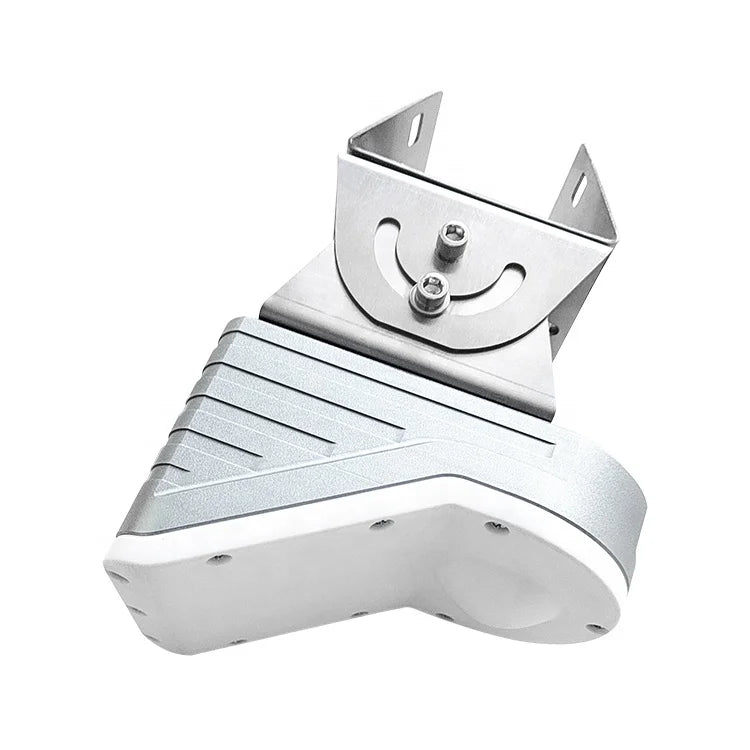

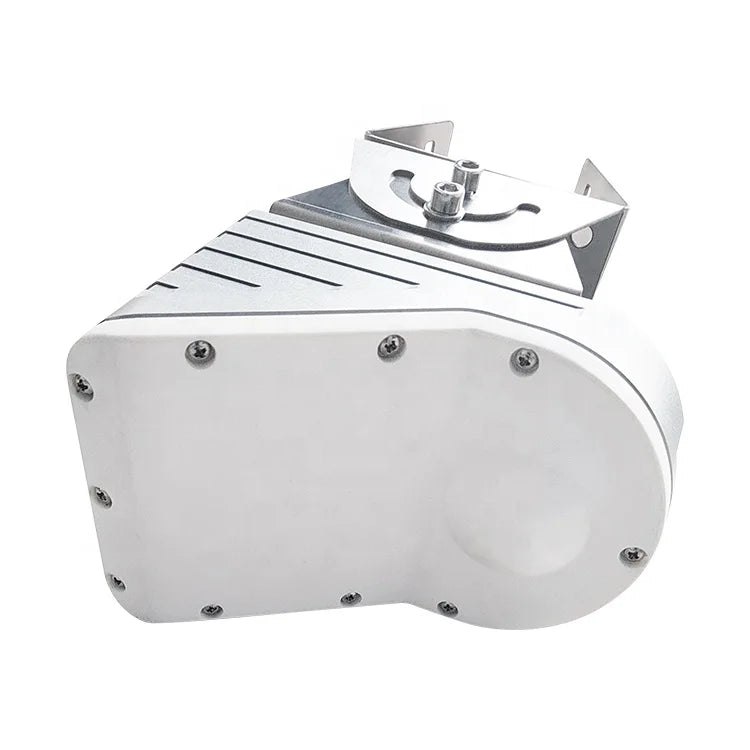

High Precision Portable Radar Flow Meter for River Water and Oil Self-Research System for Current Velocity and Rate Measurement

High Precision Portable Radar Flow Meter for River Water and Oil Self-Research System for Current Velocity and Rate Measurement

$2,487.45 NZD
$4,214.75 NZD $2,487.45 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
dn
  • accuracy : +/-1%
  • Medium : Liquid, Water, Oil
  • type : Variable Area Water Flowmeters
  • model number : JBRD-600LL
  • brand name : JUBO
  • place of origin : Hebei, China
  • Connectivity : Bracket
  • customized support : OEM, ODM, OBM, Software Reengineering
  • material : Aluminum Alloy
  • Measurement Range : 60m
  • warranty : 1 year
  • Measurement blind spots : 8cm
  • Speed measurement pitch angle : Automatic compensation 0°-80°
  • Installation method : support
  • Speed measurement antenna beam angle : 12°*25°
  • Velocimetry range : 0.1m/s~30m/s
  • Distance measuring antenna beam angle : 6°
  • Power supply range : 9~28VDC
  • Measurement range : 60m
  • Communication method : RS485/Modbus, Bluetooth debugging
  • Application scope : Rivers and Lakes, hydrological monitoring, urban waterlogging
