Zhejiang Shengdi Instrument Co., Ltd.

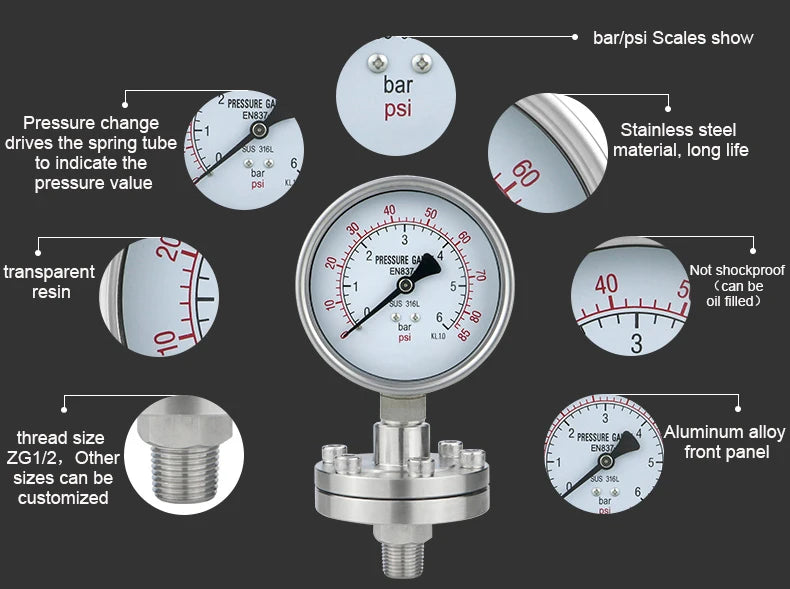

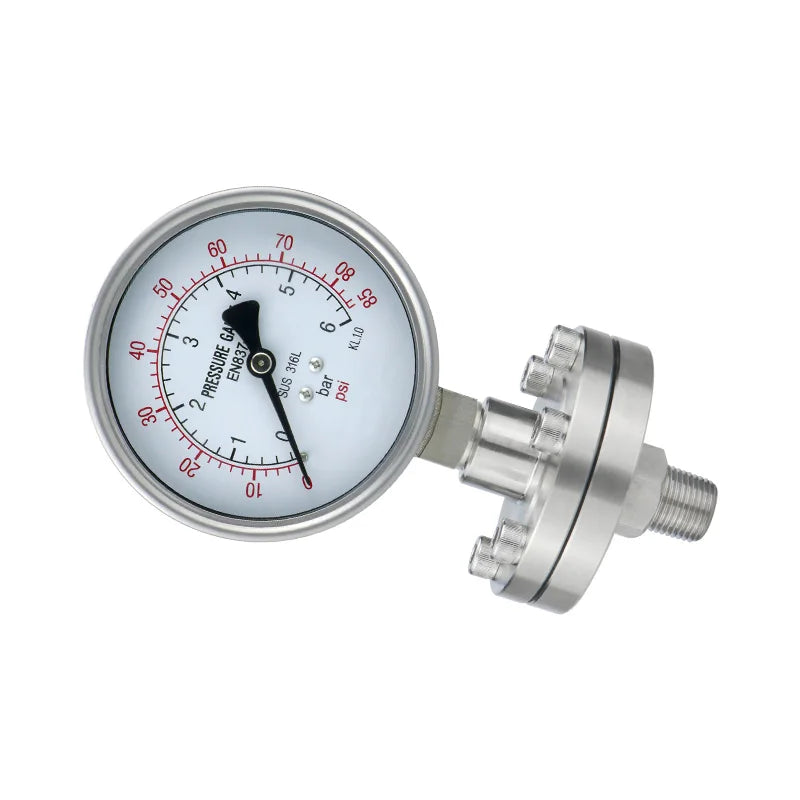

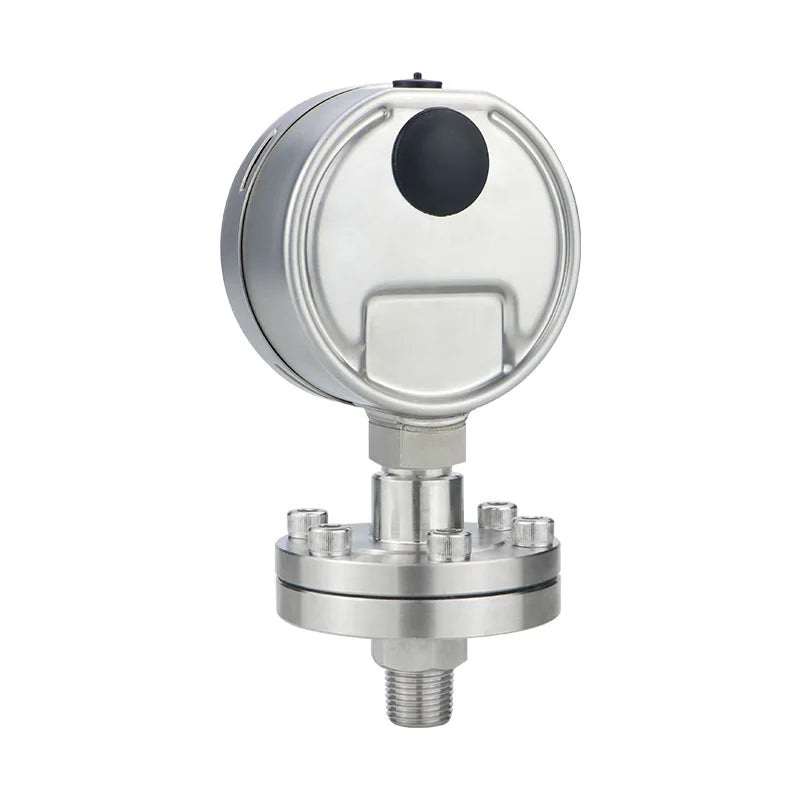

Double Scale Stainless Steel Diaphragm Seal Pressure Gauge

Double Scale Stainless Steel Diaphragm Seal Pressure Gauge

$310.50 NZD
$155.25 NZD $310.50 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
dn
accuracy
  • Measurement Range : 1.1.6.2.5,4,6,10,16,25,40,60,100bar
  • Pressure Gauge Type : Diaphragm Pressure Gauges
  • model number : YTP100BF
  • brand name : MAIRUIKESI
  • place of origin : Zhejiang, China
  • customized support : OEM
  • material : stainless steel
  • warranty : 1year
  • range : 0...1...100bar
  • model : YTP100BF
  • Precision : 1.6%,1%
  • Material : stainless steel
  • Nominal diameter : 100mm
  • Place of production : Zhejiang, China
  • Thread : NPT,G,ZG1/2 (can be customized for other threads)
  • Certification : CE

Specify the required connection.

Type
Stainless Steel Diaphragm Pressure Gauge
Customized support
OEM
Place of Origin
China，Zhejiang
Brand Name
mairuikesi
Model Number
YTP100BF
range
400,600,1000,1600,2000bar(other high pressure range)
Precision
1.6%,1%
Nominal diameter
100mm
Place of production
Zhejiang, China
Thread
NPT,BSP(G),BSPT(ZG/PT)-1/2 (can be customized for other threads)
Medium temperature
-40~80℃
Certification
CE
