HELLOCHIP LIMITED

ESP32-S3-Touch-LCD-7B 7inch Display Development Board Type B

ESP32-S3-Touch-LCD-7B 7inch Display Development Board Type B

$193.20 NZD
$205.85 NZD $193.20 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Specification



  • Brand Name : IEEKER
  • Model Number : ESP32-S3-Touch-LCD-7B









ESP32-S3 7inch Display Development Board Type B, ESP32 With Display, 1024×600, Optional For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & blvetooth, With Onboard Antenna
ESP32-S3 7 LCD Development Board

1024 × 600 resolution, backlight adjustable, multiple peripheral interfaces


version options

The B version is the upgraded version with higher resolution, supports backlight adjustment and Lithium battery voltage monitoring

ESP32-S3-LCD-7
Standard version, without touch control
800 × 400 resolution



ESP32-S3-Touch-LCD-7
Standard version, with touch control
800 × 400 resolution

ESP32-S3-LCD-7B
Upgraded version, without touch control
1024 × 600 resolution



ESP32-S3-Touch-LCD-7B
Upgraded version, with touch control
1024 × 600 resolution

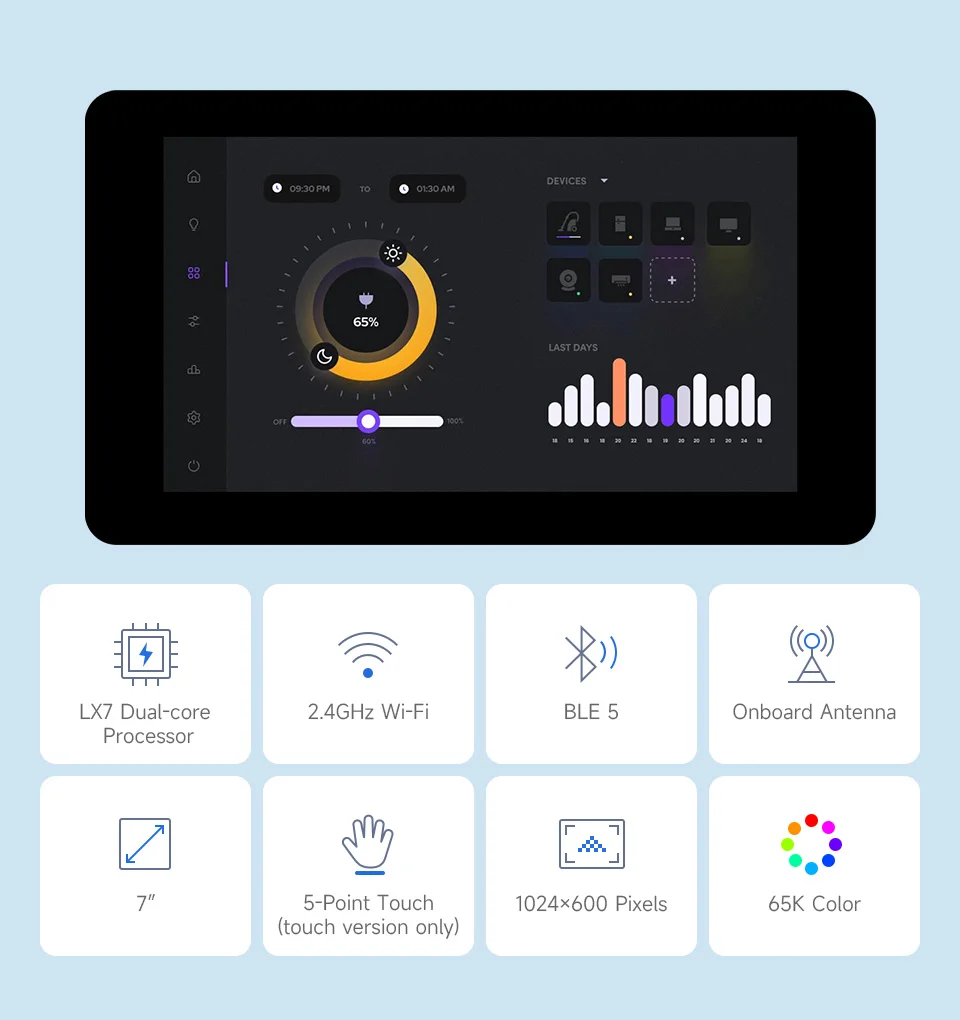

Features

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and blvetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and blvetooth 5 (LE), with onboard antenna

  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

  • Onboard 7inch LCD display, 1024 × 600 resolution, 65K color

  • Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

  • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

  • LED indicators for easy monitoring of power status and battery charging status

  • Supports backlight adjustment and real-time battery voltage monitoring

  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

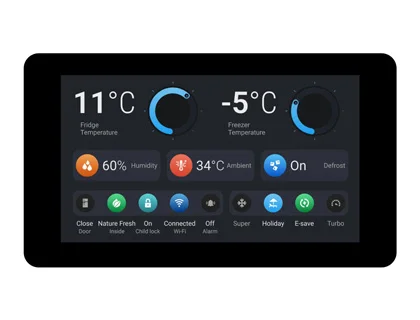

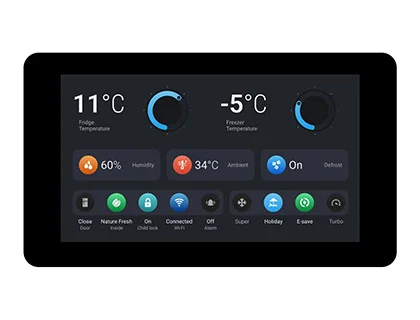

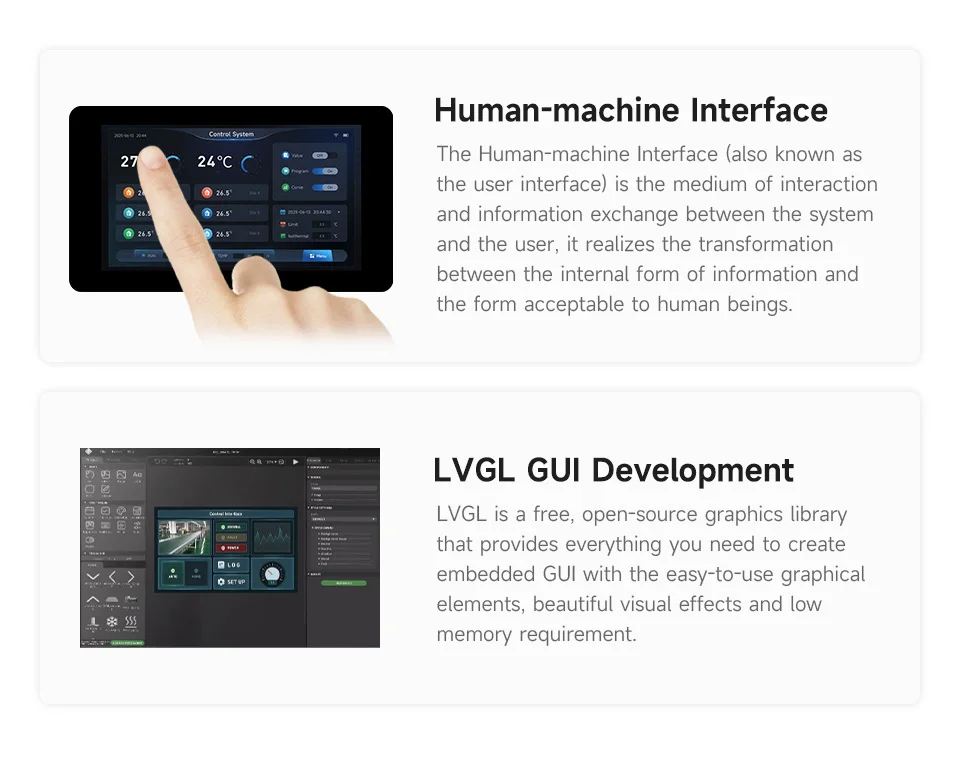

Application scenarios

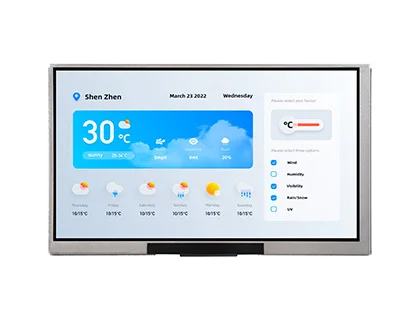

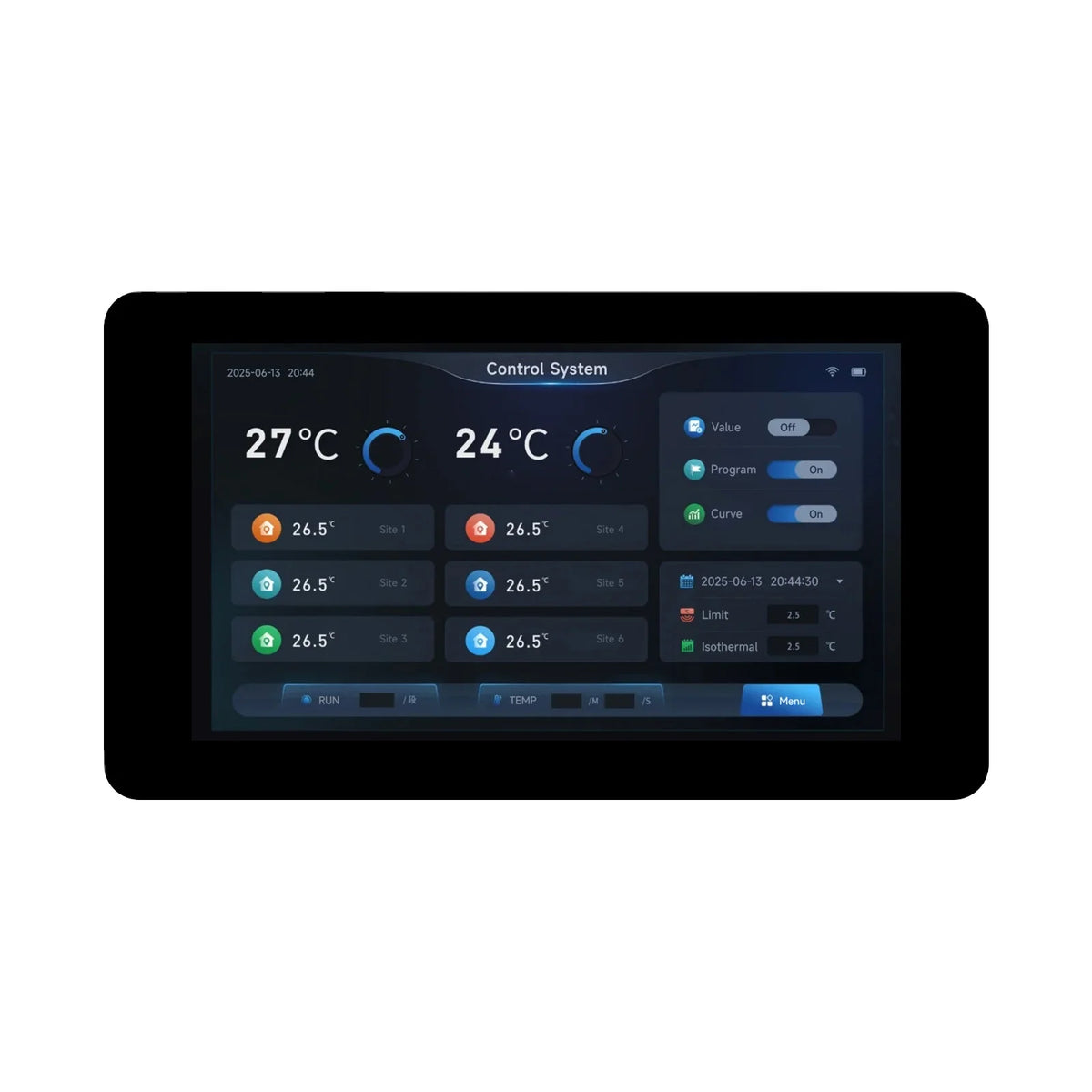

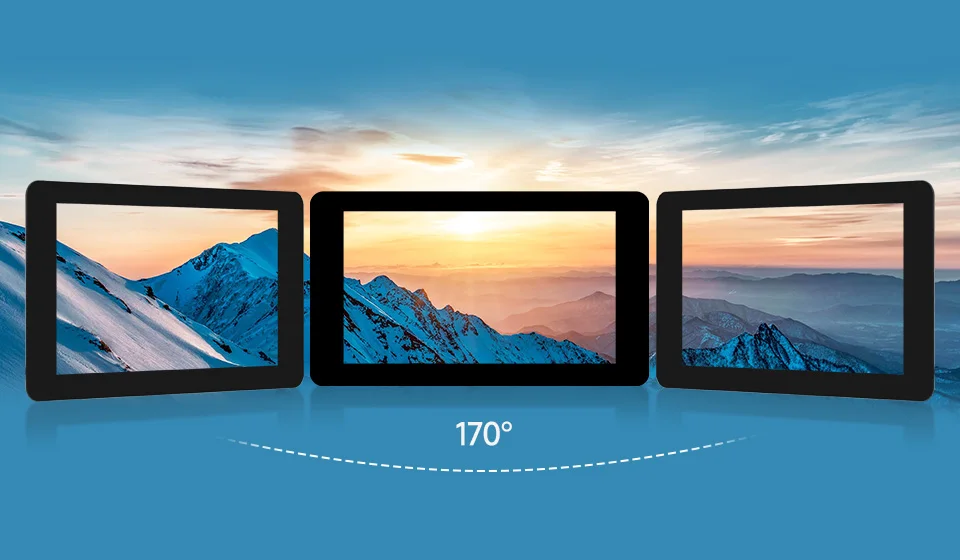

IPS Display Panel

Excellent display performance, 170° viewing angle

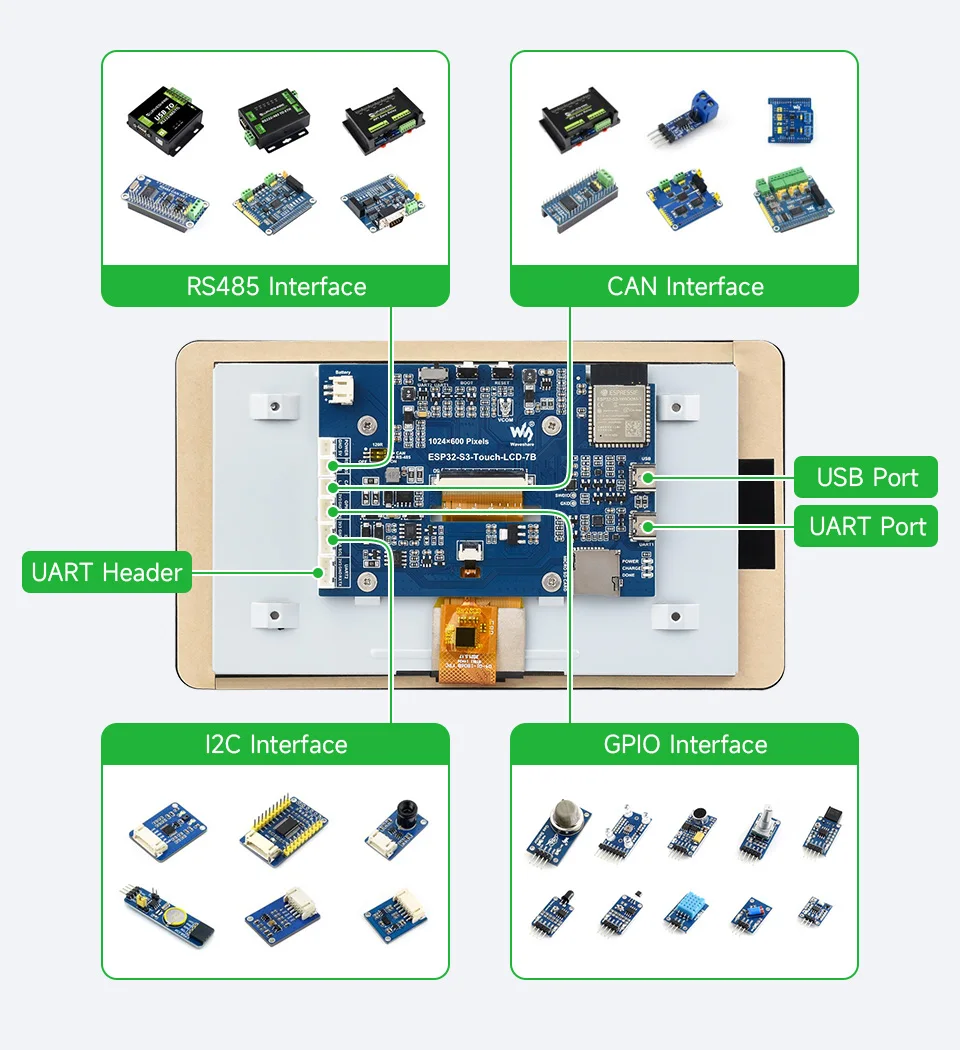

Supports multiple peripherals

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

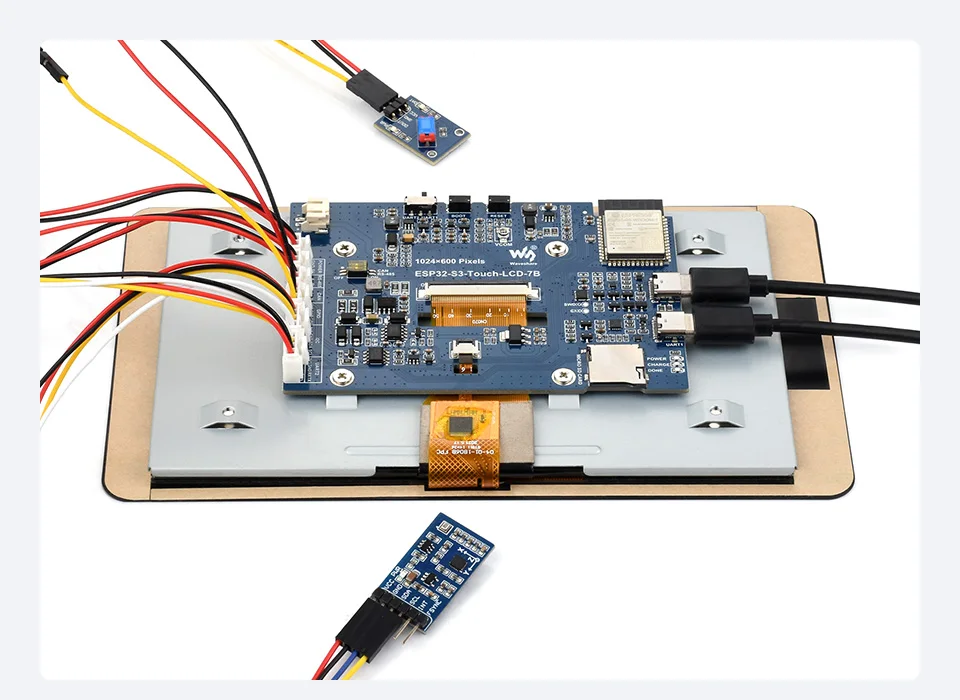

Application Example

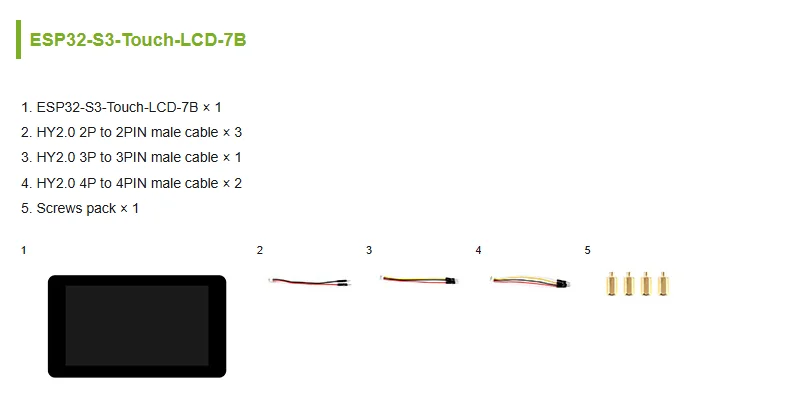

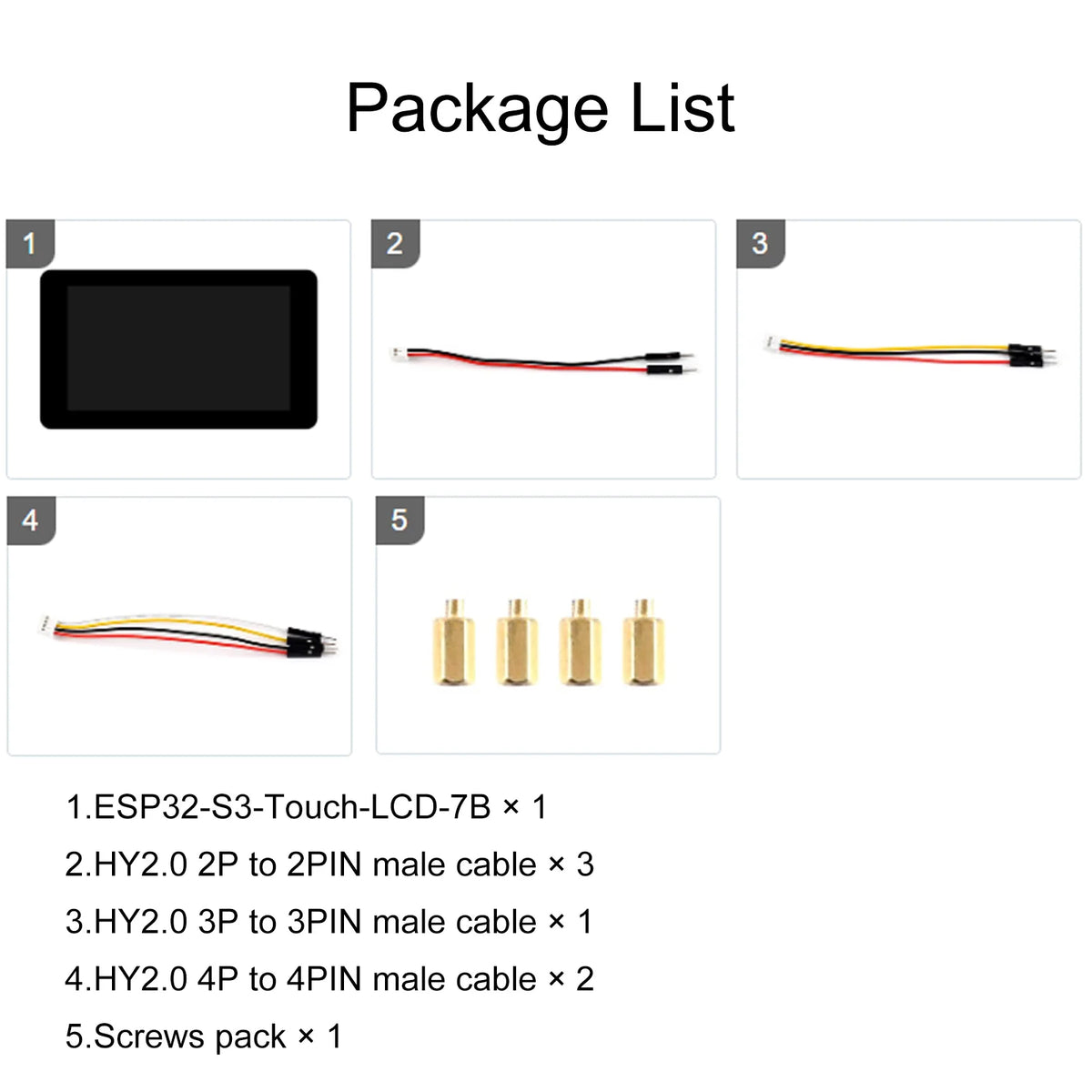

for reference only, please refer to the Package Content for the detailed part list

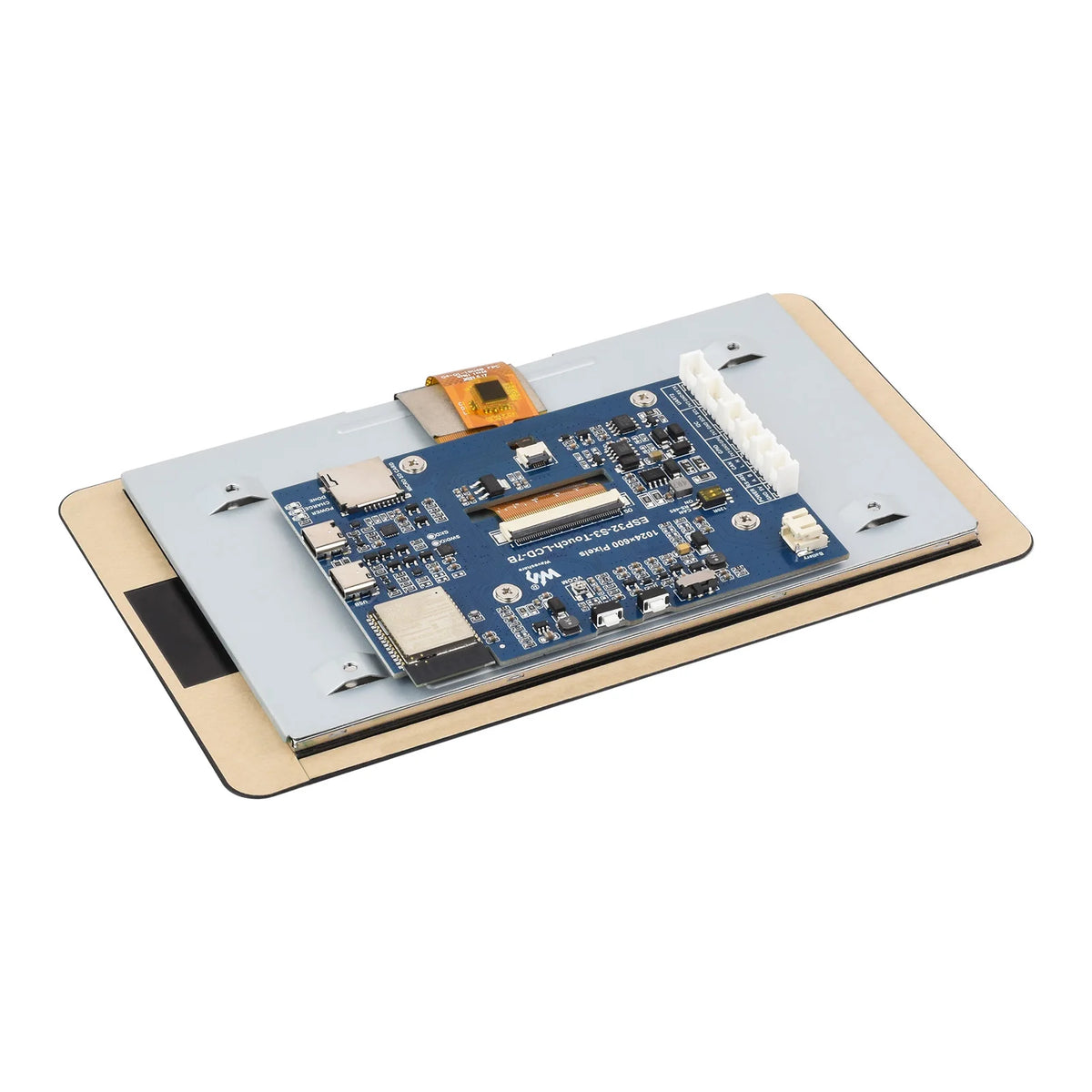

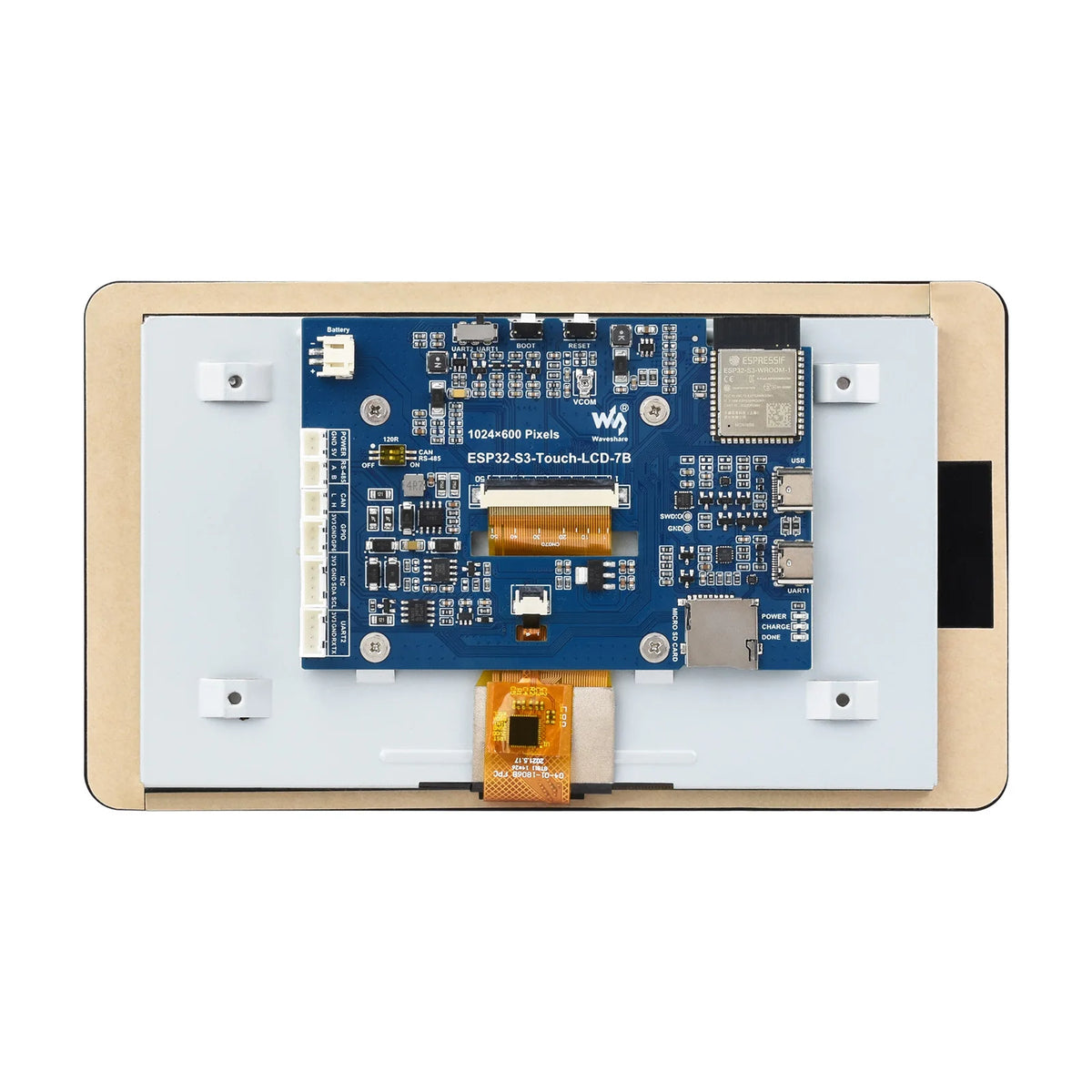

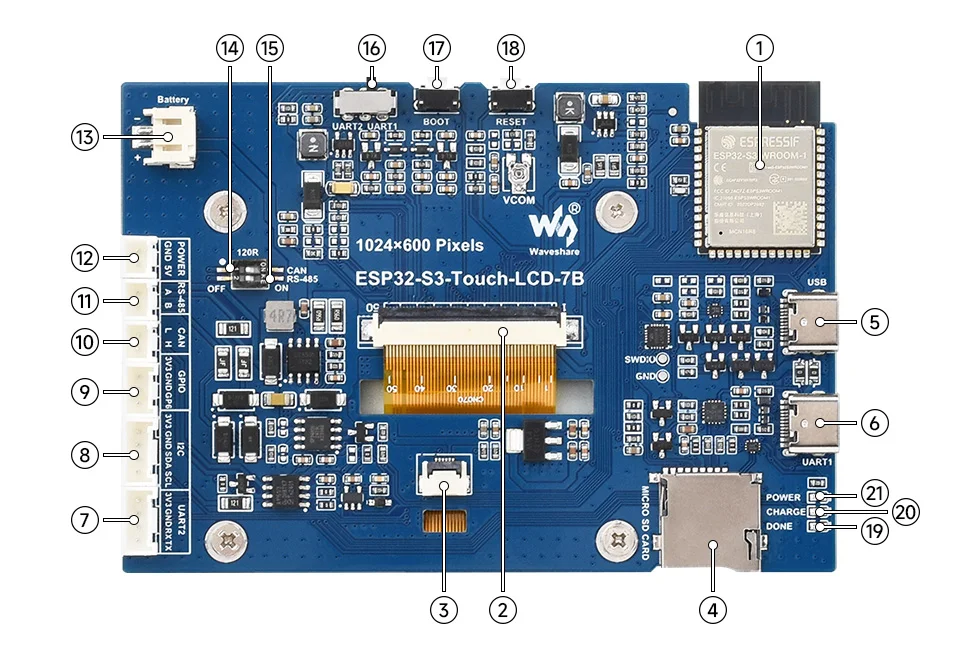

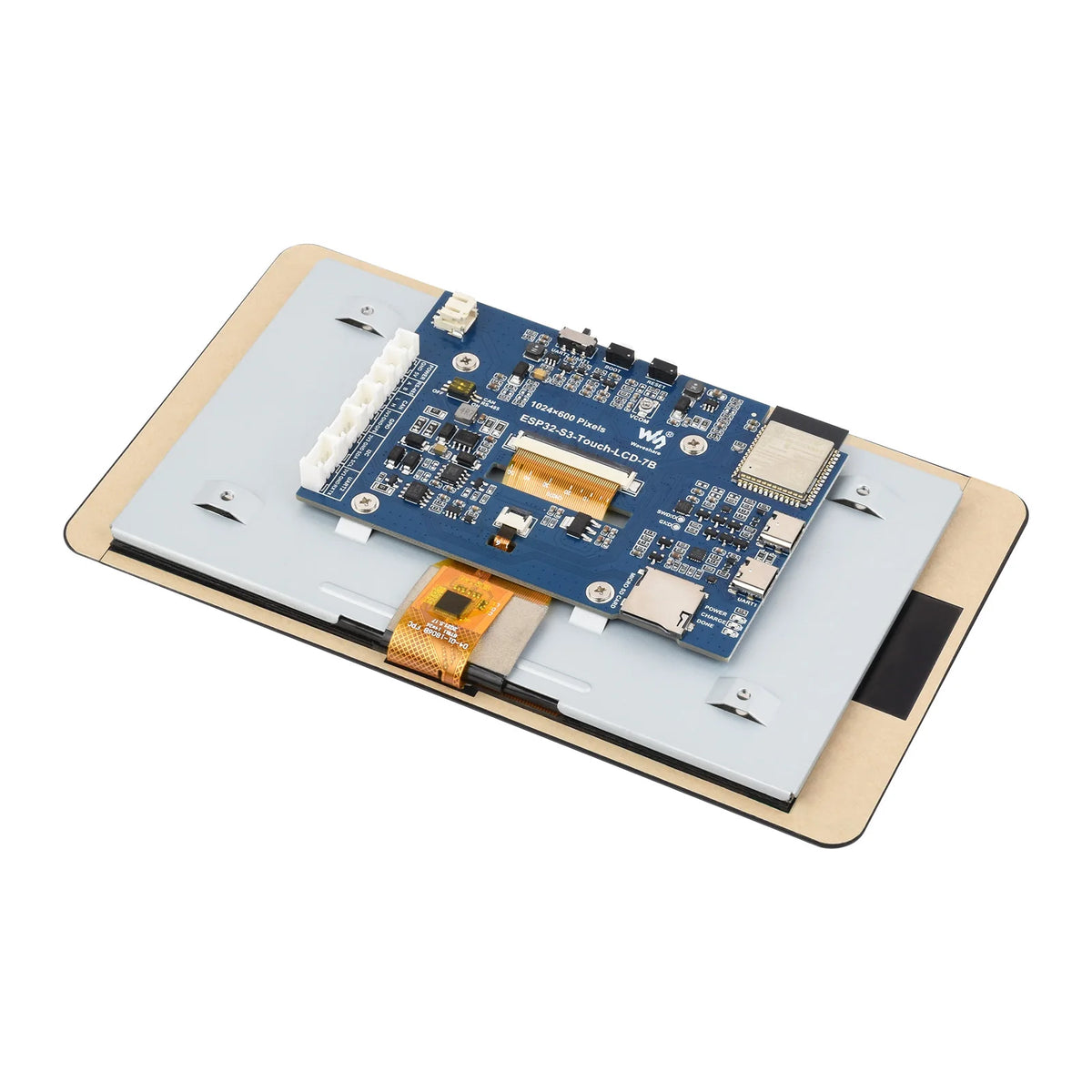

What's On Board

  1. ESP32-S3-WROOM-1-N16R8 module
    The SoC with WiFi and blvetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash

  2. Display panel connector

  3. Touch panel connector

  4. TF card slot

  5. USB Type-C port

  6. UART1 Port
    USB TO UART Type-C port

  7. UART2 header
    UART1 and UART2 are the same UART, selected by switch

  8. I2C header

  9. Sensor header

  10. CAN header

  11. RS485 header

  12. 5V output



  1. 3.7V Lithium battery PH2.0 header

  2. CAN terminal resistor selection

  3. RS485 terminal resistor selection

  4. UART selection
    select UART1 or UART2

  5. BOOT button
    Press and hold while powering on for program burning

  6. RESET button

  7. DONE
    Lithium battery charging completed indicator

  8. CHARGE
    Lithium battery charging indicator

  9. POWER
    Power supply indicator

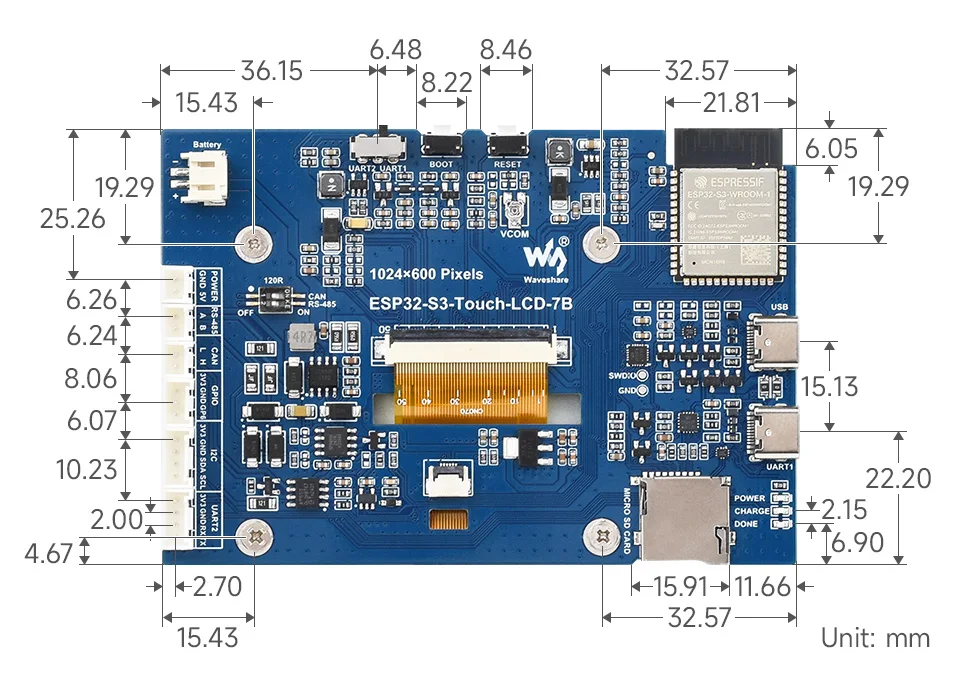

outline dimensions

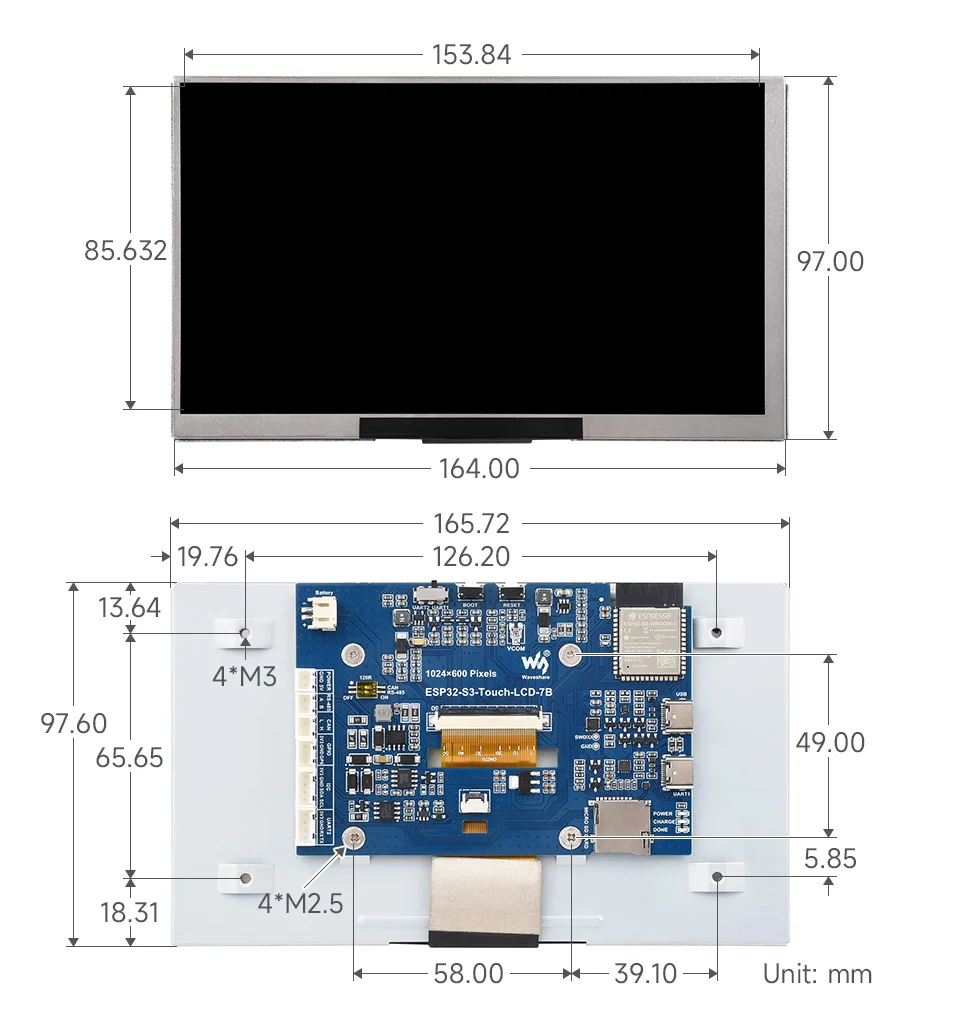

without touch version

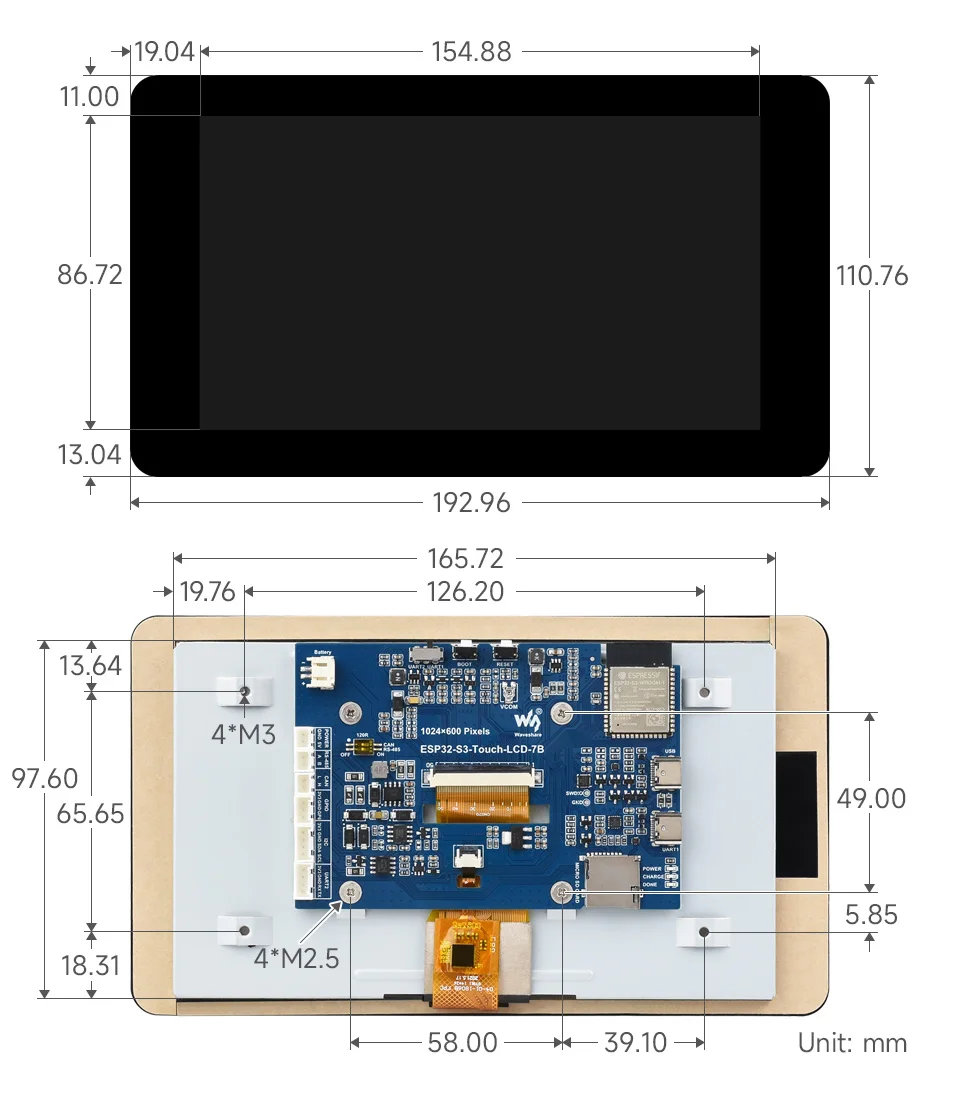

with touch version




Development board size



Resources & Services
Wiki:  www.waveshare.com/wiki/ESP32-S3-Touch-LCD-7B
