Xi'an Xinyi Instrument Technology Co., Ltd.

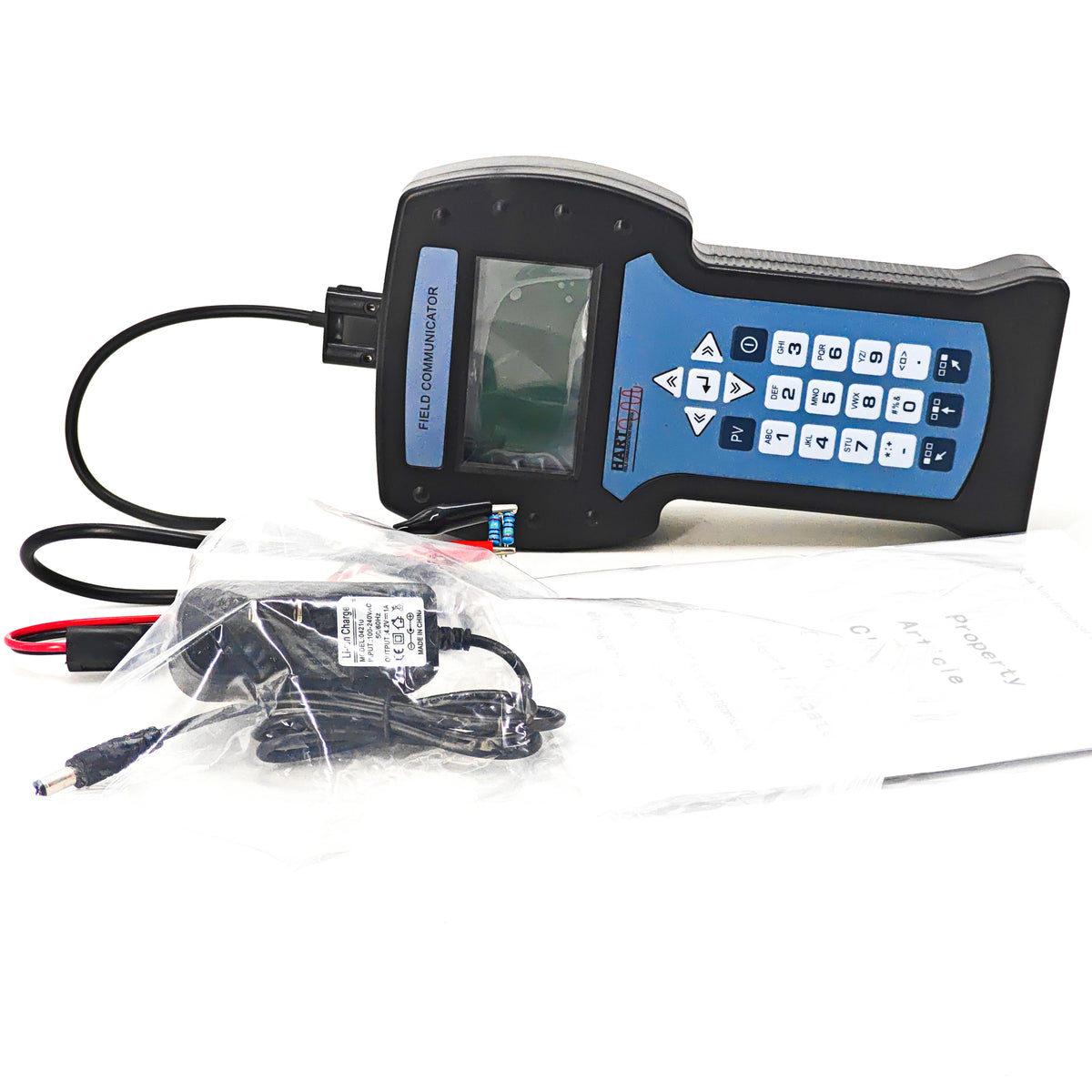

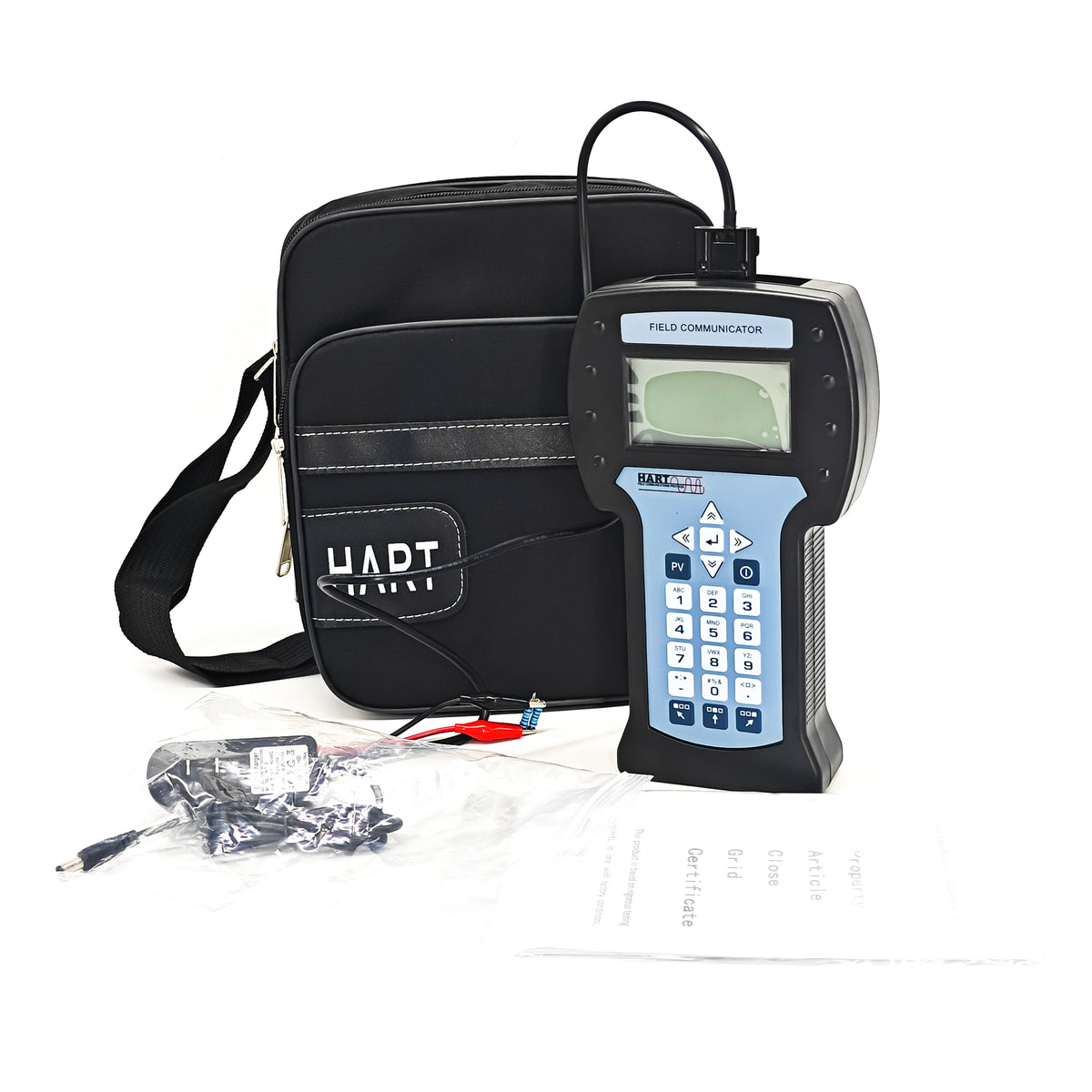

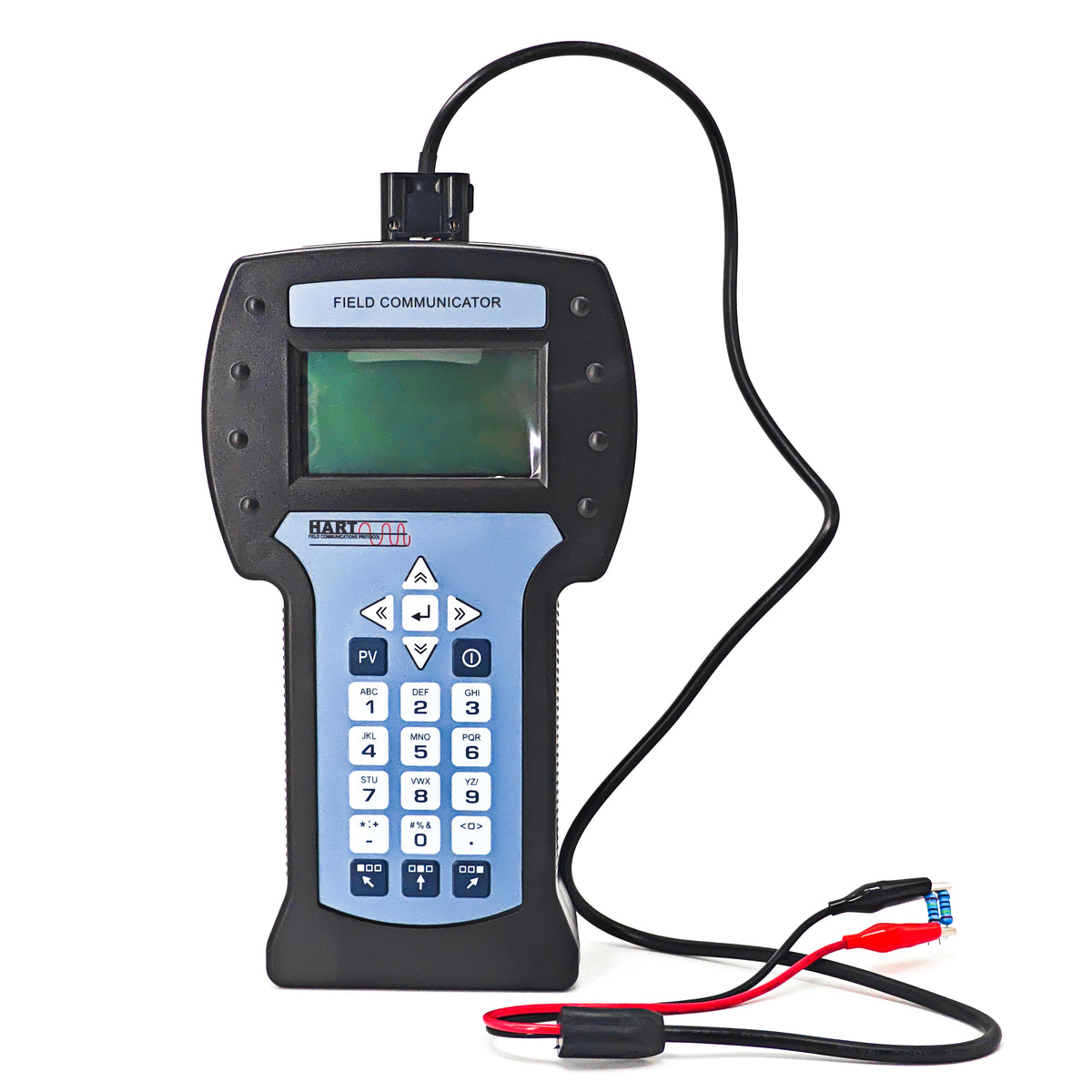

Hart475 Multifunction Handheld Field Communicator

Hart475 Multifunction Handheld Field Communicator

$1,430.60 NZD
$2,145.90 NZD $1,430.60 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Type : Multifunction Calibrator
  • Accuracy : 0.5
  • brand name : XINYIYB
  • place of origin : Shaanxi, China
  • Application : Universal Testing
  • customized support : OEM
  • power : 24V
  • Protection Class : IP65
  • Voltage : 240 V
  • warranty : 2 Years
  • Product name : Handheld Field 475 HART Communicator
  • Communication : RS485
  • Load resistance : 250 ~ 600Ω
  • Load Inductance : 3.3mH or less
  • Display : 128 * 64 dot matrix LCD
  • Power supply : 4 1.2V rechargeable battery
  • Length : 1Km (0.62 mile) (0.75 ~ 1.25mm2)
  • Load Capacitance : 0.22uF less
  • Size : 180* 80* 54mm

Features
· Manufactured by Emerson Process Management
· Universal – HART and FOUNDATION fieldbus devices
· User upgradeable
· Intrinsically safe
· Rugged and reliable
· Interfaces with AMS Suite: Intelligent Device Manager
· Graphical interfate
· Bluetooth communication

Description

The Emerson Process Management 475 Field Communicator establishes the new standard for handheld communicators.
With a full-color user interface, powerful diagnostic capabilities, and fast start up and operating times, the Emerson Process
Management 475 Field Communicator will power your experience and simplify your work in the field.

The Emerson Process Management 475 Field Communicator supports all HART®, FOUNDATION™ fieldbus, and Wireless HART™ devices and is intrinsically safe so it can go wherever you go.

Emerson Process Management 475 Field Communicator Specifications
Microprocessor
80 MHz Hitachi SH3
Memory internal flash
32 MB
System card
1 GB secure digital card
RAM
32 MB
Weight
App. 1.65 lb (0.75 kg) w/battery
Display
1/4 VGA (240 x 320 px) color, 3.5 in (8,9 cm) transreflective display w/touchscreen, anti-glare coat
Keypad
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control
(arrow) keys; membrane design with tactile feedback
Battery
Rechargeable lithium-ion power module
Battery operating time
20 hours - continuous use
40 hours - typical use
80 hours - standby mode
Battery charger options
Input voltage 100-240 VAC, 50-60 Hz
Cables included with US, Europe, and UK plugs
Battery charger
Min DIN 6-pin jack
HART and Fieldbus
Three 4mm banana plugs (one common to HART and Foundation fieldbus)
IrDA Port
IrDA (Infrared Data Access) port supporting up to 115 Kbps
±15 degrees recommended maximum angle from center line
App. 18 in recommended maximum distance
Bluetooth
Up to 32.8 ft (10 m) communication distance
Uses standard Windows drivers
FCC, IC and CE approvals
