Utility Electrical Co., Ltd.
Regular price
$1,307.55 NZD
Regular price
$1,960.75 NZD
Sale price
$1,307.55 NZD
Taxes included.
Shipping calculated at checkout.
-
Series : Dual ultrasonic sensor
-
Mounting Type : Vertical installation
-

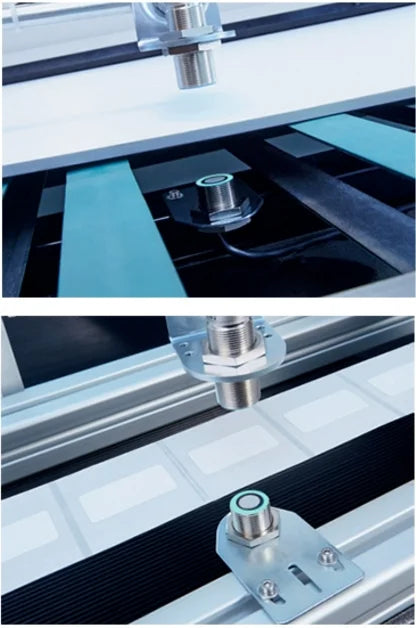

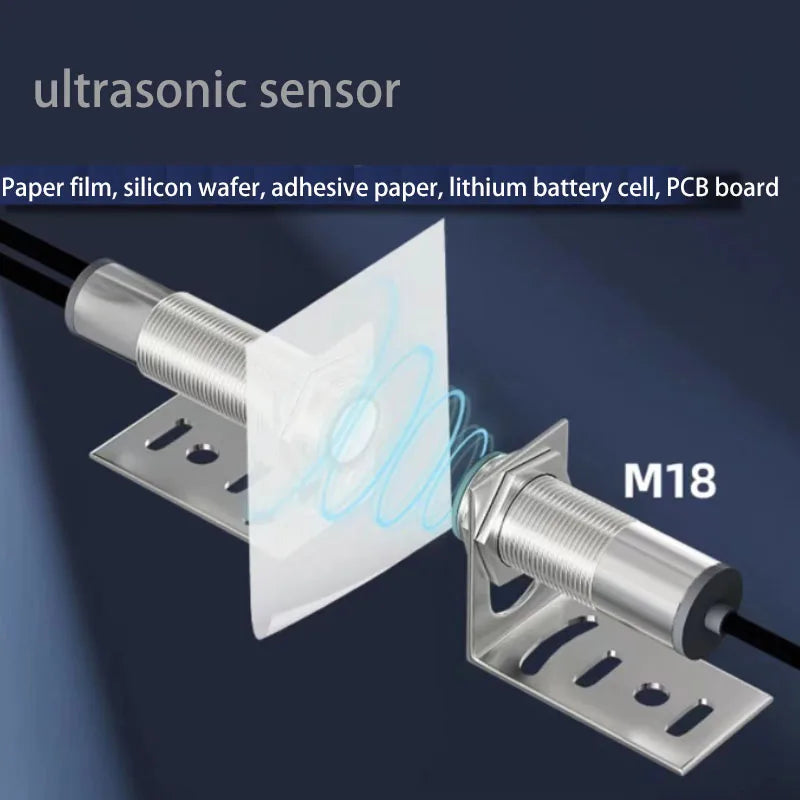

Description : Detect single and double sheets of paper
-
Manufacturer Part Number : UDCX-18GM-255-3E1
-
Type : Liquid Level Sensor
-
Place of Origin : Zhejiang, China
-
Brand Name : BXUAN
-
Usage : 20-60mm
-
Theory : Ultrasonic testing
-
Output : 3*NPN/NC
-

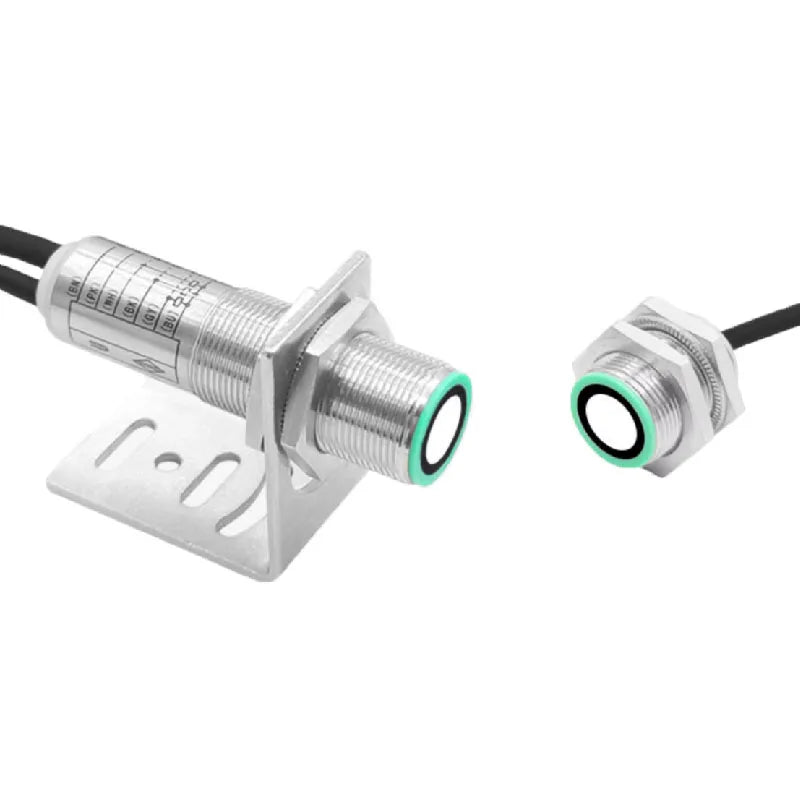

Name : Double sheet sensor
-

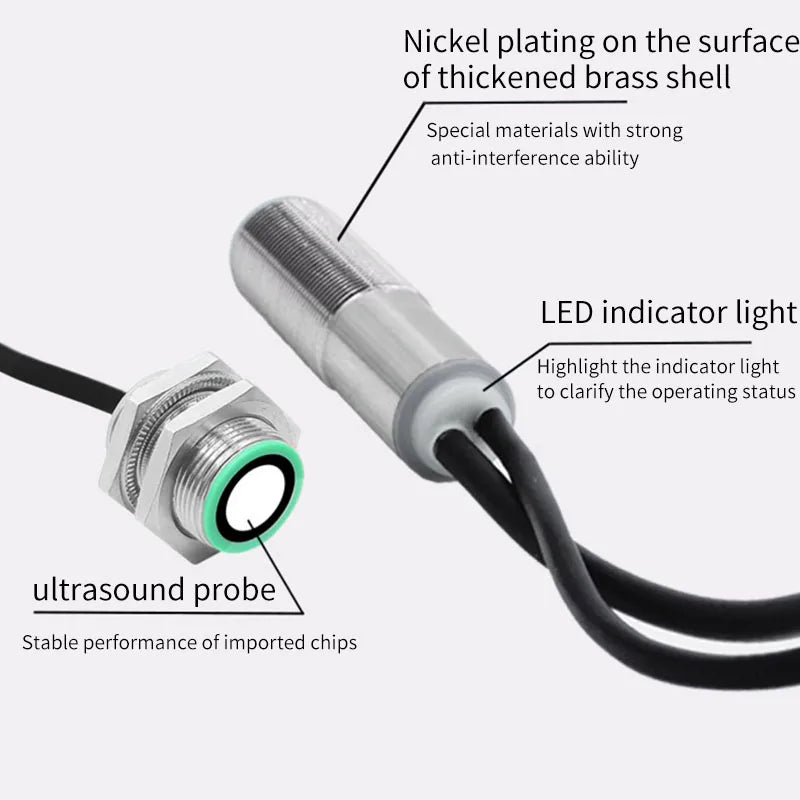

Material : brass, nickel-plated
-
Connection Mode : cable
-
Sensing range : 20-60mm
-
Operating voltage : 18-30 V DC,ripple 10 %SS
-
Rated operating current : 3*100mA , short-circuit/overload protected
-
Output type : 3 switch outputs 3E1(NPN,NC)
-
Protection level : IP65
-
Connection method : cable PVC,2m
-
Range adjustment : Adjust the farthest and closest range by adjusting the line
|
|
Double sheet sensor
|
|
|
brass, nickel-plated
|
|
|
20-60 mm , optimal distance: 45 mm
|
|
|
18-30 V DC,ripple 10 %SS
|
|
|
3*100mA , short-circuit/overload protected
|
|
|
3 switch outputs 3E0(NPN，NO) 3E1(NPN，NC) 3E2(PNP，NO) 3E3(PNP，NC)
|
|
|
approx. 15 ms (shorter response time on request)
|
|
|
approx. 15 ms (shorter response time on request)
|
|
|
Adjust the farthest and closest range by adjusting the line
|
|
|
IP65
|
|
|
cable PVC，2m
|
