CMP SMART TECHNOLOGY CO.,LTD

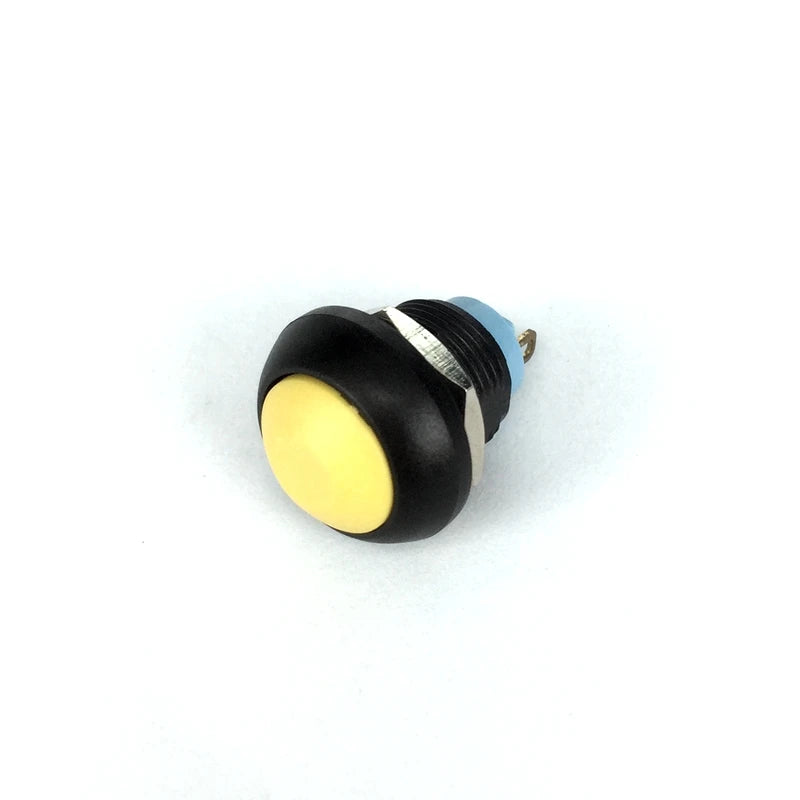

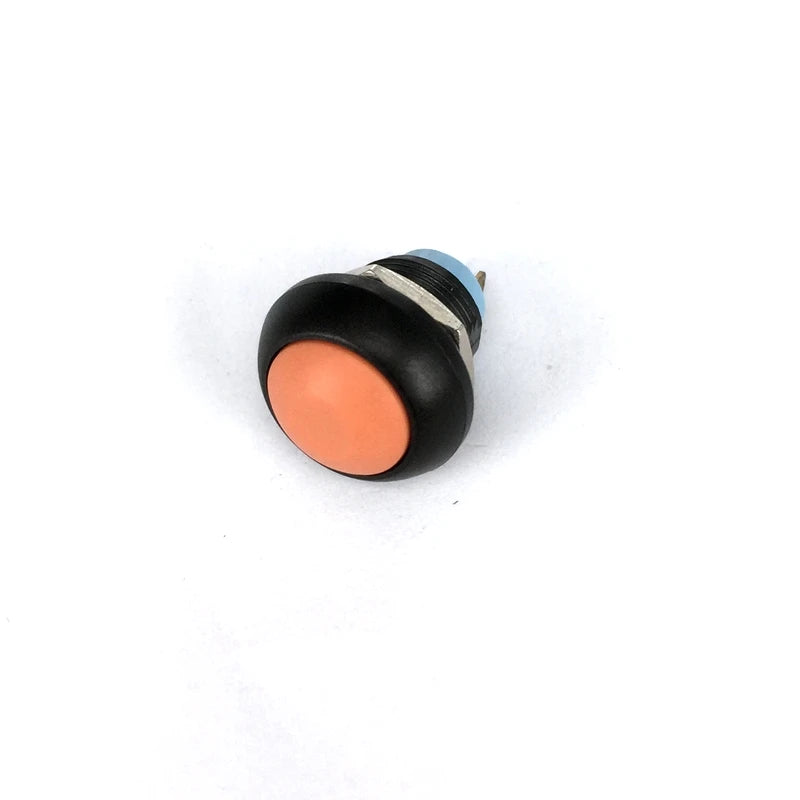

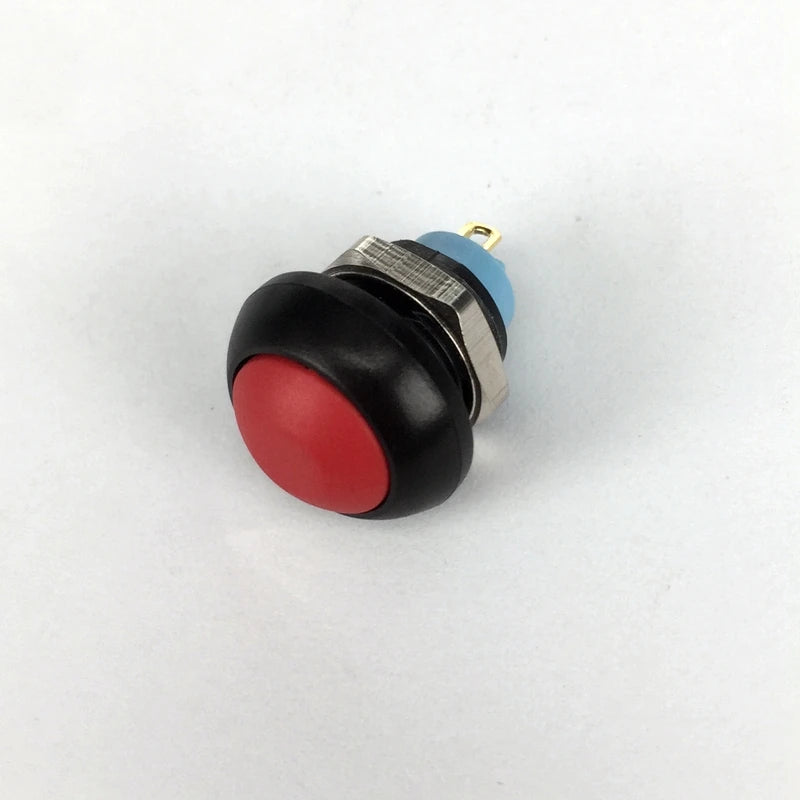

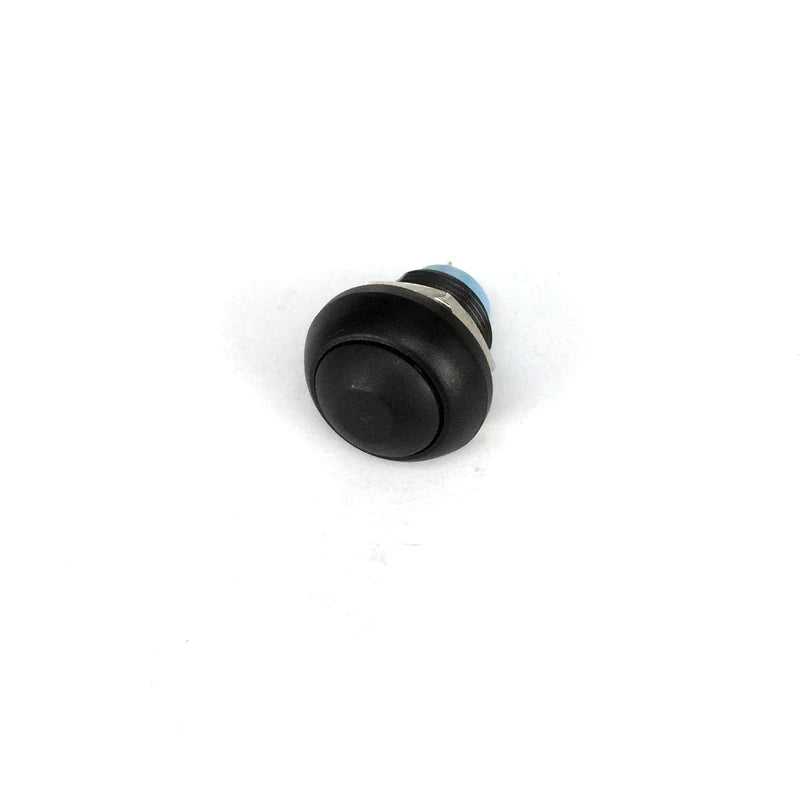

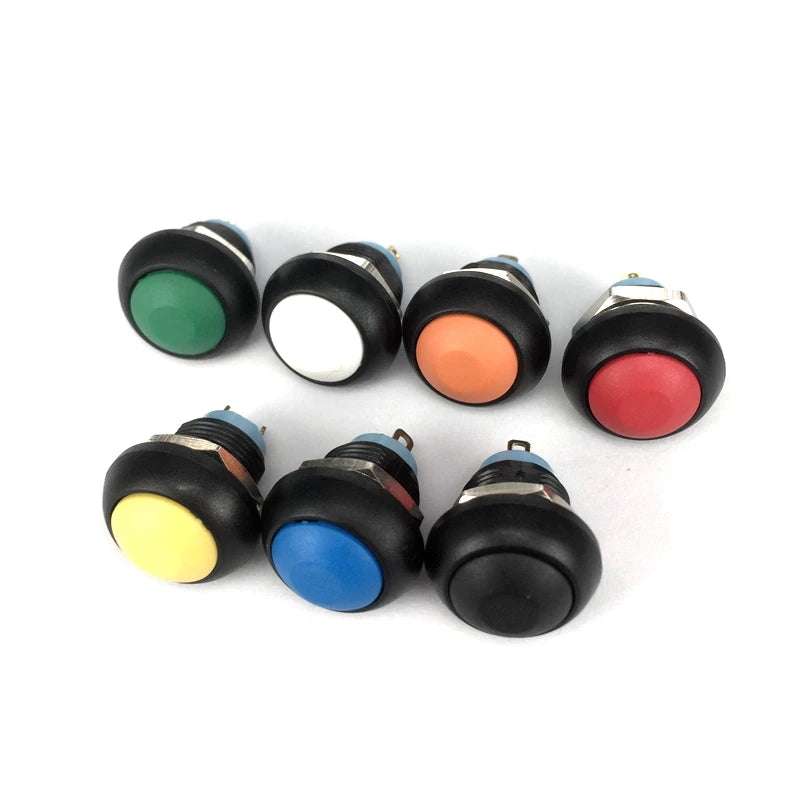

CMP Plastic 12mm Waterproof Pin Terminal Normally Open Black Head Momentary Push Button Switch

CMP Plastic 12mm Waterproof Pin Terminal Normally Open Black Head Momentary Push Button Switch

$2.30 NZD

~~$3.45 NZD~~ $2.30 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rated Voltage 36 V

Size 12 mm

Color Blue Black White Red Yellow Green Orange

Max. Current : 2A
Max. Voltage : 220 V
Switch Combination : 1NO
Model Number : MP12P/BJ
Brand Name : CMP
Place of Origin : Zhejiang, China
Application : Electric
Head Type : Dome Head
IP level : IP65
LED : No, Nil
Material : Plastic
Structure : Electronic
Terminal Type : Pin Terminal
Whether The Smart : No
Installation diameter : 12mm
Operation Type : Momentary or Latching
Material of the body : Stainless steel or Plastic or copper plated chromium
Material of the head : Stainless steel or Plastic or copper plated chromium
Contact material : Silver plated
Color of the head : Red, White,Green, Blue ,Orange ,Yellow
Electrical Life : 200000 operations minimum (at full rated load)
Mechanical Life : Maintained:1000000 Momentary:1000000 Selector:250000
Product name : push button switch
