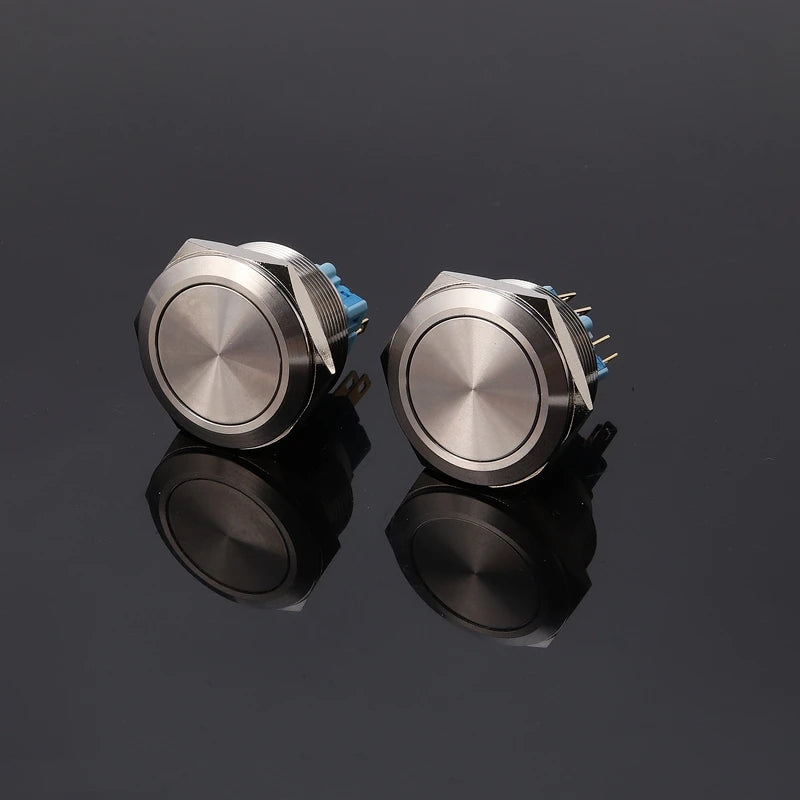

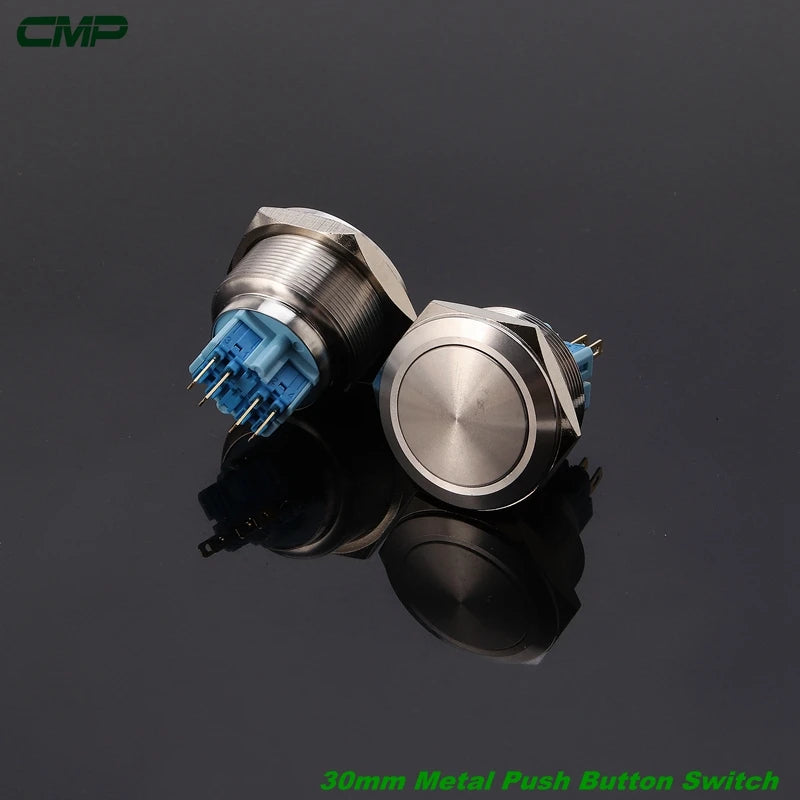

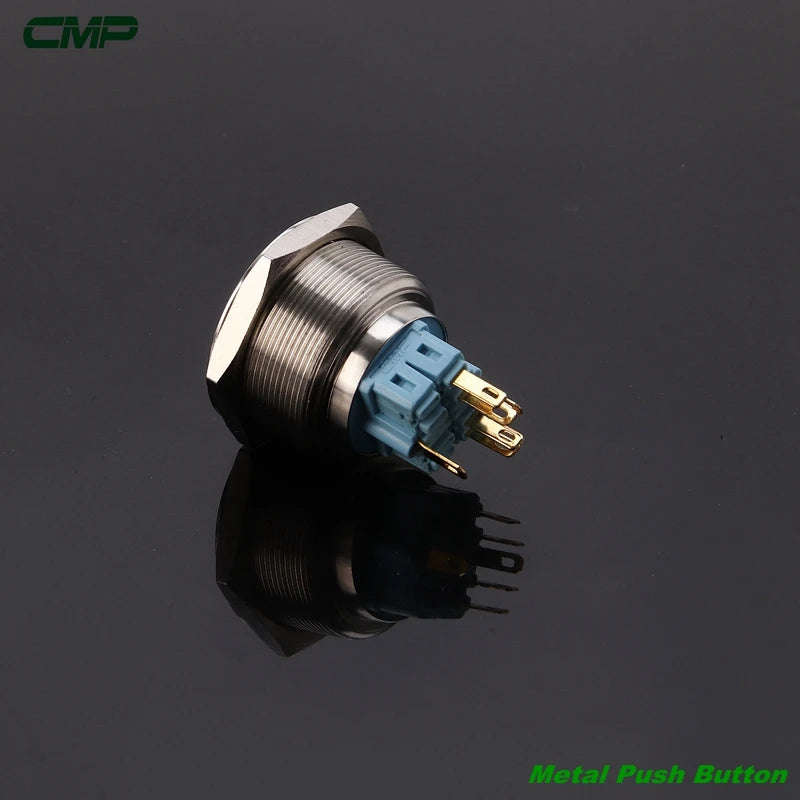

CMP Big Push Button Metal 5A 30mm Waterproof Momentary Pushbutton Switch

CMP Big Push Button Metal 5A 30mm Waterproof Momentary Pushbutton Switch

$17.25 NZD

~~$28.75 NZD~~ $17.25 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rated Voltage 240 V

Size 30mm

Max. Current : 5A
Max. Voltage : 250V AC
Mechanical Life : 500000 Times
Switch Combination : 1NO1NC, 2NO2NC
Model Number : MP030S/H11Z
Brand Name : CMP
Place of Origin : Zhejiang, China
Application : Electric, Home Appliance, Industrial Control, Latching
Head Type : Dome Head, Round Head, Flat Head
IP level : Ip67
LED : No
Material : Stainless Steel, Metal
Structure : Mechanical
Terminal Type : Pin Terminal, Quick Connect Terminal
Whether The Smart : No
Panel cutout : 30mm waterproof pushbutton
The Crust Material : Stainless steel
Head shape : Bulge
Certification : CE,EMC,ROHS,FC,CNAS,IEC60947-5-1,GB14048.5 standard
Operation type : latching ,momentary
Made of connection : SPST,DPDT
Contact : Silver plated gold
Contact configuration : 1 NO 1NC/2NO 2NC
Surface size : 33.7mm
Product name : waterproof pushbutton
