Nanjing Wotian Technology Co., Ltd.

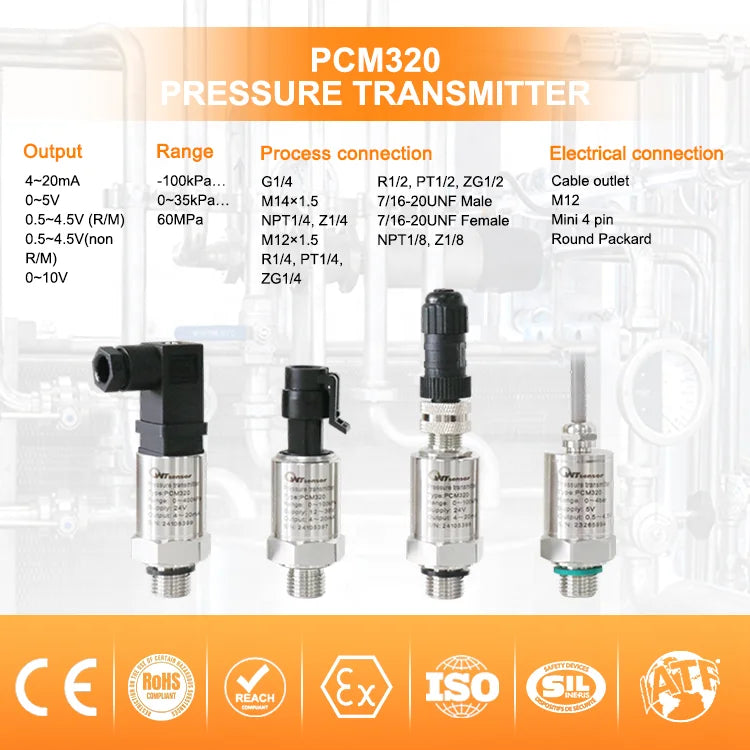

High Cost-effective Pressure Transmitter PCM320

$256.45 NZD

~~$193.20 NZD~~ $256.45 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

accuracy 0.5%FS

pressure range -100kPa...0~10kPa...60MPa -1bar...0~350mbar...600bar -14.5psi...0~5psi...8702psi

Ingress Protection : IP65
type : Pressure Transmitter
model number : PCM320
brand name : WT sensor Nanjing Wotian
place of origin : Jiangsu, China
customized support : OEM, ODM
material : Stainless Steel
warranty : 18 months
Pressure range in pa : -100kPa...0~35kPa...60MPa
Pressure range in bar : -1bar...0~0.35bar...600bar
Pressure range in psi : -14.5psi...0~5psi...8702psi
Pressure type : Gauge Pressure Absolute Pressure Sealed Pressure
Accuracy : 0.5%F.S.
Power supply : 24VDC (12~36VDC), 5VDC others
Output : 4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V others
Certificates : ISO9001,CE,ROHS
Measuring medium : Gas, liquid,all media compatible with stainless steel 316L
Application : Hydraulic and pneumatic equipment,Chemical Industry,Compressor etc.
