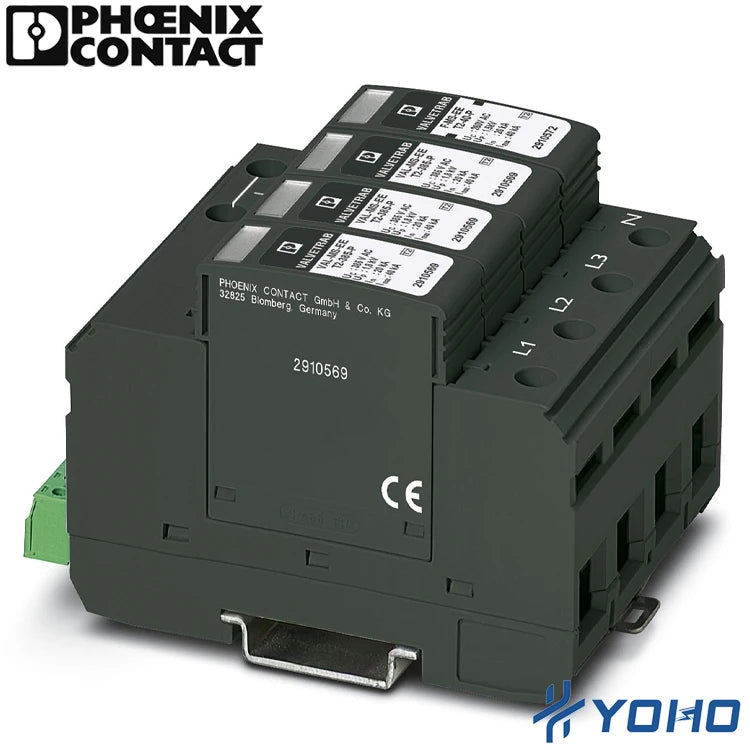

2910558 VAL-MS-EE-T2-3+1-385-FM CLP211 Type 2 Surge Arrester

$189.75 NZD

~~$169.05 NZD~~ $189.75 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Number of Pole 4

Max Discharge Current : 40000 A
Type : T2
Model Number : VAL-MS-EE-T2-3+1-385-FM
Brand Name : Phoenixcontact
Place of Origin : Jiangsu, China
Rated Voltage : 240/415 V AC (TN-S)
Product name : Screw Connection VAL-MS-EE-T2-3+1-385-FM CLP211 Type 2 Surge Arrester
Product type : Surge arrester
Screw thread : M5
Stripping length : 16 mm
Conductor cross section AWG : 15 ... 2
Pollution degree : 2
Material group : I
Rated load current : 80 A
Voltage protection level Up (L-N) : ≤ 1.8 kV
Country of origin : CN

Products Description

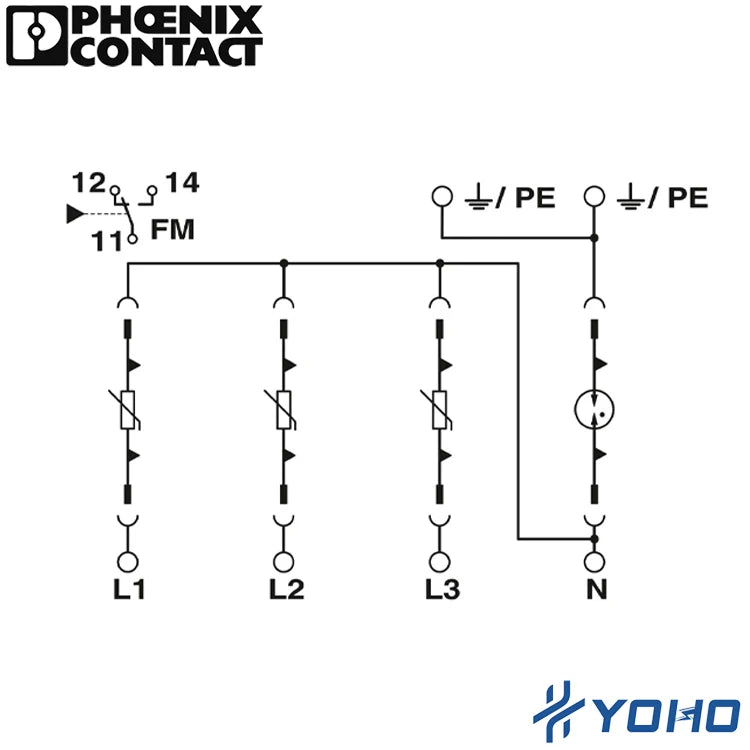

Equipped with a base and protective connector, installed on NS 35/7.5 rails, for: 230 V AC - IT system, 3+1 protection mode.

Product Paramenters

Product name	2910558 Screw Connection VAL-MS-EE-T2-3+1-385-FM CLP211 Type 2 Surge Arrester
Item number	2910558
Screw thread	M5
GTIN	4055626462769
Type	DIN rail module, two-section, divisible
Switching function	Changeover contact
pollution degree	2

Country/region
