2865366 Signal Conditioner Transducer Power Supply

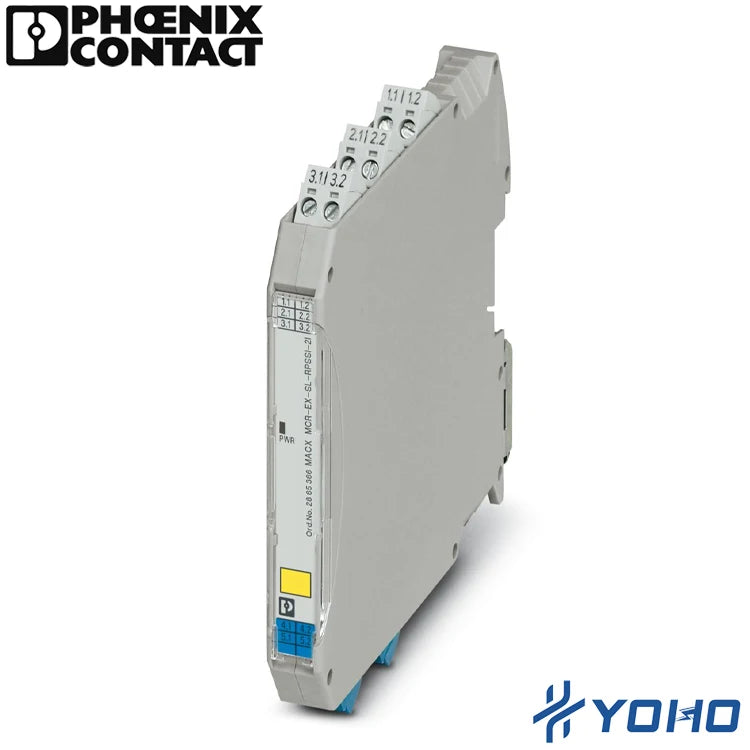

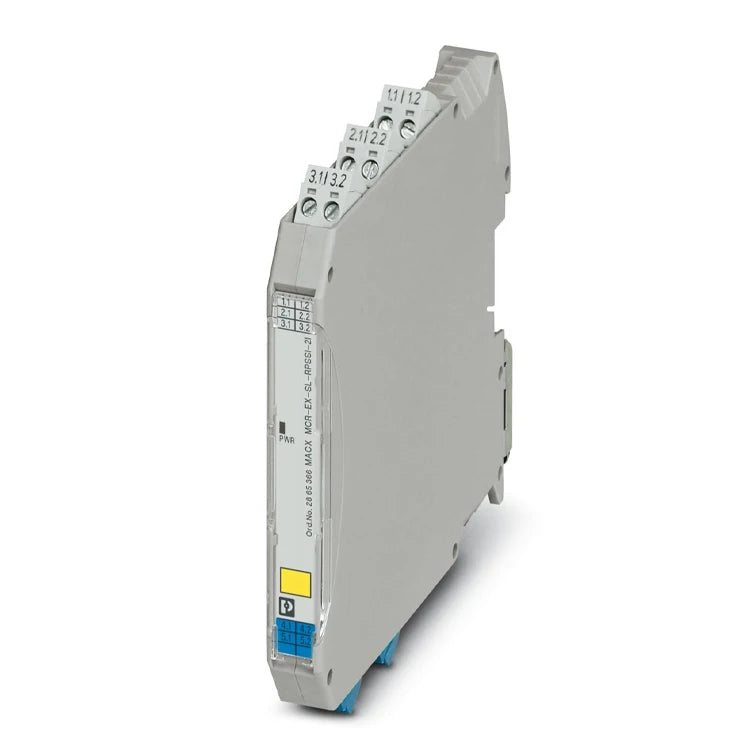

2865366 Signal Conditioner Transducer Power Supply
Regular price
$949.90 NZD
Regular price
Sale price
$949.90 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Model Number : MINI MCR-BL-I-I
- Brand Name : Phoenixcontact
- Place of Origin : Germany
- Product name : Ex I Measuring Input Signal Conditioner Transducer Power Supply
- Product type : Repeater power supplies
- Screw thread : M3
- Stripping length : 7mm
- Conductor cross section AWG : 24 ... 14
- Pollution degree : 2
- Step response : 1.3 ms (for jump 4 mA ... 20 mA, typical)
- Power consumption : ≤ 1.8 W
- Country of origin : DE
- Number of inputs : 1
Products Description
Product advantages

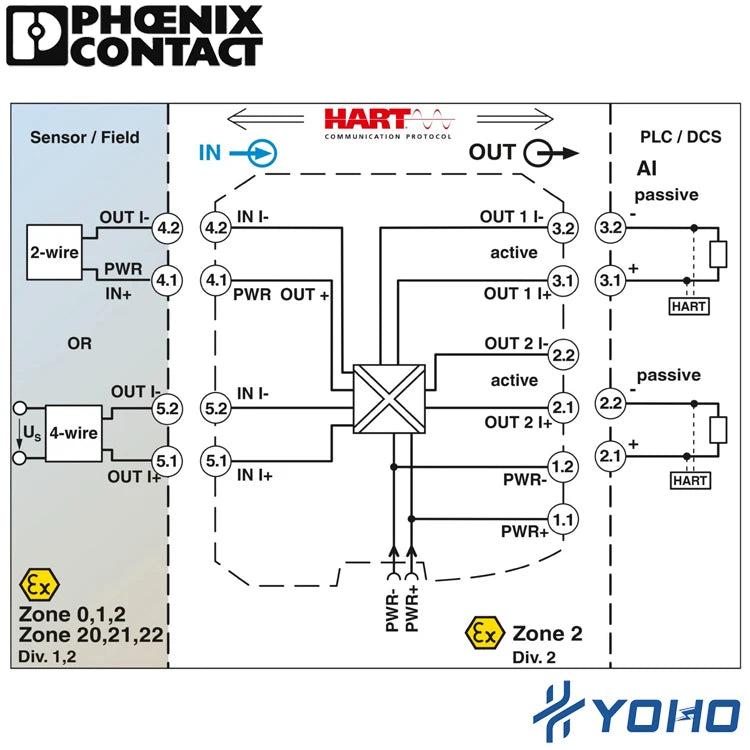

* 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
* Measuring transducer supply voltage > 16 V
* Two electrically isolated 0/4 mA ... 20 mA (active) outputs

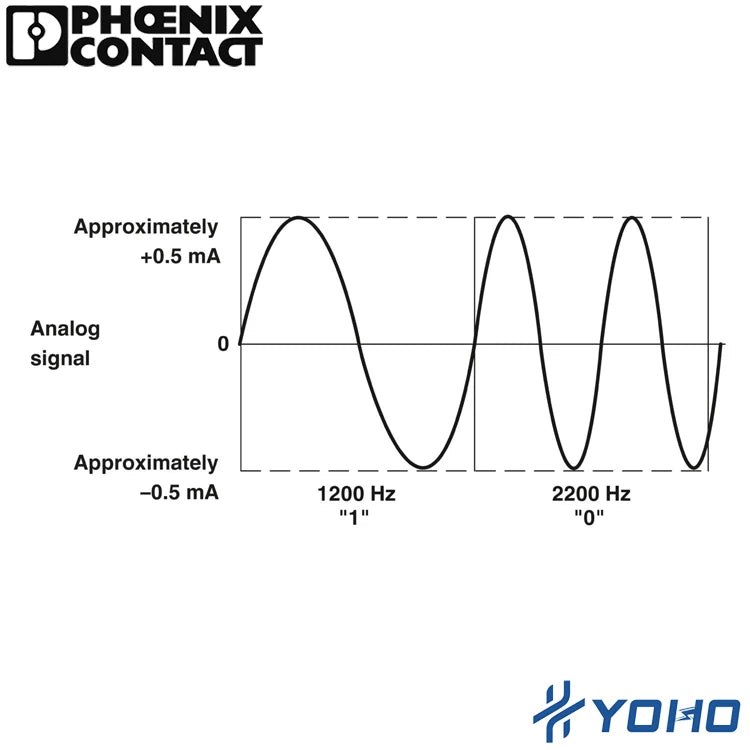

* Bidirectional HART transmission (both outputs)
* Error indication according to NAMUR NE 43
* SIL 2 according to IEC/EN 61508
* Safe electrical isolation between input, outputs, and supply
* Power supply possible via DIN rail connector
* Installation in zone 2 permitted
* Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators

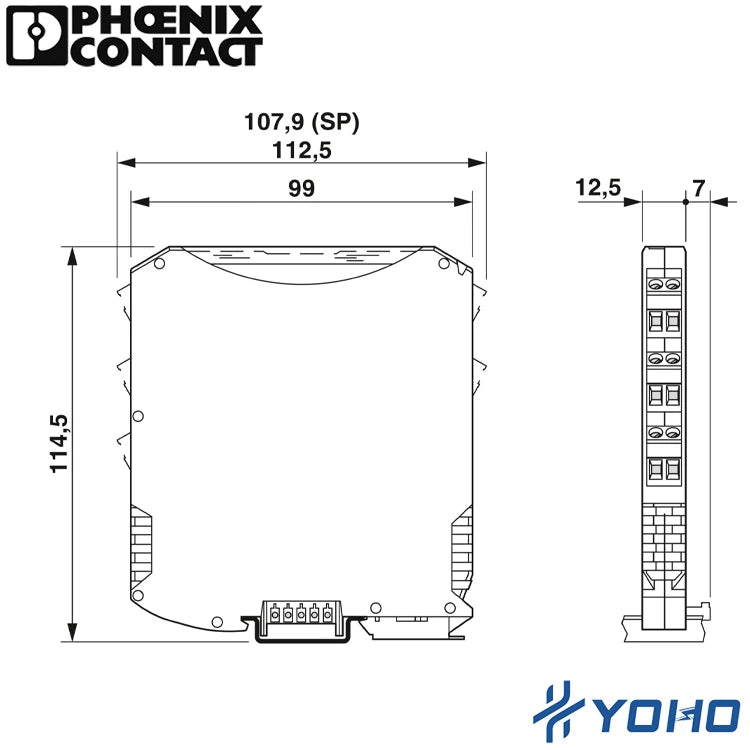

* Housing width: 12.5 mm
* Minimal power dissipation
* High transmission accuracy
* Measuring transducer supply voltage > 16 V
* Two electrically isolated 0/4 mA ... 20 mA (active) outputs
* Bidirectional HART transmission (both outputs)
* Error indication according to NAMUR NE 43
* SIL 2 according to IEC/EN 61508
* Safe electrical isolation between input, outputs, and supply
* Power supply possible via DIN rail connector
* Installation in zone 2 permitted
* Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators
* Housing width: 12.5 mm
* Minimal power dissipation
* High transmission accuracy
Product Paramenters
|
Product name
|
2865366 Ex I Measuring Input Signal Conditioner Transducer Power Supply
|
|
Item number
|
2865366
|
|
Screw thread
|
M3
|
|
GTIN
|
4046356160384
|
|
Product family
|
MACX Analog
|
|
Power consumption
|
≤ 1.8 W
|
|
Degree of protection
|
IP20 (not assessed by UL)
|
