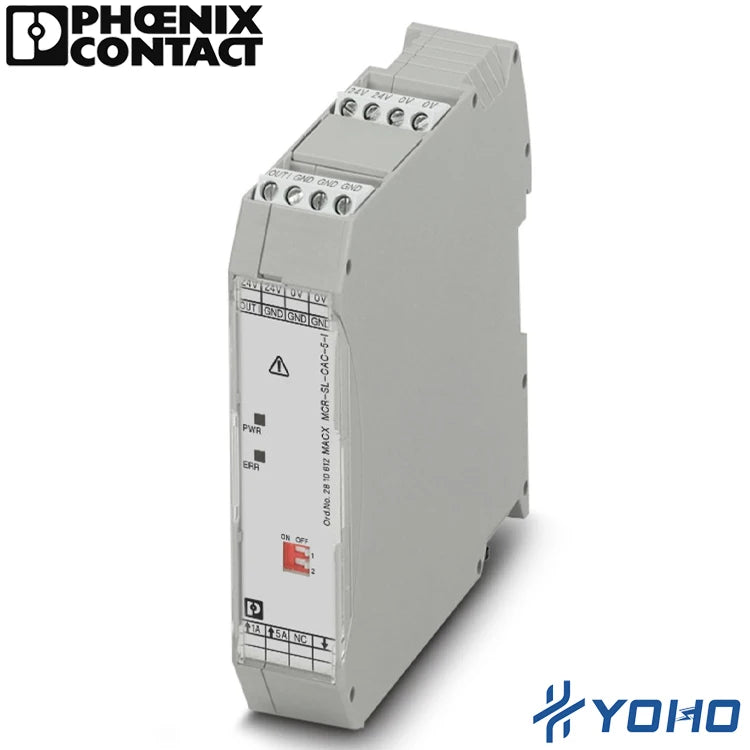

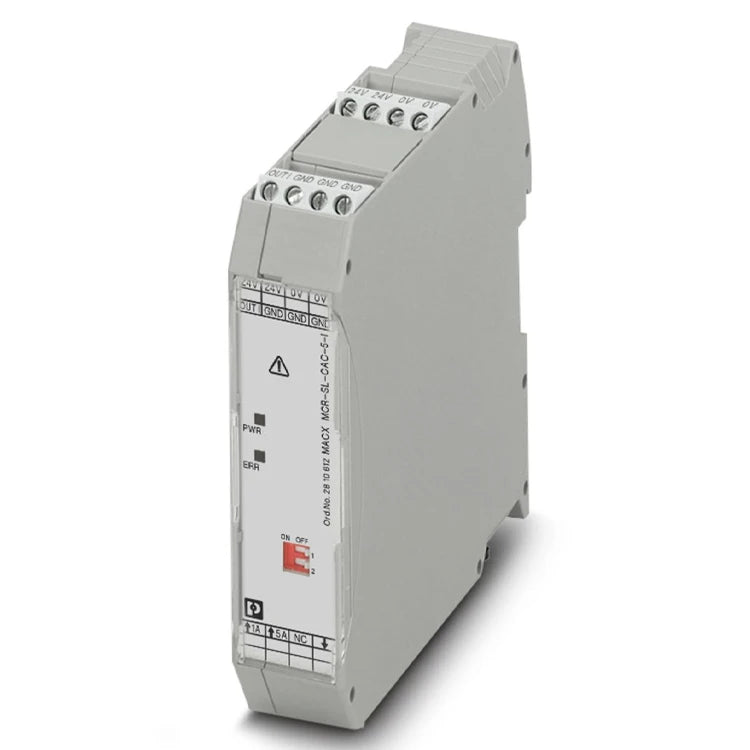

2810612 MACX MCR-SL-CAC- 5-I Current Measuring Transducer
2810612 MACX MCR-SL-CAC- 5-I Current Measuring Transducer
Regular price
$687.70 NZD
Regular price
Sale price
$687.70 NZD
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Model Number : MACX MCR-SL-CAC- 5-I
- Type : Current transducer
- Place of Origin : Germany
- Brand Name : phoenixcontact
- Use : Automation controller and components
- Product name : MACX MCR-SL-CAC- 5-I Current Measuring Transducer For 1 A And 5 A Ac
- Weight per piece (including packing) : 207.2 g
- Sales key : CK4A21
- GTIN : 4046356153775
- Product type : Current transducer
- Rated insulation voltage : 300 V AC (to earth)
- Nominal supply voltage : 24 V DC -20 % ... +25 %
- Voltage input signal : ≤ 300 V AC
- Input impedance : < 50 mΩ
- Frequency measuring range : 45 Hz ... 65 Hz
Products Description
Product advantages
* Easy handling thanks to automatic battery detection, tool-free battery replacement during operation, and communication via the
IFS interface
* Optimum use of the buffer time and preventive monitoring of the energy storage
* Rapid battery charging
* Comprehensive signaling and parameterization
* Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology
* Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current
permanently
IFS interface
* Optimum use of the buffer time and preventive monitoring of the energy storage
* Rapid battery charging
* Comprehensive signaling and parameterization
* Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology
* Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current
permanently
Product Paramenters
|
Product name
|
2810612 Current Measuring Transducer For 1 A And 5 A Ac
|
|
EMC note
|
EMC: class A product, see manufacturer's declaration in the
download area |
|
Protective circuit
|
Surge protection; 35 V suppressor diode
|
|
Test voltage
|
4 kV AC (50 Hz, 60 s)
|
|
Nominal supply voltage
|
24 V DC -20 % ... +25 %
|
|
Supply voltage range
|
19.2 V DC ... 30 V DC
|
|
Configurable/programmable
|
Via DIP switches
|
|
Voltage input signal
|
≤ 300 V AC
|
|
Surge strength
|
20 x IN (1 s)
|
|
Configurable/programmable
|
Via DIP switches
|
|
Connection method
|
Screw connection
|
|
Degree of protection
|
IP20
|
|
Ambient temperature (operation)
|
-25 °C ... 65 °C
|
