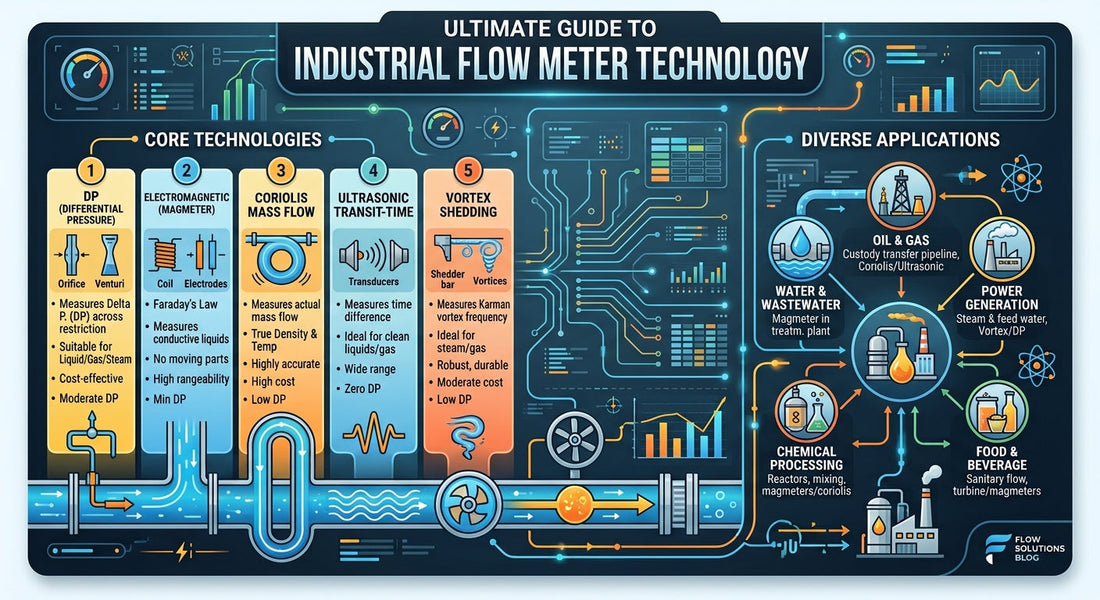

Major Flow meter Technologies

Industrial flow measurement encompasses a wide range of technologies, each relying on distinct physical principles suited to specific fluid dynamics, viscosities, and process conditions. Below is a comprehensive breakdown of the primary flow meter technologies, a comparative selection matrix, and their standard industrial applications.

1. Major Flow Meter Technologies

A. Differential Pressure (DP) Meters

• Working Principle: Based on Bernoulli's principle, these meters introduce a restriction in the pipe (e.g., orifice plate, Venturi tube, or cone), creating a pressure drop (Delta P) that is proportional to the square of the volumetric flow rate.
• Key Advantages: Highly standardized (ISO/AGA standards), no moving parts, versatile across gases, steam, and liquids.
• Limitations: Permanent pressure drop (energy loss), square-root relationship reduces turndown ratio (typically 3:1 or 4:1 without multi-transmitters), requires impulse lines susceptible to clogging or freezing.

B. Electromagnetic (Magmeters)

• Working Principle: Based on Faraday's Law of Electromagnetic Induction. A magnetic field is applied to the metering tube, and as conductive fluid moves through it, a voltage is induced proportional to the velocity.
• Key Advantages: Full-bore design with zero pressure drop, no moving parts, unaffected by fluid density, viscosity, or temperature, excellent for slurries and corrosive liquids.
• Limitations: Fluid must be electrically conductive (typically = or > 5 microS/cm), cannot measure gases or hydrocarbons, requires a full pipe.

C. Coriolis Mass Flow Meters

• Working Principle: Fluid flows through vibrating tubes. The Coriolis effect causes a phase shift or twist in the tubes proportional to the mass flow rate. Density is measured simultaneously via resonant frequency.
• Key Advantages: Direct mass flow measurement (eliminating temperature/pressure compensation for gases), extremely high accuracy, high turndown ratio, no upstream/downstream piping requirements.
• Limitations: High initial capital cost, large footprint/weight for larger line sizes, pressure drop across internal loops, vulnerable to entrained gas in liquids.

D. Ultrasonic Meters

• Working Principle:
  • Transit-Time: Measures the time difference between ultrasonic pulses traveling with and against the fluid flow. Best for clean liquids and gases.
  • Doppler: Measures the frequency shift of waves reflected off bubbles or suspended particles. Best for dirty liquids and slurries.
• Key Advantages: Non-intrusive (clamp-on variants available), zero pressure drop, no moving parts, wide rangeability, bi-directional flow measurement.
• Limitations: Transit-time requires relatively clean fluids with minimal entrained gas; clamp-on accuracy depends heavily on accurate pipe wall and liner thickness inputs.

E. Vortex Shedding Meters

• Working Principle: A bluff body (shedder bar) is placed in the flow stream. As fluid passes, alternating low-pressure vortices (Karman vortex street) are shed downstream at a frequency directly proportional to fluid velocity.
• Key Advantages: Excellent for saturated/superheated steam, gases, and clean liquids; robust construction with no moving parts; low maintenance.
• Limitations: Requires a minimum Reynolds number (unsuitable for very low flows or high viscosities), sensitive to severe pipe vibrations.

F. Positive Displacement (PD) Meters

• Working Principle: Mechanically traps discrete, fixed volumes of fluid (using gears, lobes, or pistons) as it passes through the meter, counting the cycles.
• Key Advantages: Exceptional low-flow accuracy, unaffected by fluid viscosity changes (often performs better with higher viscosity), no power required for mechanical registers.
• Limitations: Contains moving parts subject to mechanical wear, causes significant pressure drop, requires strict upstream filtration to prevent jamming from particulate matter.



2. Technology Comparison

3. Typical Industrial Applications

• Chemical & Petrochemical:
  • Coriolis meters for precise batching and chemical injection dosing.
  • Magmeters for corrosive acid and caustic transfer lines.
• Water & Wastewater Treatment:
  • Magmeters for raw water, effluent, and sludge pipelines.
  • Transit-time ultrasonic for large-diameter gravity mains and potable water distribution networks.
• Power Generation & Utilities:
  • Vortex and DP meters for boiler feedwater, mass steam accounting, and natural gas fuel lines.
• Oil & Gas (Upstream/Midstream):
  • Coriolis and PD meters for custody transfer of crude oil and refined petroleum products.
  • Ultrasonic meters for high-pressure natural gas transmission pipelines (flare gas monitoring).
